Hectospec, the MMT's 300 Optical Fiber‐Fed Spectrograph

The Hectospec is a powerful fiber‐fed spectrograph at the MMT Observatory, in routine operation since 2004 April. In its first year of operation, Hectospec obtained 60,000 spectra during 79 scheduled nights, with 48 nights of clear weather. Hectochelle, Hectospec's high‐dispersion partner spectrograph, was scheduled for an additional 31 nights. In total, Hectospec and Hectochelle were scheduled for 1/3 of the available MMT nights. During Hectospec's first year, it served 16 scientific programs.

Fabricant et al. (1994, 1998b) outline the basic design of the Hectospec fiber positioner, its bench spectrograph, and optical fiber probes. Here we emphasize (1) the design refinements that occurred between 1998 and Hectospec's delivery to the telescope in 2003 August, and (2) Hectospec's performance at the telescope.

The MMT's f/5 optical system is composed of a 6.5 m primary mirror, a 1.7 m secondary mirror, a series of large telescope baffles, a large refractive corrector, and a wave‐front sensor used periodically to correct the figure of the primary mirror and the telescope collimation. Fabricant et al. (2004) contains an overview of these components. Fata & Fabricant (1994) and Callahan et al. (2004) describe the f/5 secondary and its support. Fata & Fabricant (1993) and Fata et al. (2004) discuss the f/5 wide‐field corrector in more detail. Pickering et al. (2004) describe the Shack‐Hartmann f/5 wave‐front sensor.

The wide‐field corrector has two modes of operation. For wide‐field spectroscopy with optical fibers, the corrector provides a 1° diameter field of view on a curved but telecentric focal surface 0.6 m in diameter. The sag of the spectroscopic focal surface is 8 mm. In the imaging mode, the corrector provides a field of view 058 in diameter on a flat focal surface. The spectroscopic mode of the corrector includes counterrotating atmospheric dispersion compensation prisms that are removed for the imaging mode.

The commissioning of Hectospec required the prior installation of the 1.7 m f/5 secondary mirror at the MMT, which took place in 2003 April. The wide‐field corrector and the f/5 wave‐front sensor were commissioned during 2003 May and June. The first commissioning run with Hectospec took place in 2003 October, and during this run we obtained observations of nearby galaxy clusters. The second Hectospec commissioning run was scheduled for 2004 April. In mid 2004 April, Hectospec was placed into routine operation.

Hectochelle uses Hectospec's robotic fiber positioner and optical fibers to feed a high‐dispersion bench spectrograph in place of Hectospec's moderate‐dispersion spectrograph. Single orders, or several overlapping orders, dispersed by Hectochelle's echelle grating are selected with bandpass filters. Szentgyorgyi et al. (1998) describe Hectochelle's design.

Hectospec's robotic fiber positioner is unique for its high fiber‐placement speed while retaining high positioning accuracy. The high‐speed robots meet their design goals reliably: 150 paired moves of the tandem robots in under 300 s, and with a 25 μm fiber positioning accuracy. The fiber robots attain this combination of high speed and accuracy as a result of a very stiff mechanical system that settles rapidly, in addition to powerful servo motors that rapidly accelerate the robots, and a sophisticated control system that incorporates many safety features while minimizing communication overhead between system components.

Hectospec's fiber geometry was first used by Autofib (Parry & Gray 1986), an early robotic fiber‐fed spectrograph for the Anglo‐Australian Telescope with a single Cartesian robot positioning 64 optical fibers. Hectospec's 300 fiber buttons are held onto the (400 series stainless) steel focal surface with NdFeB magnets mounted in the bottom of the fiber button. The magnets provide 200g of holding force normal to the focal surface, and >50g of holding force in the plane of the focal surface.

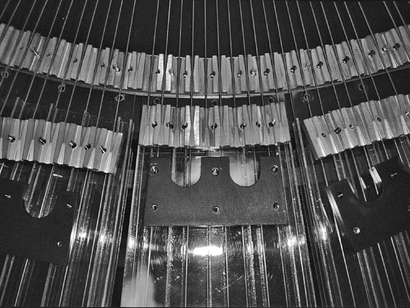

Figure 1 shows a fiber button assembly from three angles. The 1.27 mm diameter stainless steel tube that protects the fiber after its exit from the fiber button is supported on its far end in brass pivot blocks. The fiber pivots are located 430 mm from the focal plane's center. The pivots are arranged in two vertical levels so that the fiber syringes are fed into two vertical levels of separator trays. Using two levels provides more horizontal space in the separator trays and protects the syringes from excessive bending as the fiber button is moved tangentially on the focal surface. Figure 2 shows the (disassembled) fiber pivots outside the edge of the focal surface.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The fiber positioner can be separated into two parts to allow servicing of the robots and optical fibers. The upper unit (Fig. 3) contains the two six‐axis robots and most of the electronics. The lower unit (Fig. 4) contains the fiber probes, the fiber shelves (to prevent tangling of the optical fibers), the three guider probes and their track, the intensified camera for the guider probes, and the fiber derotator assembly that allows the fibers to follow instrument rotation. The two units are separated by removing protective covers and then unbolting the upper end of the struts that connect the two assemblies. Figure 5 is a top view of the assembled upper and lower units.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

A pair of high‐speed, six‐axis robots operating in tandem position Hectospec's 300 optical fibers. Each robot forms a three‐axis Cartesian (XYZ) system that carries a fiber gripper assembly. The Z‐axis assembly (Fig. 6) contains the gripper mechanism and nested gimbals to allow placement of the fiber buttons perpendicular to the curved focal surface. Figure 7 shows the gripper assembly removed from the Z‐axis assembly. The Hectospec gripper design is based on the earlier Hydra design (Barden et al. 1993). Many mechanical details, including parts lists, can be found in the Hectospec Hardware Reference Manual.¹

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

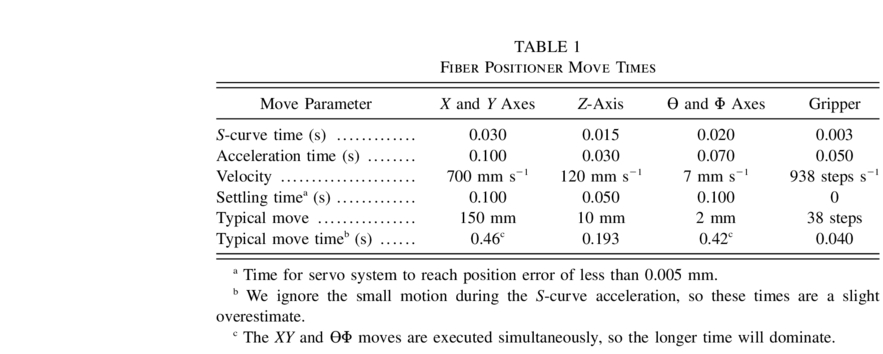

The timing budget for completing a Hectospec fiber repositioning consists of eight steps: (1) coordinated XYΘΦ motion to the next button position, (2) Z‐axis down, (3) gripper close, (4) Z‐axis up, (5) coordinated XYΘΦ motion to the new button position, (6) Z‐axis down, (7) gripper open, and (8) Z‐axis up. In total, each fiber repositioning requires two coordinated XYΘΦ motions, four Z‐axis motions, and two gripper actuations. Table 1 gives approximate times for these motions, which total ∼1.8 s.

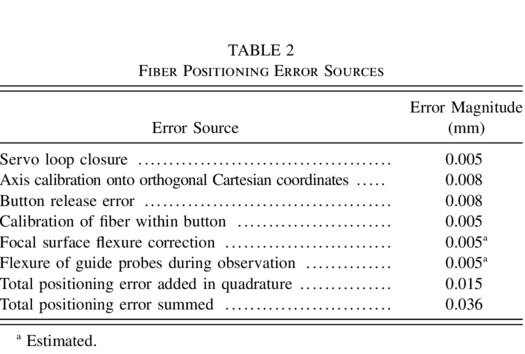

A combination of factors set Hectospec's internal positioning accuracy: (1) the accuracy of the servo loop closure, (2) the calibration of the axis encoders onto an orthogonal Cartesian coordinate system (includes axis home reference repeatability), (3) button movement as the gripper jaws are released, (4) the calibration of the fiber position within the button body, (5) flexure of the focal surface from zenith to the observing position, and (6) flexure in the guide probes over the course of an observation. Hectospec's external positioning accuracy also includes contributions from astrometric errors for the targets and guide stars, and instantaneous tracking errors. Table 2 summarizes the measured and estimated magnitudes of the internal positioning error sources. We set a goal of 0.025 mm for the total internal positioning error; Table 2 shows that the error contributions sum to 0.015 mm in quadrature and 0.036 mm in a worst case straight sum. The actual total internal positioning error lies in between these estimates, or at about 0.025 mm.

The fiber positioning system has multiple levels of safety features built into the hardware and the instrument control software. Our primary goal for these safety features is to prevent collisions between the robots, collisions of the robots with the focal surface or fibers on the focal surface, or high‐speed collisions of the robots into their mechanical limits of travel. Additional safety features act to minimize the resulting damage if a collision occurs. A large number of lower level safety checks stop robot motion on the detection of an error condition that could result in damage to some part of the instrument.

2.5.1. Collision Prevention

2.5.2. Lower Level Safety Features

The major portion of Hectospec's calibration was carried out with a custom grid of dots etched into a 0.61 m diameter Astrosital disk by Max Levy Corporation. This calibration disk is the same diameter as Hectospec's focal surface and is pinned and screwed into three support blocks in the guide probe tracks when in use. The grid is illuminated with high‐frequency fluorescent lamps carried on the robots, and the dot positions are recorded by the intensified cameras carried in the robot gripper assemblies. After averaging for 5–10 s, the noise in the dot‐position measurements is of an order of 2 μm. The dot positions have an intrinsic positional accuracy better than 6 μm. The positions of the dots recorded in the intensified robot cameras as the robots are commanded to move to the nominal dot position allows us to transform the XY encoder positions to an orthogonal Cartesian system. The largest errors prior to calibration are ∼40 μm, a testament to the accuracy of Hectospec's machining and to the quality of the axis rails. Most of this error is due to (1) small rotations of the robots as the gripper assembly moves along its rails, and (2) the position of the encoders at the guide rails 150 mm above the position of the fiber button in the gripper jaws (and the position of the grid dots during calibration). The spacing of the guide blocks on the rails is also about 150 mm, so that deviations of the rail bed will map ∼1:1 to deviations of the gripper jaws. This type of position‐sensing error is commonly known as Abbé error.

The gimbal axes were calibrated using the robot intensified cameras and a fine pattern of dots etched into a smaller grid placed on the focal surface. The Z‐axis scale is accurately determined by a rotary encoder and a precision ball screw driven through a 1:1 precision pulley system. A displacement‐measuring laser interferometer was used to verify that this scale is accurate to better than 1 μm rms over the full range of travel. The ball screw accuracy is so high that we removed an unnecessary LVDT (linear variable differential transformer) intended for Z‐axis feedback. (A small slip of ∼1 μm with each downward movement of the Z‐axis is removed by detecting a home sensor each time the Z‐axis is raised.) The position of the focal surface relative to the robot axes was determined with a Kaman noncontact displacement probe mounted to the gripper assembly. The robots were commanded to move across the focal surface in a grid pattern, and the position of the focal surface was determined at each point.

The main design challenge for Hectospec's electronics was the distribution and routing of cables associated with the 15 motor axes and their associated encoders and limit switches. The weight and volume limits imposed by Hectospec's Cassegrain mounting location precluded mounting the majority of Hectospec's electronics onboard. The relatively large power supplies, servo amplifiers, stepper motor drivers, cable distribution boxes, and signal and power conditioning components are located in remote racks. A total of 20 cables with ∼460 total conductors run between the fiber positioner and these racks, while 10 cables with ∼110 total conductors run between the bench spectrograph and the electronics racks. To maintain high reliability in the signal path, heavy‐duty Mil‐C circular connectors are used where cables must be disconnected to dismount the fiber positioner. The electronics rack contains seven main electronics boxes: (1) an interface box that accepts the Mil‐C cables from the fiber positioner and distributes the signals to internal rack cables, (2) an interface box that performs similar functions for the bench spectrograph cables, (3) a signal conditioning and interface box for the Delta Tau PMAC servo controllers, (4) a pair of servo electronics boxes that contain the X, Y, Z, Θ, Φ servo amplifiers as well as the gripper stepper motor driver, (5) a stepper motor drive bay for the guider probe and spectrograph stepper motors, (6) a power supply box, and (7) a power conditioning and distribution module.

On the fiber positioner, there are four electronics boxes: (1) the main interface box that accepts most of the Mil‐C cables and distributes signals and power to internal cables, (2) a smaller interface box that accepts the Mil‐C cables for the X, Y, Z servo motors, (3) an electronics box with a CPU and active circuits for on‐board control functions, and (4) a small auxiliary box with an overillumination sensor to protect the intensified cameras as well as the power supplies for the fluorescent lamps used to illuminate the calibration grids.

Surge and overvoltage protection is provided in each of the main interface boxes at the fiber positioner, at the bench spectrograph and the rack, and also in the rack‐mounted power conditioning box. Further details can be found in the Hectospec Hardware Reference Manual (see footnote 1).

The guider probes each move one section of a trifurcated coherent fiber bundle along an 86° arc just outside the focal surface plate that supports the fiber probes at the MMT focus. Fabricant et al. (1998b) describe the basic geometry of the guider probes. The guider probes are actuated along a curved rail by a stepper motor driving a pinion gear against a large‐diameter fixed gear. The guider probe has a brake mechanism, released by a solenoid, to hold the probe in place after the guider probe is positioned with the telescope zenith pointing. The largest challenge with this mechanism was designing a brake mechanism that would grip firmly and that could be released with the limited force available from the solenoid. Limited clearance from the structure precluded use of a large solenoid, and we reworked this mechanism twice to reduce the friction in the brake release mechanism. In future instruments, pneumatic actuators might be a good replacement for the solenoids, because the pneumatic actuators offer a better power‐to‐weight ratio and do not dissipate as much heat.

The Hectospec fiber positioner is controlled by a Motorola 142 VME single‐board computer running Linux. This computer is mounted in the same VME rack that houses the two VME Delta Tau PMAC servo controllers. The HCTSERV server program running on the Motorola 142 accepts high‐ and low‐level commands from clients and issues the appropriate motion control commands to the PMACs. Normally, the fiber positioner is operated by sending a high‐level sequence command to move the fibers from one configuration to another. The sequence begins when the client program reads the current fiber configuration from the HCTSERV server; this is stored in static memory. The client computes the sequence of fiber pick‐and‐place operations required to go from the current to the new configuration, and prepares a sequence table of paired pick‐and‐place moves for the two robots. The sequence table is sent to the HCTSERV server, which checks that the sequence table can execute without crossing fibers or causing the robots to collide. Each paired move is successively loaded into the PMAC and executed.

A rack‐mounted Intel‐based PC running Linux ("Snappy") contains three Data Translation DT3155 frame grabber boards that capture images from the two robot TV guiders and the three guider probes. Snappy also communicates with the fiber positioner's internal electronic box through an RS‐232 interface to control the gain of the intensified TV guider cameras, to control internal lamps, and to monitor motor temperatures. A guider server running on a remote computer acquires guide frames from Snappy and calculates guide corrections for the telescope.

Fabricant et al. (1998b) describe the mechanical layout of Hectospec (see also Fabricant et al. 1994), and Fata & Fabricant (1998) describe the optics mounts. Here we describe the Dewar assembly and rotary shutter not previously discussed in the literature.

3.1.1. Dewar Design

Hectospec uses an internal‐focus catadioptric camera (Fabricant et al. 1994, 1998b). Thus, there is a premium on minimizing the footprint of the CCD Dewar support structure in the beam. The CCD Dewar is an ∼100 mm diameter cylinder supported on a thin vertical foot by a thin‐section horizontal evacuated tube that surrounds the Dewar's cold strap. The cold strap runs between the Dewar and a liquid N₂ cryostat mounted outside the optical beam running to and from the on‐axis camera mirror. The Dewar window also serves as a field‐flattener lens for the camera. Figure 8 shows the Dewar assembly. The Dewar assembly is mounted on a focus stage.

Zoom In Zoom Out Reset image size

3.1.2. Rotary Shutter

At the spectrograph entrance "slit," the optical fibers are arranged in two parallel columns spaced ∼1.6 mm apart. The fibers in each column are spaced on 0.96 mm centers, but the two columns are offset by 0.48 mm, giving a final effective fiber‐to‐fiber spacing of 0.48 mm. The width of the structure holding the fibers, the "fiber shoe," has been minimized to reduce the obscuration of the beam returning past the fibers from the on‐axis collimator mirror. A narrow rotary shutter assembly is mounted on the fiber shoe in front of the optical fibers. The rotating part of the shutter is an ∼150 mm long slotted cylinder. The shutter is toggled between open and closed with a 90° rotation, actuated with a stepper motor. The rotary shutter assembly mounted on the fiber shoe is shown in Figure 9.

Zoom In Zoom Out Reset image size

Hectospec uses two E2V model 42‐90 4608 × 2048 CCDs with 13.5 μm pixels arranged in a 4608 × 4096 array. The long axis of the CCDs are parallel to dispersion. Hectospec's CCDs have superb cosmetic quality, and the entire two‐CCD array has only a single bad column. At a readout rate of 100,000 pixels s⁻¹, the readout noise is 2.8 e⁻ rms. At the operating temperature of −120°C, the dark current is very low: 1 e⁻ in 900 s of integration. The electronics have a gain of 1 e⁻ ADU⁻¹, matching to a few percent between the four amplifiers. The count rate due to background radiation is 1 event s⁻¹, integrated over the region occupied by the fiber spectra on the two‐CCD array.

Hectospec shares its array controller electronics design with the other MMT f/5 optical and infrared instruments, including Hectochelle, Megacam, and SWIRC. The design of these electronics was driven by the requirements of the 72 channel Megacam version (Geary 2000). Hectospec's two CCDs are read out through four amplifiers in 46 s.

3.3.1. Image Quality

3.3.2. Optical Coatings

Hectospec's 259 mm collimated beam diameter requires large custom‐ruled gratings. Hectospec currently has two gratings: a 270 groove mm⁻¹ grating blazed at 5000 Å, and a 600 groove mm⁻¹ grating blazed at 6000 Å. In both cases we specified a 5000 Å blaze, but the blaze angle has proven to be the most difficult parameter to control in ruling these large gratings. The 6000 Å blaze for the 600 groove mm⁻¹ grating was the closest to specification achieved in four attempts. The 270 groove mm⁻¹ grating provides a dispersion of 1.2 Å pixel⁻¹ and a resolution of 6.2 Å FWHM. The 600 groove mm⁻¹ grating provides a dispersion of 0.5 Å pixel⁻¹ and a resolution of 2.6 Å FWHM. Both gratings have a peak absolute efficiency of 72%. Higher ruling density gratings might be best provided by assembling grating mosaics.

The design of the optical fiber run between the fiber positioner and bench spectrograph turned out to be a much larger challenge than we had imagined during the Hectospec's conceptual design phase. Optical fibers offer a unique means of mapping a spectrograph slit efficiently onto a large number of objects distributed over a very large field of view. However, fibers must be used carefully if they are not to severely compromise the sensitivity of the spectrograph by degrading the focal ratio of the light incident on the fiber. Degradation of the focal ratio in a fiber results in a loss of light in the spectrograph optics unless the spectrograph optics are significantly oversized. Oversizing the optics is expensive in a spectrograph as large as Hectospec's, and forming good images from the light scattered into faster focal ratios makes a difficult optical design problem even harder. Focal ratio degradation arises from mechanical stress of the fibers and will typically cause time‐variable throughput losses as the stress experienced by the fibers changes as the telescope pointing direction changes. These throughput variations are doubly troublesome because good sky subtraction relies on an accurate fiber‐to‐fiber throughput calibration.

We were aware from the time that we began work on Hectospec that the mounting details of the fibers in the fiber probes at the fiber positioner end and in the fiber slit at the spectrograph end of the fibers are important for controlling focal ratio degradation, but our test program demonstrated the importance of what happens in between. We engineered thermal breaks in the Teflon tubing to address the thermal expansion mismatch between the fused‐silica fiber and the Teflon tubes that protect the fibers. Fabricant et al. (1998b) describe the basic design elements that we used to control focal ratio degradation in the fiber run. The other important design driver for the fiber run is that it must allow easy mounting and dismounting of the Hectospec on the telescope. Figure 10 shows the design of the fiber run and the position of the thermal breaks that allow for the differential thermal expansion of the fibers and their protective Teflon tubes. Figure 11 is a close‐up of one of the four thermal breaks in the fiber run.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Our specifications called for a total fiber throughput of 75% at 6000 Å into a focal ratio of f/5.3, the final focal ratio of the spectroscopic wide‐field corrector and the design focal ratio of the Hectospec bench spectrograph. At 6000 Å the internal absorption of Hectospec's 26 m long fibers is 6%, the Fresnel reflection loss at the uncoated BSM51Y prisms at the fiber input end is 5.3%, and the Fresnel loss at the bare fiber output end is 3.5%. The total throughput accounting for only these three fiber losses is 86%, requiring that 87% of the light entering the fibers at f/5.3 exit within an f/5.3 cone if the total throughput specification is to be met. As Figure 12 shows, we met our goal for total fiber throughput, with an average throughput of 77% and a standard deviation of 2%.

Zoom In Zoom Out Reset image size

Roll et al. (1998) describe the basic algorithms used in Hectospec observation planning to match fiber probes to targets. Currently, each Hectospec observer is responsible for planning the fiber configurations to be used at the telescope. The observer begins by assembling a catalog containing the desired targets, as well as potential guide stars in the field. Observers may priority rank targets in the catalog and assign a minimum and maximum number of fibers to each rank. The guide stars and the targets must have excellent relative astrometry, because the guide stars establish the field alignment. The observer uses the XFITFIBS program to create instrument configuration files from the input catalog. XFITFIBS combines the observation‐planning software with a graphical user interface (GUI). The observer may use XFITFIBS to plan multiple fiber configurations with multiple field centers and to rank these centers in priority.

In addition to matching fibers to targets, XFITFIBS selects guide stars and assigns fibers for the measurement of the sky background. The user can drag field centers with a mouse or enter new field centers into a table and view the effects on a graphical display. The display indicates guide stars within range of the guide probes, as well as those accessible by changing the instrument rotator angle. The XFITFIBS software derives guide star magnitudes from either the 2MASS (Two Micron All Sky Survey) or GSC2 catalogs, removes stars outside the specified magnitude range, and in addition uses GSC2 classifications or SExtractor classification from DSS (Digitized Sky Survey) images to remove nonstellar objects. Stars with close companions or brighter neighbors in the field of the guide probes are also excluded. The selection of bright guide stars (R<16) minimizes setup time with the intensified robot and guide cameras, and allows operation in the full Moon.

Hectospec is operated in queue mode to make efficient use of valuable telescope time and to evenly distribute any time lost due to weather or telescope and instrument malfunctions. The goal of the queue scheduling is to distribute the available productive observing time proportionally to the nights scheduled by the time allocation committees. The MMT is scheduled in trimesters, and the queue scheduling period is for a single trimester at a time. The queue schedule must be continually updated throughout an observing run, in response to the weather conditions and telescope/instrument performance. The observers provide the queue manager with completed fiber configurations, which include the sequence of observations, the fiber layout, and valid guide stars. These layouts are checked and then scheduled as time permits. The fiber positioner is operated by experienced robot operators on behalf of the queue. The robot operator also oversees the acquisition of calibration data in the late afternoon and early evening, which include HeNeAr wavelength calibrations, incandescent lamps for flat‐fielding, and typically twilight sky flat‐field exposures. During the night, observers who are assigned telescope time operate the spectrograph and evaluate the data quality on behalf of the queue. Observers thereby gain first‐hand experience with Hectospec's operation and capabilities, avoiding some of the communication difficulties that others have reported in the operation of observing queues that are isolated from the scientist who will ultimately use the data.

5.3.1. Hobserve

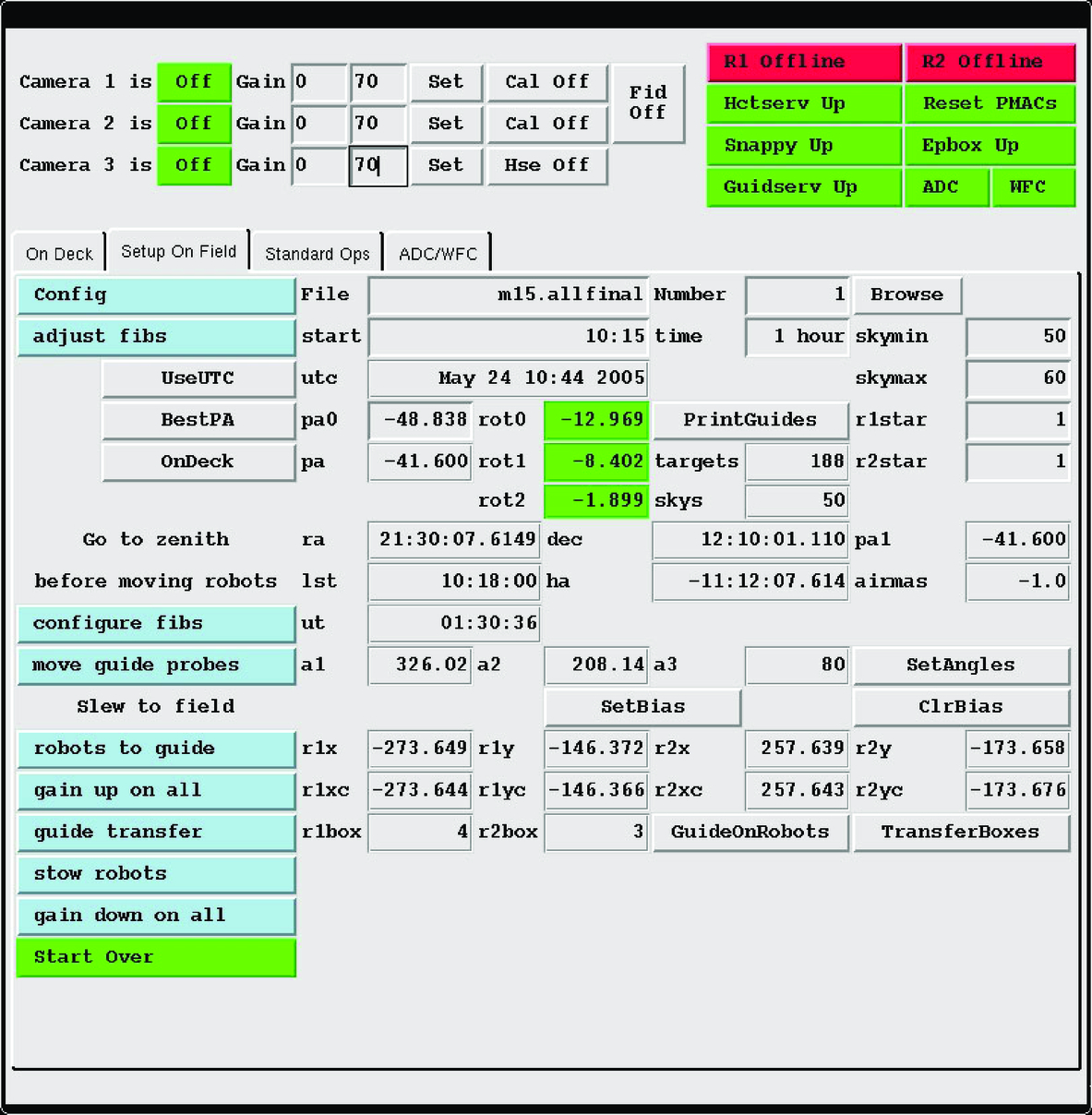

Hobserve (Fig. 13) is a Tcl/Tk script that provides a step‐by‐step procedural interface that guides the robot operator through the procedure of calculating the appropriate fiber configuration for the chosen observing time, calculating the sequence of fiber moves required to attain that configuration, issuing the move commands to the robots, and setting up the guiding on the field with the preselected guide stars. A separate GUI (guidegui; Fig. 14) displays the guide star images superposed on the guider target positions. The Hobserve script coordinates the actions of several servers and calls other high‐level shell scripts to accomplish its functions.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

5.3.2. SPICE

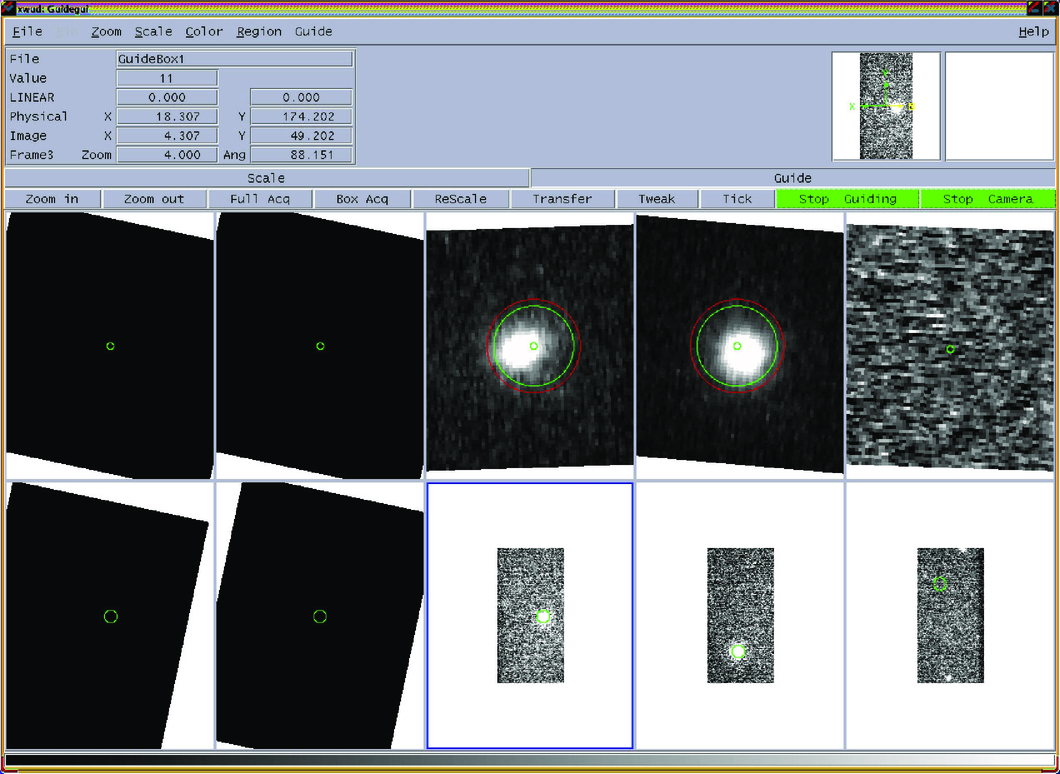

The SPICE Tcl/Tk program (Fig. 15) provides a GUI interface to the spectrograph and camera controls and sequences the operations for various types of exposures. The GUI consists of two fixed displays at the top of the window, along with several tab‐selectable displays that appear at the bottom of the window. The upper fixed display indicates the status of the system power controls and the software servers that control hardware components. The text message within the status buttons, and the color of the status buttons, change together to indicate the instrument state. Toggling these buttons toggles the state of the power or software server. The lower fixed display provides housekeeping information as well as exposure status. The housekeeping items include the Dewar temperature, the status of the calibration lamps, the tracking status of the ADC (atmospheric dispersion compensation) prisms, and the position of the wave‐front sensor carriage. The exposure status information includes the current exposure count within the requested number of exposures, the current exposure type (sky flat, object, bias, dark, etc.), and the current exposure state (exposing, reading out, etc.).

Zoom In Zoom Out Reset image size

The observer can select one of four user‐selectable tabbed displays: an initialization tool, a standard operations tool, a calibration lamp tool, and an observing log tool. The initialization tool controls the sequencing of powering up and homing the three spectrograph axes (shutter, focus, and grating stage), as well as bringing up the required software servers.

The standard operations tool is the main tabbed display window that the observer uses to acquire data and control the spectrograph. Within this window the grating rotation, focus position, and shutter status are displayed and can be controlled. The current fiber configuration file name is displayed, but the fiber configuration is controlled from the Hobserve interface. The observer selects the desired exposure type from a pull‐down menu (object, dark, bias, dome flat, HeNeAr, focus, etc.) and specifies the desired exposure time and number of exposures. Pressing "Go" initiates the exposure sequence. During the initialization of the exposure, the software checks for possible problems, including a mismatch between the requested and encoded grating rotation and focus position, blocking by the wave‐front sensor, illumination of calibration lamps at inappropriate times, lack of guiding signals, and ADC prism tracking turned off. The focus procedure automatically moves the grating to the zero‐order position and takes a sequence of CCD charge‐shifted exposures at different focus settings. The grating is returned to its nominal position at the end of the focus run. Focus changes during a run appear to be negligible.

The calibration lamp tool allows the observer to control the calibration lamps that illuminate a screen mounted on the MMT building shutters. The calibration lamps are mounted in four identical lamp boxes mounted in the MMT chamber. Lamp status, lamp voltages, and lamps currents are displayed in a comprehensive color‐coded table.

The observing log tool provides a summary of each of the exposures in the selected night's directory plus a text box for the observer to annotate each exposure. A postscript‐formatted observing log of all the exposures (with observer comments) for the current night is produced and archived.

At the beginning of the night or during an exposure on the previous field, the robot operator loads in the next fiber configuration in the "on‐deck" window of Hobserve. The expected start time and exposure duration of the observation are entered, and the fiber positions are retweaked for the air mass and instrument rotator position at the expected exposure midpoint. Depending on the nominal position angle entered during observation planning, the rotator demand angles may exceed the ±90° soft limits. Therefore, the position angle can be reset by the robot operator to minimize the rotator demand angles. If guide stars are available in two of the three guide star probes, the "on‐deck" configuration is ready to go. If two guide stars are not available at this position angle, the position angle can be manually adjusted to find minimum rotator demand angles consistent with obtaining two guide stars. In the worst case, if two guide stars are not available at acceptable rotator angles, another configuration can be chosen without loss of observing time.

We begin the reconfiguration process by slewing the telescope to the zenith. The robots are capable of operating at any combination of zenith angle and rotator angle, but we reconfigure the fibers with the telescope zenith pointing to minimize the power dissipation and load on the drive components. After the robots reposition the fibers, the guide probes are moved to correct guide star positions. The telescope is then slewed to a bright star near the field position, and the wave‐front sensor is deployed to correct the primary support forces and telescope collimation. While the wave‐front sensor probe is retracted, the telescope is slewed to the field position, and the instrument rotator is set to track the desired position angle. The robot guide cameras are sent to the guide star positions, and the telescope pointing and the rotator angle are adjusted with autoguiding software until the guide stars appear at the positions corresponding to a fiber held in the gripper jaws. A pellicle beam splitter in the robot optical train allows 50% of the light to pass through to the guide probes. The positions of the guide stars in the guide probes are captured, and the guiding is then transferred to the guide probes. This procedure directly ties the guiding to the robot‐defined coordinate system upon which the fibers are positioned. As soon as the robots are parked, an observation can begin.

We measured the throughput of Hectospec with the spectrophotometric standard star BD +28 4211, stepping the star across one of Hectospec's fibers to determine the point of maximum throughput to eliminate light loss due to astrometric errors. With a direct spectrograph, the entrance aperture is normally opened as wide as possible to separate the measurement of spectrograph throughput from aperture losses. With fibers, the entrance aperture is fixed, and we measure total throughput, including aperture losses. Figure 16 shows the derived throughput measurement for BD +28 4211 in 1^'' FWHM seeing. We have separately calculated the aperture losses for Hectospec's 15 diameter fibers as a function of seeing using images obtained with Megacam; in 1^'' FWHM seeing we find that a 15 diameter contains 59% of the light, giving an aperture correction of 1.7. Referring to Figure 16 and applying this correction, the system throughput peaks at ∼17% between 5000 and 6000 Å. Our prediction for the total system throughput peaked at 20% in the same wavelength region, in reasonable agreement with the measurement.

Zoom In Zoom Out Reset image size

The room that encloses the Hectospec and Hectochelle bench spectrographs is one level above the telescope chamber floor and shares a common wall with the telescope chamber. The spectrograph room is not well insulated from the telescope chamber, due to several doors and perforations. As a result, the temperature in the spectrograph room fluctuates considerably more than we had planned. The nightly temperature swings lead to temperature gradients in the optical bench and optical mounts that cause thermally induced image motion with a maximum excursion of 1 pixel in both the spatial and spectral directions during the course of a night. Larger shifts of a few pixels occur over the course of an observing run. As discussed in § 7.2, the shifts during a night are easily corrected by tracing the positions of the fiber spectra and by tracking the positions of night‐sky emission lines. In 2005 August, we replaced the coated black cloth enclosing the bench spectrographs to prevent light leaks with light‐tight insulated panels. This replacement removed the potential fire hazard of the light‐tight but flammable cloth and improved the thermal insulation in the spectrograph room.

Our finite‐element models of Hectospec predicted that the Hectospec's focal plane assembly (onto which the fibers are attached) would shift by ∼50 μm relative to the robot's gripper assembly as the telescope pointing changes from zenith to an elevation angle of 30°. This flexure is relevant because we use the robots to establish the correct position of the guide stars in the guider probes. We took advantage of a cloudy night to measure this flexure by placing the fibers on the focal surface at the zenith in the usual fashion, tipping the telescope in elevation, and measuring the position of the back‐lit fibers. The average deflections that we measured moving from an elevation angle of 90° to an elevation angle of 30° are 40 μm in one robot and 42 μm in the other. We also noticed that rotating the instrument rotator produces repeatable deflections of up to 25 μm if the elevation angle is held constant. Rotator‐induced deflections were anticipated, and they set stringent requirements on the accuracy of the rotator bearing.

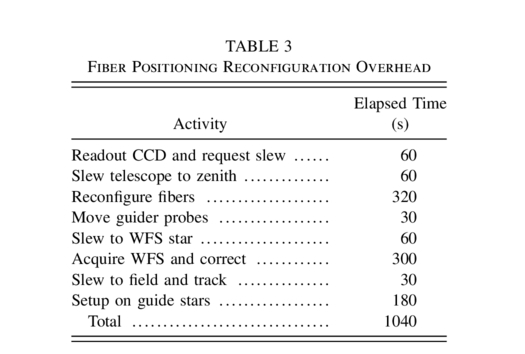

The elapsed time between completing an exposure on one field and beginning another is 1040 s. Table 3 lists the items that contribute to the observing overhead. The observing overhead will drop slightly with increased automation of the wave‐front sensing procedure, but is unlikely to drop much below 900 s.

Hectospec has proven to be reliable at the telescope, despite its complexity. We have lost ∼4 nights of observing time in Hectospec's first year of operation, due to instrument malfunctions. The most serious incident occurred in 2004 July. A backlash removal spring in the gripper mechanism failed, and the gripper misplaced a button. During the diagnosis and recovery process, a series of low‐level robot commands were issued, and the robots were inadvertently parked with a fiber caught in the gripper jaws. This event resulted in the spectacular destruction of the captured optical fiber. The damaged fiber was replaced with a spare fiber from one of the five spare groups of fibers, and the antibacklash springs in both grippers were replaced with longer springs of the same spring constant. Our analysis revealed that the original spring was repeatedly overstressed in normal operation. We have also revised our procedures to require visual inspection of the Hectospec focal plane and fiber positions before executing low‐level robot commands.

Two of the other Hectospec malfunctions involved the guide probes. During the first incident, the guider probe braking mechanism on one of the probes stuck open, causing the guide probes to fall out of position as the telescope was slewed away from the zenith. The problem was traced to excessive friction on the brake guide shafts, which was removed by polishing the shafts on all three guider probes. The second incident was caused by the guider brake failing to release on one of the guider probes. This problem was traced to a loose connector, which was possibly not fully seated following the brake shaft rework.

The ∼5000 spectra produced nightly by the Hectospec are reduced using a semiautomated pipeline; typically, this reduction is completed by the afternoon following the observations. The reduction yields a catalog of redshifts, errors, signal‐to‐noise ratio (S/N) estimates, and crude spectral types in time to modify the next night's observing plans, if necessary. Mink et al. (2005) give an overview of the entire data flow, from forming the observing catalog to archiving and releasing the final reduced spectra. Here we describe the steps taken to reduce the raw CCD frames into a set of wavelength‐calibrated spectra with redshifts. The system rests on the IRAF spectral reduction packages (Valdes 1992) and the IRAF task dofibers (Valdes 1995). The process is controlled by a set of custom IRAF CL scripts similar to those that control the reduction of data from the FAST spectrograph (Tokarz & Roll 1997).

Accurate wavelength calibrations are crucial to the performance of fiber spectrographs on large‐aperture telescopes. Small wavelength‐calibration errors cause artifacts in the subtraction of the near‐infrared OH night‐sky lines that mask or mimic the appearance of Hα emission at z≥0.2. In a 1 hr exposure, Hectospec is routinely able to measure spectra for galaxies with central I‐band surface brightnesses that are 10% of the night‐sky brightness.

Our basic wavelength‐calibration procedure consists of fitting the centers of emission lines produced by our Fe‐cathode NeAr hollow cathode lamp with a low‐order polynomial, once for each fiber, following the standard procedures in dofibers. Typical scatter about these fits is 0.06 Å, consistent with the error in determining individual line centers. A single set of (typically) five calibration exposures is taken in the late afternoon, with eight NeAr lamps illuminating panels on the MMT building's shutters.

The next step in the procedure corrects for thermally induced spectral shifts. Purely linear image shifts can be removed easily. Figure 17 shows the image motion in the dispersion direction for a typical week of observing in 2005 April. These shifts are obtained by cross‐correlating a 1000 Å wide image section centered near the 8399 Å night‐sky line taken from the first on‐sky CCD frame taken each night; thus, the drift shown in Figure 17 is reset to zero each night. Typical nightly image motion is less than 1 pixel. The image motions in the direction perpendicular to the dispersion show similar patterns and extents; the two components of motion are not strongly correlated.

Zoom In Zoom Out Reset image size

Any nonlinear shifts would appear to first order as stretches or rotations. Figure 18 shows the differences in the shift as measured by cross‐correlation of image segments centered around 8399 and 5577 Å for the same week in 2005 April shown in Figure 17. Note that the y‐axis scale has been expanded by a factor of 5. The results are consistent with zero distortion within the measurement error of 0.02 pixels. A similar analysis shows that image rotations are also consistent with zero. A systematic change in the image scale of one part in 100,000 over 12 hr would result in a change in the measured distance of 0.02 pixels between 8399 and 5577 Å. This is the level of the scatter in Figure 18, and it represents a lower limit on the image stability.

Zoom In Zoom Out Reset image size

While the shifts measured by direct image correlation could put all on‐sky images onto the same system before the extraction of the one‐dimensional spectra, this procedure would not solve the problem of putting the on‐sky images onto the same system as the NeArFe calibration spectra. We choose to make the correction after the (curved) one‐dimensional spectra have been extracted, but before they are rebinned into wavelength space. Compared with shifting before extracting, this correction induces an error that is proportional to the sine of the difference in the angle of curvature of the spectra between the NeArFe spectrum and the on‐sky spectrum, at each fixed pixel position. For image shifts of ∼1 pixel, even for the most highly curved spectra, this error is negligible compared with the other sources of error.

We use the standard apextract techniques, determining the shift perpendicular to the dispersion direction by image correlation with the flat‐field image (which must be taken at nearly the same time as the NeArFe calibrations). After extracting the 300 spectra from the image, we simply measure the centroid of the 5577 Å night‐sky line, in pixel space, and calculate (for each spectrum) the shift in pixels between that position and its expected position, as determined from the (300) NeAr solutions. We assign the median shift to be the shift in the dispersion direction for the entire image, and modify the wavelength polynomials accordingly. Finally, we rebin the spectra into equal‐wavelength pixels.

Figure 19 shows the pixel shifts for each spectrum on the night of 2005 April 10, which is broadly typical. Each point represents one spectrum, and each set of 300 points represents one CCD frame. The spectra from each frame are plotted in order, and the time between frames is not shown but can be seen in Figure 17 (the night in Fig. 19 is the second from the right). Three things are apparent in Figure 19: (1) the shifts in the position of 5577 Å are large when compared with other effects, (2) the shifts change smoothly, but with occasional discontinuities resulting from apextract's choice of zero point. The discontinuities demonstrate clearly that the shifts must be corrected before spectra can be combined. Finally, (3) each set of 300 spectra (from a single frame) shows small systematic differences in the shift as a function of position in the frame. The amplitude of this shift, from top to bottom, is similar to the scatter in the measurement of a single line center. The origin of this shift is unknown, but it is not due to systematic errors in the wavelength polynomial. We currently do not correct for this small effect.

Zoom In Zoom Out Reset image size

Figure 20 shows the final measured positions for the 8399 Å night‐sky line after the spectra from Figure 19 have been wavelength calibrated and rebinned into 1 Å wide equal‐wavelength bins. The scatter about the expected value is 0.092 Å, which includes the small systematic errors seen in Figure 19. The offset of 0.075 Å is approximately constant throughout the night and may be attributed to errors in the calibration polynomial, as there is no apparent drift.

Zoom In Zoom Out Reset image size

The removal of the night‐sky spectrum from observations of faint objects made with fiber optic spectrographs has long been viewed as problematic (e.g., Wyse & Gilmore 1992; Lissandrini et al. 1994; Watson et al. 1998). Recently, methods have been developed that fit local variations from the mean sky due to changes in fiber transmission, focus, etc., by means of eigenvector techniques (Kurtz & Mink 2000) and B‐splines (Marinoni et al. 2001). The stability of Hectospec's bench spectrograph allows us to reach near‐Poisson‐limited sky subtraction without having to resort to the use of eigenvectors or B‐splines.

Typically, 30 Hectospec fibers (10% of the total) are allocated to blank sky observations. We reduce the data for each of the two CCD chips separately, because combining sky spectra from the two chips degrades performance. The point‐spread functions of the two CCDs differ by ∼0.2 pixels FWHM, apparently due to differences in the CCD charge diffusion.

We check for objects contaminating the sky spectra in two ways. First, we divide each sky spectrum by the mean of all the sky spectra. When the rms pixel value exceeds a threshold, the sky spectrum is considered contaminated and is rejected. Second, we subtract the (revised) mean sky spectrum from each remaining sky spectrum, then correlate the residuals against our absorption‐ and emission‐line galaxy templates; spectra that yield significant redshifts (significance is determined by the Tonry & Davis [1979] r‐statistic) are contaminated by galaxian or stellar light and are rejected. For a typical sample, taken in 2005 March and April, 181 of 972 sky spectra (∼19%) were found to be contaminated using this test.

We subtract the sky from each object spectrum by averaging the six closest (clean) sky spectra. We rescale this average so that the flux in the OH λ8399 line matches the flux in the object spectrum, and then simply subtract the rescaled sky spectrum from the object spectrum. For galaxies with R∼20, this procedure works very well. We test the limits of the technique by applying it to the measurement of substantially fainter spectra.

We chose 222 objects from a deep galaxy survey (I. Dell'Antonio et al. 2005, private communication) that were evenly distributed in V - R in the range 0.0<V - R<1.3. One‐third were evenly divided in bright magnitude, 21<R<22, and two thirds were evenly divided in faint magnitude, 22<R<22.5; Figure 21 shows the distribution of objects. These objects were observed in two different Hectospec configurations before and after transit. The first observation had 160 minutes of exposure, the second 120 minutes. The two data sets were reduced separately, then summed to provide the final spectra. We obtained reliable redshifts for 137 of these objects; the remainder had insufficient S/N to obtain redshifts. The solid dots in Figure 21 show the galaxies with redshifts; they tend to be brighter and bluer.

Zoom In Zoom Out Reset image size

Figure 22 shows the success rate as a function of the 15 diameter aperture magnitude, which corresponds to the light down the fiber. The success rate falls rapidly for objects fainter then R₁₅ = 23.0; essentially all of the lower central surface brightness objects with reliable redshifts are emission‐line objects.

Zoom In Zoom Out Reset image size

Figure 23 shows a 280 minute exposure spectrum of a galaxy at z = 0.71 with R = 22.0 and R₁₅ = 22.97 prior to sky subtraction. Figure 24 shows the spectrum after sky subtraction and after application of an 8 Å smoothing window. The Ca ii K line for this galaxy is detected in absorption at ∼1.5 σ significance. There are about 450 independent 10 pixel wide regions in this spectrum; we would expect about 30 of these to have positive fluctuations greater than the size of the K line, and 30 to have negative fluctuations. This behavior is approximately what we see in this spectrum, taking into account that the intensity of the sky radiation (and thus the size of the statistical fluctuations) is in some places substantially higher than at the location of the K line.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The coincidence of several features allows a reliable redshift to be determined in this case, but the existence of many similar sized noise spikes suggests that the spectrum of this R∼22 galaxy is near the limit. Were this object at z = 1.0, the light entering the fiber would be reduced by half, and the spectral lines would be redshifted into the OH night‐sky line forest. With perfect sky subtraction, the K line would be about a 0.3 σ effect; redshift determinations are impossible at these levels. While in theory substantially longer exposures could be made to measure higher redshift objects, in practice it makes more sense to use higher resolution to isolate the night‐sky features (Davis et al. 2003). A 600 line grating blazed in the red for the Hectospec will see first light during the second half of 2005.

We are grateful for the contributions of the entire MMT instrument team, students, and the MMT and Whipple Observatory staff. We thank Steve Amato, David Becker, Kevin Bennett, David Bosworth, David Boyd, Daniel Blanco, William Brymer, David Caldwell, Richard Cho, Shawn Callahan, Florine Collette, Dylan Curley, Emilio Falco, Craig Foltz, Art Gentile, Everett Johnston, Sheila Kannappan, Frank Licata, Steve Nichols, Dale Noll, Ricardo Ortiz, Tim Pickering, Frank Rivera, Phil Ritz, Rachel Roll, Cory Sassaman, Gary Schmidt, Dennis Smith, Ken Van Horn, David Weaver, Grant Williams, and J. T. Williams. We thank the Hectospec robot operators, Perry Berlind and Mike Calkins, and the MMT operators, Mike Alegria, Alejandra Milone, and John McAfee. We are grateful to the efforts of the Harvard College Observatory Model Shop, led by Larry Knowles. We thank Robert Dew and Diane Nutter of Cleveland Crystals, and Terry Facey, formerly of Goodrich Optical Systems.
