TIME-RESOLVED ANALYSIS OF FERMI GAMMA-RAY BURSTS WITH FAST- AND SLOW-COOLED SYNCHROTRON PHOTON MODELS

While no definitive model for the non-thermal emission of GRBs exists, electron synchrotron is the simplest and most efficient non-thermal emission process that could account for the prompt GRB radiation. It is a natural first choice in moving from the traditional use of empirical fitting functions to physical models, which will then afford more reliable tests for characterizing the GRB environment. In B11, we implemented a parameterized synchrotron model for fitting GRB data directly. We implemented a synchrotron model first used in fitting the deconvolved spectra of GRBs by Tavani (1996) and later by Baring & Braby (2004). Sari et al. (1998) identified two regimes for the synchrotron emission that are relevant for GRBs: fast and slow cooling. The difference between the two is related to the radiative timescale of the emission.

For the slow-cooling synchrotron model, we assume the electron distribution from B11 (see also Baring & Braby 2004), which includes electrons in a thermal pool, as well as electrons that are accelerated into a power-law tail (see Figure 1), given by

$$\begin{equation} n_e(\gamma) = n_{0} \left [\left ({ \gamma }\over { \gamma _{{\rm th}} } \right)^2 e^{-\gamma /\gamma _{{\rm th}}} + \epsilon\left ({ \gamma} \over { \gamma _{{\rm th}} } \right)^{-\delta }\, \Theta \left ({ \gamma} \over { \gamma _{{\rm min}} } \right) \right ]. \end{equation} \tag{ 2 }$$

Zoom In Zoom Out Reset image size

Here n₀ normalizes the distribution to total number or energy, γ is the electron Lorentz factor in the fluid frame, γ_th is the thermal electron Lorentz factor, γ_min is the minimum electron Lorentz factor of the power-law tail, is the normalization of the power law, and δ is the electron spectral index. The function Θ(x) is a step function where Θ(x) = 0 for x < 1 and Θ(x) = 1 for x > 1. In analyses of the shock acceleration process, distributions like Equation (2) are realized for ≪ 1 regimes for both non-relativistic shocks (e.g., Baring et al. 1995) and also ones where the upstream flow impacts the shock layer relativistically (Ellison et al. 1990; Ellison & Double 2004; Spitkovsky 2008; Baring 2011; Summerlin & Baring 2012). In all these works, the charges (in this case electrons) are accelerated directly from the thermal pool to generate a power-law distribution corresponding to ≲ 0.1 that smoothly connects to the thermal distribution. This is no surprise since strong dissipation is present in plasma shocks, and so thermalization is prominent for many (but not all) particles. These results motivate our general form for the electron distribution, noting that our parameterization may oversimplify the process of acceleration and ignores the effects of photon-electron collisions such as Compton scattering that are likely taking place in the high γ-ray regime. In particular, as pointed out by Baring & Braby (2004), the distribution in Equation (2) is only viable for approximating GRB spectra with synchrotron emission when ≫ 1, and the power-law component dominates the Maxwell–Boltzmann one. This constraint is accommodated in our fitting protocol, and we discuss its value shortly.

Finally, note that simulations that include the full radiative heating and cooling of electrons expected in the high γ-ray regime but that neglect acceleration processes produce electron distributions that differ greatly from simple power laws (Pe'er & Waxman 2004). These complicated electron distributions are difficult to model in a fitting process and may require spectral resolution beyond what the Fermi data provide to identify in spectral fits.

We convolve this simplified distribution with the standard isotropic synchrotron kernel (Rybicki & Lightman 1979)

$$\begin{equation} F_{\nu }(\mathcal {E}) \propto \int _1^{\infty } n_e(\gamma) \mathcal {F} \left({ \mathcal {E} }\over { \mathcal {E}_c }\right) d\gamma, \end{equation} \tag{ 3 }$$

where

$$\begin{equation} \mathcal {F}(w) = w \int _w^{\infty } K_{5/3}(x) \, dx \end{equation} \tag{ 4 }$$

expresses the single-particle synchrotron emissivity (i.e., energy per unit time per unit volume) in dimensionless functional form. The K_5/3 term is the modified Bessel function of the second kind. The characteristic scale for the synchrotron photon energy is

$$\begin{equation} \mathcal {E}_c\; =\; E_* \gamma ^2\, \end{equation} \tag{ 5 }$$

where E_* ≡ 3ΓB/(2B_cr) m_ec², B is the magnetic field strength, Γ is the bulk Lorentz factor, and  B_cr = 4.41 × 10¹³ Gauss is the quantum critical field.

In principle, there are six spectral parameters that can be constrained by the fits: n₀, E_*, δ, , γ_th, and γ_min; however, we fix γ_th, γ_min, and due to fitting correlations as explained below. The parameter E_* scales the energy of the fit and is linearly related to the Band function's E_p. Numerical simulations of particle acceleration at relativistic shocks have shown (see references in Baring & Braby 2004) that the non-thermal population is generated directly from the thermal one. To match these circumstances, we set the ratio of γ_th and γ_min to be ∼3, following Baring & Braby (2004). The parameters E_*, γ_th, and γ_min all directly scale the peak energy of the spectrum but do not alter its shape and thus cannot be independently determined. For this reason we chose values of γ_th = 300 and γ_min = 900 for all fits and left E_* free to be constrained from the fit.

As shown in the Appendix, such parameter values are on the outer edge for what is allowed energetically. For these parameters, the flow is strongly Poynting flux/magnetic-field energy dominated in order that electrons with γ ∼ 300–900 can produce radiation in the MeV regime. Magnetized jet models are advantageous for energy dissipation through magnetic reconnection, to produce short timescale variability, and to accelerate ultra-high energy cosmic rays (see the Appendix). In fact, a wide range of parameter values with much larger electron Lorentz factors and smaller magnetic fields are possible. In weak magnetic-field models, a strong self-Compton component and γγ opacity effects can make a cascade that modifies the standard emission spectrum of GRBs. By considering a strongly magnetically dominated model, these issues can be neglected.

For the chosen parameters, the system is always in the strongly cooled regime (see the Appendix). Nevertheless, we adopt the expression, Equation (2), to approximate an electron spectrum in the slow-cooling regime. The parameter , corresponding to the relative amplitude between the thermal and non-thermal portions of the electron distribution, was not easily constrained in the fitting process used in B11 and produced small non-physical discontinuities in the electron distribution, as pointed out in Beloborodov (2013). Therefore, here we numerically fix this parameter to the small value of (γ_min/γ_th)² × exp (− γ_min/γ_th), so that there is no discernible discontinuity between the thermal and non-thermal parts of the distribution. The thermal component helps smooth out the spectral structure at E_*, but does not alter the asymptotic index of α = 2/3 realized for synchrotron emission from populations with lower bounds to their particle energies. After these simplifications, three shape parameters remain free: E_*, δ, and n₀, which corresponds to the amplitude. Compared with the Band function's four fit parameters, this model is simpler yet tied to actual physical processes.

The second regime of synchrotron emission is the so-called fast-cooling regime, which applies for the adopted parameters in a naive cooling model. We assume that some acceleration process injects a power-law distribution of electrons

$$\begin{equation} N^{\rm inj}_e(\gamma)=n_e(\delta -1)\gamma _{{\rm min}}^{(\delta -1)}\gamma ^{-\delta },\quad \gamma _{{\rm min}}\le \gamma \end{equation} \tag{ 6 }$$

into a region where they are allowed to cool. Here, n_e is the electron density. We neglect the inclusion of the thermal pool because its association with the radiative region is poorly understood. Moreover, we show below that the fast-cooling spectrum is already too broad for the typical GRB νF_ν peak and the thermal distribution only broadens the spectrum further. Neglecting adiabatic losses and other acceleration mechanisms, the cooling of electrons is governed by the continuity equation (Blumenthal & Gould 1970)

$$\begin{equation} \frac{\partial n_e(\gamma,t)}{\partial t}+\frac{\partial }{\partial \gamma }[\dot{\gamma }n_e(\gamma,t)]+\frac{n_e(\gamma,t)}{t_{{\rm esc}}}\;=\;N^{\rm inj}_e(\gamma), \end{equation} \tag{ 7 }$$

where n_e/t_esc represents the loss of particles from the emission region from which we can define the maximal cooling scale $\gamma /\dot{\gamma }\;\sim \;t_{{\rm esc}}$. This corresponds to a Lorentz factor, γ_cool, below which cooling shuts off. We expect that γ_cool lies well below γ_min owing to the fact that a cooling break has not been observed in GRB data (see, however, Ackermann et al. 2012c). For very high electron Lorentz factors, $\gamma /\dot{\gamma }\;\ll \;t_{{\rm esc}}$ and therefore the loss term can be neglected, i.e., the dynamical timescale is much longer than the radiative timescale. With this assumption we can simplify Equation (7), and it becomes time independent. The resulting electron distribution can then easily be solved for

$$\begin{equation} n_e(\gamma,t)\;\approx \;\frac{1}{\dot{\gamma }}\int _{\gamma }^{\infty }N^{\rm inj}_e(\gamma ^{\prime })d\gamma ^{\prime }. \end{equation} \tag{ 8 }$$

Substituting in the synchrotron cooling rate

$$\begin{equation} \dot{\gamma }\;=\;-\frac{4}{9}\frac{r_0c}{r_g^2}\gamma ^2\;, \end{equation} \tag{ 9 }$$

where r_g = m_ec²/eB and r₀ = e²/m_ec², Equation (8) yields the synchrotron-cooled broken power-law distribution of electrons (see Figure 2)

$$\begin{equation} n_e^{\rm cool}\propto \frac{n_e\gamma _{{\rm min}}}{\gamma ^2}\min \left\lbrace \left(\frac{\gamma }{\gamma _{{\rm min}}}\right)^{-(\delta -1)},1\right\rbrace,\quad\gamma _{{\rm cool}}\le \gamma. \end{equation} \tag{ 10 }$$

Zoom In Zoom Out Reset image size

This distribution is convolved with Equation (4) to produce a photon spectrum. The radiation spectrum generated by this distribution has an asymptotic low-energy index of −3/2, the so-called second line-of-death (Cohen et al. 1997). The free parameters used for fitting this spectrum are the electron spectral index, δ, the fast-cooling equivalent of E_*, and the overall amplitude. However, the majority of GRB spectra in the BATSE (Goldstein et al. 2013) and GBM (Goldstein et al. 2012) spectral catalogs have spectra with low-energy indices harder than −3/2. Even if the spectra were consistent with the low-energy index, the fast-cooling spectrum's curvature around the νF_ν peak is much broader than that observed around the peak of the spectrum (see Section 4.2).

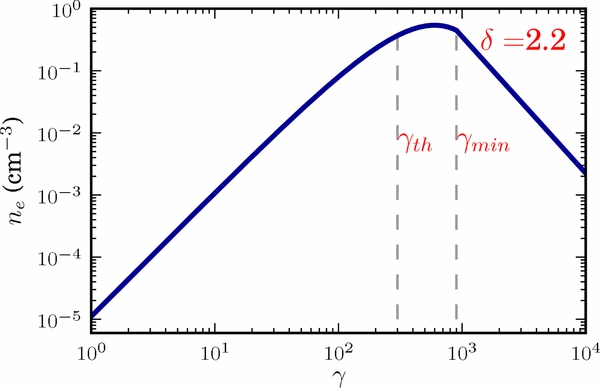

Even though we examine a model with γ_th = 300 and γ_min = 900, the spectral fitting is insensitive to the exact value of the product ΓBγ² provided that the constraints discussed in the Appendix are satisfied. Even in a strong cooling regime defined by these low assumed values of γ_th and γ_min, second-order processes in GRBs (Waxman 1995; Dermer & Humi 2001), which can become more important than first-order processes in relativistic shocks (Dermer & Menon 2009), allow us to consider a model that is effectively slowly cooled. Simulations typically have more parameters than our current model (Pe'er & Waxman 2004; Asano et al. 2009; Bošnjak et al. 2009), and constraining those models via spectral templates using data from Fermi may be difficult.

The pure fireball scenario for GRB emission predicts that most of the flux is from thermal emission (Goodman 1986; Paczyński 1986). This is because as the jet becomes optically thin at some photospheric radius, r_ph, it releases radiation that has undergone many scatterings with the optically thick electrons below the photosphere. We model this emission as a blackbody

$$\begin{equation} F_{{\rm BB}}(\mathcal {E})\;=\;A \mathcal {E}^3 \frac{1}{ e^{\frac{\mathcal {E}}{{\rm kT}}}-1}, \end{equation} \tag{ 11 }$$

where A is the normalization and kT scales the energy of the function. This is simplified thermal emission from the photosphere that does not take into account the effects of relativistic broadening that can produce a multi-color blackbody emerging from the photosphere (Beloborodov 2010; Ryde et al. 2010; Pe'er & Ryde 2011). Ryde et al. (2006) showed that if it is assumed that the thermal component is emanating from the photospheric radius of the jet, several properties about the blackbody component are derivable. The cooling behavior is well predicted for a thermal component. The temperature of the blackbody should decay as $T\propto r_{{\rm ph}}^{-2/3}$. If Γ is assumed to remain constant during the coasting phase of the jet, then it can be shown that the temperature should decay as T∝t^−2/3 in time. It has been found observationally that the evolution of kT often follows a broken power-law trend with the index below the break averaging to ∼ −2/3 (Ryde & Pe'er 2009). Finally, a true blackbody has a well-defined relation between energy flux and temperature:

$$\begin{equation} F_{{\rm BB}}=N\sigma _{{\rm sb}} T^4, \end{equation} \tag{ 12 }$$

where N is a normalization related to the transverse size of the emitting surface, r_ph/Γ (Ryde 2005; Ryde & Pe'er 2009; Iyyani et al. 2013), and σ_sb is the Stefan–Boltzmann constant.

The photospheric radius and the transverse size of the photospheric emitting region are also of great importance to understanding the geometry and energetics of GRBs. In Ryde & Pe'er (2009), a parameter $\mathcal {R}$,

$$\begin{equation} \mathcal {R}(t)\equiv \left(\frac{F_{{\rm BB}}(t)}{\sigma _{{\rm sb}}T(t)^4} \right)^{1/2} \propto {{ r_{{\rm ph}}} \over { \Gamma }}, \end{equation} \tag{ 13 }$$

where F_BB(t) is the time-dependent energy flux of the blackbody, is used to track the outflow dynamics of the burst. The connection between $\mathcal {R}$ and N from Equation (12) is established by noting that $N = \mathcal {R}^2$. Thereby, only if $\mathcal {R}(t)$ is constant would we expect to recover the relation established in Equation (12). Several BATSE GRBs were found to have a power-law increase of $\mathcal {R}$ with time. However, the connection between $\mathcal {R}$, T, and F_BB was difficult to establish because the error on the data points was large. Understanding these connections is essential to unmasking the structure and temporal evolution of GRB jets.

The GRBs in our sample were selected based on two criteria: large peak flux and single-peaked, non-overlapping temporal structure. The GRBs were binned temporally in an objective way described in Section 3.3, and spectral fits were performed on each time bin using four different photon models (Band, Band+blackbody, synchrotron, synchrotron+blackbody). When fitting synchrotron we compared the fits of slow-cooling and fast-cooling synchrotron. In many cases the fits from fast-cooling synchrotron completely failed. From these spectral fits a photon flux light curve was generated for each component and fitted with a pulse model to determine the decay phase of the pulse. We describe each step in the following subsections.

To fully constrain the parameters of the fitted models, we selected GRBs with a requirement that the peak flux be greater than 5 photons s⁻¹ cm⁻² between 10 keV and 40 MeV. It is important for our GRBs to have a simple, single-peaked light-curve structure to avoid the overlapping of different emission episodes. This facilitates the identification of distinct evolutionary trends in the physical parameters for the emission region. While we cannot be sure that a weaker emission episode does not lie beneath the main peak, the bursts we selected have no significant additional peak during the rise or decay phase of the pulse. These two cuts left us a sample of eight GRBs: GRB 081110A (McBreen & Bissaldi 2008), GRB 081224A (Wilson-Hodge et al. 2008), GRB 090719A (van der Horst 2009), GRB 090809B, GRB 100707A (Wilson-Hodge & Foley 2010), GRB 110407A, GRB 110721A (Tierney & von Kienlin 2011), and GRB 110920A (Figure 3). GRB 081224A and GRB 110721A were both analyzed including the new LLE data that provide a high effective area above 30 MeV for the analysis of short-lived phenomena, thanks to a loosened set of cuts with respect to LAT standard classes (Pelassa 2009; Ackermann et al. 2012b). This data selection bypasses the typical photon classification (Ackermann et al. 2012a) tree and includes events that would normally be excluded but can be selected temporally when the signal to background rate is high, such as with GRBs. GRB 081224A had very little data above 30 MeV, but the LLE data helped to constrain the spectral fits. From this sample, five GRBs (GRB 081224A, GRB 090719A, GRB 100707A, GRB 110721A, and GRB 110920A) had blackbody components that were bright enough to analyze (Table 1).

Zoom In Zoom Out Reset image size

Table 1. The GRBS in Our Sample

GRB	Peak Flux	Duration	Blackbody Component	LLE
	(p s−1 cm−2)	(s)	Analyzed	Data
GRB 081110A	20.88	4.61	X	X
GRB 081224A	17.11	18.36	$\checkmark$	$\checkmark$
GRB 090719A	26.52	30.09	$\checkmark$	X
GRB 090809B	18.36	14.64	X	X
GRB 100707A	18.77	22.39	$\checkmark$	X
GRB 110407A	15.6	20.48	X	X
GRB 110721A	29.82	12.7	$\checkmark$	$\checkmark$
GRB 110920A	8.08	238.29	$\checkmark$	X

Notes. The peak fluxes were taken from the brightest bin of each GRB with a duration determined by Bayesian blocks.

Download table as:  ASCIITypeset image

In order to bin the count data, the time bins for spectral analysis of each GRB were chosen using Bayesian blocks (Scargle 2013). Bayesian blocks define the time bins by looking for significant changes in the data count rate that define change points based on a Bayesian prior. For GBM data, we combined the Time-Tagged Events (TTE) data from the brightest Na i detector with the TTE data from the BGO detector and ran a Bayesian block algorithm to find the times of the change points. We found that a prior of 8 gave a good balance between time resolution and having enough counts to perform spectral analysis. These change points were mapped to the other detectors used in the analysis. This method only accounts for changes in counts and therefore could inadvertently combine bins with different spectral shapes.

For spectral fits we used the RMFIT ver4.1¹³ software package developed by the GBM team. Fitting the synchrotron photon model requires a custom module developed and used in B11. Each time bin was fit with one of the four spectral models mentioned above. We fit the physical models to compare the validity of each one against the other and the Band function to try to understand how the Band function parameters correlate with the best-fit physical model. If the addition of blackbody component did not make a significant improvement of at least 10 units of C-stat (Arnaud et al. 2011) for any time bins of a particular GRB, then we did not include the blackbody component in the analyzed fits for that burst. C-stat is a Poisson likelihood with constant offset. However, near the end of the prompt emission in some GRBs, the blackbody component becomes weak but has spectral evolution consistent with more significant time bins in the burst. The spectral parameters of the blackbody in those bins were included even though they contributed large error bars to some quantities. We checked with simulations that this cut was sufficient to identify a significant addition of a blackbody to the fit model.

In nearly all cases the synchrotron or synchrotron+blackbody model produced a fit with a comparable or better C-stat than the Band function. The GRBs exhibited hard to soft spectral evolution (Figure 4) for both components. From these fits we can derive several interesting properties of the bursts. The results of fitting the non-thermal part of each time bin in our sample with slow-cooled synchrotron indicate that this model can indeed fit the data well. The C-stat fit statistic per degree of freedom was at or near 1 for most time bins. The spectral fit residuals cluster around zero, with no deviations at low energy that might indicate the presence of an additional power-law component (Figure 5). The residuals are below 4σ for the entire energy range. As an example, the fit C-stats for GRB 100707A and GRB 110721A are shown in Tables 2 and 3, respectively. They show that the slow-cooled synchrotron model fits the data as well as the Band function when a blackbody is included in both cases. The fit C-stats for fast-cooled synchrotron are shown for GRB 110721A to compare all three non-thermal models. These results imply that slow-cooled synchrotron is a viable model for GRB prompt emission. We cannot claim that it provides a better fit to the data than other untested models, and we will investigate and compare other physical models in future work.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

An important parameter constrained in these fits is the electron index, δ, of the accelerated power law. The canonical value for diffusive acceleration at ultra-relativistic, parallel shocks is δ = 2.2 (Kirk & Schneider 1987; Kirk et al. 2000). The distribution of constrained δ values (Figure 6) is broad and centered around δ = 5 (i.e., β = 3). This steep index could provide clues for the structure and magnetic turbulence spectrum of the shocks. Baring (2006), Ellison & Double (2004), and Summerlin & Baring (2012) show that shock speed, obliquity, and turbulence all have a strong effect on the electron spectral index of the accelerated electrons. Steeper indices correspond to increasing shock obliquity in superluminal shocks. Fit models that are built from the electron distribution such as the one used in this work enable a direct diagnostic of the GRB shock structure.

Zoom In Zoom Out Reset image size

In order to see if any spectra were consistent with the fast-cooling synchrotron spectrum, we implemented a fast-cooled synchrotron model where the electrons were distributed according to the broken power law in Equation (10). These apply to the non-thermal particles initially accelerated in the shock neighborhood, which convect and diffuse out of this zone and subsequently cool radiatively in a much larger volume. As with the slow-cooling fits, γ_min was held fixed to 900. Several spectra were tested, and all resulted in very poor fits regardless of whether the low-energy index found with the Band function was much harder than −3/2 (Figure 7 and Table 4). This is due to the broad spectral curvature of the fast-cooled spectrum around the νF_ν peak. The broken power-law nature of the electron distribution is smeared out by the synchrotron kernel and cannot fit the typical curvature of the GBM data. In fact, the fast-cooling synchrotron spectrum has a spectral index of −2/3 below the γ_c, which we have fixed at 1. The fitting algorithm increased E_* to high values to align the −2/3 index with the data, which resulted in poor fits (Figure 8). Even when a blackbody is present in the bursts, fast-cooled synchrotron is not a good fit to the non-thermal part of the spectrum (Table 3). The lack of GRBs with low-energy indices as steep as −3/2 additionally disfavors fast-cooled synchrotron as the non-thermal emission component in GRB spectra.

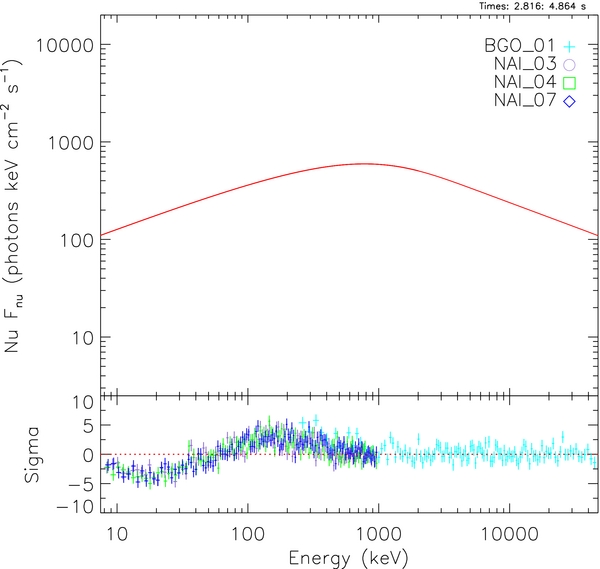

Zoom In Zoom Out Reset image size

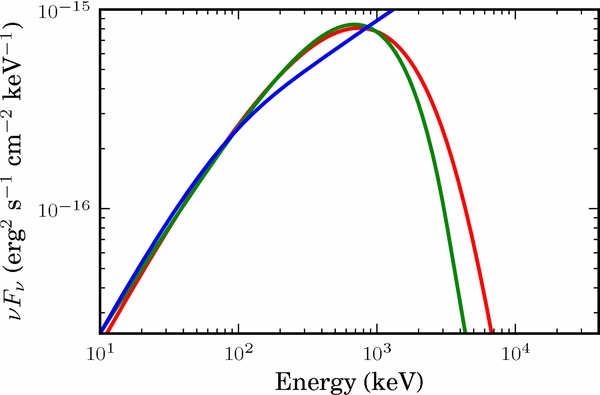

Zoom In Zoom Out Reset image size

The Band function has been used in the literature as a proxy for distinguishing among non-thermal emission mechanisms. The predicted non-thermal emission of GRBs is typically characterized as a smoothly broken power law with the high-energy spectral index related to the index of accelerated electrons and the low-energy index related to the radiative emission process. Therefore, fitting a Band function to the emission spectrum of a GRB should serve as a diagnostic of the radiative process responsible for the emission. Preece et al. (1998) examined the BATSE GRB catalog and looked at the distribution low-energy indices from Band function fits. They found that the distribution peaked at α ≈ −1 and that 1/3 of the fitted spectra had low-energy indices too hard for synchrotron radiation. The assumption is that the Band function's shape approximates synchrotron but has an added degree of freedom in the low-energy index. However, the Band function has a broader range of curvatures around the νF_ν peak, allowing it the possibility to deviate from the shape of synchrotron above and around the νF_ν peak. The synchrotron νF_ν peak is $\propto \gamma _{{\rm min}}^2 B\propto E_*$, leading to the relation between Band and synchrotron models E_p∝E_*. This relationship is easily recovered from our sample (Figure 9). Direct comparison of the quality of the fits using Band and the synchrotron model is not the goal of this study. Both Band and the synchrotron model fit the data well, with their respective fit residuals not deviating more than 4σ and centered around zero (Figure 5). It is important to stress that the questions being asked are whether the synchrotron model fits the data and what temporal evolution does the synchrotron parameters undergo?

Zoom In Zoom Out Reset image size

For all GRBs in our sample that include both a blackbody and non-thermal component we compare the photon flux (photons s⁻¹ cm⁻²) light curves (integrated from 10 keV to 40 MeV) derived from synchrotron fits with those derived from Band fits (Figure 10). It is seen that while both methods recover the same total flux, the flux from the individual components is much better constrained when using the synchrotron model for the non-thermal component. This is due to the pliability of the Band function below E_p that is not afforded to the synchrotron model.

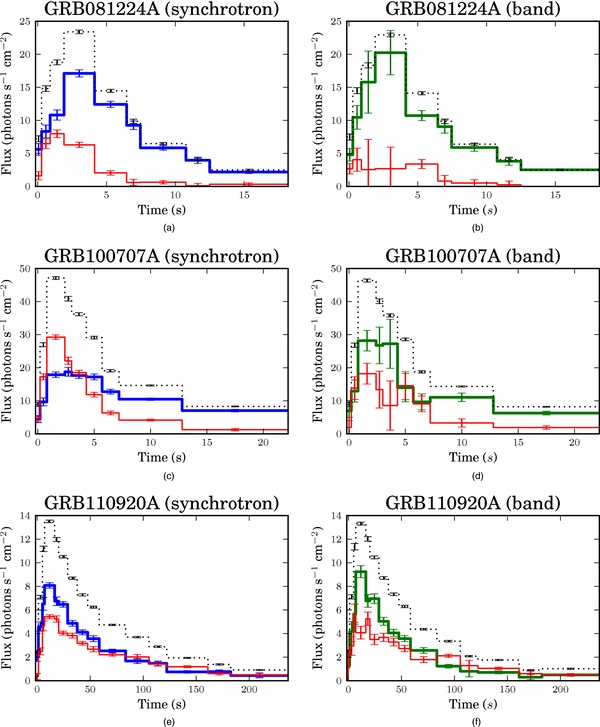

Zoom In Zoom Out Reset image size

The C-stat fit values for the synchrotron model loosely correlate with the value of Band α found by fitting the same interval with the Band function. When Band α was much harder than zero, the synchrotron fit was poor and typically required adding a blackbody to fit the data. The flexibility of the Band function with its low-energy power law creates the possibility that the index alpha of that power law will not accurately measure the true slope if E_p is too close to the low-energy boundary of GBM data. Simulated spectra using the Band function were created with a grid in both Band α and E_p to ensure that low values of E_p do not affect the reconstruction of Band α in our fits. It was found that Band α could be accurately measured when E_p was as low as ∼20 keV. While the asymptotic value of synchrotron is −2/3, fitting the photon model with an empirical function like Band with a slightly different curvature could result in measured low-energy indices that are different. To measure this effect, simulated synchrotron spectra with different E_* were fit with the Band function. The Band α showed a slight dependence on the synchrotron peak, moving to softer values for lower E_*. The distribution of fitted Band α values from these simulations centered around −0.81 ± 0.1, a slightly softer value than −2/3, which may explain the clustering of Band α at −0.82 in the GBM spectral catalog (Goldstein et al. 2012) if a majority of the non-thermal spectra are the result of synchrotron emission.

There is a well-known spectral evolution in GRB pulses of E_peak evolving from hard to soft (see Figures 3 and 4). This leads to two time-resolved correlations between hardness (measured as E_p) and flux (Golenetskii et al. 1983; Liang & Kargatis 1996; Ghirlanda et al. 2010). Liang & Kargatis (1996, hereafter LK96) showed that the hardness intensity correlation (HIC), which relates the instantaneous energy flux F_E to spectral hardness, can be defined as

$$\begin{equation} F_E\;=\;F_0\left(\frac{E_{ p}}{E_{{\rm p},0}} \right)^q \;, \end{equation} \tag{ 14 }$$

where F₀ and E_{p, 0} are the initial values at the start of the pulse decay phase and q is the HIC index. Borgonovo & Ryde (2001) found that 57% of a sample of 82 BATSE GRBs were consistent with this relation. The second relation is the hardness-fluence correlation (HFC), which relates hardness to the time-running fluence of the GRB. Time-running fluence, Φ(t), is defined as the cumulative, time-integrated flux of each time bin in a GRB. The HFC is expressed as

$$\begin{equation} E_{ p}\;=\;E_{ p,0}e^{-\Phi (t)/\Phi _0}\;, \end{equation} \tag{ 15 }$$

where Φ₀ is the decay constant. LK96 noted that this equation is similar to the form of a confined radiating plasma. This should not be the case for optically thin synchrotron. Upon differentiating Equation (15), it becomes apparent that the change in hardness is nearly equal to the energy density:

$$\begin{equation} {-}\frac{dE_{ p}}{dt}={-}\frac{F_{\nu }E_{ p}}{\Phi _0}\approx -\frac{F_E}{\Phi _0}. \end{equation} \tag{ 16 }$$

The HFC could be the result of a confined plasma with a fixed number of particles cooling via γ-radiation as proposed by LK96. Since these relations are only applicable during the decay phase of a pulse, the value of T_max (the time of the peak flux) from the pulse fit of each GRB is used as the initial point for F₀ and E_{p, 0}.

The use of a hardness indicator is somewhat ambiguous. Historically, the ratio of counts in low- and high-energy channels was used as a hardness measure. This has an advantage of being model independent but suffers from the lack of information associated with the instrument response. High-energy photons can scatter in the detector and not deposit their full energy, thereby artificially lowering the hardness ratio. LK96 used the Band function E_p to compute hardness, which as a deconvolved quantity is less instrument dependent but introduces a model dependence. We take this approach for both the Band and synchrotron model fluxes. For synchrotron we use the E_* parameter as our hardness indicator. This is justified by the relationship between E_* and E_p (see Section 4.3 and Figure 9).

We compute the HIC and HFC for the synchrotron fits for each GRB in our sample (Figure 11 and Table 5). All the GRBs seemed to follow the HIC to some extent. We find that the HIC index for E_* ranges between ≈1 and 2. When using the Band function E_p as a hardness indicator, it has been suggested that E$_{\rm p} \propto {\rm L}^{1/2} \propto F_{E}^{1/2}$, if one assumes that the emission is due to synchrotron and that only Γ changes while the other internal properties remain (however unlikely) the same (Ghirlanda et al. 2010). Decay behavior due to light-travel-time effects of a briefly illuminated relativistic spherical shell varies according to E_p∝L^1/3, that is, q = 3 (Kumar & Panaitescu 2000; Dermer 2004; Genet & Granot 2009), whereas GRB observations here show $L\propto F \propto E_{p}^{1.1}$–$E_{p}^{2.3}$ (Table 5). Evolution of internal parameters that would explain the observed correlations is an open question. The synchrotron fits seem to obey the HFC fairly well. Owing to the large errors in the Band flux, fits with synchrotron are more consistent with the HFC and HIC than those with Band. The deviations of the data from the expected synchrotron HIC may be due to the fact that there are overlapping pulses under the main emission that alter the decay profile. In addition, the use of Bayesian blocks to select time bins ignores spectral evolution. If bins with very different E_p are combined, then it could affect the HIC and HFC data.

Zoom In Zoom Out Reset image size

Table 5. Sample Correlations for Both Flux and Fluence for the Synchrotron Component

GRB	Flux Index q	$\chi ^2_{{\rm red}}$	Φ0	$\chi ^2_{{\rm red}}$
GRB 081110A	2.32 ± 0.4	0.6	97 ± 23	0.4
GRB 081224A	1.74 ± 0.1	1.5	253 ± 23	0.3
GRB 090719A	1.14 ± 0.07	0.98	245 ± 17	1.2
GRB 09080B	1.58 ± 0.05	8.0	188 ± 9	1.0
GRB 100707A	1.04 ± 0.02	1.2	444 ± 24	7.3
GRB 110407A	1.72 ± 0.20	0.5	214 ± 32	4.2
GRB 110721A	1.08 ± 0.03	14.4	269 ± 13	15.4
GRB 110920A	1.37 ± 0.06	0.5	669 ± 33	1.2

Download table as:  ASCIITypeset image

For most of the spectra in our sample, the blackbody's νF_ν peak is below the νF_ν peak of the non-thermal component. There is sometimes a much larger change in C-stat between fits with synchrotron and synchrotron+blackbody than those of Band and Band+blackbody owing to the fact that the Band function has more freedom in the shape below E_p (Tables 6 and 7). Simulations of both Band and slow-cooling synchrotron were used to find the significance of adding a blackbody to the spectrum. It was found that even when the difference in C-stat between Band and Band+blackbody was greater than the difference between synchrotron and synchrotron+blackbody, the statistical significance in the goodness of fit after the addition of the blackbody is high if not greater for the synchrotron+blackbody model for many cases. Computational time limits kept us from checking if the significance reached 5σ. We now focus on the blackbody component that is found in the synchrotron+blackbody fits. The blackbody appears to have a separate temporal structure from the non-thermal component, typically peaking earlier in time and decaying before the non-thermal emission (Figure 10).

The form of the blackbody used in this work (Equation (11)) is simplified and therefore will likely only approximate the true form of thermal emission from a GRB photosphere. Since the blackbody is weaker than the non-thermal (synchrotron) component in the spectrum, the effects of a broadened and more realistic relativistic blackbody are masked and would only slightly affect the fit when combined with the synchrotron model. However, in the case of GRB 100707A, the blackbody is very bright (Figure 10(c)) and subtle changes in actual shape of the photospheric emission become more apparent. This is reflected in the C-stat values in Table 2. The Band function combined with the standard blackbody is a better fit than when using synchrotron as the non-thermal component. In this case, the Band function α is still very hard, indicating that the Band function is making up for additional flux that the blackbody is not taking into account. To test this hypothesis, we fit the synchrotron model along with an exponentially cutoff power law to mimic a modified blackbody. We found that the fits were as good as the Band function combined with blackbody fits, indicating that when the blackbody is bright compared to the non-thermal emission a more detailed model of the photospheric emission is needed to fit the thermal part of the spectrum.

The HIC index for the blackbody component is expected to be 4 provided that N remains a constant in Equation (12); however, nearly all the blackbodies had an HIC index of q ∼ 2 (Figure 12(a)). These results (Table 8) confirm those of Borgonovo & Ryde (2001) and Ryde (2005), who fit BATSE spectra with a combination of a blackbody and a power law to account for the non-thermal component. There is no physical reason for $\mathcal {R}$ to remain constant, and therefore deviations of q from 4 for the blackbody component are physically allowed.

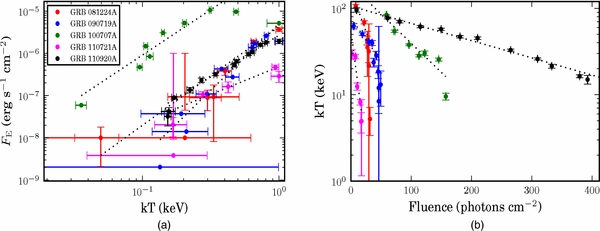

Zoom In Zoom Out Reset image size

Table 8. Blackbody HICs and HFCs

GRB	Flux Index	$\chi ^2_{{\rm red}}$	Φ0	$\chi ^2_{{\rm red}}$
GRB 081224A	2.3 ± 0.3	1.4	121 ± 13	9
GRB 090719A	2.8 ± 0.4	2.3	232 ± 23	3
GRB 100707A	2.2 ± 0.1	17.4	319 ± 8	28
GRB 110721A	1.3 ± 0.2	1.8	43 ± 3	5
GRB 110920A	2.0 ± 0.1	0.9	1147 ± 21.7	4

Note. For the subset of bursts that have a strong blackbody component we compute the flux and fluence correlation for the blackbody.

Download table as:  ASCIITypeset image

Another interesting quantity that can be obtained from the blackbody is the HFC. All GRBs in our blackbody subset had blackbodies consistent with the HFC (Figure 12(b)). The decay constants were all of similar value. Crider et al. (1999) noted that similar values of Φ₀ for non-thermal components arise as a consequence of a narrow parent distribution. A deeper investigation of a larger sample is required to assess if the same is true for the blackbody components.

The temporal evolution of kT for the blackbody of each burst appears to follow a broken power law (Figure 13). The evolution is fit with the function derived in Ryde (2004), where we fixed the curvature parameter, δ, to 0.15. The coarse time binning derived from Bayesian blocks does not allow for the decay indices to be constrained for all the bursts, but a small subset are close to −2/3, as expected (see Table 9). The temporal decay of the blackbody is different than the power-law decay of E_*, indicating a different emission component.

Zoom In Zoom Out Reset image size

Table 9. The Evolution of the Blackbody Follows a Broken Power Law

GRB	FBB/Fsyn	First Decay Index	Second Decay Index	$\chi ^2_{{\rm red}}$
GRB 081224A	0.3	−0.6 ± 0.07	−20 ± 243	0.5
GRB 090719A	0.4	−0.1 ± 0.05	−2.0 ± 0.7	11.3
GRB 100707A	0.5	−0.4 ± 822749	−0.8 ± 0.03	22.7
GRB 110920A	0.8	−0.3 ± 0.03	−0.9 ± 0.04	2.0

Notes. However, the coarse time bins recovered by the Bayesian blocks algorithm make it difficult to constrain the decay indices.

Download table as:  ASCIITypeset image

The $\mathcal {R}$ parameter was observed to increase with time for all the GRBs (Figure 14). There are breaks and plateaus in the trends that do not seem to correlate with the breaks observed in the evolution of kT or with the flux history of the blackbody. Ryde & Pe'er (2009) found that the evolution of $\mathcal {R}$ can be quite complex but mostly follows an increasing power law that seems independent of the flux history even for very complex GRBs. For those complex GRB light curves, it was found that analyzing different intervals of the overlapping pulses yielded an HIC index for the blackbody of q ∼ 4 for each interval. In those intervals, $\mathcal {R}$ was approximately constant, indicating that the emission size of the photosphere was constant. Owing to the small number of time bins, it is difficult to quantify the evolution of $\mathcal {R}$ for the single-pulse GRBs of this study with the coarse time binning used, but the fact that the HIC index for the blackbodies differs from q ∼ 4 and that $\mathcal {R}$ increases indicates that the evolution of the photosphere is very complex.

Zoom In Zoom Out Reset image size

By using physical synchrotron emissivities in analysis of GRB data, we have shown that the Fermi data are consistent with synchrotron emission from electrons that have not cooled (i.e., slow-cooling spectra) and are inconsistent with synchrotron emission from electrons that are cooling (fast-cooling). The method leads to some interesting conclusions for empirical modeling. There is a positive correlation between hard α and the inability of the model to fit the data, but the low-energy index of synchrotron seems to be clustered around −0.8 rather than near the asymptotic −2/3 found in Preece et al. (1998). Not only do the fits with Band α near −0.8 lead to better fits with synchrotron, but simulated synchrotron spectra are best fit with a Band function having α ≈ −0.8.

Previously, GRB spectra have been successfully fitted with a thermal + non-thermal model by using a blackbody function combined with a Band function. A thermal spectral component has indeed been shown to be significant in several cases, foremost in GRB 100724B and GRB 110721A (Guiriec et al. 2011; Axelsson et al. 2012). The Band function in these fits is, however, not based on any physical arguments but is merely an empirical function that has a convenient parameterization. A general problem that arises in this type of fitting is that Band α and the strength of the blackbody component give fits with degenerate parameters. When the data are fit by a Band function alone, even if an additional component really exists in the data at lower energies, it may not be identified because the Band α can accommodate the additional low-energy flux by changing its slope.

The slow-cooling synchrotron model we use here is more restrictive compared to the Band function. In particular, a limit to the low-energy slope and the curvature of the spectrum are predicted by the model. We find that the spectrum below the synchrotron νF_ν peak is not always satisfactorily fit using just the synchrotron model. Except for extreme cases such as fast and marginally fast-cooling, which affect the width of the peak as much as the low-energy index, we find that the low-energy photon spectrum is actually well modeled with a slope equal to the low-energy slope of the single particle synchrotron emissivity. This is only possible with very low radiative efficiency if the standard GRB acceleration model described in Section 2.1 is considered.

In many of our fits an additional component is suggested by the residuals, and the simulations show that this additional component is statistically significant. Additional components can also be favored in GRB spectra fit with the Band function, but we find that the significance of the additional component can be greater when using physical synchrotron emission fits than when using Band fits. Because the Band function can accommodate the extra emission using a suitable power-law index α, but the synchrotron function is more restrictive, an additional component may be more significantly required when using synchrotron emission for a prescribed electron distribution.

Another point in Figure 10 is that when using the synchrotron model, the temporal evolution of the blackbody flux exhibits well-defined pulses and a spectral evolution that is clearly separated from the non-thermal emission. This is in contrast to the less smooth blackbody flux variations when using the Band function as the non-thermal process. This fact again reflects that the Band function is less restrictive than the synchrotron function and thereby gives rise to further scatter in the derived fluxes in the light curves. These results suggest that:

• 1.
  the synchrotron function is a good physical model to use;
• 2.
  the thermal component does exist; and
• 3.
  multi-component fitting with the Band function can be misleading.

The fact that the non-thermal spectra seem to be consistent with slow-cooled synchrotron rather than the fast-cooled synchrotron regime places strong constraints on the emission model of GRBs. The low-energy spectral index of 11 bright BATSE GRBs falls between the cooled and uncooled limits (Cohen et al. 1997). Ghisellini et al. (2000) showed that it was difficult to reconcile the implied fast cooling from a comparison of cooling and dynamical timescales with the many GRB spectra that require a slow-cooling electron distribution, leading to spectral problems for the internal shock model. In the Appendix, we show that a weak-cooled system requires ≲ 100 G fields for typical bright GRBs detected with Fermi, rather than 100 kG fields, with typical electron Lorentz factors γ' ≈ 10,000 rather than 300.

In our simple strong-field synchrotron model, we can neglect the effects of Compton cooling, which can significantly alter the value of the low-energy slope in certain parameter regimes (Daigne et al. 2011). This could make some spectra less consistent with fast cooling, but requires further study. Klein–Nishina effects on Compton cooling were not considered, but in the absence of extra spectral components, either from synchrotron self-Compton (SSC), hadronic emissions, or external Compton processes, our synchrotron study is consistent. The need for a slow-cooling scenario, or marginally slow-cooling system in order to have reasonable radiative efficiency, is obtained in external shock model calculations by choosing the _B parameter ≈10⁻³–10⁻⁴ (Chiang & Dermer 1999).

The fast-cooling internal-shock scenario cannot be reconciled with our observations. Additionally, Iyyani et al. (2013) found that for GRB 110721A, the standard slow-cooling synchrotron scenario from impulsive energy input such as internal shocks places the non-thermal emission region below the photosphere. This may be understood if the electrons are highly radiative, yet without displaying a cooling spectrum.

Models with ongoing acceleration via first-order and second-order Fermi acceleration (Waxman 1995; Dermer & Humi 2001), or magnetic reconnection and turbulence models, including the ICMART model (Zhang & Yan 2011), have the ability to balance synchrotron cooling with stochastic heating, or to have multiple acceleration events, which keep γ_cool above γ_min, in which case the spectrum would resemble a slow-cooled synchrotron spectrum. Magnetized jet or subjet models (Lazar et al. 2009) can extend the non-thermal emission site far above the photosphere, and relativistic MHD turbulence provides an alternative second-order mechanism (for a recent review of astrophysical turbulence, see Lyutikov & Lazarian 2013). In such a scenario, the electrons cool by synchrotron, but are at the same time subject to ongoing acceleration, contrary to the low implied value of the cooling frequency. Slow-cooling or fast-heating scenarios explain the data much better than a fast-cooling internal-shock model, though the latter is more radiatively efficient.

We have demonstrated that for a set of Fermi GRBs we can fit a physical, slow-cooling synchrotron model directly to the data. Most of the fitted spectra also require a weaker blackbody component with a temperature that places its peak below the synchrotron νF_ν peak. The temporal evolution of both radiative components shows how GRB jet properties change and are free of some of the assumptions required when fitting GRB spectra with empirical functions. In our model, a disordered magnetic field is assumed, which could be shown to be invalid from X-ray and γ-ray polarization observations, which are yet inconclusive. Several parameters in our model cannot be separately constrained by the fits, namely, γ_th, γ_min, and B, so we focus on a highly magnetized scenario where the self-Compton component can be neglected.

We find that the energy flux varies as the peak photon energy E_p of the peak of the νF_ν spectrum according to $E_{p}^q$, with 1.1 ≲ q ≲ 2.4. The dependence of E_p is found to follow the exponential-decay behavior with accumulated fluence Φ(t) given by Equation (15), with decay constant Φ₀ ≈ 100–700 (photons cm⁻²) (see Figure 11). For the GRBs where both synchrotron and blackbody components can be resolved, we find that their parameters follow a separate temporal behavior.

The temporally evolving spectra were examined in terms of fast-cooling and slow-cooling electron distributions, considering parameters for a highly magnetized GRB jet. The temporal evolution of both synchrotron and blackbody parameters implies that in the GRBs studied, a photosphere is formed below a non-thermal emitting region found at a radius corresponding to the characteristic internal shock scenario. The electrons in the non-thermal emitting region must undergo continuous acceleration to produce an apparently slow-cooling synchrotron spectrum, which can be provided by magnetic reconnection events or second-order stochastic gyroresonant acceleration with MHD turbulence downstream of the forward and reverse shocks formed in shell collisions. If, on the other hand, the jet fluid is not strongly magnetized, then it will be radiatively inefficient and have a strong inverse Compton component. The use of physical models provides stronger constraints on jet model parameters, and in future studies we can relax choices of electron Lorentz factors and magnetic fields by considering leptonic Compton cascading and ultra-high energy cosmic rays.

The electron energy content ${\cal E}_e^{(\prime)}$ in the source (comoving) frame is given by ${\cal E}_e^\prime = {\cal E}_e/\Gamma = N_{e0}\gamma ^\prime m_ec^2$, where N_e0 is the number of electrons, so that

$$\begin{eqnarray} {\cal E}_e &=& {{\cal E}_{{\rm par}}\over 1+\zeta } = {6\pi m_ec L_{{\rm syn}}\over \sigma _{\rm T} B^{\prime 2} \gamma ^\prime \Gamma ^2} = \,{27 \pi m_ec L_{{\rm syn}}\over 2 \sigma _{\rm T} B_{\rm cr}^2 \epsilon ^2} \,\Gamma \gamma ^{\prime 3} \nonumber\\ &\cong& 10^{45} {L_{51} \Gamma _3 \gamma _3^{\prime 3}\over \epsilon ^{2}}\;{\rm erg}, \end{eqnarray} \tag{ A1 }$$

where the total particle energy is denoted ${\cal E}_{{\rm par}}$, and ζ represents the additional energy in hadrons. Here the synchrotron luminosity L_syn = 10⁵¹L₅₁ erg s⁻¹ is derived from the synchrotron electron energy-loss rate formula, using $L^\prime _{{\rm syn}} = c \sigma _{\rm T} B^{\prime 2}\gamma ^{\prime 2}N_{e0}/6\pi$.

The magnetic-field energy density ${\cal E}_B = \Gamma {\cal E}_B^\prime = \Gamma 4\pi r^2 \Delta r^\prime (B^{\prime 2}/8\pi)$. The shell width Δr' = kr/Γ, with k a factor of order unity (for details, see Beniamini & Piran 2013), using the relations Δr'≅Γct_var and r≅Γ²ct_var, where t_var is the measured variability timescale in the source frame. Thus, the isotropic magnetic-field energy

$$\begin{equation} {\cal E}_{B} = {2k \Gamma ^4\over 9}\, {c^3 t_{{\rm var}}^3 B_{\rm cr}^2 \epsilon ^2\over \gamma ^{\prime 4}} \cong 10^{56} k\left({\Gamma _{300}\over \gamma _3^{\prime }}\right)^4 t_{{\rm var}}({\rm s})^3 \epsilon ^{2}\;{\rm erg}. \end{equation} \tag{ A2 }$$

The absolute magnetic field energy ${\cal E}_{B,{\rm abs}} \cong (\theta _j^2/2){\cal E}_{B}$ for this system greatly out of equipartition can be reduced to acceptable values (i.e., ${\cal E}_{{\rm abs}}\ll 10^{54}$ erg) with a sufficiently small jet opening angle θ_j between ≈0.01 and 0.1.

The ratio of the SSC and synchrotron luminosities is related to the ratio of the synchrotron and magnetic field energy densities through the relation $L_{{\rm SSC}}/L_{{\rm syn}} \lesssim u^\prime _{{\rm syn}}/u^\prime _{B^\prime }$, with the inequality arising from the neglect of Klein–Nishina effects on the SSC emission. Because $u^\prime _{{\rm syn}} \cong L^\prime _{{\rm syn}}/4\pi r^2 c$, we have

$$\begin{equation} {L_{{\rm SSC}}\over L_{{\rm syn}}} \approx {2 L_{{\rm syn}}\over c^3 \Gamma ^6 t_{{\rm var}}^2 B^{\prime 2}} \cong {10^{-5} L_{52}\over \Gamma _{300}^6 t_{{\rm var}}^2({\rm s}) B^{\prime 2}_5 } \;, \end{equation} \tag{ A3 }$$

and so the Klein-Nishina effects can be safely neglected here.

For a log-parabolic description of the γ'²N'(γ_p) electron distribution, the synchrotron self-absorption (SSA) opacity in the δ-function approximation is given by

$$\begin{eqnarray} \tau _{\epsilon ^\prime } = 2\kappa _{\epsilon ^\prime } \Delta r^\prime &\cong& {\pi \over 9}\,{{\cal E}_e^\prime \Delta r^\prime \over m_ec^2 I(b) V_b^\prime \gamma _p^{\prime 4}}\! {\lambda _{\rm C} r_e\over \epsilon ^\prime } (2+ b\log x)\,x^{-(4+b\log x)}\nonumber\\ &\equiv& \tau _0 (2+ b\log x)\,x^{-(4+b\log x)} \end{eqnarray} \tag{ A4 }$$

(Dermer & Menon 2009; Cerruti et al. 2013), where $\kappa _{\epsilon ^\prime }$ is the SSA coefficient (units of inverse length), $x \equiv \sqrt{\epsilon ^\prime /2\varepsilon _B^\prime }/\gamma _p^\prime$, ≅Γ', shell volume $V_b^\prime = 4\pi r^2 \Delta r^\prime$, and $I(b) = \sqrt{\pi \ln 10/b}$ normalizes the electron spectrum depending on the value of the log-parabola width parameter b. Using Equation (A2), we obtain

$$\begin{equation} \tau _{0} \cong {\pi \over 6\epsilon }\,{ {\lambda _{\rm C} r_e L_{{\rm syn}} \over c^3 \sigma _{\rm T} B^{\prime 2} t_{{\rm var}}^2 \Gamma ^5 \gamma ^{\prime 5} I(b)}} \approx {10^{-16} \over \epsilon ^3 }\,{ { L_{51} \over t_{{\rm var}}^2({\rm s}) \Gamma _{300}^3 \gamma _3^\prime I(b)}}\;, \end{equation} \tag{ A5 }$$

using the relation $\epsilon \cong \Gamma _{300} B^\prime _5 \gamma ^{\prime 2}_3$ characterizing the condition that x ≈ 1. Thus, SSA is utterly negligible at x ≳ 0.1, where the question of SSA opacity is most important, noting from Equation (A5) that the opacity can grow as fast as x⁻⁴ at x ≈ 0.1, when b ≲ 1.

A γ-ray with energy _γ = 1.96 × 10⁵E_γ(GeV) is subject to absorption through the pair-production process γγ → e^± when passing through a target radiation field. The minimum bulk Lorentz factor Γ_min that gives unity optical depth for absorption by target synchrotron photons is estimated within ≈10% accuracy by the expression

$$\begin{equation} \Gamma \ge \Gamma _{{\rm min}} = \left[ { \sigma _{\rm T} \hat{\epsilon }L(\hat{\epsilon }) \epsilon _{\gamma } \over 16 \pi m_ec^4 t_{{\rm var}} }\right]^{1/6}\;,\; \hat{\epsilon }\cong 2\Gamma ^2/\epsilon _\gamma. \end{equation} \tag{ A6 }$$

Taking L()≅10⁵¹L₅₁/ln (100) erg s⁻¹, i.e., a flat νF_ν spectrum over 2 decades in frequency, then the minimum bulk Lorentz factor Γ_min ≈ 300 [L₅₁E_γ(100 GeV)/t_var(s)]^1/6. For GRB synchrotron radiation emitted in the 0.1 ≲ ≲ 10 range, γ-rays with energies between ≈(0.01–1)$\Gamma _{300}^2$ TeV are subject to γγ opacity. Provided that the energy radiated at 100 GeV and TeV energies is much smaller than the total GRB photon energy, opacity effects and cascading can be neglected.

The minimum and cooling frequencies in a colliding shell are derived in the same way as the case of a blast wave decelerating by sweeping up external medium material at a shock (Sari et al. 1998), recognizing that the relative Lorentz factor between two shells is more likely to be Γ_rel ∼ 10, compared to the external shock Lorentz factor Γ ∼ 300. The system is in the slow cooling regime when the cooling Lorentz factor

$$\begin{equation} \gamma _c^\prime \cong {6\pi m_e c\over \sigma _{\rm T} B^{\prime 2}\Gamma t_{{\rm var}} } \gtrsim \gamma ^\prime _{{\rm min}} \cong \epsilon _e {m_p\over m_e} f(p) \Gamma _{{\rm rel}}\;, \end{equation} \tag{ A7 }$$

where $\gamma ^\prime _{{\rm min}}$ is the minimum electron Lorentz factor, p is the injection number index of relativistic electrons, _e is the fraction of energy dissipated at the shock that goes into non-thermal electrons, and the factor f(p) = (p − 2)/(p − 1) normalizes the number and energy of the energized electrons. Solving gives

$$\begin{equation} B^{\prime } \lesssim \sqrt{ 6\pi m_e c (m_e/m_p)\over \sigma _{\rm T} \Gamma t_{{\rm var}}\epsilon _e f(p)\Gamma _{{\rm rel}} } \approx {120 {\rm G}\over \sqrt{\Gamma _{300} (\epsilon _e/0.1) t_{{\rm var}}({\rm s}) f(p)\Gamma _{{\rm rel}}}}\;. \end{equation} \tag{ A8 }$$

A system with ∼100 kG fields is always in the fast-cooling regime according to this criterion.
