Interatomic and intermolecular Coulombic decay: the coming of age story

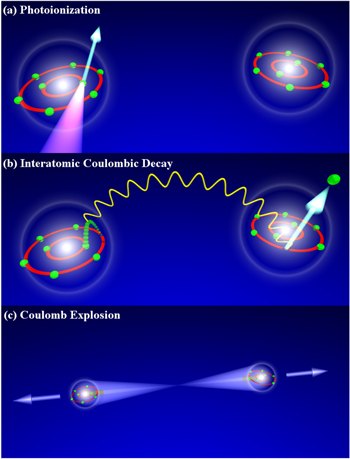

After the prediction of ICD in 1997 [1] it took several years before first evidence for ICD was found in an electron spectroscopy experiment [2]. Shortly after these findings, two further studies reported on an experimental observation of ICD. Öhrwall et al concluded from the measured width of the 2s-photoline that a very fast decay mechanism must be present [4]. An unambiguous proof for the existence of ICD was given by a coincidence measurement [3]. By measuring the momenta of the electrons and ions emitted after photoionization of a 2s-electron of a neon dimer, a unique fingerprint for ICD (in small, atomic systems) was detected: as the potential energy curve of the 2s-ionized dimer is almost flat, the sum E_sum of the kinetic energy of the ions (i.e. the 'kinetic energy release' (KER)) and the emitted ICD electron is a constant with a value of:

$$\begin{eqnarray}&&{{E}_{{\rm sum}}}={\rm IP}({\rm Ne}(2{{{\rm s}}^{-1}}))-2\cdot {\rm IP}({\rm Ne}(2{{{\rm p}}^{-1}})).\end{eqnarray} \tag{ 3 }$$

This value was observed in the experiment, as shown in figure 3: in a representation of the KER versus the kinetic energy of the electrons, events, where the sum of these two quantities is constant, occur on a diagonal line with a slope of $-45{}^\circ$.

Zoom In Zoom Out Reset image size

After the experimental verification of the existence of ICD, the ubiquitous nature of ICD became more and more apparent. ICD was found not only following inner-valence ionization [26], but as well after resonant excitation [27, 28], as satellite states decay [18, 29–32] and subsequent to Auger cascades and therefore even as a terminal step after inner shell ionization [33–45]. Some experiments were able to show, that ICD occurs in solutions [46, 47] and water clusters [48, 49], as well. For a detailed review on these topics, please refer to [5].

As the present review will mainly cover the topic from an experimentalist's point of view, the two theoretical review articles available should at least be mentioned briefly: apart from the early review on theoretical work on ICD [17], a more recent one can be found in [50].

Already shortly after confirming the occurrence of ICD in loosely bound matter, a manifold of articles were published stating that a connection between ICD and radiation damage might exist (see e.g. [34]). As molecular compounds of biological interest are (to some extend still) at the frontier of experimental and theoretical AMO-physics-investigations, many groups focused their research on ICD in water as a first step towards finding biological implications. Along with the initial predictions [1, 53, 54] Müller et al performed calculations on the kinetic energy spectrum of ICD electrons originating from small (n = 1..4) water clusters [55]. These calculations confirmed the expected behavior of mainly low energy ICD electrons being emitted upon ICD after inner-valence ionization. Due to the multitude of accessible states a broad distribution of electron kinetic energies below 10 eV peaking at 0 eV were expected. Two experiments confirmed these predictions in 2010 [48, 49]. It turned out, however, that the situation is more complicated already in small compounds of water molecules, as proton migration is a very common process after electronic excitation of such clusters. While in [49] it was concluded for water dimers, that due to the absence of the unsymmetrical breakup channel (H₂OH$^{+}/$OH⁺) ICD outpaces proton migration, Svoboda et al [56] mentioned that ICD might be quenched as the decaying state's energy is decreased due to nuclear dynamics down to a level that inhibits ICD. In that case the dimer would dissociate without a second charge being created, i.e explaining the observed lacking of H₂OH$^{+}/$OH⁺. A tentative estimate of the efficiency of ICD after inner-valence ionization of 20 to 40% was given. Following pioneering experiments [57], Förstel et al were able to show, that ICD after 2s-ionization of neon clusters has an efficiency of unity (0.99 ± 0.11) [58] by employing an electron/electron-coincidence approach using a magnetic bottle spectrometer [59]. A corresponding measurement revealed that this is not the case for inner-valence ionized states of water clusters [60]. Here, ICD occurs with a probability of significantly less than 100%.

In a recent publication by Harbach et al theoretical investigations come to the conclusion, that ICD is indeed relevant for a real biological system [24]. Certain damages to DNA that are caused by UV-irradiation can be repaired by photolyases. These DNA repair enzymes require visible light in order to donate an electron that will trigger the DNA repair. It was found that ICD is the mechanism underlying the generation of that (quasi) free electron. A common feature of different photolyases is its composition of two cofactors: a reduced flavin adenine dinucleotide (FADH) that acts as an electron donor and an antenna chromophore. Harbach et al demonstrate, that after the initial resonant excitation of the antenna chromphore (in their case a 8-hydroxy-5-deazaflavin (8-HDF)) the excitation energy is transferred to the neighboring FADH-molecule (see figure 4). It is emphasized, that on the level of detail of the theoretical calculations, ICD can be distinguished from a Förster-type energy transfer, as the latter yields a reduced efficiency of the energy transfer process: while a 'classical' Förster excitation energy transfer is restricted to bound acceptor-states, the accepting state in ICD can be electronically unbound. Therefore the freed electron can always be emitted with the right kinetic energy, thus always ensuring perfect resonance conditions.

Zoom In Zoom Out Reset image size

An extension of the work reported in [24] covering the complete photolesion repair mechanism from a theoretical point view is given in [61].

After the existence of ICD after resonant excitation (termed 'RICD') was demonstrated in publications by Barth et al [62] and Aoto et al [28] and its occurrence after Auger cascades was found [39–41, 43], the group of Cederbaum suggested that even resonant Auger decay might be a profitable excitation scheme after which ICD might happen, as well (figure 5(a)). After resonant excitation of a core electron an excited atom or molecule may deexcite in an Auger decay. Two different pathways are possible. Firstly, the excited electron drops back into the core hole. This is known as 'participator Auger decay'. In a second scenario a different electron from e.g. an inner-valence shell can fill the core vacancy leaving the initially excited electron in a highly excited state. Gokhberg et al proposed that therefore in many cases an excited state remains after the Auger decay that will further decay by ICD [63]. Additionally, depending on the exact state that is populated in the resonant excitation the electron energy of the ICD electron emitted in the terminal step can be tuned. As the excitation happens resonantly it was pointed out, that a specific site inside a large system consisting of many atoms can be addressed (figure 5(b)). As a testbench for the theoretical work ArKr dimers were chosen. The calculations revealed that ICD after resonant Auger decay is an efficient channel and that by choosing core excited states that are slightly different in energy (i.e. 246.51 eV corresponding to the Ar($2{\rm p}_{1/2}^{-1}4{\rm s}$) parent state or 246.93 eV for the Ar($2{\rm p}_{3/2}^{-1}3{\rm d}$) parent state) ICD electron spectra that differ by up to 7 eV are created. In line with these findings a scheme for a possible radiation therapy employing ICD was proposed: the field of x-ray resonant theranostics [64, 65] explores the possibility to employ marker molecules that consist of at least one high-Z element to tag malignant cells. By resonantly exciting the high-Z atom of the marker molecule energy is deposited selectively at the site of the cell to treat. The results of Cederbaum et al demonstrated that ICD will directly create a genotoxic low energy electron in the closest vicinity of the selected site.

Zoom In Zoom Out Reset image size

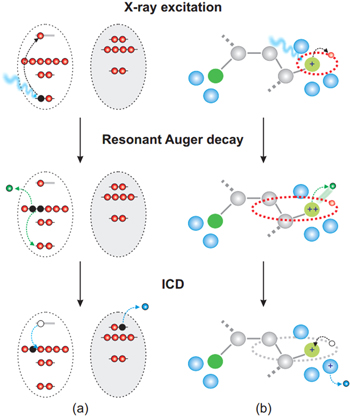

Several publications confirmed the existence of ICD after resonant Auger decay (RA-ICD). Kimura et al observed it in Ar₂ after resonant $2{\rm p}\to 3{\rm p}$ excitation [66] and were furthermore able to demonstrate the expected tunability of the ICD electron spectrum [67] by detuning the intial photon energy as proposed in [63]. The latter work was performed on Ar₂, ArKr and ArXe dimers. Independently O'Keeffe et al examined the process in ArNe and Ar₂ at excitation energies corresponding to the resonant excitation of Ar($2{\rm p}_{3/2}^{-1}3{\rm d}$), Ar($2{\rm p}_{3/2}^{-1}4{\rm d}$) and Ar($2{\rm p}_{3/2}^{-1}5{\rm d}$) [68]. Their work demonstrates nicely, as well, the potential to control the emission energy of the ICD electron. By using a molecular target information on the efficiency of RA-ICD was gathered in [69]. After core-exciting N₂ and CO dimers to a ${{\Pi }^{*}}$-state, excited molecular states are created after spectator Auger decay. These states, however, are typically dissociative with rather steep potential energy curves. The lifetime of these states prior to dissociation is in the range of 10 fs yielding a molecular clock: if dissociation happens prior to ICD it will quench its occurrence. In turn, as ICD was observed it had to take place before dissociation happened, i.e. within approximately 10 fs.

Most experimental investigations on ICD were carried out employing photons in order to create the excited state, that is able to decay via ICD. Only a few cases can be found in literature, so far, where—for example—ion beams were used to trigger ICD. Pioneering experiments by Titze et al investigated the breakup of He₂ into He⁺/He⁺ after bombardment with alpha-particles of an energy of 150 keV u⁻¹ [70]. Among other channels, clearly the fingerprint of ICD [3, 31] was observed in the ion/ion/electron-coincidence data as shown in figure 6. Here, the following reaction was observed:

$$\begin{eqnarray}&&{\rm He}-{\rm He}+{\rm H}{{{\rm e}}^{2+}}\to {\rm H}{{{\rm e}}^{+*}}(n=2..4)-{\rm He}+{\rm H}{{{\rm e}}^{+}},\end{eqnarray} \tag{ 4 }$$

$$\begin{eqnarray}&&{\rm H}{{{\rm e}}^{+*}}(n=2)-{\rm He}\to {\rm H}{{{\rm e}}^{+}}+{\rm H}{{{\rm e}}^{+}}+e_{{\rm ICD}}^{-}.\end{eqnarray} \tag{ 5 }$$

Zoom In Zoom Out Reset image size

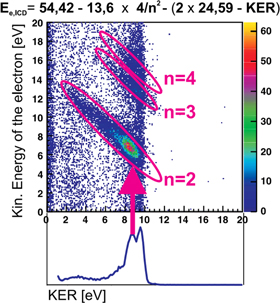

The most detailed study of ICD after ion collisions can be found in [71] on neon and argon dimers. Here, a wide range of ionic projectiles was used (namely: 11.37 MeV u⁻¹ S¹⁴⁺, 0.125 MeV u⁻¹ He⁺, 0.1625 MeV u⁻¹ He⁺, and 0.150 MeV u⁻¹ He²⁺) resulting in final charge states q of up to q = 4 of the dimers.

In further experiments involving ion collisions by Kim et al the implications ICD might have on living tissue that is irradiated with ionizing beams were demonstrated. The model system under investigation, however, was not living tissue, but again a neon dimer [72]. Due to the simplicity of the irradiated target, it was possible to determine the amount of low energy electrons that is created solely because of ICD. The results are shown in figure 7. Plotted is the electron kinetic energy spectrum after irradiating neon monomers and neon dimers with He⁺ projectiles of an energy of 0.65 MeV. The projectile energy was chosen such that the energy is most efficiently deposited to the target, i.e. on the maximum of the Bragg peak. The result is striking: a surplus of 14 times more low energy electrons is found for the case of ICD as compared to the case where ICD is not possible, i.e. a case where neon monomers were ionized.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Surprisingly, only little work can be found in literature on ICD after electron impact ionization, so far. Very recently Yan et al reported on a corresponding observation [73, 74]. A pulsed high energy electron beam ($E=3\;{\rm keV}$) was used to create multiply charged Ar dimers [73] and trimers [74]. In the case of electrons impinging on Ar₂ two prominent features were observed in the KER distribution [73]: firstly, a structure was found, that belongs to a decay by electron transfer mediated decay (ETMD) (see figure 10 for a sketch of the process), occurring after an initial triple ionization of the dimer:

$$\begin{eqnarray}&&{\rm A}{{{\rm r}}^{3+}}(3{\rm s}3{{{\rm p}}^{4}})-{\rm Ar}\to {\rm A}{{{\rm r}}^{2+}}(3{{{\rm p}}^{4}})-{\rm A}{{{\rm r}}^{2+}}(3{{{\rm p}}^{4}}).\end{eqnarray} \tag{ 6 }$$

Secondly, at lower KERs and for a different sharing of the charges, a peak, that was assigned to ICD after initial triple ionization of the dimer, was measured:

$$\begin{eqnarray}&&{\rm A}{{{\rm r}}^{3+}}(3{\rm s}3{{{\rm p}}^{4}})-{\rm Ar}\to {\rm A}{{{\rm r}}^{3+}}(3{{{\rm p}}^{3}})-{\rm A}{{{\rm r}}^{+}}(3{{{\rm p}}^{5}}).\end{eqnarray} \tag{ 7 }$$

The assignment of these processes is in line with the findings reported in [75], where the same excited initial state was created by Auger decay or direct triple ionization using a synchrotron photon source.

Zoom In Zoom Out Reset image size

By measuring the KER after Coulomb explosion various decay mechanisms involving rich nuclear dynamics were found for Ar₃ [74]. Particularly, the pathway of the breakup of Ar$_{3}^{4+}$ and Ar$_{3}^{5+}$ is disentangled by comparison to previous work employing photons [38]. Both channels

$$\begin{eqnarray}&&{\rm Ar}_{3}^{4+}\to {\rm A}{{{\rm r}}^{2+}}+{\rm A}{{{\rm r}}^{+}}+{\rm A}{{{\rm r}}^{+}}\end{eqnarray} \tag{ 8 }$$

$$\begin{eqnarray}&&{\rm Ar}_{3}^{5+}\to {\rm A}{{{\rm r}}^{3+}}+{\rm A}{{{\rm r}}^{+}}+{\rm A}{{{\rm r}}^{+}}\end{eqnarray} \tag{ 9 }$$

are found to be due to ICD with simultaneous single ionization of one of the argon atoms of the trimer by electron impact of the outgoing electrons.

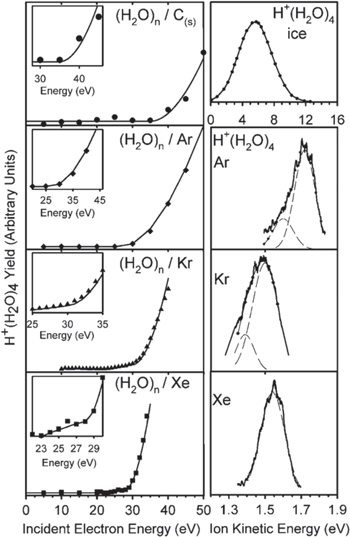

In 2011 Grieves and coworkers examined ICD at weakly coupled condensed-phase targets [76]. The targets consisted of $\lt 1$ monolayer (ML) of water deposited at a temperature of 30 K on clean graphite or preadsorbed multilayers (10–20 ML) of Ar, Kr or Xe. By measuring the yield and the kinetic energy of H⁺(H₂O)_n cluster after irradiating these targets with low energy electrons the mechanism responsible for the cluster desorption was retrieved. As a first result an increase of the cluster ion yield of more than one order of magnitude was observed as the water was adsorbed on rare gases. Furthermore, the onset of the cluster ion production was attributed to the energy threshold of corresponding inner-valence shells that can be subject to ICD. Depending on the rare gas species the ion yield increased as the incident electron kinetic energy reached the Ar($3{{{\rm s}}^{-1}})$ (29.3 eV), Kr($4{{{\rm s}}^{-1}})$ (27.5 eV) and Xe($5{{{\rm s}}^{-1}})$-level (23.3 eV) and, additionally, (as ICD may also occur after $(2a_{1}^{-1})$-ionization of water) the $(2a_{1}^{-1})$-threshold ($\approx 32$ eV). The corresponding results are shown in figure 8 on the left panels. On the right panels the measured kinetic energy of H⁺(H₂O)₄ clusters is shown for the different substrates. Depending on the relative spatial proximities of the involved holes, the kinetic energy distribution shows distinct structures. Especially, in cases where energetically more than one hole-state is accessible by ICD, the observed peak consists of two contributions. This is the case for Ar and Kr, where a $(1b_{1}^{-1})$ or $(3a_{1}^{-1})$ hole can be generated in water. In contrast, as the decay of the $5{{{\rm s}}^{-1}}$-state of Xe releases only enough energy to create a $(1b_{1}^{-1})$ vacancy, the measured kinetic energy distribution consists of a single, narrower peak. From this threshold behavior and the measured kinetic energy of the ions it was concluded, that the H⁺(H₂O)_n-cluster ions are generated via Coulomb explosion due to ICD with a proton transfer occurring during or immediately after ICD.

So far, only theoretically explored is the emission of ICD electrons from quantum dots. In quantum dots, de-excitation by emission of a photon, as well, as intradot Auger decay are common processes with an atomic analogue. As quantum dots are often referred to as 'artificial atoms', it seems a logic extension, that ICD occurs, just as all other relaxation phenomena observed in atoms, in these entities, as well. In a first report by Cherkes et al ICD is proposed as a valid electron relaxation mechanism in quantum dot dimers [77]. It is shown, that in such systems an excitation energy can be transferred by ICD over a distance of 10 nm on a timescale of picoseconds.

Extending the approach, Bande et al demonstrated by applying time-dependent methods to study the electron dynamics of the decay, that resonant ICD is not restricted to atoms, molecules or specific quantum dot systems. It is a possible process in systems consisting of a sufficient amount of electrons with an arbitrary binding potential [78] with singlet states decaying more efficiently than triplet states [79] at short inter-dot distances. At larger distances between the quantum dots the decay width is dominated by the expected $1/{{R}^{-6}}$-behavior. The numerical methods applied furthermore allowed for a description of the complete process of excitation of a quantum dot system employing a laser and its decay [80].

In [81] the long-range electron interaction in double quantum dots is theoretically examined as it drives an energy transfer that is initiated by an electron capture. Again, the process described here has an analogue predicted earlier for loosely bound matter called 'interatomic Coulombic electron capture' (ICEC) [82, 83]. As an electron is captured into an atom, its excess energy needs to be emitted, typically in a process, which is the inverse of photoemission or photodetachment. In ICEC the excess energy is transferred—just as in ICD—to a neighboring atom, which, in turn, is ionized. Figure 9 shows the results obtained for ICEC in quantum dots by solving the time-dependent Schrödinger equation using a multiconfiguration time-dependent Hartree approach. As only a single quantum dot is present, the incident electron cannot be captured and is reflected as seen in figure 9(a). After adding a second quantum dot with a single energy level, electron capture is possible with an emission of an electron from the right quantum dot. In accordance with energy conservation, the momentum of the emitted electron is increased as compared to that of the impinging electron, as affirmed by the change of the slope of the wavepacket trajectory in figure 9(b). In figure 9(c) an enhanced reaction probability is observed, as the left quantum dot incorporates a second energy level. This can be explained by the resonance character of the double quantum dot $|{{L}_{1}}{{R}_{0}}\rangle$-state, i.e as such two electron states efficiently decay via ICD. If an electron approaches with a kinetic energy in the range of the two-electron resonance, it is captured with much higher probability than in the case (b), thus increasing the efficiency of ICEC.

The results provided in [77, 78, 81] suggest, that specifically designed, ICD-capable quantum dot systems can be employed in technical applications, as for example photodetectors for detection of very weak IR-radiation with a specific wavelength.

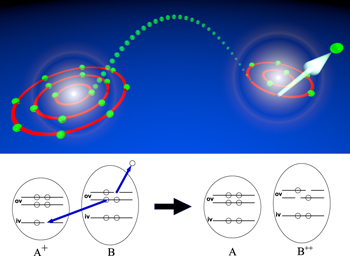

Already in 2001 a further decay route in loosely bound matter was predicted [84]: in clusters consisting of atoms of different species, especially in a case where the involved atoms differ strongly in their energetics, a situation can occur, where the double ionization potential of one atom lies below the inner-valence threshold of the other. In such a case, an inner-valence ionized atom can deexcite as an electron is transferred from its neighbor filling the inner-valence vacancy. The excess energy is used to further ionize the electron donor atom. This scenario was termed ETMD. A sketch of the process is shown in figure 10. While ETMD involves an electron transfer mechanism, just as the exchange contribution to ICD, it differs from ICD, as the initially excited atom is neutral after ETMD and the electron donor atom is doubly charged. Thus, ETMD can only occur in cases where the inner-valence ionization potential of one of the atoms of a heteronuclear cluster exceeds the double ionization potential of another atom of the cluster.

In later work it was predicted, that this process can cover not only two atoms, but extend to a case where three atoms are involved in the decay [85, 86]. In such a case the energy gained from the electron transfer is used to ionize the third atom. The initial terminology was extended by naming the latter process 'ETMD(3)' and the decay involving only two atoms 'ETMD(2)'. A sketch of ETMD(3) is shown in figure 11. Possible systems to investigate ETMD were pointed out in [87, 88] to be for example ArKr or ArXe raregas clusters.

Zoom In Zoom Out Reset image size

On the side of experiments, the detailed study of Kreidi et al on the decay of neon dimers after Ne($1{{{\rm s}}^{-1}})$-ionization found a possible signature of ETMD in ion/ion/electron-coincidence data. After the 1s-ionization a local Auger decay occurs, creating a doubly charged dimer with both holes being located at one atom (${\rm N}{{{\rm e}}^{2+}}(2{{{\rm s}}^{-2}}){{[}^{1}}S]/{\rm Ne})$. These states are able to decay via ETMD to the ${\rm N}{{{\rm e}}^{2+}}(2{{{\rm p}}^{-2}}){{[}^{3}}P]$/${\rm N}{{{\rm e}}^{1+}}(2{{{\rm s}}^{-1}}){{[}^{2}}S]$ triply charged dimer states. However, at similar internuclear distances and energetics an exchange-ICD is possible, as well, drowning the experimental signature of a pure ETMD. A further evidence of ETMD was reported in [89] after examining the ionization of ArXe clusters. In 2011 the occurrence ETMD(3) and ETMD(2) was finally unambiguously measured using two different experimental approaches [90, 91]. After ionizing the Ar $(3{\rm s})$-shell of ArKr clusters using synchrotron radiation, ETMD(3) was observed in an electron/electron-coincidence experiment by the group of U Hergenhahn [90]. The ETMD-electrons observed in this measurement occurred at very low kinetic energies below 2 eV in coincidence with emitted photoelectrons. In the work by Sakai et al [91] a COLTRIMS setup [92–94] was employed to perform measurements on Ar₂ after creating triply charged dimers with a $3{{{\rm s}}^{-1}}3{{{\rm p}}^{-2}}$-vacancy in one of the argon atoms using synchrotron radiation of an energy of $h\nu =345.5$ eV. A manifold of breakup channels was observed, i.e. the breakup into Ar$^{+}/$Ar⁺, Ar$^{+}/$Ar²⁺, Ar$^{+}/$Ar³⁺ and Ar$^{2+}/$Ar²⁺. The latter was assigned to be created in an ETMD after a decay of the triply charged dimer states Ar $^{3+}(3{\rm s}3{{{\rm p}}^{4}}){{[}^{2}}S]$/Ar and Ar $^{3+}(3{\rm s}3{{{\rm p}}^{4}}){{[}^{2}}D]$/Ar. Furthermore, a weak signal of ETM-decaying satellite-states as e.g. Ar $^{3+}(3{{{\rm p}}^{2}}4{\rm s}){{[}^{2}}D{{,}^{2}}P]$/Ar was observed.

Along with the prediction of ICEC [82, 83] Müller et al extended their previous work [95] and investigated electron capture in loosely bound systems in more detail [96]. As a free electron approaches an atom it may be captured into a bound state by emitting its excess energy in form of a photon. Apart from this radiative recombination (which is the inverse of photoionization), a time-reversed Auger decay is possible, as well: the excess energy of the captured electron is employed to excite another electron of the atom. This process is termed dielectronic recombination in the literature.

With ICEC, Gokhberg et al demonstrated, that the energy gained in an electron capture can be transferred to a loosely bound neighbor as in ICD, ionizing that neighbor. Müller et al investigated, in line with these findings, theoretically the occurrence of a two-center dielectronic capture (2CDR), where the atom receiving the excess energy is not ionized, but resonantly excited. They concluded, that this process indeed might be eminent: the recombination probability can be enhanced by several orders of magnitude due to a neighboring atomic center in the vicinity of the capturing atom. Its resonance character should cause 2CDR to be much more efficient than single center radiative recombination, even though a distant atom is involved in this process.

Already in 2008 pioneering work by Aziz et al illuminated the decay processes that occur after core excitation of OH⁻ solvated in water [46] employing photoelectron spectroscopy and a liquid jet [97]. Follow-up investigations of liquid water and hydrogen peroxide(aq.) decaying after core excitation [98, 99] demonstrated very complex de-excitation schemes: apart from local Auger decays and ICD, other decay channels occurred that are possible only if a proton transfer between the molecules takes place. These nuclear rearrangements of the intermediate core-hole states happen on the timescale of the O$(1{\rm s})$ core-hole lifetime of approximately 4 fs. By comparing results from decay of liquid H₂O and D₂O the features attributed to proton migration are visible or suppressed due to the larger mass (and thus slower nuclear motion) of the migrating deuteron. The proton migration-mediated decay mechanisms identified consist of the decay of a 'Zundel'-like cation $[{\rm H}{{{\rm O}}^{*}}\cdots {\rm H}\cdots {{{\rm H}}_{2}}{\rm O}]_{({\rm aq})}^{+}$ involving different decay routes. Firstly, a proton-transfer mediated Auger process (PMT-Auger) may occur:

$$\begin{eqnarray}&&\begin{array}{l} {{[{\rm H}{{{\rm O}}^{*}}\;\cdots {{{\rm H}}^{+}}\;\cdots {{{\rm H}}_{2}}{\rm O}]}_{({\rm aq})}} \\ \quad \to {{[{\rm H}{{{\rm O}}^{+}}\;\cdots {{{\rm H}}^{+}}\;\cdots {{{\rm H}}_{2}}{\rm O}]}_{({\rm aq})}}+{{e}_{{\rm Auger}}}. \\ \end{array}\end{eqnarray} \tag{ 10 }$$

The state on the right-hand side will finally form a charge separated species of the type ${{[{\rm O}{{{\rm H}}^{+}}\;\cdots {{{\rm H}}_{3}}{{{\rm O}}^{+}}]}_{({\rm aq})}}$. Secondly, a proton-transfer mediated ICD (PMT-ICD) was observed, that generates final state species of the kind ${{[{{{\rm H}}_{2}}{{{\rm O}}^{+}}\;\cdots {{{\rm H}}_{2}}{{{\rm O}}^{+}}]}_{({\rm aq})}}$:

$$\begin{eqnarray}\begin{array}{rcl} {{[{\rm H}{{{\rm O}}^{*}}\;\cdots {{{\rm H}}^{+}}\cdots {{{\rm H}}_{2}}{\rm O}]}_{({\rm aq})}} & \to & {{[{\rm HO}\;\cdots {{{\rm H}}^{+}}\;\cdots {{{\rm H}}_{2}}{{{\rm O}}^{+}}]}_{({\rm aq})}} \\ {} & {} & +{{e}_{{\rm ICD}}}. \\ \end{array}\end{eqnarray} \tag{ 11 }$$

Very recently, these findings were supported by detailed simulations of the 1s Auger electron spectra of liquid H₂O and D₂O [100].

Kryzhevoi and Cederbaum investigated in theoretical work the decay of small ammonia clusters after core-ionization [101]. In this case a similar increase of the diversity of electronic decay processes was found. The energy gained as the core vacancy is filled, can be transferred to a neighboring molecule, as illustrated by the high kinetic energy part of the computed Auger spectra. Additionally, due to the decrease of the triple ionization threshold by charge separation in an extended system, ICD occurring subsequent to an initial local Auger decay becomes a major decay route in clusters. For the case of dimers approximately 23% of the cations created after the Auger decay undergo subsequent ICD. In the case of trimers even a fraction of approximately 43% of these states decays by ICD. Further work on inner-valence ionization of ammonia clusters [102] demonstrated, that the efficiency of ICD changes strongly, as the clusters are protonated or deprotonated, i.e. that the efficiency of ICD depends on the pH value of the decaying matter.

A series of publications on core excitation and core ionization of aqueous solutions was published by Pokapanich et al [47, 103, 104]. In the latter article it was shown that the salvation of metal-halide salts considerably influence the occurrence of ICD and ICD-like decay channels in core-ionized H₂O in aqueous solutions [104]. Primarily, the alkali cations and the halide anions act as a suppressant for the O(1s) core-hole decay as the number of (otherwise open) ICD channels is reduced. The halide anions, however, participate in ICD-like decays, as the halide charge density is 'pulled towards' the core-ionized water molecule. This effect was mainly found for larger halides, i.e. Cl⁻, Br⁻, and I⁻, as the efficiency of these decay channels increases with increasing polarizability of the anion.

A series of publications by Müller, Najjari and Voitkiv [95, 105–108] retriggered the interest in resonant ICD [109] in 2010. It was investigated theoretically in great detail how the presence of a neighboring atom affects photoionization. In small systems consisting of only two atoms, the photoionization probability of one atom can increase by orders of magnitude, if a resonant excitation of the other atom and a subsequent ICD is energetically possible [105]. By adding a third atom to the system, the ionization probability is even further enhanced, additionally affecting the temporal evolution of the ionization probability [108].

Experimentally, studies of argon/water clusters showed an increased ionization probability of the water molecules upon excitation of the argon atoms [110]. Further experimental studies of HeNe dimers revealed an enhanced creation (by a factor of approximately 35) of HeNe⁺ ions after exciting different levels of the He atom of the dimer [111]. The latter publication described the process in a picture of one atom being an antenna for absorbing the light and ICD being the process of transferring that energy to the other atom of the compound.

In very detailed theoretical work by Stoychev et al [112] on ICD following $KLL$–Auger decay of neon dimers a weak contribution due to a further possible decay scheme was identified. A doubly ionized dimer state of the type ${\rm N}{{{\rm e}}^{2+}}(2{{{\rm s}}^{-2}}){{[}^{1}}S]$/Ne may deexcite to ${\rm N}{{{\rm e}}^{2+}}(2{{{\rm p}}^{-2}}){{[}^{1}}D]$/${\rm N}{{{\rm e}}^{+}}(2{{{\rm p}}^{-1}}){{[}^{2}}P]$ or ${\rm N}{{{\rm e}}^{2+}}(2{{{\rm p}}^{-2}}){{[}^{1}}S]$/${\rm N}{{{\rm e}}^{+}}(2{{{\rm p}}^{-1}}){{[}^{2}}P]$ in a decay involving three electrons. The two inner-valence holes are filled simultaneously by two 2p-electrons of the same atom. The energy gained in this de-excitation ionizes a 2p-electron of the neighboring Ne atom. Extensive theoretical studies of NeAr dimers proposed the occurrence of this decay scheme in this species [113], as well, and a corresponding process of simultaneous creation and transfer of two virtual photons in krypton heterotrimers was suggested [114]. The '$3e$ ICD' (as it was termed in literature) was finally experimentally observed in NeAr dimers employing the COLTRIMS-method, as a decay from Ne/Ar$^{2+}(3{{{\rm s}}^{-2}})$ to ${\rm N}{{{\rm e}}^{+}}(2{{{\rm p}}^{-1}})$/Ar $^{2+}(3{{{\rm p}}^{-2}})$ was identified [115, 116].

In the regime of multi-photon ionization another ICD-like phenomenon was proposed in 2010 by Kuleff et al. If a homoatomic cluster is irradiated with photons of an energy belonging to a resonance below the ionization threshold of the cluster constituents, obviously two things may happen: firstly, the atoms of the cluster are excited, secondly (and much less probable) depending on the intensity of the irradiating photon beam, a two photon ionization may occur. As shown in [117] (and, as well in work by Müller et al examining other aspects of the process [107]) the cluster environment gives rise to another reaction route. The excitation energy of one atom might be transferred to an excited neighbor causing an ionization of that neighbor (see figure 12 for a sketch).

Zoom In Zoom Out Reset image size

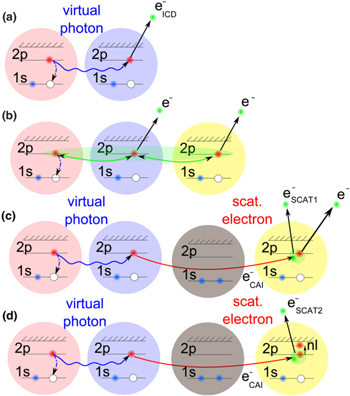

After first evidence in neon cluster [118, 119], the process was finally found in experiments performed on helium droplets being excited by an intense photon beam from an free electron laser [120, 121]. These publications coined the term 'collective autoionization' (CAI) for their findings and examined the different types of this ICD-like-process (as depicted in figure 12) in great detail. ICD of the multiply excited cluster (figure 12(a)) was observed mainly for small clusters. As the cluster size increases, processes involving more atoms occurred. These processes were identified to consist of either a single step (as depicted in figure 12(b)):

$$\begin{eqnarray}&&\begin{array}{l} {\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}) \\ \quad \to \;{\rm He}(1{{{\rm s}}^{2}}){\rm H}{{{\rm e}}^{+}}(1{\rm s}){\rm H}{{{\rm e}}^{+}}(1{\rm s}) \\ \end{array}\end{eqnarray} \tag{ 12 }$$

or of multiple steps involving scattering of the electron emitted due to CAI (figures 12(c) and (d)):

$$\begin{eqnarray}&&\begin{array}{l} {\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}) \\ \quad \to {\rm He}(1{{{\rm s}}^{2}}){\rm H}{{{\rm e}}^{+}}(1{\rm s}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p})+{{e}_{{\rm CAI}}}, \\ \end{array}\end{eqnarray} \tag{ 13 }$$

$$\begin{eqnarray}&&\to {\rm He}(1{{{\rm s}}^{2}}){\rm H}{{{\rm e}}^{+}}(1{\rm s}){\rm H}{{{\rm e}}^{+}}(1{\rm s})+{{e}_{{\rm Scat}}}+e,\end{eqnarray} \tag{ 14 }$$

$$\begin{eqnarray}&&\begin{array}{l} {\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p}) \\ \quad \to {\rm He}(1{{{\rm s}}^{2}}){\rm H}{{{\rm e}}^{+}}(1{\rm s}){\rm H}{{{\rm e}}^{*}}(1{\rm s},2{\rm p})+{{e}_{{\rm CAI}}}, \\ \end{array}\end{eqnarray} \tag{ 15 }$$

$$\begin{eqnarray}&&\to \;{\rm He}(1{{{\rm s}}^{2}}){\rm H}{{{\rm e}}^{+}}(1{\rm s}){\rm H}{{{\rm e}}^{*}}(1{\rm s}nl)+{{e}_{{\rm Scat}}}.\end{eqnarray} \tag{ 16 }$$

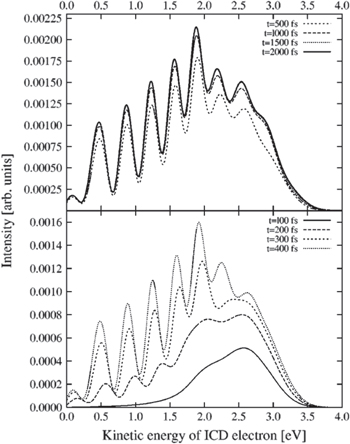

A particularly interesting aspect of ICD is the timescale on which the decay occurs. As the number of atomic or molecular neighbors increases, it becomes even more efficient (i.e. faster) than a local Auger decay. This was demonstrated theoretically in earlier work by Santra et al [16] for neon clusters and later by Averbukh et al in work on endohedral fullerenes [122]. For smaller systems ICD is typically slower than a local Auger decay, but outpaces photon emission by orders of magnitude. In such system, however, another interesting facette of ICD emerges: ICD takes place within the same time frame as typical nuclear motion of the decaying system. As the efficiency of ICD strongly depends on the internuclear distance R of the two atoms or molecules involved, the nuclear dynamics that are triggered in many cases after the excitation or ionization of (e.g.) a dimer strongly affect the decay. This was already pointed out in pioneering work by Santra et al [13] and forthcoming articles [14, 15]. The latter articles predicted that the role of nuclear dynamics may be visible in a measurement: as the system is excited, the intermediate ${\rm N}{{{\rm e}}^{+}}(2{{{\rm s}}^{-1}})$/Ne-state that will decay by ICD is created. The intermediate vibrational wave packet (in [15] actually only the decay of the ${{2}^{2}}\Sigma _{u}^{+}$ electronic state was investigated) starts to propagate on the intermediate potential energy surfaces. During this propagation ICD occurs, with the system decaying to the repulsive doubly charged two-site states ${\rm N}{{{\rm e}}^{+}}(2{{{\rm p}}^{-1}})$/${\rm N}{{{\rm e}}^{+}}(2{{{\rm p}}^{-1}}$) of the dimer (see figure 13 for a sketch of the process). As time-dependent calculations in [15] demonstrate, a fingerprint of the nodal structure of the intermediate vibrational wave packet could be found in the ICD electron kinetic energy spectrum (or correspondingly the KER spectrum). As a nodal structure of such a kind needs some time to evolve and to built up, the pattern becomes more clearly visible for longer decay times, as depicted in figure 14.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Pioneering experiments on ICD of neon dimers [3], however, did not observe these nodal features. Even though the underlying physics were assumed correctly and the calculations were performed accurately, the final state potential energy surface in [15] was only considered as an average of the different states possible. A followup publication that resolved this issue by including all possible states to the decay produced the correct ICD electron spectrum [123].

With these theoretical groundworks it became obvious, that the temporal evolution of ICD should be of great interest. ICD was, for example, expected to be a process, where a non-exponential decay behavior could be cleanly observable in time-resolved measurements, which became more and more feasible (see e.g. pioneering work by Drescher, Krausz et al and the group of P Corkum [124, 125]). In further theoretical work by Kuleff and Cederbaum a very intriguing yet intuitive demonstration of the process of ICD was performed in 2007. In [126] the electron dynamics of ICD were examined in real time and space taking electron correlation among all electrons fully into account. As a model system the NeAr dimer was chosen in order to trace the evolution of the electron cloud during ICD. The results are shown in figure 15. The distribution of the electron hole starts as a 2s-vacancy in the neon atom of the dimer. The s-character of the hole yields a single-ridge feature at the neon atom, just as expected for a s-shell. After a few femtoseconds the distribution located at the neon atom changes: a minimum occurs at the center of the neon atom, as the 2s-vacancy is filled by a 2p_z-electron. Accordingly, at the argon atom, the hole density increases. It has, as well, mainly the p-character of the emitted 3p_z-ICD-electron. The findings nicely demonstrate that the decay is dominated by the ICD channel consisting of ${\rm N}{{{\rm e}}^{+}}(2{{{\rm s}}^{-1}})$ Ar decaying into ${\rm N}{{{\rm e}}^{+}}(2{\rm p}_{z}^{-1})$ Ar$^{+}(3{\rm p}_{z}^{-1})$ confirming similar experimental findings on Ne₂ reported in [127]: by measuring the ICD-electron angular emission distribution in the dimer-fixed frame, a preferred emission along the the molecular axis of the dimer was found. This was attributed to mainly the 2p_z-electron being involved in ICD. The emission pattern is shown in figure 16. A similar behavior was later observed by Kreidi et al and Semenov et al [39, 128] and Yamazaki et al [40].

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

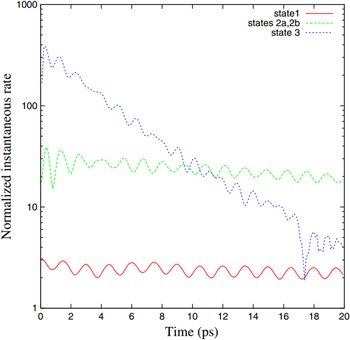

In 2010 a theoretical and experimental co-study of the HeNe dimer unveiled another possible influence of the nuclear dynamics on ICD [129]. Sisourat and Sann et al demonstrated the existence of an ICD-channel that is energetically closed at the ground state mean internuclear distance of the HeNe dimer. The decay of these states is therefore driven by the nuclear motion of the ground state and the intermediate decaying state. Figure 17 shows the corresponding results obtained from ab inito calculations [130–132]. The different states depicted in figure 17 are the intermediate 2s-ionized ${\rm N}{{{\rm e}}^{+}}(2{{{\rm s}}^{-1}})$He$(1{{{\rm s}}^{2}})$ (state 1) and the shakeup states ${\rm N}{{{\rm e}}^{+}}(2{{{\rm p}}^{-2}}3{\rm s})$He$(1{{{\rm s}}^{2}})$ (state 2a: $^{2}{{\Sigma }^{-}}$ and state 2b: $^{2}\Pi$) and ${\rm N}{{{\rm e}}^{+}}(2{{{\rm p}}^{-2}}3{\rm s})$He$(1{{{\rm s}}^{2}})$,$^{2}{{\Sigma }^{+}}$ (state 3). While the tail of the vibrational wave function of the ground state extends to internuclear distances R up to $\sim 8\;\overset{\circ}{\rm A}$ a maximum occurs at $R=3.5\;\overset{\circ}{\rm A}$. The different intermediate states are energetically open at distances $R\gt 6.2\;\overset{\circ}{\rm A}$ (state 1), $R\gt 4.5\;\overset{\circ}{\rm A}$ (states 2a, 2b) and $R\gt 2.5\overset{\circ}{\rm A}$ (state 3). Regarding ICD of state 1, which is only open at largest internuclear distances, the following conclusion was made: initially a small portion of the vibrational ground state can be found at these very large internuclear distances. After population of state 1, the dimer starts to contract, reaching a regime of internuclear distances in which ICD is no longer possible. After a period of ∼1.5 ps the dimer's internuclear distance is large enough again to allow for ICD. Therefore, as the dimer stretches and contracts due to its nuclear dynamics, the probability for ICD changes. This is visible in figure 17, where the time derivative of the decaying wave packet divided by the radiative decay rate is shown. In that representation a normalized instantaneous rate of 1 corresponds to a case where ICD and photoemission are equally efficient. The figure shows on one hand, that even for the weak states ICD is able to outpace radiative decay and on the other hand the oscillations of the decay rate corresponding to the vibrational period of the dimer can be seen. The behavior of state 2 is similar, however, the oscillations occur at a different period of ∼1 ps. As this is in line with the vibrational periods of the two vibrational states involved in the decay, the effect of nuclear motion can be traced explicitly in these cases, as well. State 3 is different: here ICD is open for all vibrational levels over all internuclear distances. The oscillatory structure observed for the other states vanishes for state 3, as several vibrationally excited states having different vibrational periods are involved. Furthermore, the dramatic drop in the normalized instantaneous rate occurs due to the fact, that after a short time already most of state 3 is depopulated by ICD.

Zoom In Zoom Out Reset image size

Havermeier et al were able to finally observe the nodal structure of the IC-decaying vibrational state, that was initially predicted to occur in the neon dimer [15], in a very exotic rare gas system: the helium dimer [31, 133].

For a long time, even the existence of that rare gas dimer was under dispute by itself. After it was predicted already in 1928 by Slater [134] that a very weakly bound compound of two helium atoms may be stable, an ongoing dispute among theoreticians was triggered [135]. All other elements in the periodic table have some electrons which are more loosely bound than the two electrons of the helium atom, making helium the most unpolarizable element. This lack of polarizability yields a very weak van der Waals interaction between helium atoms, allowing—in the case of a helium dimer—for only a single vibrational state. Even though the potential minimum, which is located at an internuclear distance $R=2.96\;\overset{\circ}{\rm A}$, has a depth of almost 1 meV [136], the dimer is only bound by a binding energy in the order of 10⁻⁷ eV [136–138]. This reflects the fact, that the zero point motion of the atoms of the dimer is close to 1 meV, explaining the long fought debate on the dimer's existence. Already substituting one of the helium atom of He₂ with its isotope ³He causes the system to became unbound due to the increased zero point motion [139]. Finally, the dispute on the existence was put to an end by the detection of the dimer employing a matter-wave diffraction method [137, 140].

Apart from being the most weakly bound atomic system in the universe other properties of the helium dimer, are intriguing, as well. Along with its very low binding energy comes its huge size. Experimentally the mean internuclear distance was determined by Grisenti et al to be $R=52\;\overset{\circ}{\rm A}$ [137]. The tail of the vibrational wave function, however, extends almost into the macroscopic regime of several $100\;\overset{\circ}{\rm A}$ [138]. Therefore, the helium dimer can be considered (just as many other van der Waals bound systems) as basically empty, as the internuclear distance is orders of magnitude larger than the diameter of the helium atom. Furthermore, the helium dimer exists in a so-called 'quantum halo state' [141]: as the vibrational wave function extends far beyond the potential well into to the classically forbidden region, the helium atoms of the dimer reside mostly 'in the tunnel'. The probability density of internuclear distances is therefore very well approximated by an exponential decay function for internuclear distances larger than $\sim 15\;\overset{\circ}{\rm A}$ [136]. A recent review on helium clusters and their interesting properties can be found in [142].

In order to trigger ICD in a helium dimer, shakeup ionization was used:

$$\begin{eqnarray}&&{\rm He}-{\rm He}+h\nu \to {\rm H}{{{\rm e}}^{+*}}(n=2)-{\rm He}+{{e}^{-}},\end{eqnarray} \tag{ 17 }$$

$$\begin{eqnarray}&&{\rm H}{{{\rm e}}^{+*}}(n=2)-{\rm He}\to {\rm H}{{{\rm e}}^{+}}+{\rm H}{{{\rm e}}^{+}}+{{e}^{-}}+e_{{\rm ICD}}^{-}.\end{eqnarray} \tag{ 18 }$$

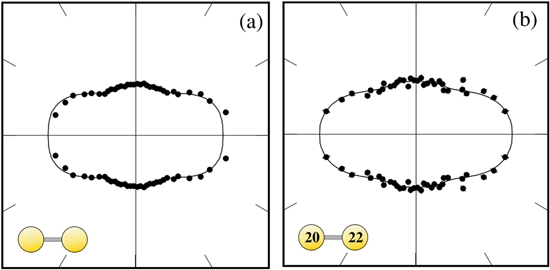

By measuring the emitted ions and electrons in coincidence, the typical fingerprint of ICD, i.e. the 45°-diagonal feature when displaying the dependence of the electron kinetic energy and the KER [3], was obtained. The corresponding distribution published in [31] is shown in figure 18. Two features are visible: a horizontal line corresponding to the $(n=2)$-shakeup photoelectron (a photon energy of $h\nu =68.86$ eV was chosen for ionization) and the aforementioned diagonal belonging to events where the ICD electron was measured in coincidence with the two He⁺-ions.

Zoom In Zoom Out Reset image size

For large systems (as most van der Waals bound clusters), the KER-distribution gives information on the internuclear distance of the particles involved in the Coulomb explosion. The two ions can be treated in good approximation as two point charges that are repelling each other by the Coulomb force. Within the 'reflection approximation' [143] the relation of KER and internuclear distance R is given (in atomic units) simply as: $R=1/{\rm KER}$. Figure 18 therefore reveals, that ICD occurs in dimers with internuclear distances up to $\sim 30\;{\rm a}.{\rm u}.$ For larger internuclear distances the competing de-excitation by photon emission is similarly or more effective limiting the observability of ICD, whose probability drops with $1/{{R}^{6}}$.

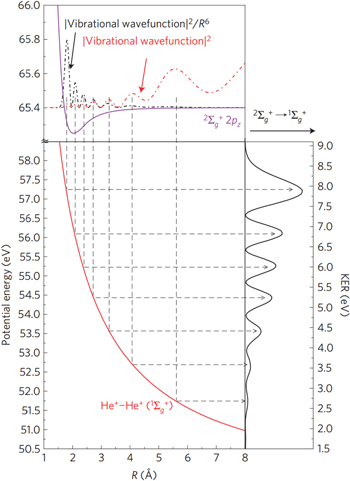

A further, closer look at figure 18 reveals a modulation of the KER, which was examined in more detail in [144–146]. Figure 19 shows the KER-distribution. In order to obtain the theoretical KER-spectrum, the different partial contributions from decaying electronic states with different symmetries were added up. Figure 20 explains in more detail the origin of the nodal structure observed. In the top panel the probability density of the vibrational wave function of the electronic state that is mainly contributing to ICD is shown as a red slash dotted line. In order to account for the dependence of ICD on the internuclear distance of the atoms involved in ICD, a weight factor of ${{R}^{-6}}$ needs to be considered. Correspondingly, the black slash-dotted line depicts the vibrational wave function multiplied by $1/{{R}^{6}}$. As the decay occurs, the structure of the weighted vibrational wave function is reflected at the final state potential energy curve, which is shown in the middle panel. On the right the resulting KER-distribution of that decaying state is plotted, visualizing that the nodal features indeed belong to nodes and maxima present in the vibrational wave function. In the experiment, however, the superposition of all possible decaying states is measured. Surprisingly, this does not completely wash out the structures, even though the positions of the maxima and minima differ strongly for each state.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Already one of the three articles, that are typically referred to as the ones that experimentally confirmed the existence of ICD [2–4], elucidated the efficiency of the process by measuring the decay width of ICD in neon clusters. In pioneering work Öhrwall et al showed that the lifetime of a 2s-vacancy in neon atoms being condensed to clusters is much shorter than that of the latter vacancy in isolated neon atoms [4]. Further publications measuring the lifetime of IC-decaying states by assuming an exponential decay function followed: Trinter et al performed vibrationally resolved measurements of ICD of HeNe heterodimers that yielded lifetimes that differed depending on the decaying state from 100 fs to 1 ps [111]. Another method that was applied to infer the timescale of ICD is the so called 'core-hole clock'. By comparing the ratio of ICD and a competing Auger decay, the IC-decay times can be extracted if the Auger lifetimes are known. This approach was, for example, employed by Pokapanich et al to examine ICD of aqueous ions [103]. Furthermore, by comparing the structure of the KER spectrum of a certain IC-decaying state in NeAr obtained in an experiment to different theoretical predictions, Ouchi et al were able to determine the lifetime of that state [116].

While it was experimentally possible to measure the decay times of ICD, a truly time-resolving measurement depicting the non-exponential decay behavior was on the agenda of many ultrafast laboratories for a long time (see for example [147] for a short review). Most recently two experiments approached this goal employing different techniques to gather information on the timing of individual ICD events in a coincidence measurement.

Schnorr et al used a COLTRIMS setup attached to the Hamburg free electron laser facility (FLASH) to measure ICD after 2s-ionization of neon dimers [148]. By using a pump/probe scheme employing a split mirror, the decay time of single ICD events was probed. A sketch of the involved potential energy curves is shown in figure 21: in a first step the FLASH-light ($h\nu =58.2$ eV) is used to create the 2s-vacancy to trigger ICD populating the ${\rm N}{{{\rm e}}^{+}}(2{{{\rm s}}^{-1}})$–Ne-state located in the middle of figure 21. After a delay, which is set by slightly shifting one half of the split mirror used for focussing the FLASH-beam, the probe-pulse arrives. In case the intermediate ${\rm N}{{{\rm e}}^{+}}(2{{{\rm s}}^{-1}})$–Ne-state is not yet depopulated by ICD, a further ionization to Ne$^{2+}-$Ne or Ne$^{+}-$Ne⁺ can occur. If, however, ICD took place before the probe-pulse occurs, the dimer is already in a (Coulomb exploding) Ne$^{+}-$Ne⁺-state, thus enabling an ionization into a triply charged Ne$^{2+}-$Ne⁺-state. By measuring the two ions that are created during the process in coincidence the temporal decay function of ICD can be deduced from the dependence of the intensity of the Ne$^{2+}-$Ne⁺-state on the split mirror delay. It is obvious, that the intensity of the photon beam needs to be chosen carefully for this approach to work: on one hand the experiment needs to be operated at an intensity where direct multi-photon processes are rare in order to avoid the direct creation of the Ne$^{2+}-$Ne⁺-state. One the other hand the pump/probe-approach requires a certain saturation of each ionizing step in order to gather sufficient statistics. Within the error bars of this challenging experiment an exponential decay behavior was found with $\tau =(150\pm 50)$ fs.

Zoom In Zoom Out Reset image size

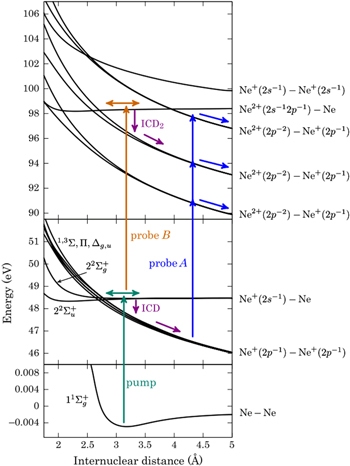

At the same time Trinter et al came up with a different approach to measure the decay time of individual ICD events [149]: in streaking experiments the timing information is typically mapped to a measurable kinetic energy, e.g. of a photoelectron (see e.g. work by Drescher et al [124]). It turns out, that nature itself does something very similar in case of a decay that involves emission of an electron, that is much faster than the photoelectron emitted afore. This effect is known already for a long time [150–152]. In early work by Niehaus [150], autoionization after inner-shell photoionization was examined:

$$\begin{eqnarray}&&\begin{array}{l} h\nu +A\to {{A}^{+*}}+{{e}^{-}}({\rm slow})\to {{A}^{++}} \\ \quad +{{e}^{-}}({\rm slow})+{{e}^{-}}({\rm fast}). \\ \end{array}\end{eqnarray} \tag{ 19 }$$

The influence of the Coulomb field of a receding (slow) photoelectron on the autoionzation process was termed 'post collision interaction' (PCI). In a simplified (and classical) view the following happens, as PCI occurs: if an Auger electron emission happens while a photoelectron emerges from its parent ion, the charge of the parent ion changes. Thus, the photoelectron is suddenly exposed to the Coulomb field of a doubly charged ion. As a result the photoelectron kinetic energy decreases (and accordingly the energy of the Auger electron increases). It is understandable, that the amount of energy loss of the photoelectron depends on the decay time of the parent ion. If the decay is fast, the sudden change of the potential happens at small distances between the photoelectron and the ion, i.e. at distances where the Coulomb interaction is still very strong. For longer decay times (and thus larger distances between the photoelectron and the ion) the effect weakens [153–155]. As the energy loss is a measurable quantity, an experimental access to the decay time of single decay-events is possible. This is especially interesting in a coincidence measurement where, following that approach of 'PCI-streaking', the temporal evolution of a quantity measured in coincidence with the energy loss can be obtained.

In figure 22(a) the conversion function mapping a measured electron kinetic energy to decay time is plotted for four different initial photoelectron energies. It was obtained using a simple one dimensional classical model. In a simulation an electron of a kinetic energy of E_i = 140 meV is emitted. After a delay time t_ICD a second electron (the ICD electron) with a kinetic energy of 10 eV (which is the most typical kinetic energy for an ICD electron in He₂) is launched. At some distance R_p from the origin, the second electron reaches the photoelectron. The energy difference E_d between a Coulomb potential of charge two and a Coulomb potential of charge one at R_p is the amount of energy the photoelectron is decelerated. Plotting t_ICD versus ${{E}_{{\rm PCI}}}={{E}_{i}}-{{E}_{d}}$ yields figure 22(a). The conversion function is (as expected) strongly nonlinear and the range of accessible decay times is determined by the initial energy of the photoelectron prior to PCI. Considering the most upper curve, which belongs to a photoelectron being emitted at an energy of $140\;$ meV: if ICD happens, for example, at a time of 100 fs, the photoelectron is decelerated and occurs at an energy of only 60 meV. The actual experiment was performed similarly to the one by Havermeier et al. Helium dimers were ionized and excited using synchrotron radiation in order to trigger ICD. As the ICD electron has a mean energy of 10 eV, the photoelectron needed to be sufficiently slow in order for PCI to occur. The photon energy was chosen accordingly to create a shakeup photoelectron of E = 140 meV. In figure 22(b) the results of the coincidence measurement are shown in a graph showing the dependence of the KER on the photoelectron energy. The latter is converted to decay times, employing the procedure just mentioned, yielding the time axis on the right side of panel (b). As the figure reveals, the KER strongly depends on the time at which ICD takes place. For short decay times mainly lower KERs occur. This (making use of the reflection approximation described in the previous section) can be understood intuitively, as the helium dimer is a huge system and large internuclear distances lead to small KER values. As nuclear motion evolves after the shakeuop-ionization of the dimer, it starts to contract, causing the main peak at around KER = 8 eV to occur. This KER-values corresponds to the inner turning point of the vibrational motion of the dimer. For longest decay times, i.e. smallest energy losses of the photoelectron, the vibrational features observed in [31] build up, which is consistent with the fact, that these sharp characteristics need sufficient time for the dimer to vibrate in order to form.

Zoom In Zoom Out Reset image size

By integrating over the KER release the decay function of ICD in the helium dimer was retrieved, finally unveiling the non-exponential decay behavior that occurs due to the nuclear dynamics during ICD in an experiment.
