Short-wavelength free-electron laser sources and science: a review^*

To describe the high-gain FEL self-consistently the radiation field must be allowed to evolve. The essential procedure is to combine together the coupled electron energy and phase equations (9 and 10), with the Maxwell wave equation

$$\begin{align} \displaystyle \label{Maxwell3D} \left[\frac{\partial^2}{\partial z^2}-\frac{1}{c^2}\frac{\partial^2}{\partial t^2}-\nabla_{\perp}^2\right]E_x=\frac{1}{\epsilon_0c^2}\left[\frac{\partial J_x}{\partial t}+c^2\frac{\partial \rho_e}{\partial x}\right] \nonumber \end{align} \tag{ 11 }$$

which describes the evolution of the transverse radiation electric field when driven by the electron beam transverse current [16]. Here $\nabla_{\perp}^2$ is the transverse Laplacian, $\epsilon_0$ is the permittivity of free space, J_x is the transverse current density, and $\rho_e$ is the charge density which is a relatively small contribution and can usually be neglected [16], though space charge effects should be accounted for in the formation of micro-bunches [20, 21].

Further simplifying approximations can be applied in various combinations to aid computational and analytic solutions. In the slowly varying envelope approximation (SVEA) [56], the radiation electric field is decomposed into a fast oscillatory term, ${\rm e}^{{\rm i}(kz-\omega t)}$, and a complex envelope, $\tilde{E}(z, t)=\frac{1}{2}E{\rm e}^{{\rm i}\phi}$. Assuming that the envelope varies slowly in both z and t, the second order derivatives in these variables in (11) reduce to first order, which is valid in the anticipation of long-range coherence and narrow bandwidth [38]. A less restrictive form of the SVEA is commonly used in which the field envelope is assumed to be a slowly varying function of $\tilde{E}(z-ct)$ only, so that any backward propagating, non-resonant, waves are ignored [57, 58]. In this way, relatively short radiation pulses of the order of a few radiation wavelengths, which would violate the full SVEA approximation of [56], may be modelled so long as they do not evolve significantly over one undulator period.

In a similar way the current density term can be simplified. Initially treated as a sum over single particle (SP) currents, with a j-subscript designating single electrons, it can be averaged over a longitudinal slice of the electron beam, $\Delta$ (an integer number of radiation wavelengths), over which it is assumed that the field and particle properties do not change significantly [23]. The right hand side of the wave equation can then be expressed in terms of a collective variable known as the bunching parameter

$$\begin{align} \displaystyle b=\langle {{\rm e}^{-{\rm i}\theta_j}\rangle}_\Delta \label{eq:bunching} \nonumber \end{align} \tag{ 12 }$$

whose phase is that about which micro-bunching occurs and with a magnitude varying between zero, where electrons are uniformly longitudinally distributed, and one, where the electrons are fully bunched and have the same ponderomotive phase within the slice. The Maxwell wave equation in the SVEA is then

$$\begin{align} \displaystyle \left(\frac{\partial}{\partial z}+\frac{1}{c}\frac{\partial}{\partial t}+\frac{\nabla_{\perp}^2}{2ik} \right)\tilde{E}=\chi_2\langle {{\rm e}^{-{\rm i}\theta_j}\rangle}_\Delta \label{Maxwell_SVEA0} \nonumber \end{align} \tag{ 13 }$$

where

$$\begin{align} \displaystyle \chi_2=\frac{eK JJ n_e}{4\epsilon_0\gamma} \nonumber \end{align} \tag{ 14 }$$

and n_e is the average electron volume density.

Another common simplification is a 1D approximation of the FEL equations, where transverse dependencies of the bunch charge density and radiation field are neglected (see for example [20]). This is a reasonable approximation in many cases and can be related to the 3D result to assess the impact of radiation diffraction and electron beam focussing via correction formulae [59].

One further simplification is to reduce the time dependent system to the 'steady-state' by dropping the $\partial/\partial t$ slippage term in the wave equation and considering a slice comprising a single ponderomotive well [23], thus allowing no longitudinal variations in electron bunch and radiation properties. Using j-subscripts to represent individual electrons in the pendulum equations, the system then comprises $2N_e+1$ coupled non-linear equations where N_e is the number of electrons per well. Even upon using a further 'macroparticle' approximation, where each macroparticle represents many electrons, the system of equations is still large and requires numerical solution. Time-dependent simulation codes often work by extending the steady-state model to multiple slices with slippage included via propagation of the radiation field between slices.

Modern FEL projects employ a range of simulation codes (reviewed in [19]), with 1D and steady-state models useful for faster simulation times where appropriate. For design studies and benchmarking, 3D time-dependent models operating with the SVEA [60–63] are most commonly used (either with or without averaging over an undulator period [64]) and show close agreement with experiments [2, 65–67], while non-SVEA codes (for example [68]) have much wider bandwidth allowing modelling of more exotic operating modes.

This section follows [23] to describe the rescaling of the FEL equations (9), (10) and (13), in terms of the 'FEL parameter' ρ, into a dimensionless form which contains the basic physics of the system. It is shown that ρ then conveniently describes many aspects of the FEL performance and output [41].

In anticipation of an exponentially growing solution, the distance through the undulator, z, is scaled by a nominal 'gain length', proportional to the distance for an e-fold increase in radiation intensity. The scaled distance is $\bar{z}=z/l_g$, with

$$\begin{align} \displaystyle l_g=\lambda_u/(4\pi\rho) \label{eq:lg} \nonumber \end{align} \tag{ 15 }$$

the nominal gain length. The re-scaled phase equation (10) is

$$\begin{align} \displaystyle \frac{{\rm d}\theta_j}{{\rm d}\bar{z}} = 2k_ul_g\eta_j=p_j\label{pend1a2} \nonumber \end{align} \tag{ 16 }$$

where parameters are collected into a new scaled energy variable, $p=2k_ul_g\eta=\eta/\rho$. In a similar way, re-scaling the energy equation (9) in terms of p and $\bar{z}$ gives

$$\begin{align} \displaystyle \frac{{\rm d} p_j}{{\rm d}\bar{z}}=-2k_ul_g^2\chi_1(\tilde{E}{\rm e}^{{\rm i}\theta_j}+{\rm c.c.})=-(A{\rm e}^{{\rm i}\theta_j}+{\rm c.c.})\label{FEL2} \nonumber \end{align} \tag{ 17 }$$

where parameters are collected into a scaled complex field amplitude $A=2k_ul_g^2\chi_1\tilde{E}$. Finally, the steady-state and 1D form of the wave equation (13) is re-scaled in terms of A and $\bar{z}$

$$\begin{align} \displaystyle \frac{{\rm d} A}{{\rm d}\bar{z}}=2k_ul_g^3\chi_1\chi_2\langle{{\rm e}^{-{\rm i}\theta_j}\rangle}_\Delta=\langle{{\rm e}^{-{\rm i}\theta_j}\rangle}_\Delta\label{FEL3}. \nonumber \end{align} \tag{ 18 }$$

Given the resulting exponential solution (section 2.7.3) it is required that $2k_ul_g^3\chi_1\chi_2=1$, which defines the dimensionless ρ-parameter as a collection of system parameters and fundamental constants

$$\begin{align} \displaystyle \rho=\left[\frac{\chi_1\chi_2}{(2k_u)^2}\right]^{1/3} =\left(\frac{e^2K^2 JJ ^2n_e}{32\epsilon_0\gamma^3mc^2k_u^2}\right)^{1/3}. \label{eq:rho} \nonumber \end{align} \tag{ 19 }$$

For short-wavelength FELs ρ is typically in the range $10^{-4}$ to $10^{-3}$, with the lower end of the range at shorter wavelengths due to the $1/\gamma$ scaling. The significance of ρ is discussed in the following sections.

An analytic solution to the high-gain FEL equations can be found by linearising the equations in terms of the radiation field and two collective variables to represent the electrons [41]. The radiation field, A, and the bunching parameter, b, are as previously defined but a collective energy variable is introduced, $P=\langle\,p_j^{-{\rm i}\theta_j}\rangle$ (not to be confused with power in later sections). This describes the amplitude and phase of the energy modulation. For a resonant interaction and zero energy spread the FEL equations (16)–(18) reduce to a set of three coupled linear equations

$$\begin{align} \displaystyle \dot{b} = -{\rm i}P\label{dotb_del0} \nonumber \end{align} \tag{ 20 }$$

$$\begin{align} \displaystyle \dot{P} = -A \label{dotP_del0} \nonumber \end{align} \tag{ 21 }$$

$$\begin{align} \displaystyle \dot{A} = b \label{dotA_del0} \nonumber \end{align} \tag{ 22 }$$

which can easily be collected into one third order equation

$$\begin{align} \displaystyle \mathop{A}\limits^{\ldots} = {\rm i}A .\label{dddotA} \nonumber \end{align} \tag{ 23 }$$

The full solution is a linear combination of three components, corresponding to cases with constant magnitude, exponential decay and—crucially—exponential growth. Given an undulator much longer than the gain length, the exponential growth dominates and provides orders of magnitude increase in radiation intensity. The exponentially growing solution is

$$\begin{align} \displaystyle A= A_0{\rm e}^{({\rm i}+\sqrt{3})\bar{z}/2}. \label{eq:exp_sol} \nonumber \end{align} \tag{ 24 }$$

The power gain length is therefore $L_G=l_g/\sqrt{3}$, such that the power grows as

$$\begin{align} \displaystyle P_{{\rm rad}}\propto {\rm e}^{z/L_G}.\label{eq:power_growth} \nonumber \end{align} \tag{ 25 }$$

Short-wavelength FELs starts up from either low-intensity spontaneous emission as described in section 2.8.1 or from 'seeding' via an external source as described in section 3.

The evolution of the longitudinal phase space in a high-gain FEL is shown in figure 5, as determined by numerical solution of the high-gain equations. This can be used in combination with the analytic solution to give a physical picture of the high-gain FEL interaction.

The electrons are initially uniformly distributed longitudinally with a finite energy distribution as shown in figure 5(a). Exponential growth occurs in the radiation intensity (figure 5(f)), as well as the amplitude of the electron beam energy modulation and micro-bunching, as can be seen in figures 5(b)–(d). The interaction is essentially a positive feedback process which can be described in terms of a three-step cycle [49]:

• The interaction of the electrons with the radiation field causes energy modulation of the electron beam on the scale of the radiation wavelength, $\lambda_r$.
• The energy modulation evolves into density modulation (micro-bunching), since higher energy electrons are deflected less in the undulator (4).
• The micro-bunching results in increased radiation intensity through coherent emission.

For this cycle to conserve energy, the micro-bunching must occur at a phase corresponding to net energy loss, but from figure 4 it is not obvious that this should be the case. Consideration of the phases resolves this. It is apparent that (20)–(22) imply phase dependencies between the complex parameters A, P, and b, and that (23) requires phase rotation of $\pi/2$ over three derivatives. The exponentially growing solution for A (24) indeed has a phase rotation component as well as exponential growth, and it can be shown that P and b take equivalent forms. The exponentially growing solution dominates through having a relatively small ($\pi/6$) phase difference between A, P, and b, and their respective derivatives with respect to $\bar{z}$. The additional radiation emission thereby adds constructively to the radiation field already present, and likewise for the energy modulation and bunching, while the phase of each parameter is driven to negative values with increasing $\bar{z}$, as can be seen by the phase of the separatrix in figures 5(a)–(e). Essentially, as the phases shift an equilibrium in the relative phases of A, P, and b features the bunching phase trailing the centre of the ponderomotive well (by $\pi/3$), corresponding to a position of continuous net energy transfer.

The exponential amplification cannot continue indefinitely and eventually saturates (figure 5(f)) as the electrons approach maximal bunching ($\vert b\vert =1$). The phase space at saturation is shown in figure 5(e).

The default operating mode of x-ray FELs is called self-amplified spontaneous emission (SASE) [41]. Here the electron beam injected into the undulator has a small intrinsic initial bunching b₀, due to random microscopic density variations in the electron bunch at the sub-wavelength scale. This initial bunching, termed shot noise, is always sufficient to trigger exponential growth in the coupled electron-radiation system. The further evolution of the longitudinal radiation pulse characteristics is then strongly dependent on the relative slippage between radiation and electrons. By including this relative slippage in the FEL equations the system can be solved to show that at saturation the radiation pulse comprises a random superposition of many spikes with uncorrelated phases [69]. The maximum peak-to-peak distance between spikes is $2 \pi l_c$ where the co-operation length

$$\begin{align} \displaystyle \label{eqn_lc} l_c = \lambda_r/(4 \pi \rho) \nonumber \end{align} \tag{ 26 }$$

is the slippage in a gain length. A wavefront therefore propagates a distance l_c through the electron beam per gain length and the co-operation length is seen to define the scale at which collective effects evolve throughout the electron beam. For a sufficiently long electron beam, different regions along the beam develop from the localised noise source autonomously and are therefore uncorrelated in phase. In this sense, the SASE process can be considered as a 'localised' collective process. Typically, in the x-ray the electron bunch length $l_b \gg 2\pi l_c$, so there are many random spikes in the radiation pulse which has a total length similar to that of the electron bunch. If however the electron bunch length $l_b \leqslant 2\pi l_c$ only one SASE spike can develop and single spike output is possible. Such a regime is known as weak superradiance or single-spike SASE [70, 71].

The co-operation length also then parameterises the SASE radiation coherence. The coherence time is [72]

$$\begin{align} \displaystyle \label{eqn:taucoh} \tau_{{\rm coh}} \simeq \frac{1}{\rho \omega}\sqrt{\frac{\pi \ln N_c}{18}} \nonumber \end{align} \tag{ 27 }$$

where $N_c=I/(e \rho \omega)$ with I the electron bunch current. This can be simplified using (26) and by noting that for typical x-ray FELs the square root term evaluates to $\simeq$$1.6$ to show that the coherence length is typically about 3 co-operation lengths

$$\begin{align} \displaystyle \label{eqn:lcoh} l_{\rm coh}\simeq 3 l_c \nonumber \end{align} \tag{ 28 }$$

or half the peak-to-peak spacing of the SASE spikes.

The features of a typical SASE pulse are illustrated in figure 6, which shows simulation results for a high-gain SASE FEL with parameters similar to FLASH [1]. Figure 6(a) shows the intensity profile comprising multiple random spikes. Figure 6(b) shows the radiation phase, colour-coded to indicate the associated radiation intensity. The phase is seen to vary randomly from spike to spike but is almost constant within each spike showing that individual spikes have good temporal coherence. Figure 6(c) shows the electron bunch current profile. In the simulation the current is averaged over slices one wavelength long so this shows that even if the electron bunch is perfectly smooth over this scale the output pulse will be noisy due to the shot noise at sub-wavelength scales. Finally figure 6(d) shows the spectrum of the output pulse which also comprises multiple random spikes.

Zoom In Zoom Out Reset image size

The pulse shown in figure 6 is just one example of a typical SASE output pulse. In practice each pulse has a different arrangement of spikes, temporally and spectrally, due to the start up from noise. It is important to note that although the number of temporal spikes is approximately the same as the number of spectral spikes, there is not a one-to-one correspondence between them. Each temporal spike does not have a distinct wavelength but has the full bandwidth of the envelope which is the gain bandwidth of the FEL system. This can be seen clearly in figure 7 which shows a windowed Fourier transform of the simulated FEL pulse in figure 6(a).

Zoom In Zoom Out Reset image size

The gain bandwidth can be derived analytically from the FEL equations (16)–(18) by examining the system in terms of a small perturbation away from the resonant energy to determine the exponential gain as a function of this energy detuning, then using the resonance condition (6) to relate energy detuning to wavelength detuning. The result obtained is that the relative rms bandwidth narrows with distance travelled through the undulator as $\sigma_\lambda \simeq 2 \rho \sqrt{\pi/\bar{z}}$. The FEL approaches saturation at $\bar{z} \geqslant 10$ so the rms bandwidth of the saturated output is

$$\begin{align} \displaystyle \sigma_\lambda \simeq \rho. \nonumber \end{align} \tag{ 29 }$$

As the radiation field grows along the undulator the scaled parameters (A, P and b) increase together to near unity—at this point the electrons are fully bunched and the power saturates. Saturation at $P\approx1$ corresponds to a mean relative electron energy loss of $\bar{\eta}=(\gamma-\gamma_r)/\gamma_r\approx\rho$ as shown in figure 5(d). Thus ρ is again shown to be a fundamental indicator of FEL performance as it represents the efficiency of the conversion of electron beam power to radiation power. The peak radiation power at saturation is given by

$$\begin{align} \displaystyle \label{eqn:FEL_Power} P_{{\rm rad}}\approx\rho P_{{\rm beam}}=\rho I_{{\rm peak}}[{\rm A}]E[{\rm~eV}] \nonumber \end{align} \tag{ 30 }$$

where $P_{{\rm beam}}$, $I_{{\rm peak}}$ and E are the electron beam peak power, peak current, and energy respectively. Typically for short-wavelength high-gain FELs ρ is in the range $10^{-4}$–$10^{-3}$, the electron beam energy is in the tens of GeV and the peak current is a few kA, so FEL peak output power is in the tens of GW.

The FEL power scales as $P_{{\rm rad}} \propto n_e^{4/3}$ in the steady-state, which can be seen from the scalings $P_{\rm beam}\propto n_e$ and $\rho\propto n_e^{1/3}$ (19). The power is non-linear in n_e because the electrons become microbunched by the FEL interaction leading to a coherent superposition of emission. For unbunched electrons randomly distributed over a length much longer than the radiation wavelength, undulator radiation is incoherent and scales as $P_{{\rm rad}}\propto n_e$ [49], whereas for a perfectly pre-bunched beam injected into an undulator, where the bunching factor remains constant, the power scales as $P_{{\rm rad}}\propto n_e^2$. In the FEL the interaction self-bunches the electrons; the number of electrons emitting together in a gain length scales as $n_e^{2/3}$ (since $I\propto n_e$ and $l_c\propto n_e^{-1/3}$), such that the power scaling $P_{{\rm rad}} \propto n_e^{4/3}$ is intermediate between the unbunched and fully pre-bunched cases. However, under certain conditions, slippage effects in the high-gain FEL can lead to a pure superradiant emission where the power does indeed scale as $P_{{\rm rad}} \propto n_e^2$ [70].

The pulse energy is the instantaneous power integrated over the pulse duration. With peak powers in the tens of GW and pulse durations 10–100 fs the pulse energy is typically 100 ${\rm \mu}$J to a few mJ. The number of photons per pulse is the pulse energy divided by the photon energy, typically $5\times 10^{10}$—$5\times 10^{11}$. Table 2 on page 12 lists the pulse energies available from currently operational facilities. Higher harmonics are also present in the FEL output, with intensity less than a few percent of the fundamental [73]. FEL facilities also produce spontaneous undulator radiation, the power of which can be on the order of the FEL power for hard x-ray FELs [20]. Nevertheless, the FEL radiation is many orders of magnitude brighter than this due to the narrower angular and spectral distributions.

Table 2. Parameters for currently operational x-ray FEL facilities.

Name	Institute	Wavelength (nm)	Pulse energy	Pulse duration	Pulses ${\rm s}^{-1}$	Energy (GeV)
FLASH [1]	DESY	4–52	10–500 μJ	50–200 fs	5000	1.25
FERMI [4]	Elettra ST	20–80	$<$30 μJ	150 fs	10	1.5
LCLS [2]	SLAC	0.1–4.6	2–6 mJ	2–100 fs	120	15
SACLA [3]	RIKEN	0.08–0.25	80–250 μJ	20–30 fs	60	8.5

The radiation emission over the first few gain lengths of the FEL process has significant higher order mode content but because the growth of the field is driven most strongly on-axis this favours coupling to the fundamental Gaussian mode—higher order modes are wider or even have a minimum on axis and are therefore driven less strongly [16]. By the time the FEL is close to saturation the fundamental mode strongly dominates and the output beam is close to diffraction limited [74–76]. Beyond saturation the transverse coherence starts to degrade due to the growth in the number of higher order transverse modes.

As shown, a FEL produces pulses of high peak power, narrow bandwidth and near-diffraction limited transverse coherence. This means it is possible to focus an intense flux of near-monochromatic photons onto a small area, making the x-ray FEL an extremely useful scientific tool. The flux, bandwidth and transverse coherence are collectively quantified by the spectral brightness, defined as

$$\begin{align} \displaystyle B = \frac{\Phi}{4 \pi^2 \Sigma_x \Sigma_{\theta x} \Sigma_y \Sigma_{\theta y}} \nonumber \end{align} \tag{ 31 }$$

where $\Phi$ is the spectral flux, the number of photons per second divided by the relative bandwidth and $\Sigma$ represents a quadrature sum of the photon beam and electron beam rms beam sizes or divergences. Under the assumption that the FEL output is close to diffraction limited and that the FEL undulator is very long this simplifies to

$$\begin{align} \displaystyle B = \frac{4 \Phi}{\lambda^2} \nonumber \end{align} \tag{ 32 }$$

then using that the relative bandwidth $\sigma_\lambda \simeq \rho$ the expression for peak spectral brightness, in units of photons/s/mm²/mrad²/0.1% BW, becomes

$$\begin{align} \displaystyle B \simeq 8 \times 10^9 \frac{P}{\rho \lambda}. \nonumber \end{align} \tag{ 33 }$$

For $P_{{\rm rad}}\simeq 10$ GW, $\rho \simeq 10^{-3}$ and $\lambda =0.1$ nm, this gives $B \simeq 8 \times 10^{32}$ photons/s/mm²/mrad²/0.1% BW, exceeding that available from storage ring sources by at least eight orders of magnitude. A more detailed comparison between x-ray FEL brightness and alternative sources is given in section 4.

Storage rings generate spontaneous undulator radiation across wide regions of the spectrum including x-rays. The output properties are 5 or 6 orders of magnitude lower than FELs in terms of energy and photons per pulse, and since the electron bunch length is typically of the order of 10 ps the peak flux and brightness are reduced by a further 2 or 3 orders of magnitude. Nevertheless, the number of photon pulses per second is very high due to the electron bunches continuously circulating and so the average properties of storage rings remain competitive.

A number of storage ring facilities are actively pursuing upgrades to the storage ring lattice arrangement to significantly reduce the electron beam emittance so that the emitted light is diffraction limited even at x-ray wavelengths [149]. The undulator radiation is diffraction limited when the brightness would not increase if the electron beam size and divergence were reduced further. Many storage rings are already diffraction limited in the x-ray region in the vertical plane but are some way from this in the horizontal plane. The upgrades therefore are largely focussed on reducing the horizontal emittance of the electron beam. These diffraction limited storage rings, sometimes called ultimate storage rings, will increase the average brightness compared to conventional rings by typically one or two orders of magnitude in the x-ray region. The pulse energy and repetition rate are largely unchanged by such an upgrade.

ERL based light sources have been studied by several groups but have not yet been implemented in the x-ray region [140]. ERLs continually use fresh electron bunches and so the electron bunch emittance is determined directly by the injected beam parameters. Studies have shown that diffraction limited output in the x-ray region is feasible and so an ERL based light source, which also emits spontaneous undulator radiation, has broadly similar properties to a diffraction limited storage ring. A major difference is that the electron bunches are shorter in an ERL, by typically one order of magnitude, and so the peak properties are enhanced by this amount.

HHG is a non-linear process in which a very intense laser is focussed onto a target that is often, but not necessarily a noble gas [150–152]. The interaction of the strong electric field of the laser with outer-shell electrons leads to the generation of a range of very high order odd harmonics of the laser wavelength. A fundamental laser wavelength of order 1 μm typically leads to the generation of light down to wavelengths of less than 10 nm. The wavelengths generated continue to get shorter as researchers refine techniques and sub nm wavelengths (i.e. few keV) have already been reached [153, 154]. However, most sources are limited to about 100 eV. Whilst the pulse energies are only in the 100 nJ range in this photon energy region [155, 156], this corresponds to an impressive number of photons per pulse (of order 10¹⁰ in a narrow wavelength band). The number of photons per pulse beyond about 100 eV currently declines rapidly but with 1 kHz laser sources the number of photons per second can still reach beyond 10⁹ into a 1% bandwidth up to around 200 eV [157].

A key feature of HHG sources is that extremely short photon pulses can be generated. In fact the tens of attosecond photon pulse lengths generated are the shortest pulses of light available to experimentalists to date [156]. These short pulses are normally in bursts but single isolated pulses can also be generated by a number of techniques [152].

The general requirements for XFEL mirrors are the same as those at storage rings: to deliver the photons with as small a perturbation as possible to the photon beam while controlling its direction and spatial extent. There are several parameters specific to XFELs (see section 2) that make this more difficult than for SR. For example, due to the low source divergence in the XFEL beam, the x-ray spot size on the optical elements can often be quite small—even at significant distances from the end of the insertion devices. This, when combined with the short pulse duration, can lead to intensity effects in both the mirror coatings and substrates [174–176] and necessitates grazing-incidence operation with tight control of the mirror angle ($<$10⁻⁶ rad). A further complication is that the source point for the radiation moves along the beam propagation direction when the photon energy is changed. This means that for a mirror to work over a range of photon energies it must also have a large acceptance range [177]. Finally, to take advantage of the transverse coherence of the beam at the experiment the optic must not distort this coherence, putting even more stringent requirements on the profile of the mirror ($<$1 nm figure error) [178]. Note that this last requirement is also important at diffraction limited storage rings [179].

The solution for many XFEL hard x-ray optics [178] has been to use mirror substrates of quartz or silicon prepared using elastic emission machining (EEM), which uses a suspension of SiO₂ nanoparticles (0.1 mm diameter) in water flowing through a nozzle to etch away the top surface of the substrate in a controlled manner (1 nm ${\rm min}^{-1}$) [180]. By repeatedly measuring the surface profile of the mirror, using microstitching interferometry (MSI) [181] and relative-angle determinable-stitching interferometry (RADSI) [182], the EEM process can be precisely controlled using nozzle head positioning resulting in substrates with sub-nm peak-to-valley figure errors. The surface profile of a mirror in use at SACLA is shown in figure 20. These optics can then be coated using a low-Z material, such as carbon or B₄C, which allows for a larger penetration depth of the x-rays into the coating and distributes the photon flux over a larger volume while still maintaining high reflectivity ($>$97%). Metal coatings can also be used to enable the use of higher grazing incidence angles, which provides a larger beam acceptance but care must be taken when using these coatings since the damage thresholds are often an order of magnitude lower than low-Z coatings [175].

Zoom In Zoom Out Reset image size

In general monochromator design for XFELs is similar to that used at storage rings [158]. However the operation of these devices is somewhat different since beamlines are often required to move between monochromatic and non-monochromatic modes (so-called pink beam operation) depending on the experiment. For hard x-ray beamlines one solution to this problem has been to employ two channel-cut monochromators (CCMs), where the second CCM is a reversed copy of the first, thus allowing the normal CCM transverse beam deflection to be perfectly compensated [183]. This assembly can then be removed from the beam, allowing the pink beam to follow the same path as the monochromatic beam. Other solutions include using two mirrors to mimic the beam path deviation of the two crystals in a monochromator [177].

One novel approach taken at LCLS has been to use the monochromator as a beam-sharing device where one experiment uses the monochromatic beam diffracted through the monochromator, while a second experiment uses the pink beam which is transmitted through the thin first crystal [184, 185]. This so-called multiplexing approach allows two experiments to take place simultaneously [186], with the restriction that the x-ray photon energy cannot be changed during the measurement.

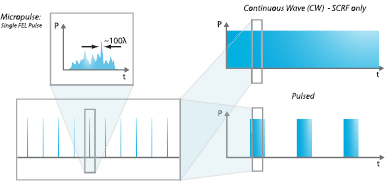

The XFELs that operate with superconducting accelerating technology and produce periodic bursts of x-rays [1, 9, 14, 168, 173] have the additional problem of varying heat load on the monochromator elements. For a facility such as the European XFEL this has required the design of liquid-He cooled artificial channel-cut monochromators, where an estimated peak power of 2000 W is produced during the burst of 2700 pulses in an interval of 0.6 ms [187].

An aspect of monochromators that should be mentioned is their effect on the x-ray pulse duration. Since monochromators generally restrict the bandwidth of the photons that pass through them, they can impact the time-bandwidth product of the pulses, stretching them in time. In general this only affects high energy resolution measurements using very short pulses but as XFEL pulse durations decrease towards the attosecond regime (see section 3.3) this becomes more of an issue for both crystal [188–191] and grating [192] monochromators.

Several devices exist to measure pulse energies shot-to-shot in a non-destructive manner. These include tools based on photoelectron generation in a gas [195, 196] and scattered x-rays from a thin film [197–199]. By using the spatial distribution of these signals it is also possible to measure the position of the x-ray beam. The absolute pulse energy can also be measured using a calorimeter [200, 201] but as this takes the full XFEL beam it cannot be used simultaneously with another experiment.

Several single-shot spectrometers have been developed for both the soft [199] and hard [202, 203] x-ray regimes. Both LCLS [204, 205] and SACLA [206] have online hard x-ray spectrometers which use a portion of the x-ray beam for the measurement, providing pulse-to-pulse information on the variation of the SASE spectrum. Work at SACLA has also demonstrated the ability to perform transient x-ray absorption experiments to measure the spectrum of a sample in transmission using single-shot spectrometers both before and after the sample position [207, 208]. This has the advantage of requiring no monochromator scanning but is very sensitive to differences in the spectrometer elements. For lower photon energies FLASH has developed a non-destructive photon energy monitor based on ion and electron measurements from noble gases [209].

XFEL pulse duration measurements are difficult [210] not only due to the ultrashort nature of the pulses but also because using standard autocorrelation techniques developed for femtosecond optical lasers are not straightforward at x-ray photon energies. There are several techniques that have been demonstrated at XFELs to provide information on the pulse duration. LCLS has installed a transverse RF deflecting cavity to measure the longitudinal electron energy profile of the spent electron bunch after it has lased [132, 211]. This tool, called the XTCAV, shows where the electron bunch has lost energy due to the lasing process, allowing the photon pulse duration to be estimated. The XTCAV has proved to be an extremely useful tool for feedback on machine operation and is routinely used at LCLS during specialized modes such as two-pulse operation [212]. Data taken using the XTCAV showing a lasing-off reference measurement and the subsequent lasing measurement for 20 pC bunch charge is shown in figure 21.

Zoom In Zoom Out Reset image size

A second technique that has demonstrated the ability to measure the XFEL pulse duration is the so-called THz streaking method. In this technique the XFEL pulse generates photoelectrons from a gas jet and these photoelectrons are streaked by a single-cycle THz pulse (0.5–1 THz) that is generated by an optical laser and spatially overlapped with the x-rays. By measuring the energy of the photoelectrons using a time-of-flight spectrometer it is possible to extract several details about the x-ray pulse, such as the timing jitter between the optical laser and the x-ray pulse [213], and the pulse duration of the x-ray pulse [214]. This streaking technique has also been demonstrated using an IR laser field [215], which has proved capable of resolving x-ray pulse durations to below 10 fs. A similar technique using laser-assisted Auger decay in Ne has also been demonstrated to be sensitive to both the x-ray pulse duration and the optical laser/x-ray jitter [216]. Finally SACLA has demonstrated a technique where they use a high-resolution spectral measurement of the SASE spikes to extract the x-ray pulse duration [217].

Due to the finite length of the electron bunch (20 fs to 1 ps), which is longer than the cooperation length of the SASE process (∼1 fs), lasing can take place in multiple locations within its longitudinal extent, resulting in variance in both pulse shape and arrival time shot-to-shot. This can be seen in figure 21 where the lasing process has taken place in a 2.6 fs section around the middle of the approximately 15 fs electron bunch. The XFEL photon pulse arrival time with respect to the optical laser excitation (pump) pulse is also determined by the electron beam timing, which is dictated by the synchronisation and stability of FEL facility components including the photocathode laser system and RF linacs [218]. This includes energy-jitter to time-jitter conversion in the magnetic elements of the bunch compression and transport [17]. The combined result is an XFEL photon pulse arrival-time jitter of up to several hundred femtoseconds, pulse-to-pulse, though this can be improved by using all-optical synchronization techniques across the facility [219, 220]. This timing jitter has a significant impact on pump-probe experiments where control over the time delay between an optical laser and the x-ray pulse is crucial. One approach to avoiding this problem is to use an optical laser to seed the FEL using high harmonics of the optical laser (high gain harmonic generation (HGHG)) which is possible at XUV to soft x-ray photon energies. This technique, which has been implemented at FERMI [4, 221, 222], uses the same laser as both the experimental pump source and FEL seed resulting in $<$10 fs jitter between pump and probe [223]. Several techniques have been developed to measure the relative arrival times between laser and x-ray pulses, allowing data to be corrected using this information. One example is the THz streaking tool which was described in the previous section [213], which has the advantage that it works through the entire soft to hard x-ray ranges. LCLS has implemented two tools, one used at the hard x-ray instruments (spectral encoding) and one at the soft x-ray instruments (spatial encoding). The spectral encoding tool [224] uses a chirped white light pulse, generated by the optical laser to probe the change in reflectivity of a thin membrane of Si₃N₄ caused by its transmission of the x-ray pulse. The result is a decrease in the transmission of the white light at a specific wavelength, which can be directly correlated to the time-delay between the optical laser and x-rays if the chirp of the probe is well-characterized. The spatial encoding technique [225, 226] uses the tilt angle between the laser pulse and the x-ray pulse to map the relative arrival time between the two pulses onto the spatial profile of the optical laser beam. Both tools have been tested against each other and against a time-resolved diffraction signal from a Bi crystal, demonstrating their ability to correct time-resolved signals down to $<$50 fs [227]. A schematic of the setup used at LCLS for this measurement is shown in figure 22. Subsequent improvements have even demonstrated the ability to reach $<$1 fs using 10 fs optical pulses [228]. The SACLA facility has introduced a combined spectral/timing jitter photon diagnostic [206], allowing them to measure the relative timing jitter between laser and x-rays using a spatial encoding technique. This timing diagnostic was recently correlated with a temporarily installed second timing diagnostic [213], resulting in an error between the two measurements of $<$40 fs (FWHM) [229].

Zoom In Zoom Out Reset image size

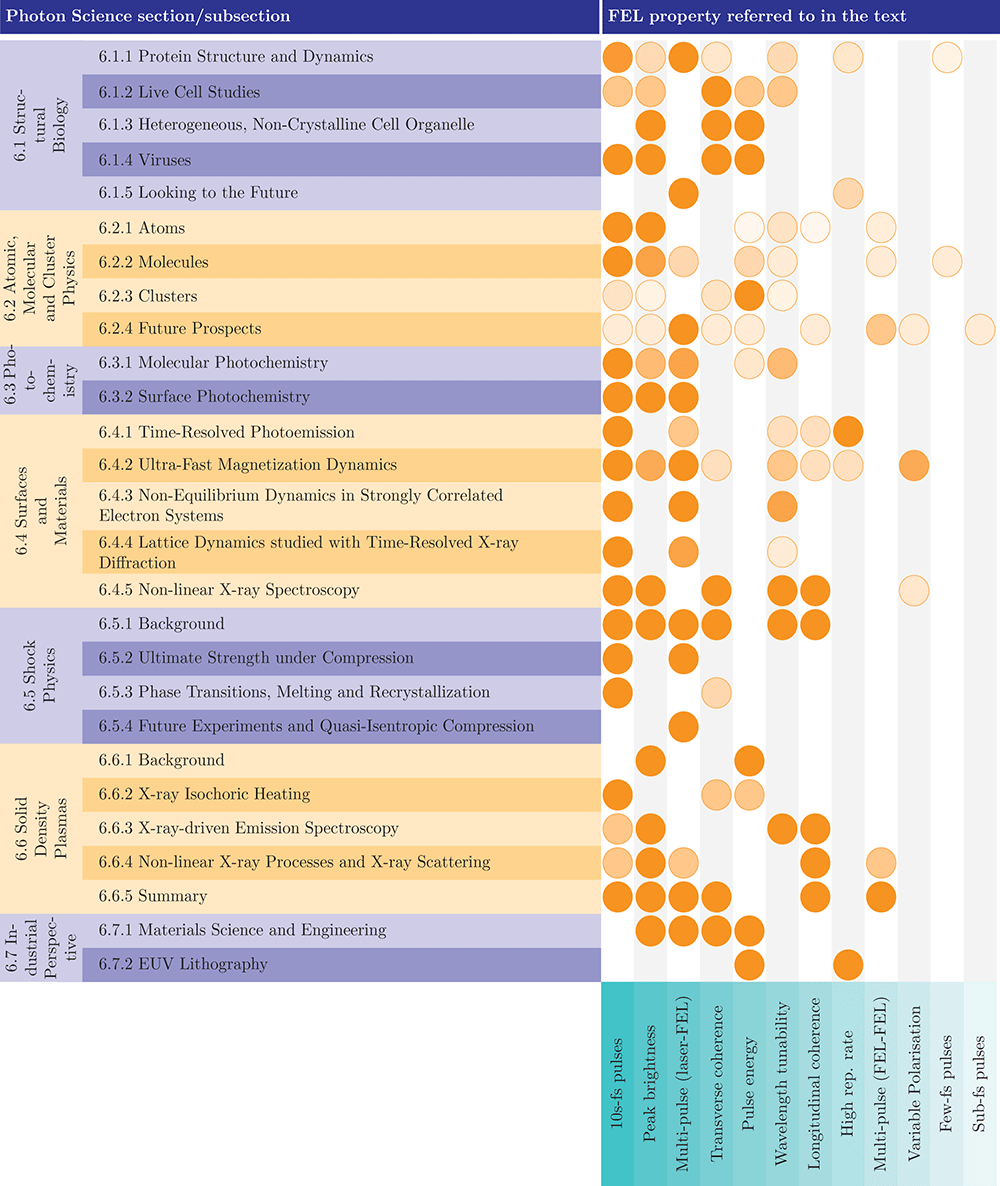

Several new techniques have been developed for both static and time-resolved diffraction studies of proteins at XFELs, as shown in figure 23. These include serial femtosecond crystallography (SFX), snapshot (femtosecond) fast solution scattering (FSS) (or fast wide-angle x-ray scattering (WAXS)), SP diffraction (with one particle, such as a single virus, per x-ray shot) and the study of 2D protein crystals. For SP imaging, in particular, it was appreciated that the challenges were immense, since even a virus as large as the mimivirus (about 0.3 μm in diameter) scatters only a few million soft x-rays when hit with the $10^{12}$ photons provided in each pulse from LCLS at SLAC. These pulses, with durations from 10 to 200 fs, are generated at 120 Hz, and the resulting diffraction patterns are read out at the same rate, producing very large data sets. The beam diameters available at LCLS vary between a few microns and 0.2 microns. For crystallography, the intensity at the peak of a Bragg spot is proportional to the sixth power of the number of molecules on a side of the crystal, so even a 10  ×  10  ×  10 protein nanocrystal produces a million times more scattered intensity at such a peak than one of its molecules. This accounts for the fact that the first successes in biology at XFELs were obtained in the SFX mode, for which the first high-resolution results were obtained in 2011 [239]. It is found that resolution depends on pulse duration, and that near atomic resolution can be obtained with 40 fs pulses or shorter [240], using microcrystals sprayed in a continuous single-file stream across the pulsed x-ray beam [241].

Zoom In Zoom Out Reset image size

Well before the first hard x-ray FEL was operational, both preliminary experimental developments and work on new algorithms were underway at various national laboratories, universities and x-ray FEL facilities. The serial crystallography method and the first sample delivery systems, in which a stream of protein nanocrystals in random orientations runs across the beam, was developed experimentally at Arizona State University and later tested at the Advanced Light Source in Berkeley [242]. A goniometer is not used, so that computer algorithms must be used to determine the crystal orientations and provide indexing, in order to merge at a later date thousands of shots. The underlying theory for protein nanocrystal diffraction at XFELs was first described in detail by Kirian et al [243]. For SPs, the image reconstruction process involves two steps: firstly determination of the orientation of the particles from the continuous 'diffuse' x-ray scattering of each of them (and merging of the data into a three-dimensional diffraction volume), followed by solution of the phase problem and inversion to a three-dimensional single-particle charge-density map. This problem, which has built on earlier work in the field of coherent diffractive (lensless) imaging (CDI) forms the basis of a large literature, reviewed by Millane and coworkers [244], Hawkes and Spence [245] and Marchesini [246]. Software packages are now available to perform this analysis [247]. Two recent successful approaches are described in detail in Hosseinizadeh et al [248] (manifold embedding) and Ayyer et al [249] (expectation maximization and compression).

Since the times for molecular processes in biology are generally long (e.g. microseconds or longer) due to entropic and other factors, the femtosecond pulses of the XFEL are mainly used to outrun damage, rather than to provide high time resolution which may nevertheless be needed in the study of fast processes triggered by light, such as the response of the eye (rhodopsin) or photosynthesis. Otherwise, this 'diffract-and-destroy' mode allows proteins to be studied at room temperature before damage, rather than at the low temperatures (which may introduce artifacts) used at synchrotrons to minimize radiation damage. XFELs therefore provide an important opportunity to study time-resolved protein dynamics at room temperature, with the correct physiological driving forces and energies available. Other situations in which the use of an XFEL may be preferred include: (i) proteins which readily form microcrystals (for example by growth in lipid cubic phase [250]) but for which it may take months or years to determine the chemical conditions to grow crystals large enough for conventional crystallography. Microcrystals are readily fed to the beam as a suspension in various liquids. (ii) For the study of protein dynamics such as enzyme reactions, substrate and enzyme nanocrystals may be mixed in the sample delivery device, allowed to react for a measured time, then injected in a stream across the beam [251, 252]. The small size of the crystals (about one micron) allows 'diffusive mixing' of substrate through the nanocrystal water channels in a time of tens of microseconds, much shorter than the chemical reaction time. (The paper by Schmidt [253] contains calculations of diffusion time against crystal size, which limits time resolution in diffusive mixing experiments.) Crystals small enough for diffusive mixing cannot easily be handled at synchrotrons, yet produce strong diffraction patterns at an XFEL. This diffusion time in crystals differs from that in solution and depends on the amount of water in the crystal unit cells. It increases to about 1 ms for glucose diffusing into a 3  ×  4  ×  5 micron microcrystal of lysozyme. Each setting of reaction time (at which thousands of diffraction patterns are collected in random crystal orientations) then provides one frame of a 3D 'movie' of the reaction. (Because of the ensemble averaging among the molecules of the crystal which must be taken account of, this will not be a movie in the conventional sense [254]). There may be more than one reaction pathway progressing among the molecules of the crystal and these pathways must be disentangled from the Bragg scattering data, which imposes a spatially periodic average, using numerical methods such as single-valued decomposition and modelling based on the known unexcited crystal structure. The response of the beta-lactamase enzyme to a small drug molecule (used against tuberculosis) has recently been studied in this way [255] as has the RNA riboswitch (which regulates gene expression), using RNA microcrystals [256]. (iii) The use of nanocrystals also facilitates optical pump-probe studies, since the size of these crystals is comparable with the absorption length of the pump light, so that the crystal may be fully saturated with pump light [257]. Studies of metalloprotein enzymes are reviewed in Kern et al [258].

For SFX when using a liquid host medium and a gas-dynamic virtual nozzle (GDVN), the typical jet speed is very fast, perhaps 10 m/s, with micron-sized droplets passing at about 1 MHz, so that only one nanocrystal in every four thousand is hit by the beam, resulting in much wasted protein. The GDVN uses a coaxial sheath of faster-moving gas to speed up, and hence narrow, the liquid stream after emerging from a nozzle sufficiently large to avoid clogging. It later breaks up, according to Rayleigh's theory, into a droplet stream [259]. The droplets then form into a single-file beam of perfectly spherical micron-sized spheres, which eventually freeze by evaporative cooling at about $10^{6}$ °C ${\rm s}^{-1}$. A large reduction in the amount of sample required can be achieved by reducing the speed of the jet, either by using higher viscosity host liquids (forming a 'toothpaste' jet) or by injecting much larger droplets than can be synchronized with the FEL pulses. ('On-demand' droplet formation, perhaps with one virus or nanocrystal in each droplet, is not possible with droplets smaller than about 30 micron diameter.) This has raised the possibility of delivering nanocrystals in the same viscous medium, namely Lipidic Cubic Phase, in which they are grown, thus addressing the important problem of how to make nanocrystals for XFEL work and greatly reducing the amount of protein needed. Membrane proteins are well suited to growth in LCP and there have now been several structures of these solved at XFELs (see, for example Zhang et al [250] for angiotensin, and drugs related to control of blood pressure). The LCP injection device [260] has now also been used at many synchrotrons, so that new structures are now being reported using serial crystallography for small crystals with SR in the absence of a goniometer [261] (for a review, see [262]). In this viscous medium, sample rotation is negligible during the millisecond exposure times possible using the new detectors now available at synchrotrons. Other viscous fluids have been used to accommodate both soluble and membrane proteins, including agarose [263] and mineral oil (grease) [264]. The relative merits of the various jet approaches have been reviewed by Weierstall [265]. The LCLS is typically focused to a spot of approx. 1–2 μm in diameter (FWHM) and, for hard x-rays, delivers about $7 \times 10^{10}$ photons ${\rm \mu m^{-2}}$ in the centre of the beam (assuming a Gaussian profile). Studies to date have used photons of around 7–9.5 keV, however the upper limit of beam energy has also allowed selenium SAD (single wavelength anomalous diffraction) phasing at 12.6 keV. An illustration of one continuous-jet sample-delivery method, based on electrospinning, is shown in figure 24 [266]. Finally, with repetition rates increasing steadily at future planned XFELs, a sample delivery method which is perhaps the most flexible for pump-probe time-resolved data collection has been developed from the early mixing-jet designs [251]. In this double-focusing design [267], a third intermediate coaxial fluid, typically alcohol, is introduced between the liquid stream carrying the microcrystals, and the outer focusing gas. This liquid does not mix, but is so effective in focusing the inner steam that at high velocity it can reduce the inner stream diameter to zero, acting as a smooth shut-off valve. The resulting system supports both membrane and soluble proteins, at speeds sufficiently high for pump-probe data collection at kHz repetition rates. By using a fine inner stream, protein is conserved, requiring far less protein than the GDVN system.

Zoom In Zoom Out Reset image size

A second alternative approach is to fire the FEL beam at microcrystals held on a solid support which is scanned across the beam ('fixed targets'), such as a Micro-Liquid Enclosure Array (MLEA) which can, for example, hold samples in solution behind silicon nitride windows or exposed to a humid atmosphere [268–271]. Depending on the x-ray background levels required, these may or may not be used in vacuum, where liquids freeze by evaporative cooling. This 2D array of perhaps 50  ×  50 such windows must then be raster scanned across the beam (which cannot be moved) at high speed (for example matching the 120 Hz repetition rate of the LCLS) as the beam destroys each sample in turn, releasing water to freeze in the vacuum. (The focused LCLS beam immediately drills a hole in stainless steel sheet metal.) Robots may need to be designed to fill and encapsulate these cells. Future XFELs will operate at kHz camera-readout speeds, providing challenges for the design of both viscous jets and scanned fixed-target systems. The rate of particle delivery in the GDVN, when free-running (i.e. not driven by piezo oscillator) is about 1 MHz, close to the European XFEL repetition rate, which opens to users in 2017. However camera read-out speeds are expected to be about 20 kHz. It seems likely that stage-scanning will be possible at a few kHz speeds, with accurate (nm) beam positioning on few-micron sized crystals, thus providing higher hit rates than jets but smaller data sets. Robotic loading and liquid sealing of cells against background are issues yet to be fully resolved. For the promising 'Road-runner' system [268] samples can be wicked down from solution into an array of holes in a silicon membrane (where they jam) toward a filter paper on the lower side. Bragg reflections from the silicon may pass outside the detector at high angles.

Structural reports have included studies on; Photosystem-I [231], photosystem II [272, 273], G protein-coupled receptors [274, 275], photoactive yellow protein [254, 257], rhodopsin-arrestin complexes [276, 277] and cytochrome C oxidase [278]. Additional reviews of this area include, for example, those by Patterson [279], Spence [233], Fromme and Spence [280], Schlicting [281] and Neutze [282]. The structures of lysozyme, glucose isomerase, thaumatin and fatty acidbinding protein type 3 at a resolution of better than 2 Å have also been reported recently [264].

Whilst the majority of x-ray crystal structure determinations give a static (i.e. time and spatially averaged) picture of the system under study, SFX using pump-probe techniques allows dynamical information to be obtained. A review of approaches to time-resolved diffraction using XFELs can be found in [283]. Key dynamical processes may be probed over timescales of femtoseconds to microseconds.

Several dynamical studies on large biomolecules have been reported since the first pump-probe study, on Photosystem I—ferredoxin [284]. Here the use of microcrystals for SFX can provide atomic resolution but also limit conformational changes to those which preserve the crystal structure. Myoglobin, optically excited, has been studied in the early stages of excitation [285]. Most recently, remarkable density maps of the cis-trans transformation in Photoactive Yellow Protein (PYP) have been captured as a movie at 100 fs time resolution (out to 3 picoseconds) and 0.16 nm spatial resolution [257], a process that is akin to the first event in the detection of light by the human eye. The time-resolved density maps obtained for this process are shown in figure 25. This was done using the GDVN liquid injection system with laser pumping synchronized with the x-ray pulses to record snapshot diffraction patterns alternately from illuminated and un-illuminated protein nanocrystals. Laser illumination, simulating the effect of sunlight on a plant or organism, causes a small change in structure factors, which can be phased by the molecular replacement method, to produce a difference electron density (DED) map between the bright and dark states. Since each crystal is destroyed in turn, the bright and dark data are collected from successive nanocrystals of different size, complicating scaling in data analysis (see below). Thousands of diffraction patterns must be collected for each pump-probe delay, which provide one frame of a 3D movie. The photocycle includes several stable intermediate molecular species, and two reaction paths in the nanocrystals, whose appearance and disappearance, described by rate equations, can by extracted from the data by single-valued decomposition (SVD). This project followed earlier work on the same system over a longer time interval using the same method [254]. A second example can be found in the lower-resolution study of the important Photosystem II macromolecule, responsible (with Photosystem I) for photosynthesis in all green plants, and hence for life on earth. Contained within Photosystem-II is the so-called oxygen-evolving complex (OEC) at which the photolysis of water occurs via a series of photon pumped redox reactions. By determining the structure of Photosystem-II (PS-II) in the dark state (S₀ state) and then after double laser excitation (supposed S₃ state) structural changes in the Mn₄CaO₅ cluster at the core of the OEC and in electron acceptor areas of the protein have been established [272] and the nature of oxygen-oxygen bond formation determined [286, 287]. This XFEL pump-probe approach to the study of photosynthesis becomes even more powerful when the x-ray snapshots are combined with x-ray emission spectra from the heavy atoms present (Mn) which can provide information on the oxidation and spin state of these atoms at each point in the cycle [288]. An important recent development has been the collection of time-resolved pump-probe diffraction data using a viscous LCP injector [289] whose slow speed requires far less protein that the GDVN systems where all protein runs to waste between shots. This new method has now been used to obtain a multi-frame 3D movie of the response of bacteriorhodopsin to light at atomic resolution [290].

Zoom In Zoom Out Reset image size

Data analysis for SFX is the subject of an extensive literature. Because of the large shot-to-shot fluctuations in XFEL intensity, the large variations in nanocrystal size, and the chance variations in diffraction conditions (orientation) for each shot, the earliest publications used the so-called Monte-Carlo method [243]. The SASE mode of operation is essentially amplified noise (see section 2.8) and is therefore not optimal for crystallography. At the same time, integrating detectors optimized for the large dynamic range needed were not available. In the Monte-Carlo method a simple average is taken over stochastic variations in all experimental parameters, which are very difficult to characterize accurately and may have to include such things as variations in sample to detector distance, background due to stray x-ray scattering, readout noise and pixel saturation. The resulting error in structure factor measurement then falls off inversely as the square root of the number of shots, with a certain proportionality constant K. Detector metrology proved particularly difficult, requiring accurate measurement of the position of each pixel with respect to the flying samples with near micron accuracy. The 'partially problem' is the subject of many papers: a single shot provides only a thin slice by the Ewald sphere through the angular range over which a crystal diffracts around any Bragg condition (the rocking curve), whereas an angular integration over this is required to provide a structure factor. With a large data set in the Monte-Carlo approach, there is likely to be a good sampling of crystal orientations around any particular Bragg condition (each from an individual nanocrystal of distinct size) so that the sum of these will provide the wanted angular integration across the rocking curve. A summary of all these issues, describing the incremental progress that has been made on all of them (resulting in a large reduction in the value of K over the past seven years), can be found in Sauter [291], Oghbaey et al [271] and White et al [292], which describes a software package for SFX data analysis (see also [293, 294]). This reduction in K has meant that new structures have now been solved at XFELs using a few thousand patterns, in favourable cases, which can be collected in minutes. Most current algorithms start with a Monte-Carlo average, then use iterative optimization to refine further the experimental parameters. In practice, data analysis is normally done in two stages. During acquisition, software such as Cheetah [295] (see also [294]) is used to discard blank shots and identify good hits containing an indexable number of Bragg spots, correct detector artifacts, subtract background and generate a virtual powder pattern (the sum of all good patterns, showing Debye–Scherrer rings) for a quick indication of data quality, resolution, and possibly to assist with indexing, generate statistics on hit rate and resolution, and convert the cleaned output to a standard file format such as HDF5. The data are commonly phased by the molecular replacement method, however the use of both single-wavelength anomalous diffraction [296, 297] and isomorphous replacement has been demonstrated [298].

Solution scattering, or 'snapshot WAXS' is also possible using an XFEL and of general interest and physiological relevance are myoglobin and some of its derivatives that have been actively studied at the LCLS [299, 300] by this means. Building on a large foundation of structural and spectroscopic investigations built up over a number of years by a wide range of groups, Levantino and co-workers have used visible pump/x-ray probe solution-scattering techniques, with pulses in the fs regime and a time range of 50 fs to 100 ps, to reveal details of the initial structural rearrangements of CO-myoglobin upon photolysis. Using green laser pump pulses in a nearly co-linear geometry with LCLS x-ray probe pulses, structural changes were monitored by a combination of Fe K-edge XANES [300] and small and wide angle x-ray scattering [299]. The time-resolved Fe K-edge XANES [300] measurements following photolysis revealed structural changes on two timescales, one fast (70 fs) the other rather slower (400 fs). The fast rearrangement was tentatively attributed to photolysis of the haeme-CO bond and the start of haeme doming. The slower rearrangement was assigned to further motion of the Fe centre out of the haeme plane towards the proximal histidine (see figure 26) coupled with myoglobin F-helix displacement. The small and wide angle x-ray scattering study (pump beam 250 fs at 538 nm and 0.3 nJ ${\rm~mm^{-2}}$; probe beam 30 fs at 9 keV) revealed direct evidence for an increase in the myoglobin radius of gyration followed by protein expansion. The expansion was preceded by a change in the mass distribution of the protein and its timescale (complete in 1 ps) was consistent with a so-called proteinquake [301]. Oscillations in the radius of gyration and the volume, with a 3.6 ps period, were observed indicating the importance of underdamped low frequency vibrations in proteins. Portions of the molecule involved in the collective motion are highlighted in red in figure 27. They include the haem, helix F which is bound to the haem, and parts of helices A, C, E, G and H.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Remarkable results from the photosynthetic reaction centre have also been obtained by this method of fast solution scattering (FSS) at LCLS by the Neutze group [302]. In their study of the 'quake' motion by which photosynthetic proteins absorb the very large amount of energy (${\gg}$kT) provided by solar photons, and which must be dissipated without unfolding the protein, it was found possible to separate the heating contribution from the atomic motions and to assign time constants to each. This fast solution scattering study of a protein of known structure achieved picosecond time resolution at about 0.4 nm spatial resolution.

The SACLA facility has been used to generate coherent diffraction patterns from multiple 2 ${\rm \mu}$l samples of living Microbacterium lacticum cells [303]. It must be appreciated that SP data can only be merged if the particles destroyed by each shot were identical. Each shot, providing one projection at limited resolution to synthesize a high resolution image in three dimensions, requires a huge data set from identical particles, for which DNA provides a prescription in many cases. While it would be highly desirable to image whole cells in 3D, since they all differ slightly no method has yet been developed to merge single-cell diffraction data without loss of resolution. Here, 5.5 keV photons were focused to a 1.5 ${\rm \mu}$m  ×  2.0 ${\rm \mu}$m spot on the sample, the repetition rate was 10 Hz, the pulse duration was approximately 10 fs and the average pulse energy (after the undulator) was 260 ${\rm \mu}$J. After averaging 119 similar data sets, image reconstruction involved first refining the rectangular support area using the relaxed averaged alternating reflection method (RAAR) [304] with shrinkwrap [305] (2000 steps) and then using the noise-tolerant hybrid input-output method (HIO) [306] with the fixed support (1000 steps). This resulted in the image of a rod shaped cell, see figure 28, of approx. 570 nm by 194 nm. Notably, as shown in the figure, some of the cell's internal structure was visualised without the benefit of staining. The upper, low image density (shades of blue), part of the cell structure was attributed to mainly proteins. The lower, high image density (white, red and orange), part was attributed to mainly nucleic acids [303]. Live cyanobacteria have been imaged using LCLS [307, 308]. By comparison, cryo-electron SP microscopy, while providing excellent SP images also merged from many copies (with dramatically improved resolution to between 0.2 and 0.3 nm when using the new direct-electron detectors) is normally limited by the onset of multiple scattering to bioparticles (embedded in vitreous ice) smaller than about 0.05 microns. (More limited information is available by a different method—TEM electron tomography or the STEM method—from thicker samples, such as the edges of a flattened cell or a virus.) The ability to image much larger structures than is possible by cryoelectron microscopy (due to the greater penetrating power of x-rays) is a potential advantage of the XFEL SP method.

Zoom In Zoom Out Reset image size

In vivo crystallography has recently been performed with the LCLS FEL beam [309]. The study involved diffraction from Cry3A toxin crystals within cells of Bacillus thuringiensis. Structural information at 2.9 Å resolution was obtained and the structure of the crystalline protein as found in the living cell was established to be essentially the same as that of the extracted and recrystallised material.

In studies demonstrating the feasibility of obtaining and analysing data on heterogeneous, non-crystalline samples Hantke et al [310, 311] have reported imaging carboxysomes from Halothiobacillus neapolitanus. These particular organelles have a mean diameter of 115  ±  25 nm and a roughly icosahedral shape. Data analyses were complicated by both the distribution of carboxysome sizes and their random orientation with respect to the photon pulses. The high-throughput sample delivery enabled close to 70 000 diffraction patterns to be obtained in 12 min of beamtime, followed by automated analysis.

Because their similarity may allow merging of large data sets, viruses have been of interest to FEL scientists for some time [312] however it was only in early 2015 that the first example of a 3D structure was obtained [313]. Based on electron microscopy evidence, it is generally believed that while the virus capsids and protein coating of all examples of a particular icosahedral virus may be identical, the packing of the genome inside the capsid may differ between instances of the same virus. In this study an aerosol of mimivirus (Acanthamoeba polyphaga, mimivirus) particles were focused to a narrow stream and crossed with pulse trains from the LCLS [313]. Diffraction data were used to retrieve both the photon fluences appropriate for the interactions and the relative orientations of the particles. Retrieval was achieved using a modified version of the EMC (expand, modify and compress) algorithm [314, 315]. Though at low resolution, primarily due to the small number of diffraction patterns processed, the study clearly showed that the internal structure was asymmetric, see figure 29.

Zoom In Zoom Out Reset image size

Since the above report, data have been obtained on other samples, e.g. Sinbis virus [316] and Rice Dwarf virus [317].

The technique of SFX is at an active stage of development and has yielded an impressive array of results so far, to the point where new groups can submit beamtime proposals to the existing XFEL facilities in Japan and USA (soon Germany, Switzerland and South Korea) and expect to obtain data with the help only of the local staff scientists. In the future SFX will benefit from an increase in pulse repetition rate as proposed for the European XFEL and LCLS-II, and the additional XFEL facilities nearing completion in Switzerland and Korea. There is some evidence of greater resolution from XFEL SFX data than from synchrotron data on similar crystals, however this issue requires careful systematic study. Much work is needed to develop sample delivery methods to operate at kHz speeds, and to better characterize all the experimental parameters in SFX in order to take more accurate account of the degree of partiality in each reflection recorded.

We can also expect the maturation of all the experimental modes shown in figure 23, and their time-resolved variants (e.g. TR-SP). The method of time-resolved fast solution scattering (TR-FSS, e.g. Arnlund et al 2014 [302]) for structures previously solved at high resolution by crystallography in their ground state, in combination with lattice dynamics simulations, appears to have a strong future. There has been a considerable effort to extend this work on snapshot WAXS patterns (FSS) to the anisotropic patterns which are expected from XFELs because the 'exposure time' is much less than the rotational diffusion time for the molecules in solution. (This anisotropy is clear if we consider the pattern to be expected from, say, three randomly oriented particles per shot but the anisotropy persists for very large numbers of identical particles per shot.) Even if we ignore coherent interparticle interference, the resulting FSS patterns develop two-dimensional structure, which has now been seen experimentally for inorganic samples [318, 319]. Kam proposed long ago that these patterns could be analysed using angular correlation functions and this has now been demonstrated in several cases [320–322]. (See Kirian [323] for a review and discussion of the best number of particles per shot.) It will be clear that reconstruction to a 3D density map from 2D FSS patterns is preferable to present efforts for 3D reconstruction from one-dimensional SAXS and WAXS patterns. We are also certain to see an explosion of papers using a wide variety of methods for triggering reactions beyond optical pumping and chemical mixing, including light and pH triggered release of caged molecules, temperature pulses, and terahertz pumping (which couples to water dipoles in the hydration shell). The methods of optogenetics [324] allow mutants to be made from important proteins which are light-sensitive. For SPs, the least mature of the methods, recent work with viruses at LCLS has shown high-resolution scattering in individual shots, however the hit rates (typically 1 percent or less) with the best current system (electrospray or GVDN source driving aerodynamic stack) are too low to provide enough such data for a three-dimensional reconstruction. Thus hit rate, background, and the 'plating-out' of precipitates and salts onto the particles (causing them to differ in size, preventing merging of data) during the drying phase in the aerodynamic stack are the current limiting experimental problems. Otherwise, resolution improves with number of shots, which effectively increases the dynamic range. However, x-ray scattering from a dielectric sphere falls off as the inverse fourth power of the scattering angle, a severe penalty against higher resolution. For Poisson noise processes under the Monte Carlo averaging process, 100 times more data are needed to add one significant figure. In addition, resolution after merging and 3D reconstruction is significantly worse than in individual shots, indicating the difficulty in accurately sorting continuous diffraction patterns (with Friedel symmetry) into orientation classes, and in distinguishing small changes in orientation from changes in conformation or particle shape—a problem successfully tackled in the cryo-EM community [325].

Given the cellular sub-structure already hinted at in figure 28, time-resolved x-ray imaging of cells has the potential to reveal information on genome replication and cell division [303] once these experimental issues are addressed. For viruses too large to be imaged by cryo-EM this will be a fertile field of endeavour, particularly as key algorithms mature. Potential primary targets include HIV, influenza and herpes viruses [313]. The extension of the mixing-jet ('mix-and-inject') method to all the enzymes, providing time-resolved imaging at the molecular level of enzyme mechanisms, and hence a method of structural enzymology, is a particularly exciting prospect [255].

Multiphoton processes in atoms in the EUV to x-ray regimes have been investigated extensively at all the short-wavelength FEL facilities. The main motivation for these studies has been to reveal the pathways of multiphoton multiple ionization that have been newly enabled by the availability of intense pulses in the EUV to x-ray regimes. Some of this work is reviewed below.

A few-photon absorption leading to single ionization of helium atoms may be the simplest single-colour multiphoton process that can be well compared with theory. At SCSS, Hishikawa et al [330] investigated a few-photon single ionization of He employing a magnetic bottle electron spectrometer (MBES). The photon energy was  ∼24 eV and the FEL power density was  ∼10¹³ W ${\rm cm}^{-2}$. Under these conditions one electron was promoted to the Rydberg manifold by single photon absorption and at the same time another electron was promoted to the Rydberg manifold by two-photon absorption. As a result, three-photon single ionization via autoionization of the doubly excited states was anomalously enhanced. Ma et al [331] investigated two-photon single ionization of He in the photon energy range between 20 and 24 eV, at SCSS by velocity map imaging electron spectroscopy (VMIES), and discussed the coexistence of resonant versus direct two-photon ionization pathways following theoretical predictions [332]. At FERMI (see table 4 for typical short wavelength FEL output parameters), Zitnik et al [333] investigated two-photon excitation of even-parity doubly excited autoionizing states, taking advantage of the very narrow photon bandwidth of fully coherent FEL pulses.

FERMI can not only provide longitudinally-coherent single-colour pulses but also phase-coherent two-colour pulses [334]. This characteristic feature of FERMI has brought a new aspect to the investigation of two-photon processes, i.e. coherent control of two-photon ionization. The Ne atom can be ionized by an intense pulse at 20 eV via resonant two-photon ionization. Adding a weak 40 eV pulse with an intense 20 eV pulse, Prince et al [335] showed that the asymmetry of the photoelectron angular distribution of Ne can be controlled by adjusting the relative phase of the two-colour pulses. This work demonstrated that a fully coherent FEL can not only open new pathways of multiphoton processes but can also be used to coherently control the processes.

In the photon energy range 20–24 eV available at SCSS, another process that could be fully analyzed and intensively studied was three-photon double ionization of argon [336–339]. In this photon energy range, single photon ionization of Ar first takes place followed by two-photon ionization of Ar⁺. Hikosaka et al [337] investigated by MBES the role of an intermediate resonance in the two-photon ionization of Ar⁺. Gryzlova et al [339] have studied the role of doubly excited autoionizing states in Ar⁺ populated via two-photon absorption of the ionic ground state of Ar⁺ by VMIES and ab initio theory calculations.

At SCSS, at 24 eV and with a FEL power density  ∼10¹⁴ W ${\rm cm}^{-2}$, formation of ${\rm Ar}^{7+}$ and ${\rm Kr}^{8+}$ was found [340]. The total energies required to remove seven electrons from the Ar atom and eight electrons from the Kr atom are  ∼434 eV and  ∼508 eV, respectively, i.e. more than 18 and 21 times the photon energy of 24 eV. Such multiple ionization is likely to be due to sequential stripping of the outermost electrons [341]. With this assumption, the total numbers of photons absorbed by single Ar and Kr atoms should be 22 and 26, respectively. Details of these multi-photon multiple-ionization pathways, however, have not been fully analysed.

At FLASH, at a photon energy 44 eV, Kurka et al [342, 343] performed a kinematically complete experiment for sequential two-photon double ionization of neon atoms, by measuring the momenta of both electrons in coincidence with ${\rm Ne}^{2+}$ ions. A reaction microscope was used and the process fully characterized. At the higher photon energy of 93 eV, Rouzée et al [344] identified sequential three-photon triple ionization of Ne with VMIES. For Xe, a photon energy of 93 eV coincides with a giant resonance, where the 4d subshell photoionization cross section is hugely enhanced. Ion spectrometry by Sorokin et al [327] evidenced the formation of ${\rm Xe}^{21+}$. Though it is clear that multiple cycles of 4d photoionization and subsequent Auger decay play a role in multiphoton multiple ionization of Xe via the giant resonance, it is still under debate whether collective effects play a role [328, 345, 346].

The first experiment performed at LCLS [2] was multiphoton multiple ionization of Ne using  ∼2 keV photon energy and at  ∼10¹⁸ W ${\rm cm}^{-2}$ power density. By measuring the ions produced, Young et al [347] demonstrated that all ten electrons of Ne were stripped away via multiple cycles of inner-shell photoionization and Auger decay. Young et al also noted that rapid photo-ejection of inner-shell electrons produced hollow atoms (which result after both 1s electrons have been ejected and before the core holes can be filled by Auger decay) and an intensity-induced x-ray transparency. Importantly, inner-shell lifetimes change as the photon pulse progresses.

The electron dynamics of hollow Ne atom formation has been revealed in great detail using the technique of partial covariance mapping [348] further details of which can be found in [349, 350]. This experimental work was undertaken at the Atomic, Molecular and Optical science instrument at the LCLS. Electron energy spectra recorded shot-by-shot from over 480 000 x-ray pulses (of photon energy 1062 eV, nominal duration 8 fs and pulse energy 0.11 mJ) were analysed to reveal the presence of correlations. The interactions result in a range of single-photon absorption, sequential multi-photon absorption and decay processes, examples of which are shown in figure 30. In this figure, and in figures 31 and 32; P indicates core electron emission, P_L indicates inner-valence shell emission and P_V indicates valence shell emission. A and A_L are valence and inner-valence shell electron emission, respectively, following filling of a core hole, i.e. in the Auger process. D_KV is core electron stimulated valence electron emission.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

The maps reveal a range of phenomena. For example;

• (a)
  The rise in intensity towards the ends of the D_KV line in figure 32 shows that the two emitted electrons tend to share the available energy unequally.
• (b)
  The presence of non-linear sequences that lead to the same final state and the competition between them on the fs timescale, notably P_VP and PP_V are separate as are PA P_VP and PA PP_V.

The full Ne partial covariance map together with conventional 1D electron energy spectra (along the x and y axes) are depicted in figure 31. The main (core) Ne photoelectron line is clearly visible labelled (j) in the 1D electron energy spectra, however, region (a) of figure 31 reveals that it has several components; note this region is magnified and reploted in 3D on the LHS in figure 32.

Analysis of the yields (from integrated volumes) of double core hole (DCH) covariance features, for example PP, PPA and PAP, (in figure 32) together with estimates of the shot-to-shot maximum pulse duration (see section 2.8 on SASE FEL pulse structures) shows that core ionization followed by Auger-process filling of the core vacancy, PA, is relatively unaffected by the pulse duration whereas PP-based processes become increasingly probable as the pulse length is shortened. The variation of yields with x-ray pulse energy was also investigated.

Rudek et al [351] measured ion and fluorescence yields for Xe at photon energies of 1.5 and 2 keV, and found that production of highly charged ions, up to 36+  , was significantly enhanced at the lower photon energy. The results also differed from theoretical predictions available at that time. The discrepancy was attributed to the resonance-enabled x-ray multiple ionization (REXMI) mechanism neglected in the theory. Later, an improved simulation [352] taking account of REXMI well-reproduced this surprising experimental result.

These early LCLS experiments were, however, limited to photon energies below 2 keV due to the optical design of the AMO end station. SACLA provides hard x-rays above 5 keV and one of the first experiments there was also multiphoton multiple ionization of Xe. Fukuzawa et al [353] observed via ion spectrometry the production of high charge states of Xe, up to 26⁺  , at  ∼5.5 keV photon energy, with power density of  ∼10¹⁶ W ${\rm cm}^{-2}$ and pulse widths of  ∼10 fs. Such high charge states can be produced by five cycles, or more, of L-shell photoionization and subsequent Auger cascades. In spite of the very demanding task of dealing with so many configurations, theory succeeded in reproducing the observed charge distributions fairly well and at the least semi-quantitatively.

At SACLA, at the highest photon energy (15 keV) ever achieved [354], double core hole formation (and thus x-ray transparency) was identified in Kr by detecting hypersatellites in the x-ray fluorescence spectra.

Investigations of multiphoton, multiple-ionization of atoms at high photon energies opened up by LCLS and SACLA have received broad interest in connection with electronic radiation damage in x-ray imaging. Indeed the above-described investigations provided benchmarks for theoretical attempts to describe charge densities of atoms irradiated by very intense x-ray pulses. It should also be noted that photon energies and fluences used for the SACLA experiments were those commonly used for coherent x-ray imaging at the same facility.

The intense FEL pulses strip off so many electrons from an isolated atom (as seen in the previous section) that one can readily imagine that exposure of an isolated molecule to such a pulse leads to a violent Coulomb explosion. Here, the main questions are how fast the charges are accumulated then distributed over the molecule, and how fast the molecular dynamics sets in. Again only a subset of the literature will be briefly reviewed.

At SCSS, using a photon energy of 24 eV and a power density close to 10¹⁴ W ${\rm cm}^{-2}$, Yamada et al [355] found Coulomb breakup of N₂ to N^{$^{m+}-$}${\rm N}^{n+}$ and of O₂ to O^{$^{m+}-$}${\rm O}^{n+}$ (with $m+n$ up to 5) by employing momentum-resolved ion-ion coincidence. At this photon energy, each ionization step except the first one needs absorption of 2 to 3 photons. To reach the 5+  charge state, 10 photons should be absorbed. Yamada et al suggested that electrons were emitted sequentially in competition with elongation of the bond length, based on the charge-state dependence of the kinetic energy release distributions.

At FLASH, using 44 eV photons, and a power density of  ∼10¹³ W ${\rm cm}^{-2}$, Jiang et al [356] performed momentum-resolved ion-ion coincidence measurements. At this photon energy each multiple ionization step of N₂ and O₂ discussed above mostly requires absorption of only a single photon. Under these conditions Jiang et al fully characterized few-photon sequential ionization pathways. At the higher photon energy of 91 eV, Kornilov et al [357] observed Coulomb break up of N₂ up to N^{$^{4+}-$}${\rm N}^{5+}$ by combining single shot time-of-flight ion spectrometry with partial covariance mapping of two ions. They also performed classical trajectory simulations with a sequential ionization model taking account of the temporal evolution of the Coulomb breakup and reproducing well the observed ion-pair ratios and kinetic energy releases for each ion-pair production. Here, the key parameters were the FEL intensity (∼10¹⁴ W ${\rm cm}^{-2}$) and the duration of the FEL pulse (∼100 fs), which determine the number of ionization sequences that occur in competition with Coulomb breakup of the molecule. The 91 eV photon energy is close to the giant resonance of iodine-containing molecules, where the I 4d subshell photoionization cross section is enhanced. At this photon energy, Kornilov et al [357] also observed Coulomb breakup of I₂ up to I^{$^{8+}-$}${\rm I}^{9+}$. This highest-charge channel was unexpected when only sequential ionization processes from the ground state ions were considered.

Work at FLASH has also revealed interesting, ultrafast, photo-fragmentation dynamics when using XUV pulses as both pump and probe [358]. Using a split mirror and a 38 eV photon beam Jiang et al probed the dissociation channels of acetylene (HCCH) and obtained data supporting the importance of sequential two-photon absorption as the principal double-ionization mechanism but with branching ratios significantly different from those obtained in synchrotron studies.

Extending investigations into the x-ray range generated a renewal of interest in multiphoton multiple ionization of molecules, partly in connection with radiation damage during exposure of targets to XFEL pulses. At LCLS, the investigations with photon energies up to 2 keV indeed revealed novel phenomena intrinsic to high energy photons. Using N₂ as a target, Hoener et al [359] found a molecular mechanism of frustrated absorption that suppresses the formation of high charge states at short pulse duration. This observation highlights the benefit of very short FEL pulse for x-ray 'imaging before destruction' of targets. Fang et al [360] investigated competition between inner-shell photoionization, Auger cycles and molecular dissociation in N₂, where the Auger lifetime gave an internal clock to elucidate the time scale of Coulomb breakup.

Double core-hole creation in molecules [360, 361] has received attention in part because of its potential application to chemical analysis [362–364]. X-ray two-photon photoelectron spectroscopy and partial covariance mapping of two core-level photoelectrons have been used to investigate double core-hole states of some small molecules and this has provided a proof-of-principle confirmation for the high sensitivity of double core-hole spectroscopy to the chemical environments of specific two atomic sites whose core electrons have been ejected [329, 365–368].

Another LCLS experiment to be noted is that by Erk et al [369] who investigated ionization and fragmentation of methylselenol (CH₃SeH) molecules by intense (∼10¹⁷ W ${\rm cm}^{-2}$), very brief (5 fs) x-ray pulses at 2 keV, using momentum-resolved ion coincidence techniques. They noted signatures of ultrafast charge redistributions from the inner-shell ionized Se atom to the entire molecule together with significant displacements of atoms in the course of multiple ionization via Auger cascades in spite of the briefness of the x-ray pulses.

Investigations have been extended further into the hard x-ray regime at SACLA. For example, at 5.5 keV photon energy with a power density of  ∼10¹⁷ W ${\rm cm}^{-2}$ and a pulse width of  ∼10 fs, Motomura et al [370] performed momentum-resolved ion coincidence for iodomethane (CH₃I). They demonstrated that charge states up to  +22 were produced and that both the C–H and the C–I bonds were broken on sub-10 fs timescales [370]. The authors stressed the importance of the inclusion of realistic charge dynamics when analysing molecular Coulomb explosion experiments and when undertaking molecular imaging using FELs.

Here the main interest was the time-scale of charge redistribution and fragmentation. Momentum correlation coefficients $k _{\rm mn}= p($C^{$^{n+})/p($}I^{$^{m+})$} (where $p($I^{$^{m+})$} and $p($C^{$^{n+})$} are the momenta of ${\rm I}^{m+}$ and ${\rm C}^{n+}$, respectively) as well as the absolute values of ${\rm I}^{m+}$ and ${\rm C}^{n+}$ were extracted and the results are depicted in figures 33(a) and (b). The dotted lines in the figures represent an instantaneous charge-creation scenario in which the final charge is created instantaneously on all atoms at the ground-state equilibrium structure of neutral CH₃I. These simulations clearly show discrepancies when compared with the experimental results. The discrepancies indicate that interatomic distances have considerably increased before the atoms reached their final charge states. Therefore, it is essential to include a charge build-up time even when considering very brief x-ray pulses.

Zoom In Zoom Out Reset image size

In the model simulation of Motomura et al, the exponential function; $Q^{\rm tot}=Q^{\rm max} [1-\exp (-t/\tau)]$ was assumed for the charge buildup (where $Q^{\rm max}$ is the final charge and τ is the charge build-up time that represents the time scale of the Auger cascades when the x-ray pulse is sufficiently brief). To reproduce the momentum correlation coefficients $k _{\rm mn}=$$p($C^{$^{n+})/p($}I^{$^{m+})$} in figure 33(a), however, it turned out that the charge redistribution rate should also be taken into account. In the model by Motomura et al, the charge redistribution was expressed by the rate equation ${\rm d}Q^{\rm CH3}(t)/{\rm d}t =R \times Q^{\rm I}(t)$. The best agreement between the model simulations (solid lines) and the experimental results in the figures was achieved using a charge build-up time $\tau = 9$ fs and a charge redistribution rate $R = 0.37$ ${\rm fs}^{-1}$. Although the model by Motomura et al was empirical and did not concentrate on the physical mechanisms behind the charge redistribution, they noted that this typically happens during the later stages of the Auger cascade that involve molecular orbitals not localized on the iodine atom.

Nagaya et al [371, 372] extended momentum-resolved ion coincidence studies at SACLA to 5-iodouracil C₄H₃IN₂O₂ (5IU), which is an analogue of uracil, one of the four canonical nucleobases of ribonucleic acid (RNA). They derived kinetic energy distributions and momentum correlations of fragments from the measured momentum vectors of each fragment ion recorded in coincidence. Comparing the simulation results (derived using a model analogous to that of Motomura et al) with the experimental data, they found that the charge build-up takes  ∼10 fs while the charge redistributes from the I atom to the other atoms in a couple of fs. To gain insights into motions of the individual atoms in real space they employed model simulations validated by comparison with experimental observables. Figure 34 depicts the results of simulations. It is clear that, within the 10 fs XFEL pulse duration, the C–H bonds are significantly elongated (by a factor of two or more) but the other bonds are elongated only by 5–10%. This finding may be very general for similar nucleobase molecules and thus validates the proposal that, if the XFEL pulses are sufficiently brief, the single-shot coherent diffraction imaging approach of single bio-macromolecules will interrogate a target sample left practically unperturbed.

Zoom In Zoom Out Reset image size

Although many gas-phase studies at FELs are performed on randomly oriented molecules there have been a number of experimental studies on fixed-in-space molecules and several groups are actively working on the techniques necessary to generate ensembles of oriented or aligned molecules. Recent work by Kierspel et al, for example, has demonstrated a high degree of molecular alignment ($\langle \cos^{2}\theta_{\rm 2D} = 0.85\rangle$) on interacting few mJ Ti:Sa laser pulses of 94 fs duration with 2,5-diiodothiophene (${\rm C}_{4}$${\rm H}_{2}$${\rm I}_{2}$S) [373]. Although this technique was demonstrated at LCLS, where the pulse repetition rate was 120 Hz, its applicability to the future European XFEL where the number of pulses per second will be in the tens of kHz was highlighted.

Another important type of experiment not yet discussed is that of time-resolved measurements of photoexcited molecules. When an optical laser is used to provide pump pulses, however, temporal jitter between these and the FEL probe pulses can be as large as several hundred femtoseconds. Therefore, for pump-probe measurements of this type with fs temporal resolution, simultaneous measurement of relative pulse arrival times are essential [228]. Employing the arrival timing monitor tool available at LCLS, Erk et al [374] successfully imaged charge rearrangement dynamics in gas-phase iodomethane molecules during dissociation induced by a near infrared (NIR) laser. Mapping the electron transfer between the methyl and iodine fragments as a function of their interatomic separation set by the NIR/x-ray delay, they found that electron transfer can take place for distances up to 20 Å. Nowadays, arrival timing monitor tools are available at other facilities and optical-laser-pump/FEL-probe experiments with femtoscond resolution are becoming mainstream for the investigation of ultrafast molecular and charge dynamics in real time.

Understanding the dynamics of matter exposed to intense FEL pulses is not only of fundamental interest but also crucial to the rapidly emerging field of dynamic structure retrieval from x-ray scattering data [375, 240, 376]. In the previous section, we saw how fast a molecule blows up after many electrons are removed by an intense FEL pulse but the size of the molecule considered was still relatively small compared to macromolecules and nano-structured samples. To investigate FEL-induced dynamics of matter beyond small molecules, atomic clusters are ideal objects because their size can be varied from very few atoms to a bulk-like macroscopic object and still there is no energy dissipation into a surrounding medium. Again only some of the works on rare gas clusters will be very briefly reviewed.

The very first short-wavelength FEL experiments were indeed on xenon atomic clusters. Using the VUVFEL at FLASH (then known as the Tesla Test Facility) at DESY, with  ∼13 eV photons and a power density of up to $7 \times 10^{13}$ W ${\rm cm}^{-2}$, Wabnitz et al observed [326] very energetic (∼keV) highly charged (up to 8+) atomic ion fragments from Xe clusters of up to 30 000 atoms. Such violent Coulomb explosion of clusters was known for intense IR laser experiments [377, 378]. For example, when an atomic cluster is irradiated by infrared laser light at $>$$10^{16}$ W ${\rm cm}^{-2}$, electrons are stripped from the individual atoms in the cluster by the strong electric field of the laser but are trapped by the Coulomb potential of the highly charged ionic cluster thus forming a nanoplasma. The trapped quasifree electrons are further heated by the IR laser via inverse bremsstrahlung (IBS). The parent ionic cluster is further ionized by electron collisions and eventually leads to violent Coulomb explosion. In spite of this, the observation of violent Coulomb explosion of xenon clusters irradiated by intense VUV pulses [326] was surprising. Though the heating mechanism was unclear, it was evident that a nanoplasma was formed. This surprising result prompted a series of theoretical studies [379–385]. Electron spectra recorded under similar conditions were also reported [386], providing evidence of thermal emission from the nanoplasma. Later, Ziaja et al [387, 388] showed that these VUV results could be fully explained by a unified model that includes heating of quasifree electrons due to enhanced IBS [379, 384], increased photoionization within the sample (inner ionization) due to a lowering of the interatomic potential barriers [380, 385], and heating due to many-body recombination processes [382].

At SCSS, over the photon energy range 20 and 24 eV, with the FEL power density in the range $10^{11}$–$10^{14}$ W ${\rm cm}^{-2}$, Nagaya and coworkers investigated extensively EUVFEL-induced dynamics of various rare gas clusters [389–396]. Under these experimental conditions they found (via ion spectrometry) frustration of direct cluster photoionization stemming from the strong Coulomb potential of the highly ionized cluster but no indications for heating mechanisms other than sequential photoionization of the individual atoms in the cluster [389, 390, 393]. They also discussed charge redistribution in both xenon clusters [391] and in argon-core–neon-shell clusters [392]. Applying VMIES to neon clusters and tuning the photon energy to the 2p to 3d excitation at 20.3 eV below the ionization threshold and with a power density $2 \times 10^{13}$–$2 \times 10^{14}$ W ${\rm cm}^{-2}$, they found evidence of very efficient nanoplasma formation and by way of explanation proposed an exciton-Mott transition via excitation of many atoms in the cluster [395]. Reducing the FEL intensity below $5\times 10^{11}$ W ${\rm cm}^{-2}$ they found novel decay pathways of multiply exited neon clusters [396]. In these novel decay pathways, de-excitation of an atomic 3d excited state to a close-lying 3p or 3s state leads to the emission of an electron from a neighbouring Rydberg atom. This is a variant of interatomic Coulombic decay (ICD) [397, 398] and may be called intra-Rydberg-ICD. Intra-Rydberg-ICD quenches the direct ICD to the ground state and is followed by ICD cascades yielding more ions.

At FERMI, at a photon energy of 21.4 eV and with FEL power densities up to $10^{13}$ W ${\rm cm}^{-2}$, applying ion spectrometry and VMIES to helium droplets, LaForge et al [399] and Ovcharenko et al [400] respectively found collective autoionization (another variant of ICD) of multiply excited He clusters in which at least three 2p excited atoms exchange energy.

At FLASH, Bostedt and coworkers observed electron spectra (photon energy  ∼38 eV and power density up to $5 \times 10^{13}$ W ${\rm cm}^{-2}$) of Ar clusters with an average cluster size of  ∼100 atoms and found that the cluster ionization process is a sequence of direct electron emission events in a developing Coulomb field and that a nanoplasma is formed only at the highest investigated power densities where ionization is frustrated due to the deep cluster potential [401]. They also observed electron spectra at a photon energy of  ∼90 eV and an intensity up to $6 \times 10^{16}$ W ${\rm cm}^{-2}$ for Xe clusters with an average cluster size of  ∼2000 atoms and found emission of very fast thermal electrons whose energy was larger than that of 4d photoelectrons (20 eV), providing evidence for efficient thermalization of nonequilibrium plasma [402, 403].

However, the most important experimental achievement at FLASH may be that a new avenue for the study of FEL-induced dynamics of atomic clusters by simultaneous x-ray scattering and ion detection was opened up [405]. Figure 35 depicts a schematic layout of this experiment [404]. FEL pulses are focused on the cluster beam. Ions produced at the crossing point are detected by a time-of-flight ion spectrometer. Femtosecond FEL pulses with  ∼90 eV photon energy and power densities up to 10¹⁴ W ${\rm cm}^{-2}$ are scattered by single xenon clusters and detected by an x-ray detector. Such x-ray scattering images allow one to study, for example, cluster morphology. A selection of experimental patterns that snapshot the cluster morphology are displayed in the first row of figure 36 [404]. A comparison with the simulated patterns shows that very good agreement can be obtained and that the fine structure is reproduced when the size and degree of fusion are taken into account (middle row). The masks used for the Fourier transformations as well as the yielded parameters are displayed in the third row. The finding of various degrees of fusion of two clusters in direct contact into one slightly non-spherical structure indicates that inter-stages of the cluster growing process, driven by coagulation of particles, can be frozen out and be detected milliseconds after the expansion. It should also be noted that the scattering patterns carry not only the structural information of the individual clusters as described above but also the information of transient electronic configurations of highly excited states of the cluster [406], which cannot be accessed by other spectroscopic methods.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

At LCLS, Thomas et al [407] investigated explosions of Xe clusters of  ∼11 000 atoms, using a photon energy of 850 eV and power density of up to $10^{17}$ W ${\rm cm}^{-2}$, by employing ion spectrometry and electron spectroscopy. They found evidence for the formation of a nanoplasma whose plasma temperature (∼125 eV) was determined by photoionization heating. The dominance of the Xe⁺ ions in the charge-state distribution was attributed to efficient three-body recombination. Gorkhover et al [408] have investigated the nanoplasma dynamics of single mesoscopic Xe clusters irradiated with XFEL pulses exceeding $10^{16}$ W ${\rm cm}^{-2}$ at  ∼800 eV. They simultaneously recorded x-ray scattering patterns and ion spectra with a setup similar to that in figure 35. This approach allowed them to eliminate the influence of the laser focal volume intensity and particle size distribution. The ion yield spectra from single clusters recorded in coincidence with the scattering patterns are depicted in the top panel of figure 37. In the bottom panel of figure 37, focal-volume integrated ion spectra are presented for two different power densities. It can clearly be seen that highly charged ions are created for clusters illuminated with the intense XFEL pulses. This finding illustrates that nanoplasma recombination is efficiently suppressed with the intense XFEL pulses and contrasts to the observation by Thomas et al where all signals were accumulated without eliminating low-fluence events that dominate the accumulated signals.

Zoom In Zoom Out Reset image size

At SACLA, at a photon energy of  ∼5 keV and power density of  ∼10¹⁷ W ${\rm cm}^{-2}$, Tachibana et al [409] investigated nanoplasma formation of Ar clusters in the range of 100–1000 atoms using VMIES and found evidence of nanoplasma formation. Dedicated theoretical simulations utilising molecular dynamics well reproduced the observed electron spectra. They found—in contrast to nanoplasma formation by FEL pulses in the VUV to soft x-ray ranges (described above) that nanoplasma formation by hard x-ray pulses is a highly-indirect processes. Here, secondary electrons are generated either by inelastic scattering, of the electrons ejected in the cascade of relaxation steps of the deep core-holes initially created on individual atoms, or in the later stages of the cascade itself. These low-energy electrons are trapped by the highly charged cluster forming the nanoplasma. This plasma formation mechanism is specific to the hard x-ray regime and may, thus, also be important for XFEL-based molecular imaging studies.

During the first stage of AMO experiments carried out at all FEL facilities, the targets sampled were irradiated by FEL pulses only. Nowadays, the combination of an FEL and a table-top optical-laser is available at all FEL facilities and the sample may be irradiated by pulses from both sources.

For atomic samples, such combinations open new pathways of excitation and ionization. See, for example, the recent report by Ilchen et al [410] from FERMI, in which intense, circularly polarized EUV and NIR laser pulses were combined to double ionize atomic helium via the intermediate He⁺(2p) resonance state. Such two-colour multiphoton processes will also be further investigated in the x-ray regime (at LCLS and SACLA) where not only electronic transitions but also nuclear transitions take place.

As noted in section 6.2.2, optical-laser-pump and FEL-probe experiments for isolated molecules, with femtosecond time-resolution, are becoming mainstream for the investigation of light-induced, ultrafast, molecular and charge dynamics in real time, thanks to the development of arrival time monitoring tools that allow the correction of temporal jitter between the optical laser and the FEL pulses. For gas phase samples, mostly ions [374] or electrons [411] are detected because of small x-ray scattering cross sections. X-ray diffraction experiments for isolated molecules in photoreactions are, however, becoming feasible for those molecules containing heavy atoms. Over the last couple years at the LCLS it has been demonstrated [412, 413] that directly watching atomic motions in an isolated molecule is no longer just a dream.

At FERMI, the optical laser employed for FEL seeding can also be used for pump-probe experiments. In this case, pump-probe time-resolved study is straightforward since there is no temporal jitter between the optical and the FEL pulses. See for example, a recent report by Takanashi et al [414], where the time-resolved study of interatomic Coulombic decay induced by two-photon double-excitation of neon dimers was reported. Time-resolved studies employing XUV pulses, such as time-resolved photoelectron spectroscopy for molecules and clusters, will be further exploited at FERMI.

As described in section 6.2.3, imaging experiments are becoming popular for cluster studies with FELs. Such imaging experiments have also been combined with optical-laser-pump time-resolved techniques. See for example a recent study by Gorkhover et al [415] where structural evolution of xenon clusters, superheated by an intense optical laser pulse and employing time-resolved small-angle x-ray diffraction, was imaged. Such time-resolved structural studies on various kinds of clusters and nanoparticles will be certainly be explored at many different FEL facilities over the coming years.

An alternative pump-probe scheme with FELs is to use FEL pulses for both pump and probe. This was first realized at FLASH, as covered in section 6.2.2. Jiang et al [416] studied ultrafast XUV-induced isomerization of acetylene cations by combining momentum-resolved ion coincidence with the FEL-pump FEL-probe technique. Split and delay techniques have also been introduced at facilities. Just one example is a report by Liekhus-Schmaltz et al from LCLS [417] where x-ray-initiated isomerization of acetylene dications was studied and the transient motion of protons, following x-ray ionization of carbon K-shell electrons, was captured by combining momentum-resolved ion coincidences with XFEL-pump XFEL-probe techniques.

Recently, LCLS and SACLA have started to provide time-delayed double pulses with different photon energies. This operation mode has some advantages over the use of a split and delay approach since it is possible to set one photon energy above and the other below a particular atomic edge. At LCLS, for example Ferguson et al [418], observed a lattice compression of XFEL-heated xenon clusters by combining time-resolved wide-angle x-ray diffraction with this double-pulse mode. The XFEL-pump XFEL-probe technique is a unique tool to probe various kinds of x-ray-induced ultrafast reactions and will, no doubt, be widely used in the future.

As noted in section 6.2.1, FERMI can not only provide longitudinally-coherent single-colour pulses but also phase-coherent multi-colour pulses and this latter FEL operation mode enables completely new opportunities for AMO science. Using such phase-controlled multicolour pulses, it is possible to control, coherently, photoemission and electronic decay thus allowing full characterization of the photoionization processes and the extraction of information about the angle-resolved photoionization time delays. There is also the possibility to create attosecond and possibly shorter pulses (see section 3.3). In principle, such advances will allow full control of electrons in action and such emerging fields will be fully explored at FEL facilities in the future.

Many experiments have been performed on molecular species in solution, in both the hard and soft x-ray regimes, using a variety of spectroscopic and scattering tools. This approach not only has the advantage of enabling experiments to take place in a pseudo-native environment (e.g. physiological conditions), but also to provide a straightforward method of refreshing the sample and avoiding sample damage by flowing it and using an open jet technique. These techniques were initially developed for time-resolved x-ray absorption and scattering experiments and represent a mature technology for sample delivery. One of the most intriguing approaches has been the use of several probe techniques simultaneously. This has been demonstrated at storage rings where both x-ray diffuse scattering (XDS, also called wide-angle scattering or WAXS) and non-resonant x-ray emission (XES) have been combined to probe simultaneously both the structural and electronic changes in the system under investigation [438, 439].

The layout of such an experimental setup is shown in figure 38. Recently this approach was applied at SACLA to investigate electron transfer in the bimetallic RuCo donor-bridge-acceptor system, which is a model photocatalytic system [440]. This molecule consists of a ${\rm Ru}^{2+}$(bpy)₃ centre (donor) attached to a ${\rm Co}^{3+}$(bpy)₃ (acceptor) with a fixed bridging ligand (where bpy is the bipyridyl ligand), see figure 39.

Zoom In Zoom Out Reset image size

Zoom In Zoom Out Reset image size

Upon photoexcitation with blue light the Ru moiety transfers an electron through the bridging ligand to the Co moiety, resulting in electronic changes at the metal centres: Ru^{$^{2+} \rightarrow$} ${\rm Ru}^{3+}$ and Co^{$^{3+}\rightarrow$} ${\rm Co}^{2+}$. In addition there is an expected structural change in the Co moiety as the bpy ligands move away from the metal atom. By combining XDS, which provides a pair-distribution function of all atoms in the sample, and XES, which is sensitive to the oxidation state of the metals, the experiment resolved both the electron arrival on the Co moiety and the slower evolution of energy into the surrounding solvent molecules. The time evolution of the various signals are shown in figure 40. This result provides a first step towards investigating more complex systems where the effect of the bridge structure and its dynamics can be investigated. This approach demonstrates the importance of using probe techniques that are sensitive to the different aspects of the excited species and its environment, providing a holistic picture of the relaxation processes involved. The same combined technique approach has also been applied to investigate the femtosecond dynamics of a model chromophore in aqueous solution [420]. Since the experimental hardware can support many different types of x-ray techniques both separately and in combination, including XAS [300, 421, 427], resonant and non-resonant XES [420, 426, 440], and XDS [299, 420, 440, 441], both LCLS and SACLA have adopted it as one of their standard configurations, allowing users to request it for their experiments.

Zoom In Zoom Out Reset image size

The ability to use x-ray spectroscopy on species in solution has not been solely restricted to the hard x-ray regime. Several groups have used soft x-ray spectroscopy measurements to probe the electronic nature of excited states of solvated molecules and proteins. When this technique is used with high energy resolution emission measurements ($<$1 eV) it is often referred to as resonant inelastic x-ray scattering (RIXS) or resonant x-ray emission spectroscopy (RXES) [442]. When low-energy resolution emission measurements are performed (10–20 eV) it is often referred to as partial-fluorescence yield (PFY) experiments [443]. RIXS has been used to probe one of the most common chemical reactions, namely bond dissociation and subsequent bond formation of a molecular complex in solution. Wernet and co-workers used UV light to photodissociate a CO ligand from Fe(CO)₅ dissolved in ethanol (EtOH) [422, 423]. They then probed the photoproducts at regular time delays after excitation using RIXS measurements around the Fe L₃ edge at 707 eV (see figure 41). By using RIXS they were able to resolve x-ray emission directly from the excited state, where an electron has been excited from $d_{\pi}$ to the dissociative $2p^*$ state, followed by a spin state relaxation process resulting in the formation of two photoproducts: the Fe(CO)₄–EtOH complex, resulting from CO dissociation and reaction with a solvent molecule, and the hot Fe(CO)₅, resulting from geminate recombination of the CO ligand. This technique has been used for a number of different experiments, including investigation of the effect of high-intensity XFEL radiation on the XES signals themselves [424]. One of the drawbacks of RIXS is that is an extremely photon-hungry technique, so for experiments where the x-ray emission energy resolution is only required to remove background signals, for example from the solvent, the grating spectrometer can be replaced with zone plates. This allows for much more efficient photon collection, while still only observing the x-ray emission of interest. This approach has been demonstrated around the Mn ${\rm L}_{2, 3}$-edges [443] with the goal of measuring the PFY from the 4 Mn atoms in Photosystem II (PSII), while avoiding the enormous O K-edge background which can easily overwhelm the small signals from the active metal centre. By clever zone plate spectrometer design the authors were able to measure background-free PFY signals from dilute Mn-containing species in solution, which is an important first step towards the same experiment on PSII.

Zoom In Zoom Out Reset image size

In addition to molecular species in solution, gas-phase molecular dynamics have also been investigated. An example of this was an investigation of the dissociation of gas-phase 1,3-cyclohexadiene upon excitation with UV light (see figure 42 for the experimental setup used) [412, 444]. This photoreaction can lead to several excited state species, with a final product of 1,3,5-hexatriene and the principal goal was to resolve the bond-breaking event and subsequent structural rearrangement into the dissociated species. To probe this, femtosecond x-ray scattering at 8.3 keV and measured with a 2D Cornell-SLAC 2D pixel array detector (CSPAD) was used [445]. A molecular-dynamics simulation with 100 trajectories was required to simulate all the various reaction pathways the molecule can undergo during the ring-opening reaction. The experimental results showed the transformation occurs on an 80 fs timescale and 8 trajectories were required to fit the data accurately. From these trajectories the following physical pictures emerged: upon absorption of the UV photon the carbon-carbon bonds of the cyclohexatriene expand rapidly, after 1–2 vibrational periods the C1-C6 bonds break, all of which occurs within 30 fs.

Zoom In Zoom Out Reset image size

A second approach which has been taken to investigating ultrafast gas-phase molecular dynamics at XFELs has been to perform Auger spectroscopy in the soft x-ray regime. Auger spectroscopy has the advantage of being independent of the incident photon energy, which eliminates the SASE photon spectrum fluctuations from the measurement, but can suffer due to space-charge effects due to the large number of electrons generated by the intense x-ray pulse. By carefully limiting the incident x-ray fluence on the sample, McFarland and co-workers were able to measure the oxygen Auger spectrum from the nucleobase thymine after excitation of the molecule with UV light [425]. The ultrafast energy relaxation ability of nucleobases is crucial to our survival since it allows DNA to survive exposure to UV photons without resulting in long-lived photochemically active states, which would lead to more prevalent lesion formation and increased likelihood of cancer. The results from this experiment indicate a barrierless relaxation of $<$200 fs from the initially populated $\pi\pi^*$ excited state into both an $n\pi^*$ state and the ground state through separate conical intersections. Though the ability to measure electrons at XFELs is challenging, the information retrieved from these experiments makes it worthwhile for certain types of chemical systems [446].

An area of research that has received significant attention at XFELs has been surface photochemistry [447–454]. Many chemical reactions take place on surfaces or interfaces, including many important catalytic reactions, but the ability to trigger these reactions for ultrafast experiments has not been straightforward. One approach has been to adsorb the molecules onto a metal surface and then to photoexcite the metal, the expectation being that the metal will transfer energy to the adsorbed species thus triggering a reaction [451]. By using x-ray absorption and emission spectroscopy at the oxygen K-edge (530 eV), Östrom and co-workers were able to probe the transition state of CO oxidation (CO  +  O) on a Ru metal surface after photo-excitation of the Ru metal with a 400 nm laser pulse. The combination of both XAS and XES allowed them to resolve the occupied and unoccupied electronic states involved in the photochemical reaction. The results indicate that after electronic excitation of the substrate there is a rapid increase in adsorbate-substrate vibrational excitations, which drive the CO oxidation reaction. The reaction sequence extracted from the experiments and predictions from a quantum oscillator model are shown in figure 43. Of particular importance was the identification of a transient weakly-adsorbed precursor state where the CO can either desorb from the surface or re-adsorb back to the chemisorbed initial state when there is no co-adsorbed O present. This precursor state is populated efficiently, with 30% of the CO molecules reaching it, and it lives for a long time ($>$14 ps). When the same experiment was performed with co-adsorbed O the CO precursor state vanishes. The conclusion from both simulation and experiment is that the presence of O on the metal surface results in a specific Ru-CO geometry, from which direct desorption is more probable [455]. These results have provided a clear mechanistic picture of the molecular reaction pathways on a metal surface.

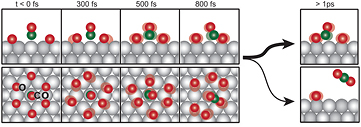

Zoom In Zoom Out Reset image size

One aspect to this result that remained open was the extent to which the photoexcitation of the metal affected the atomic oxygen that was also present on the Ru surface and how much of a role this played in the efficiency of the CO  +  O reaction. Beye and co-workers investigated this in a similar fashion to the previous experiment, but without the inclusion of the CO on the surface [453]. The resulting XAS and XES measurements around the O K-edge at 532 eV showed clear changes in the bonding–anti-bonding orbital splitting upon laser excitation of the metal. The interpretation is that the laser excitation results in population of the anti-bonding orbitals, leading to a weakening of the bond between the metal and oxygen atom. This weakened bond elongates, which reduces the splitting between the bonding and anti-bonding orbitals. This is clearly visible in the combined x-ray absorption and emission spectra, where the XAS probes the unoccupied states and the XES probes the occupied states. Both of these experiments demonstrate that not only is it possible to measure an adsorbed surface layer, but that the combination of XAS and XES provides unparalleled structural and electronic information on the geometry of these adsorbates as they undergo chemical reaction [454].

In principle, FELs are well suited for the study of non-equilibrium processes at solid surfaces and although this topic can be extended to many potential spectroscopies here the focus is on time-resolved photoelectron spectroscopy (TR-PES). This is an important but challenging spectroscopy as was realized during the first experiments with soft x-ray FELs.

Until the advent of the first x-ray FELs, TR-PES was limited by the use of table-top laser sources and the generation of high harmonics starting from ultrafast lasers. Most of the experiments were performed on gas phase systems and only recently has FEL-based tr-PES been performed on solid surfaces and interfaces with sub-ps time resolution [456]. At the same time the theory and modelling of ultrafast phenomena at solid surfaces probed by ultrafast x-ray time resolved spectroscopies has made important progress; an interesting update can be found in reference [430]. However, only after the introduction of the x-ray FELs FLASH and the LCLS was it possible to perform experiments at the resonant energies of the core levels of elements such as carbon, nitrogen and oxygen. Though with these it became abundantly clear that the most important technical questions to be addressed were control of the photon density in the FEL pulse, the jitter in energy and bandwidth of the FEL pulses and the pointing stability of the FEL light spot on the sample. After the very first experiments, the complex and challenging aspects of TR-PES on solid surfaces became very clear, as shown for example by the measurement of the W-4f shallow core-levels in a W(1 1 0) single crystal [457]. This experiment clearly revealed the dramatic effects induced by space charge as the FEL fluence was increased, see figure 44. Later it was clear that the space charge problem was also affecting the results of spin-resolved PES experiments. In particular, by performing a spin resolved PES experiment at different fluences it was observed that at higher photon intensities the measured spin polarisation was reduced [458]. The question of space charge, along with appropriate statistics is, even now, the principal challenge for meaningful and unique TR-PES experiments with FELs. In other terms, the electron spectroscopy of deep core levels in the time domain is still problematic.

Zoom In Zoom Out Reset image size

In the literature several models concerning space charge effects in PES have been reported and in figure 45 a cartoon taken from [459] indicates the essentials of the problem. The most important parameter is the integrated photon flux on the solid surface. The numerical simulation shown here provides some information about the electron cloud (grey circles) and about the primary electrons electrons (black circles). The calculations clearly suggest that the space charge effects depend on the source parameters and the sample properties [459]. In summary, for effective TR-PES on solids the photon density of the FEL pulse must be controlled and space charge effects minimized, without this the measured overall energy and momentum resolution will be degraded. Although momentum resolution is above-all important for angle resolved PES measurements involving the band dispersions, angle-resolved PES of core levels may prove to be important for time-resolved photoelectron diffraction experiments. Nevertheless, the primary aim is to achieve the possibility of performing TR-PES of deep core levels with the statistics and energy resolution typical of conventional PES. Overall, controlling the photon density in the FEL pulse while performing TR-PES and achieving suitable signal statistics remain mandatory for the cases where time and frequency spectroscopic information are critical for an understanding of the ultrafast processes at a surface. This issue can be addressed only by controlling the repetition rate and the photon pulse energy and bandwidth. Now, it is clear that to limit space charge effects while keeping good signal statistics, FEL sources at repetition rates of the order of several kHz are required. This is particularly challenging if the pulse duration, and hence the time resolution, required is of the order of 100 fs or less.

Zoom In Zoom Out Reset image size

Consequently to-date TR-PES experiments at FELs have been mostly performed at FLASH where the superconducting technology used for the linear accelerator enables operation with up to 8000 pulses/s. In one of the first experiments core level photoemission was used to monitor the ultrafast melting of local charge-order in TaS₂, while the material was optically driven through an insulator-to-metal transition which is accompanied by a change in charge-order [460]. Later it was demonstrated that combined spin- and TR-PES studies are possible with high repetition rate FELs [461]. Charge transfer processes at the interface between dye molecules and semiconductor substrates have been studied at LCLS with TR-core-level PES [456] and recently the first TR-HAXPES (Hard x-ray PES) results have been reported from SACLA [462]. In an attempt to study ultrafast electron dynamics at a surface it was demonstrated at FLASH that TR-PES experiments on core levels—in this case Ir 4f—can be performed under conditions where it is possible to follow the temporal changes of surface and bulk states separately by making use of surface core level shifts [463].

Clearly, TR-PES is of importance for studying ultrafast electronic structure changes and local charge rearrangement in processes, and ultra-fast dynamics at surfaces, interfaces and solids. In addition to fundamental studies, it is also of importance to applied problems such as catalysis, energy conversion storage and distribution [464], together with magnetism and ultra-fast switching processes in correlated electron systems. It should be emphasized that for TR-PES high repetition rate FELs are complementary to HHG laser sources and are, despite the limitations imposed by space charge considerations, the sources of choice when photon energies above ca. 100 eV are considered.

An area of very intense research with FELs is ultra-fast magnetization dynamics using coherent imaging and scattering techniques in an attempt to combine fs-temporal and nm-spatial resolution. The fundamental physics behind ultra-fast optical switching of magnetic domains is an open question ever since the pioneering work by Beaurepaire et al which showed that ultra-fast demagnetization induced by an ultra-short optical laser pulse occurs on femtosecond timescales [465]. More recent studies demonstrating that with circular polarised femtosecond laser pulses reversible all-optical switching of the magnetization can be realized in certain materials have led to increased interest in ultra-fast magnetization dynamics due to its application in magnetic data storage [466].

First experiments at FLASH demonstrated the possibility of recording single-shot resonant magnetic scattering images with FELs. These experiments were performed on a CoPt multilayer sample with the images taken with linearly polarised XUV pulses at the Co ${\rm M}_{2, 3}$-edges [467]. Soon after the soft x-ray beamline [199] became operational at LCLS magnetic x-ray holography experiments were performed on similar samples at the Co ${\rm L}_{2, 3}$-edges [468] using circular polarised light produced with a Co polariser (see figure 46). These experiments showed that for a certain range of x-ray fluences it was possible to accumulate spectroholograms with the short pulses from an FEL and to reconstruct the magnetic domain pattern afterwards.

Zoom In Zoom Out Reset image size

The first time-resolved demagnetization study using a pump-probe approach, with an IR-pump pulse and an XUV probe pulse to record a resonant magnetic scattering pattern as a function of pump-probe delay, was performed at FLASH (see figure 47) [469]. In this experiment production of the magnetic scattering signal in less than 300 fs was observed to be accompanied by an apparent increase in magnetic correlation length. This increase in correlation length has been attributed to softening of the domain walls due to super-diffusive spin currents across them. This study represents the first experiment where correlations between fs-demagnetization and nm-scale structural changes have been recorded.

Zoom In Zoom Out Reset image size

At LCLS the element specificity of resonant magnetic scattering has been used to investigate the all-optical magnetization switching process induced by a circularly polarised, femtosecond laser pulse on a ferrimagnetic GdFeCo sample [470]. Recording the TR-magnetic scattering signal at the Gd-M₅-edge and the Fe-${\rm L}_{2, 3}$-edge, respectively, the authors were able to disentangle the magnetization dynamics in Gd-rich and Fe-rich regions of the sample. They showed that the magnetization reversal is influenced by non-local transfer of angular momentum from Fe-rich to Gd-rich regions.

A very interesting observation in the single-shot imaging experiments on magnetic samples was the disappearance of the magnetic scattering signal even without a pump pulse before any changes in the charge scattering signal or even any sample damage was observed. So far this effect is not fully understood and two explanations based on transient x-ray induced changes of the electronic structure through the creation of multiply ionized atoms [471] and the influence of stimulated x-ray emission [472], respectively, have been invoked to explain the observations. With the increasing availability of circular polarised XUV [473] and soft x-ray [474] pulses from FELs, studies of the fs-temporal and nm-spatial magnetization dynamics will get an additional boost in the future.

Condensed matter systems where electronic correlations play an important role show extremely rich and interesting macroscopic physical properties like high temperature superconductivity and colossal magnetoresistance as well as a variety of phase transitions such as, for example, metal-insulator transitions and/or different magnetic phases. These fascinating emergent phenomena are caused by a subtle interplay between electronic (charge, orbital and spin) and lattice degrees of freedom. This interplay leads to various nearly degenerate competing states and hence complex phase diagrams as a function of temperature, doping and external fields. Driving strongly correlated systems out of equilibrium and studying their time-dependent relaxation will help the research community both understand and steer transitions between the different stable phases of these complex materials. It may also lead to the discovery of novel transient, metastable phases. TR-spectroscopy and scattering experiments have recently shown the great potential of x-ray FELs for such studies. In particular, the combination of element specific resonant excitation and elastic scattering has the unique potential to enable study of the coupled dynamics of charge, spin and lattice order in these complicated systems.

The first TR-resonant soft x-ray scattering experiments at the O-K-edge performed at FLASH on magnetite were aiming at investigating the driving force behind a photoinduced insulator-to-metal transition [475]. A detailed study at LCLS [476] on the same material using a combination of TR-resonant soft x-ray diffraction at the Fe-L₃-edge with TR-optical spectroscopy later revealed a fast quench of the trimeron charge order followed by a picosecond structural transition involving phase segregation of an insulating island embedded in a conducting network.

TR-resonant x-ray diffraction at the Ni-L₃ edge was used to probe the coupled dynamics of charge- and spin-order in a stripe-ordered state of ${\rm La}_{1.75}$${\rm Sr}_{0.25}$NiO₄ nickelate induced by photodoping [477]. In another experiment at LCLS photoinduced melting of charge- and orbital-order in a perovskite manganite—${\rm Pr}_{0.5}$${\rm Ca}_{0.5}$MnO₃—was studied with TR-x-ray diffraction [478]. Even so the change in crystal symmetry associated with this transition occurred over different timescales for the electronic and vibrational degrees of freedom of the system, the authors were able to describe the dynamics of the phase transformation using a single time-dependent 'order parameter' that depends only on the electronic excitation [478].

A very interesting approach in the context of these non-equilibrium dynamics studies is the use of THz pump pulses to drive the systems out of equilibrium via the excitation of specific phonon modes leaving the electronic system unchanged by the pump pulse. This has been used to drive the spin dynamics in a multiferroic material—TbMnO₃—via resonant excitation of an electromagnon with an intense few-cycle THz pulse [479]. The resulting spin motion in the Mn 3d-shell was observed using time-resolved resonant soft x-ray diffraction at the Mn-L₂-edge. The results showed that atomic-scale magnetic structures can be manipulated with an electric field pulse on a sub-picosecond time scale [479].

An even more intriguing effect was observed in cuprates upon non-linear excitation of phonon modes with intense THz pulses. Upon excitation [480], these materials show transient features of superconductivity far above the equilibrium transition temperature. In a time-resolved x-ray diffraction study on YBa₂Cu₃${\rm O}_{6.5}$ performed at LCLS [481] it was demonstrated that this behaviour is induced by a lattice distortion (see figure 48) where the inter-bilayer distance is decreased while the intra-bilayer distance is increased at the same time. Calculations show that this leads to an effective increased hole doping in the CuO₂ planes via charge transfer to the Cu-O chains as indicated in the figure [481].

Zoom In Zoom Out Reset image size

Making use of the ultra-short and very intense x-ray pulses from LCLS it was recently demonstrated that it is even possible to perform TR-resonant inelastic x-ray spectroscopy (TR-RIXS) with momentum resolution to probe the dynamics of elementary excitations in highly correlated materials [482]. In the specific experiment the dynamics of the magnetic correlations were probed after photo-doping the Mott insulator Sr₂IrO₄ [482]. Finally it should be mentioned that the very intense x-ray pulses from LCLS have recently been used to study the charge-density-wave order in YBa₂Cu₃${\rm O}_{6.67}$ in the presence of a very high magnetic field [483]. Here the intense x-ray pulses were synchronised with a pulsed high-field magnet enabling x-ray diffraction studies in magnetic fields up to 28 Tesla [483].

In conclusion, the possibility of performing TR- resonant- and non-resonant x-ray diffraction studies with ultra-short x-ray pulses from an FEL provides many exciting opportunities for the study of the non-equilibrium dynamics of the coupled degrees of freedom in strongly correlated materials.

X-ray FELs like LCLS or SACLA offer the possibility of studying structural responses to non-equilibrium excitations on femtosecond time scales with time-resolved x-ray scattering. In the following a few recent examples are given which may serve to illustrate the potential of this approach.

In the soft x-ray regime resonant scattering allows mapping of the emergence of collective phenomena such as charge density waves (CDWs). In a study of the response of TbTe₃ to an ultrafast optical excitation, coherent oscillations from the CDW amplitude mode at 2.4 THz and from an optical phonon at 1.7 THz [484] were observed. These findings show the importance of coupling between charge density modulation and lattice strain energy.

In an optical-pump x-ray probe experiment on Fe films deposited on a MgO substrate the lattice excitation upon ultrafast demagnetization of the Fe film induced by the optical pump pulse was investigated at LCLS [485]. The time-resolved x-ray scattering data revealed temporal oscillations due to the excitation of coherent longitudinal acoustic phonons. A detailed analysis showed that the phonons generated were non-thermal on the time scale of the experiment thus calling into question the validity of the widely used two-temperature model to describe the coupling between electrons and phonons after ultrafast optical excitation in metals.

A completely new approach to the study the dynamics of elementary excitations such as phonons by Fourier-transformation of the time-dependent diffuse scattering signal after photoexcitation has also been successfully demonstrated at LCLS [486]. This approach which is an optical pump x-ray probe time-domain analog of inelastic x-ray scattering has in the meantime been applied to a number of interesting scientific questions. In a recent example the generation of phonons by impulsive optical excitation in Ge and GaAs was studied [487]. In principle impulsive optical excitation can lead to coherent or squeezed phonon generation through first- or second-order Raman processes. To distinguish between the two processes in a second-order correlation measurement such as x-ray diffuse scattering is difficult because both mechanisms lead to oscillations of the phonon displacement $\langle\vert u_q^2\vert \rangle$ with twice the phonon frequency. However, as demonstrated in the experiment, using two optical pulses can be used to distinguish between the two generation mechanisms (see scheme in figure 49). Using this approach it was shown that in the case of Ge and GaAs the generation of large wavevector phonons by impulsive optical excitation is mainly due to squeezed phonon generation.

Zoom In Zoom Out Reset image size

Femtosecond x-ray diffuse scattering has also been used to study the coupling between electrons and lattice in lead telluride [488] which is an important thermoelectric material. Using a combination of non-equilibrium lattice dynamics measurements and first principles calculations the authors were able to show that electron-phonon coupling involving electron states near the band edges leads to the ferroelectric instability in PbTe.

The few examples mentioned above demonstrate the potential of FELs, in particular those operating in the hard x-ray regime, to reveal the influence of lattice dynamics on materials properties.

With the development of FEL radiation sources a new area of x-ray spectroscopy commenced that will, without doubt, have a comparable impact to that of lasers in the areas of non-linear optics and spectroscopy [489].

For non-linear, ultrafast, time-resolved techniques, state specific information is often provided through multi-photon resonances with various combinations of sequential photons [490]. Theoretically, combinations of multiple x-ray photons resonant with core transitions characterize different excitation processes due to specific sequences of light-matter interactions [491]. Thus, particular sub-processes can be enhanced by matching the pulse frequencies to transitions between molecular eigenstates. This provides both a high selectivity and flexibility due to momentum and energy conservation of the photons interacting with the material. The various possible non-linear processes are typically categorized according to the number of photons involved; for example, sum-frequency generation (SFG), and two-photon absorption and stimulated emission with two photons. Other non-linear x-ray phenomena include time-resolved transient gratings (TG) and four wave mixing (FWM) spectroscopy [489].

One of the first demonstrations of non-linear optics in the x-ray regime was two-photon absorption [492], where an atom absorbs two incident photons either sequentially or simultaneously. This process is well know for short-pulse visible lasers, but has only recently been demonstrated for core-electron excitations [493–496], which has required the high peak powers available at XFELs.

Fluorescent decays in the soft x-ray region allow unique access to the structure of occupied valence states whilst keeping both the element selectivity and the chemical state specificity of soft x-ray spectroscopies [497]. Unfortunately, the probability of fluorescent decay, in the soft x-ray range, is below 1% and with a typical spectrometer acceptance of less than 10⁻⁵ of the full solid angle into which the fluorescence is emitted, soft x-ray emission spectroscopy (XES) or resonant inelastic x-ray scattering (RIXS) experiments require single photon counting for hours in order to obtain useful information. Using stimulated emission spectroscopy with high intensity, small bandwidth, tunable soft x-ray beams of different colour, a stimulated beam containing the same information as a fluorescence spectrum can be formed. In addition to mitigating the low acceptance angle of spectrometers, stimulated emission also suppresses the dominating Auger decays that create electronic damage to the sample. Quantitatively, with such techniques, two to three orders of magnitude in signal levels can be gained through the suppression of Auger processes, and the quality of the beam directed into the spectrometer can potentially result in increases of around five orders of magnitude in signal levels. That is, the gains resulting from the use of stimulated emission techniques clearly have the potential to revolutionize how we study matter with XES or RIXS based spectroscopies [498].

An objective of more complex FEL-driven ultrafast x-ray transient grating (X-TG) experiments is to access wave-vectors at the nm scale [499]. Resonant time-resolved TG-spectroscopy is expected to provide information about ultrafast charge-carrier dynamics after excitation and about the subsequent energy dissipation into lattice vibrations and heating [500]. Due to the spatial and temporal dependence of the energy- and q- dependent TG signals, TG experiments at XUV and x-ray wavelengths reveal more information than standard pump-probe experiments. Moreover, exploring the role of resonances in non-linear x-ray spectroscopy is an essential step towards the realization of more general x-ray FWM schemes such as degenerate four-wave-mixing and coherent anti-Stokes Raman spectroscopy [499].

The spatial resolution of the X-TG method is determined by the fringe spacing and the size of the interaction volume of the excitation and the probe beams, and thus reveals nanoscale dynamics [501]. A goal of FEL driven X-TG experiments is to access wavevectors that cover the full Brillouin zone. At grating periods shorter than the characteristic diffusion lengths, new ballistic transport phenomena are expected to be observed. Transient grating fringe spacings of $\Lambda = 1$–100 nm, corresponding to coherent scattering wavevectors of $q = 2\pi/\Lambda$, extend to nearly the edge of the Brillouin zone and can be used to examine acoustic modes, non-oscillatory density dynamics, polarisation, and other order-parameter responses on the same length scales. Uniquely, the timescales possible in this kind of experiment map onto appropriate length-scales. Transport phenomena that may be investigated at the nanoscale are [502]: acoustic phonons, optical phonons, resonant effects, charge carrier drift velocities and electron-phonon coupling.

FWM techniques are currently exploited to study different kinds of dynamics and fundamental processes ranging from, for example, chemical reaction dynamics [503] to light harvesting [504]. FWM is a 3rd-order non-linear process in which three coherent electromagnetic fields ($E_{1, 2, 3}$) of frequency/wavevector $\omega_{1, 2, 3}/k_{1, 2, 3}$ interact in a sample resulting in a fourth field $\{E_4(\omega_4, k_4)\}$, coherently coupled with the input fields; see figure 50(a). A large number of different FWM processes may occur depending on the input field parameters ($\omega_i$, k_i, polarisation, time duration and delays, etc), resulting in a wealth of interactions that can be exploited to study selectively a host of different dynamics.

Zoom In Zoom Out Reset image size

In coherent Raman scattering (CRS; figure 50(c)) two time-coincident fields are used to excite, for example, vibrational modes of frequency $\omega_{{\rm ex}}=\omega_1-\omega_2$ and wavevector $k_{{\rm ex}}=k_1-k_2$. The time evolution of the excited modes is followed by a third time-delayed pulse ($\omega_3$,k₃) that drives the emission of the fourth (signal) field with $\omega_4=\omega_3+\omega_{{\rm ex}}$ and $k_4=k_1+k_{{\rm ex}}$. The coherent nature of the CRS process leads to the in-phase addition of the non-linear fields radiated at different sample locations, which may result in a non-linear signal along the so-called 'phase-matched' direction (i.e. k₄ in figure 50).

In soft x-ray CRS one of the input photon frequencies is typically tuned to match the energy of a core-hole resonance ($\omega_{{\rm res, A}}$) of a given atom A, while a second pulse ($\omega_2=\omega_1-\omega_{{\rm ex}}$) generates a coherent population of, for example, valence band excitations with a selected frequency ($\omega_{{\rm ex}}$ in the 1–10 eV range) and wavevector ($k_{{\rm ex}}=k_1-k_2$), see figures 50(d) and (e) [491]. The excited electronic wave packet can be then detected after a given time-delay ($\Delta t$) by a third pulse, tuned to a core resonance of atom B ($\omega_3 \approx \omega_{{\rm res, B}}$), which gives rise to the FWM beam ($\omega_4=\omega_3+\omega_{x}$ and $k_4=k_1+k_{{\rm ex}}$). Due to the localization of core shells, the selected excitation is initially centred on atom A while the probe mainly interacts with the unoccupied states close to the core shell resonance at atom B. By tuning $\omega_{1, 2, 3}$ and $\Delta t$ it is then possible to choose where a given excitation is created, as well as where and when it is probed, opening up the possibility of studying, for instance, the delocalization of electronic excitations and charge/energy transfer processes between different atomic sites.

In order to go beyond the theoretical framework presented in [491] (and references therein) a first demonstration of the real feasibility of FWM techniques involving sub-optical wavelengths has recently been made using FEL radiation at the FERMI facility [505]. In this experiment two ultrafast FEL pulses, produced by splitting a single pulse using the edge of a flat mirror, were sent to a vitreous ${\rm SiO_2}$ sample. An incidence angle of about 6.2° produced a TG, whose time evolution was monitored using an optical pulse impinging under phase-matching conditions.

The detected signal allowed estimation of the efficiency of the process (namely the ratio of the intensity of the scattered signal ($I_{{\rm FWM}}$) over that of the probing optical beam ($I_{{\rm opt}}$)) to be about 10⁻⁷, i.e. of the same order as a typical efficiency in the optical range. Moreover, an appreciable soft x-ray TG signal (of $>$10⁴ photons/pulse) was observed throughout the entire probed time delay range. This shows modulations compatible with impulsively stimulated vibrational modes i.e. longitudinal acoustic phonons at $\omega_{{\rm LA}}\sim0.15$ THz, hyper Raman modes at $\omega_1 \sim7.2$ THz (due to correlated rotations of ${\rm SiO_4}$ tetrahedra) and Raman modes at $\omega_1 \sim25.5$ THz (due to tetrahedral bendings). These results establish that soft x-ray pulses may be used to generate dynamic gratings using coherent FEL pulses and that the time evolution of resulting FWM response stimulated by sub-optical wavelength radiation can be monitored. Moreover, this experiment demonstrates that soft x-ray TGs can be used to drive selected excitations (molecular vibrations) that are coherently stimulated by non-linear processes in the sample. The resulting signal modulations have the form of a beam propagating downstream of the sample along the expected 'phase-matched' direction. This was the first step towards the use of soft x-ray FWM for experiments with unprecedented chemical selectivity. Indeed, linear x-ray methods light-matter interactions necessarily occur on a single atomic site, preventing the possibility of detecting real-time coherent dynamics involving distinct atoms, while optical CRS cannot probe spatial coherence between different atomic sites, since only spatially homogeneous distributions of excitons (largely exceeding the exciton coherence length) can be detected. Furthermore, the ($\omega_{{\rm ex}}, k_{{\rm ex}}$)-range accessible by optical CRS is limited to the sub-eV and sub-10 ${\rm \mu m}^{-1}$ range, while x-ray CRS will allow to extension over a range to 100s eV or so and to the ${\rm nm}^{-1}$ range. In addition, transitions originating from core levels of well-defined symmetry also provide sensitivity (via linear/circular dichroism effects) to spin and orbital momenta together with spin wave creation and propagation. Finally, the possibility of applying an additional time delay between the $\omega_1$ and $\omega_2$ pulses will be a relevant step towards soft x-ray multi-dimensional spectroscopy. This approach will enable time-dependent correlations between electronic excitations to be probed, the analogue of optical multi-dimensional spectroscopy vibrational excitations [506].

An understanding of the mechanisms involved at the lattice level that mediate the response of solid-state matter when subjected to a high pressure shock wave has been sought for many decades. Across a shock front the pressure, density and temperature of a material are increased in a discontinuous manner, and the locus of points that can be attained by shocks of varying strengths is known as the shock Hugoniot. Particular goals include gaining insight into the timescales and paths of atomic rearrangement that allow a solid to rapidly flow—as it is observed that above a certain stress (the so-called Hugoniot elastic limit) the pressure-volume response is close to the hydrostat—that is to say strength effects become negligible and the shear stresses that the material can support are small compared with the mean pressure.

Understanding is also sought to glean information about the mechanisms that allow polymorphic phase transitions on timescales short compared with the duration of the compression pulse. Dynamic compression on nanosecond or sub-nanosecond time-scales is also a burgeoning field in its own right, as the pressures that can be obtained greatly exceed those that can be produced statically in diamond anvil cells (these ultimately being limited by the strength of diamonds). An experimental capability to extend high pressure solid-state physics research into regimes well in excess of a TPa is also motivated by the torrent of new exoplanets being discovered, and the realisation that solid matter may exist under a wide range of previously unexplored conditions. In certain cases it may even be that such novel forms of matter would be metastable upon release to ambient conditions [507, 508]. Given the role of strength, enthalpy barriers and the associated kinetics, it is yet far from clear how observations from individual experiments on ultrafast timescales relate to long time-scale conditions, and despite its long history, from the perspective of being a routine method to produce high pressure states, in many ways the field is very much still in its infancy.

The first successful attempts to record lattice response under shock conditions used diodes as the source of x-rays, giving a temporal resolution of many nanoseconds [510, 511]. Since that time significant developments have ensued with significant reductions in exposure times [512–514] and the use of high power lasers as both ablative shock-drivers and synchronous generators of hot-plasmas which emit copious x-ray radiation [515–517]. However, it is the advent of 4th generation light sources such as LCLS that heralds significant new capability in this burgeoning area for a number of reasons, because the FEL as a source of x-rays for probing the shocked state has several key advantages over the utilisation of x-rays emitted from laser-generated plasmas. The peak spectral brightness of FEL sources is some nine orders of magnitude greater than a synchrotron source, or any incoherent laser-plasma source. In practice this translates to an x-ray pulse that can be tuned to be below 100 fs in duration, shorter than the period of the fastest phonon in the system: atomic motion is truly frozen during the diffraction process. The FEL sources are also tuneable in energy, and can now be monochromated to $\Delta \lambda / \lambda$ better than 10⁻⁴. In contrast, quasi-monochromatic laser-plasma sources typically rely on emission from the set energies of the helium-like resonance lines of mid-Z elements, and suffer the disadvantage of being relatively broad (with $\Delta \lambda / \lambda$ typically $5 \times 10^{-3}$, due to emission from the intercombination line and dielectronic satellites), and also sit on a broad background of radiation produced by mechanisms such as bremsstrahlung. However, perhaps the greatest advantage of the FEL sources are that they are collimated and focusable. The geometric limitations of laser-plasma sources, where the x-rays are emitted into 4π steradians, constrain the shocked sample to be placed several cm from the source, and to limit divergence of the incident and diffracted x-rays, the shocked region (from which x-rays are to be diffracted) is typically 0.3–1 mm in diameter, with the laser beam for shock compression being focused to about 0.8 mm diameter. Dynamic compression of such a large area to high pressure for several nanoseconds requires considerable laser energy. Indeed, in the TPa experiments performed to date with such sources several kJ of laser energy have been required [518, 519]. The high brightness and focusability of the x-rays from FELs considerably reduces the requirements of the optical laser to produce a given shock pressure. Bright Debye–Scherrer rings can be obtained on a single shot from small x-ray spots whose size is in practice only limited by the grain size of the sample, and excellent data from 30 μm x-ray spots is common. This in turn means that the optical laser, used for ablative compression, can also be focused to a small spot and even allowing for considerable over-filling of the region probed by the x-rays can result in 2–3 orders of magnitude reduction in the laser energy needed. Indeed, in the work described in section 6.5.2, close to 100 GPa pressures were reached for many tens of picoseconds with a laser energy of a mere 20 mJ [509], whereas recent experiments have attained diffraction from samples shocked for several nanoseconds to 0.35 TPa with just 25 J of laser energy [520].

The vast reduction in required optical laser energy required for high pressure studies was made evident by the first shock experiment to be performed at LCLS, which had as its aim a measurement of the ultimate compressive strength of a simple crystal: copper. Copper is a face-centred-cubic crystal that does not undergo a solid-solid phase transition at any point on the Hugoniot. Although the standard Hugoniot plots of materials on a P-V curve will show the response as being close to the hydrostat above the so-called Hugoniot Elastic Limit, the material must take some finite time to 'flow'. Indeed, the mechanisms by which such flow occurs is still a matter of active investigation. In a simple model of plasticity, due to Orowan [521], we assume the plastic strain rate is given by ${\dot {\epsilon^{\rm p}}} = N \vert {\bf b} \vert v$, where $\epsilon^{\rm p}$ is the plastic strain, N the number of mobile dislocations moving at velocity v, and ${\bf b}$ their Burgers vector. However, it is known that the number of pre-existing defects is often too small to support the high plastic strain rates observed within a shock. Using multi-million atom molecular dynamics simulations, it was predicted that the time taken for the generation and motion of defects was such that if a metal could be compressed rapidly enough, the pre-existing defects would be unable to relieve the shear stress, and thus the material would compress elastically to extremely large compressions, at which point the lattice would 'fail' in a fundamental way (i.e. the ultimate elastic compression would be reached) with the generation of copious homogeneous dislocations [522]. Simulations indicated that this ultimate compressive strength corresponded to a one-dimensional compression of the unit cell of copper of order 15–17% (depending upon crystallographic direction) [523] and a purely elastic response up to this limit would be observed if the associated stress (≈75 GPa) could be applied within a few tens of picoseconds.

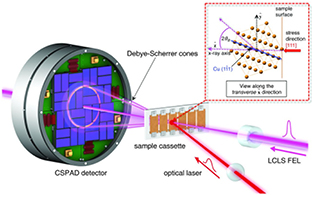

The experiment undertaken to test this prediction, performed at LCLS, is shown schematically in figure 51. A short laser pulse of 170 ps (FWHM) duration, containing just 20 mJ of energy, was focused onto the surface of a 1 μm thick layer of polycrystalline Cu, deposited in such a way that the crystallites had their [1 1 1] directions preferentially oriented along the normal to the target surface. The 8 keV x-rays were tuned to diffract from the $[1\, {\bar 1}\, 1]$ planes. The change in Bragg angle upon compression leads to an expansion of the Debye–Scherrer ring. Elastic response (i.e. 1D compression of the unit cell) can be separated from plastic response (which for full relief of shear stress leads once more to a cubic lattice with reduced lattice spacing), owing to a large difference in the associated shifts in Bragg angle for the two different types of response. The shifts in Bragg angle are sensitive to elastic strains, and for an elastic strain along the shock direction, $\epsilon_{\rm n}^{\rm e}$, or perpendicular to that direction, $\epsilon_{\rm t}^{\rm e}$, the new Bragg angle, $\theta_{\rm B}$, is given by the solution to the quartic

$$\begin{align} \displaystyle \label{E:fulldiff} \sin^{4}\theta_{\rm B} [(1+\epsilon_{\rm n}^{\rm e})^2 - (1+\epsilon_{\rm t}^{\rm e})^2] + \sin^{2}\theta_{\rm B}[(1+\epsilon_{\rm t}^{\rm e})^2] = \sin^2\theta_0 \quad \nonumber \end{align} \tag{ 39 }$$

where $\theta_0$ is the Bragg angle for the unshocked lattice [524].

Zoom In Zoom Out Reset image size

For purely elastic response ($\epsilon_{\rm t}^{\rm e}=0$) in the limit of small strains, taken to be positive in compression, the shift in the Bragg angle is given by $\Delta \theta = \sin^2{\theta_0} \tan \theta_0 \ \epsilon_{\rm n}^{\rm e}$, whereas when sufficient plastic flow has occurred that the material is under close to hydrostatic conditions (i.e. $\epsilon_{\rm n}^{\rm e} =\epsilon_{\rm t}^{\rm e}$) the shift in Bragg angle is given by $\Delta \theta = \tan \theta_0 \ \epsilon_{\rm n}^{\rm e}$. Hence, as in the experiment $\sin^2{\theta_0} = 0.115$, we see that the set-up is far more sensitive to strain once plastic flow occurs. A series of diffraction images, each taken with  ≈$50$ fs x-ray pulses, delayed by the amount indicated with respect to the optical drive pulse, is shown in figure 52. The initial elastic response can be observed as the distinct diffraction ring of slightly larger radius that is clearly visible at the time delays marked between 100 and 140 ps. Diffraction from the initially unshocked material (the inner ring) is still present as the compression wave has not traversed the full 1 μm thickness of the sample. The two snapshots, at 160 and 180 ps, show a much broader diffraction feature extending to far higher angles which is associated with the plastic response of the crystal.

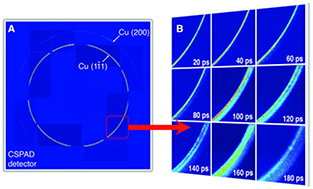

Zoom In Zoom Out Reset image size

The experimental data were extremely well-modelled by a very simple hydrocode [525] that included the non-linear elastic constants of the material and a generic Taylor-type model for plastic flow [526]. The agreement between the observed and predicted diffraction patterns demonstrates that the material had indeed reached the ultimate compressive strength at a strain of order 15–17% and then underwent plastic flow such that close to hydrostatic conditions were reached on a time-scale of order 60 ps—results that are also in good agreement with the type of response predicted from molecular dynamics simulations [522].

The capabilities afforded by the femtosecond duration x-ray pulses are also ideal for studying shock-induced phase transitions and melting, and initial work has started in this area. Gorman and co-workers have studied the melting of Bi [527]. In this experiment the molten phase was not generated on compression but on release. The phase diagram of Bi is complex, with five distinct solid phases existing in the first few GPa above ambient pressure. The Hugoniot (the locus of states reached upon the passage of a single shock) is such that Bi shocked into the body-centred-cubic phase V is sufficiently heated that when released (which is deemed to be isentropic) it could relax into the liquid phase. The indirect nature of previous measurements had meant that the time scale of melting in Bi was poorly constrained, with inferred melting times ranging from tens to hundreds of nanoseconds [528, 529], much longer than the few nanoseconds typical of laser-shock experiments.

The experimental data was obtained by laser-shocking the Bi to pressures of between 8 and 14 GPa. A few nanoseconds after release the diffraction pattern was dominated by a broad diffuse ring of scattering from liquid Bi. A weak Bi-V (1 1 0) peak was also observed, which originates from the remaining higher-pressure region of the sample as the release wave travels back towards the driven surface, together with a weak Bi-I (0 1 2) peak that most likely originates from that sample material that has been fully released to zero pressure by the rarefaction wave. Interestingly, the smoothness of the Deybe–Scherrer rings from the fully released Bi-I was very different to the highly textured rings of the starting material suggesting that the rapid release to ambient pressure results in the creation of very small, sub-micron, crystallites. Thus the experiment conclusively demonstrated the transformation from the solid state to the liquid on time-scales very much faster than previously believed.

More recently LCLS has been used to probe the shock-compression of graphite up to pressures in excess of 120 GPa. Evidence was seen of the conversion of the graphite to both the diamond and lonsdaleite phases [531], although this inference presently relies on the disappearance of diffraction signatures associated with graphite and on the persistence of a single Bragg peak associated with each of the other two phases of carbon respectively. Whilst more detailed structural information is required to understand fully this transition, the experiment once more provides evidence for the transformative capabilities that fourth generation sources are bringing to the field.

Reliable claims on the details of structures under dynamic compression require the collection of diffraction data from multiple reflections, which can only be fully elucidated with improvements in experimental design and execution (and, in the future, with increases in x-ray energies, corresponding to sampling larger volumes of reciprocal space). With better target designs (for example using ablator materials to steepen-up a shock before it impinges upon the sample of interest) and better quality laser spot profiles, data of remarkable quality can now be collected. For example, figure 53 shows a Rietveld refinement, of an incommensurate host-guest structure, to diffraction data collected from shock-compressed Sc at 51 GPa and  ≈2000 K [530, 532]. The diffraction data were collected on the MEC beamline at LCLS using a single 80 fs x-ray pulse. The incommensurate structure, which comprises a 'host' framework and linear chains of 'guest' atoms that lie in channels through the host structure, was known to be the stable phase of Sc above 21 GPa at 300 K, but it was unknown whether phases with such complex structures could form on the nanosecond timescales of a shock compression experiment. Using the high-quality diffraction data it was not only possible to show that the host-guest structure was indeed formed at pressures above 46 GPa but also to show that the 1D chains of guest atoms were disordered at these P-T conditions, resulting in the disappearance of specific 'guest-only' Bragg peaks in the diffraction pattern. This is illustrated in the inset to figure 53, which shows the locations of these reflections, which have indices (hk0m) in the superspace formulism used to analyse aperiodic structures. The calculated diffraction patterns using both ordered and disordered models for the chains are shown, and it is clear that the fit of the data to the disordered model is significantly better. It should be noted that the quality of these data rivals that obtained on synchrotrons, and clearly demonstrates that complicated phase transitions can complete in the short timescale available under laser-shock compression. It is interesting to note that one advantage of the dynamic compression technique is the lack of the diamonds present within a static compression cell—the Compton scattering from which can often degrade the quality of the data.

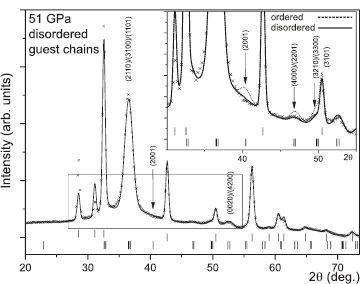

Zoom In Zoom Out Reset image size

The high temperatures and pressures generated upon the passage of a shock have also been shown to be capable of transforming an amorphous solid to a crystalline phase, again on nanosecond time-scales. Gleason and co-workers performed pump-probe x-ray diffraction measurements on shock-compressed fused silica, revealing an amorphous to crystalline high-pressure stishovite phase transition [533]. Using the size broadening of the diffraction peaks, the growth of nanocrystalline stishovite grains was resolved during the nanosecond timescale of the laser-shock compression. The pertinent data are shown in figure 54, where time-resolved diffraction patterns are shown for shock pressures ranging from 4 to 34 GPa. From an analysis of the peak widths as a function of time, it was concluded that the functional form of the grain growth was suggestive of homogeneous nucleation as the growth mechanism.

Zoom In Zoom Out Reset image size

The experiments described above have enabled investigation of the response of relatively macroscopic pieces of matter to laser radiation, generally resulting in a shock. However, it should also be noted that the excellent temporal and spatial resolution afforded by FELs is also opening up study of the response of individual nanoparticles. To date the response of such nanocrystalline matter has been investigated under a variety of optical laser intensities, which, with increasing intensity, result in oscillations in strain within the particles [534], melting [535], and their disintegration [415]. In addition, the experiments described above have concentrated on an understanding of the mechanisms that occur at the lattice level and thus have centred on the use of in situ diffraction as the primary diagnostic. However, short pulse FELs do afford other means to investigate the response of matter to rapid compression, such as phase-contrast imaging [536].

In the experiments published to date, little attention has been paid to the texture of the target—that is to say the orientation distribution function that describes the probability, in a polycrystalline sample, of finding a crystallite with a particular crystallographic orientation. In the experiments on the ultimate strength of copper, described in section 6.5.2, the sample was highly textured, and polar plots were taken to ensure that, whilst the [1 1 1] axis of the grains was preferentially aligned along the surface normal, the range of angles around the normal over which a significant number of grains could be found was still sufficient to obtain a good diffraction signal under compression. However, unless the texture of the target is taken into account and a good understanding of the mechanisms which can lead to texture changes in shocked targets is appreciated, given the limited coverage in solid angle that current detectors afford the loss of diffracted signal could potentially be misinterpreted. For example, in the experiment described in section 6.5.2, the texture was used to ensure that diffraction from the $[1\, {\bar 1}\, 1]$ planes would always occur, but this resulted in very weak diffraction from the [2 0 0] type planes, as can be seen in the left hand part of figure 52. On the other hand, a target with known texture may aid in interpretation of the underlying physics. Indeed, it has recently been noted that much can be learnt about both deformation mechanisms and the pathways for phase transitions by deliberately choosing targets with certain textures. An example of this is what can be learnt by the use of so-called fibre-geometry, where, owing to the underlying physics of the deposition mechanism, a polycrystalline film exhibits grain orientation. For example, grains with a particular lattice direction preferentially align along the sample surface normal but azimuthally around the surface normal the crystallite orientation is approximately random. For a completely randomly textured polycrystalline sample a particular set of Miller indices is distributed evenly over a sphere in reciprocal space (of radius the corresponding reciprocal lattice vector and named the Polanyi sphere). However, for a fibre-textured sample, rather than being distributed evenly over the Polanyi sphere, the regions of high diffraction probability form rings on its surface. It is where these rings intersect the Ewald sphere (the sphere of radius the k-vector of the incident x-rays) that diffraction occurs, leading to a distinct azimuthal dependence of the diffraction within the Debye–Scherrer rings. The azimuthal position of these diffraction spots can contain extremely useful information about plasticity (e.g. the degree of twinning) or the pathway for a phase transition, especially if the sample is aligned such that the surface normal of the target is not parallel or anti-parallel to the direction of the incident x-rays [537].

When considering future experiments, there is clearly much to be learnt in the field of shock physics. However, it should be noted that owing to the large temperature rises associated with the entropy rise across the shock front, the vast majority of solids melt upon shock compression at a pressure typically between 100 and 300 GPa, depending upon the material. In order for dynamic compression to be useful for studying solids at higher pressures, samples need to be compressed more slowly, such that the compression paths stay closer to an isentrope. Such considerations lead naturally to the questions of how slow must compression be to prevent the full entropy (and thus heat) associated with the Hugoniot jump conditions being generated, and whether such timescales are compatible with the laser-compression facilities extant or envisaged at fourth generation light sources? That is to say, for a compression wave travelling in a solid, when is a wave a shock? If the response of a material were purely elastic in nature, the answer would be relatively simple. In such a case there are only two time-scales of relevance: the rise time of the shock and the minimum period of vibration within the solid (represented by the inverse of the Einstein or Debye frequencies). In this case we have a simple physical picture: if a pair of atoms change their mean equilibrium position due to compression over many vibrational periods, the compression is close to isentropic. If, however, the thickness of the shock front approaches atomic dimensions, the change in mean spacing occurs on a timescale comparable to the shortest phonon period. In this case with the passage of the shock wave each atom in turn 'overshoots' its new mean position, resulting in a large rise in temperature. The validity of this interpretation has been verified by molecular dynamics (MD) simulations of shock propagation in copper [538]. Whilst such a simple physical picture can be painted for elastic response, in practice the defects present (and generated) within a material subjected to the high stresses of uniaxial compression allow the material to flow plastically or to change phase, as we have seen in the previous sections. In this case, it is envisaged that close to isentropic conditions can be met if the sample is compressed on a time-scale that is slow compared with the rise time of the shock for that given shock pressure. Shock rise-times are known empirically (though without as yet a full explanation) to obey a fourth power law between stress and strain-rate known as the Swegle-Grady relation [539], and from such considerations in most cases tailored compression over a few nanoseconds should suffice to keep the sample solid. Indeed, this has already been confirmed using laser-plasma sources of diffraction, where samples of tin have been subjected to pressures of 1.2 TPa by ramp loading and have been shown to be still solid [519]. The results of experiments aimed at such ramp or quasi-isentropic compression, along with diagnosis via femtosecond diffraction using an x-ray FEL, have yet to be published. However, there can be little doubt that this is an area that will be explored in the future as the drive lasers and targets used become more sophisticated.

The present characteristics of high-power optical lasers placed at fourth generation sources are far from optimal. Although the optical laser at the MEC end-station at LCLS can deliver 30 J of laser energy in several nanoseconds, this not yet sufficient to obtain pressures in excess of a TPa over large enough sample areas to consider the system to be uniformly compressed. Furthermore, the laser is pumped by flash-lamps, limiting the shot rate to once every few minutes—a repetition rate that must be contrasted with the 120 Hz maximum repetition rate of the x-ray beam itself. As a result, several facilities are looking for improved performance of the optical lasers. For example, the High Energy Density Science end-station at the European XFEL will be equipped with the DiPOLE system [540]. This is a diode-pumped laser, capable of producing shaped nanosecond pulses containing 100 J of 1030 nm light at a repetition rate of 10 Hz. Such parameters should allow the generation of solid state matter at pressures in excess of a TPa on a routine basis and will no doubt spur efforts to design systems to reach even more extreme conditions.

The study of high energy-density plasmas, characterized as systems at temperatures above 1 eV (∼11 600 K) and at densities at or above that of a typical solid ($10^{22}$–$10^{23}$ atoms ${\rm cm}^{-3}$), is of fundamental importance to pure and applied research ranging from geoscience and planetary physics to astrophysics, relativistic laser-matter interactions and fusion science. This is because dense plasmas are common throughout the universe (forming the cores of giant planets, brown dwarfs and stellar interiors), are commonly created transiently in all forms of intense laser-matter interactions and because of the importance of understanding the equation of state, material response and transport properties of systems in extreme conditions of temperature and density in the modelling, design and interpretation of inertial confinement fusion experiments.

Experimental research investigating the fundamental properties of high energy-density plasmas has historically been confronted by two major challenges. The first is the difficulty of creating simultaneously hot and dense plasmas, controllably, in homogeneous conditions over thermodynamically meaningful scales. The second is the requirement for diagnostics with sufficient spatial and temporal resolution to study the vast range of transient plasma dynamics ranging from attosecond electron processes all the way through to large atomic displacements and compressions taking place on nanosecond timescales. The requirement for diagnostics to be able to penetrate deep into a dense system further limits the available set of experimental techniques and makes (hard) x-rays particularly suitable for this line of research. In this context, the advent of high-brightness x-ray FELs has enabled a new class of experimental investigations into the physics of dense plasmas by providing novel ways to both create and diagnose plasmas, bridging the gap between plasma generation methods using high-power lasers and the refined diagnostic capabilities typical of synchrotron light sources [11, 541].

The first high energy-density experiments on FELs were conducted primarily on the XUV FLASH facility in Hamburg [1] and on the hard x-ray LCLS at SLAC [2]. The work undertaken has explored a range of systems driven to high temperatures on ultra-fast time scales by employing a variety of diagnostic techniques, from absorption and emission spectroscopy to inelastic x-ray scattering, thus providing novel insight into the structure and dynamics of dense plasmas. Here we review some of the recent achievements made in the field and highlight opportunities that FEL light sources offer to further our understanding of the physics of matter in extreme conditions.

In terms of volumetric energy deposition, x-rays hold a key advantage over other energy sources (such as optical light or charged particle beams) due to their ability to penetrate deep into dense systems and their relatively straightforward interaction with matter. Heating systems with x-rays is therefore a promising method to generate high energy-density systems relatively homogeneously over large volumes. Although x-rays can penetrate dense systems, in the absence of non-linear effects such as saturable absorption, the energy deposition still decreases exponentially with depth inside an irradiated sample. Therefore, to create longitudinally homogeneous samples via x-ray heating, either very thin targets or hard x-rays with low absorption cross sections must be used. X-ray FELs contain a sufficient number of photons in a single pulse to deposit on the order of a mJ of energy into a micron-sized sample, sufficient to create warm- and hot-dense plasmas. Because the pulse lengths of a typical FEL are below 100 fs, such an energy deposition process is also isochoric, taking place on time scales much shorter than that of hydrodynamic expansion, and the density of the system exposed remains unchanged during the x-ray absorption process. This opens new possibilities to create hot plasmas at precisely known densities, by irradiating solids, liquids or gases with the focused output of a bright x-ray FEL pulse.

The mechanism of x-ray isochoric heating and the homogeneity of the produced warm-dense plasma, was first experimentally investigated at LCLS by measuring the hydrodynamic expansion of a high energy density sample using space and time-resolved interferometry [542]. Here, a 0.5 μm thick Ag foil was irradiated by 8.9 keV photons at intensities around $5 \times 10^{15}$ W ${\rm cm}^{-2}$ and heated to temperatures of order 10 eV at solid density. The expansion of the warm-dense system from the front and the back surfaces of the foil was measured and seen to be comparable within experimental uncertainty, indicating similar pressures throughout the target. The longitudinal homogeneity of the plasma was estimated to be on the order of 10%, providing the first direct experimental validation of x-ray isochoric heating using a femtosecond x-ray pulse and illustrating a new method to interrogate the equation of state of warm-dense systems in well-defined conditions.

The first hot-dense plasma experiments using an x-ray FEL were performed on the SXR (soft x-ray) beamline [199] of LCLS, where thin foils of aluminium were irradiated at photon energies between 1.5–2.0 keV at peak intensities up to 10¹⁷ W ${\rm cm}^{-2}$ [543]. This experiment successfully illustrated that ultra-short x-ray FEL pulses, when focused down to micron-sized spots, are capable of volumetrically heating plasmas to electron temperatures up to 200 eV in less than 100 femtoseconds, thus demonstrating x-ray isochoric heating to be an effective technique to create controllably extreme hot-dense plasmas. In these experiments the heating process is so fast that the ions remain relatively cold during the process, having little chance to move by an appreciable distance, so that the ion density of the system is well constrained to that of the solid sample during the x-ray pulse. The electron density, in turn, is determined by ionization and, at the densities of a typical metal, is sufficiently high to ensure that as soon as the system starts heating via x-ray photo-absorption, electron collisional dynamics quickly starts dominating the various ionization processes (such as photoionization and Auger decay) in the system. Hence it was observed that a well-defined two-temperature plasma could be efficiently created on very short time scales containing cold ions, hot electrons, and a local thermodynamic equilibrium (LTE) ground-state ion charge distribution. These observations were supported by extensive non-LTE atomic kinetics modelling, which was able to simulate accurately the entire absorption and heating process with good predictive capability [544].

Diagnostic techniques based on x-ray emission and x-ray absorption spectroscopy form a cornerstone in plasma physics, capable of providing detailed information on radiative properties and on atomic and plasma structure over an extended range of temperatures and densities. The advent of x-ray FEL sources has not only made it possible to improve the quality of spectroscopic data using established methods but has also allowed for the development of new spectroscopic techniques which make use of the unique characteristics of the FEL pulse, namely the fine wavelength tunability, high brightness and small bandwidth. X-ray-driven emission spectroscopy is one such technique, where the x-ray photons can pump the core states of a plasma allowing core-level emission to take place in systems where (thermal) self-emission would otherwise not be observable. The narrow bandwidth can then be tuned to excite or ionize specific charge states or elements in the plasma, providing a way to selectively study individual atomic or plasma processes.

This method was initially applied to isochorically heated Al plasmas on LCLS and provided a way to measure the electronic structure of individual Al charge states in the hot-dense plasma regime for the first time [543]. The main diagnostic used was ${\rm K}_{\alpha}$ emission spectroscopy (2p  →  1s radiative recombination) in thermal plasmas at temperatures around 150 eV. While such temperatures are sufficient to create a hot-dense plasma, thermal ionization of the 1s state remained negligible leading to an absence of observable self-emission in the x-ray regime. However, by creating vacancies in the 1s states directly with the FEL pulse the charge state distribution (CSD) could be revealed as the plasma recombined, leading to very detailed spectroscopic information of the plasma structure. Importantly, as the core hole lifetimes are in the femtosecond regime, the measured spectrum corresponded to emission from a plasma at a well-known (solid) density, before any thermal expansion could occur. The experimental result of such a measurement in Al is shown in figure 55. This illustrates the emission from ions of increasing ionization depending on the photon energy of the x-ray FEL pump. Here, line IV corresponds to emission from a core-hole Al ion with a full L-shell (all 8 electrons present in the 2s and 2p orbitals in the initial state) and all ions up to line XI, which corresponds to a He-like ion with only one electron left in the L-shell are observed. Resonance emission is observed when the FEL is tuned to the energy separation between two bound states, and, among others, provides further proof that the CSD is generated collisionally rather than dictated by x-ray photoionization [545].

Zoom In Zoom Out Reset image size

The capability to determine the structure of a well-defined plasma system using x-ray spectroscopy enabled the first direct experimental measurement of ionization potential depression (IPD) due to a dense plasma environment [546]. This is a fundamental plasma property determining the level by which neighbouring charges affect the binding energy of electrons in ions, crucial for the determination of the electron equation of state and of all radiative and transport properties in the dense plasma regime. Importantly, the measurement showed significant disagreement with popular IPD models used in the broad plasma community and has spurred renewed theory effort [547–550] which is summarized in figure 56. Subsequent experiments using the same diagnostic technique for Mg and Si have confirmed these findings and have elucidated further discrepancies in material compounds, illustrating the importance of accurate experimental data to guide theoretical and computational efforts [551].

Zoom In Zoom Out Reset image size

The combination of high brightness and tuneable narrow bandwidth of the x-ray FEL pulse has enabled spectroscopic investigations not only into the structure of plasmas but also into ultra-fast processes governed by electron impact ionization. By tuning the pump x-ray photon energy to lie between the ionization thresholds of two ions of neighbouring charge, a method to measure ultra-fast electron collisional ionization rates was recently proposed based on gating collisions in core-hole ions by Auger decay [552]. The measured rates were reported to be several times larger than predicted by standard models for systems at solid density and temperatures in the range 30–40 eV. Given the ultrafast time scales of Auger decay, this technique illustrates a novel way to access the regime of attosecond electron interactions without requiring any specific time resolution in the spectroscopic instrumentation.

At x-ray wavelengths the ponderomotive energy remains small even for the highest achievable intensities approaching 10²⁰ W ${\rm cm}^{-2}$, and plasma non-linearities and hot-electron generation, commonly observed at optical wavelengths, are negligible. However, the high x-ray intensities afforded by FELs have led to the observation of several novel non-linear processes in x-ray driven dense plasmas. Cho and collaborators observed resonant processes, in highly-charged core-hole and double core-hole ions, generated and pumped on femtosecond time scales [545]. Recent measurements of the opacity of thin foils have shown saturable absorption effects well into the x-ray regime in both Fe [553] and Al [554] systems for the first time, a process more commonly associated with optical wavelengths. Unlike in the UV spectral range, where transient transparency is achieved by beating the Auger recombination rate and which requires very short and intense pulses [555], it turns out that saturable absorption is simpler to achieve in the x-ray regime since recombination of any core hole state rarely leads back to the original electron configuration in a single iteration. Perhaps counterintuitively, because Auger cascades in atoms are far more likely to ionize the system further on the short time scales of a typical FEL pulse, heavy atoms relax back to their ground state at a much slower rate than that suggested solely by recombination timescales for specific core levels.

Alongside providing new opportunities to create extreme states of matter, the bright pulses of FELs have also led to new diagnostic capabilities of dense plasma systems investigated via x-ray scattering techniques. The high brightness and small bandwidth afforded by FEL pulses make them ideally suited to time-resolved elastic and inelastic x-ray scattering measurements of both plasma structure and dynamics. The first experiments using a FEL to probe dense plasma properties via Thomson scattering were performed on the FLASH FEL to investigate warm-dense hydrogen, both heated and probed by the extreme UV (EUV) pulse at a wavelength around 13.5 nm [558]. The scattering signal was used to determine the temperature and density conditions of the isochorically heated liquid H droplet and some insight was gained into the ultra-fast electron equilibration dynamics and impact ionization process. More recently, experiments successfully used a double EUV pulse configuration to perform a time-resolved measurement of isochorically heated warm-dense hydrogen, heated by the first pulse and probed by the second with a resolution of a few hundred femtoseconds. This generated not only a measurement of plasma conditions but also an electron-ion equilibration time of just under one picosecond [559]. Scattering experiments have now also been performed at LCLS using hard x-rays on systems both pumped by optical lasers or heated isochorically with the x-ray pulse itself, thus providing measurements of a range of plasma temperatures and densities, as well as of structure factors, transient phenomena, transport properties and phase transitions [560–562]. The recent development of self-seeding on LCLS allows bandwidths of  ∼5  $\times 10^{-5}$, 50 times smaller than that of a typical SASE FEL pulse [87], enabling not only the investigation of collective electron excitations (plasmons) in scattering experiments but also the capability to resolve ion-acoustic features directly [563].

The novel capabilities afforded by FEL light sources are having a significant impact on the study of dense plasmas, not only in terms of isochorically generating well-defined warm- and hot- dense systems, but also by enabling novel x-ray scattering and spectroscopic diagnostics to access the structure and dynamics of extreme states of matter with unprecedented spatial and temporal resolution. Further developments of both seeding techniques, to improve the power, coherence and bandwidth properties of FEL pulses, and of pump-probe schemes, exploiting either the FEL pulse itself or by combining it with high power laser sources, will be important in future investigations aimed at improving our understanding of hot dense plasmas.

Globally, the metals industry is worth many billions of pounds, it directly employs hundreds of thousands of people and it includes a number of high profile, world-leading, aerospace, nuclear and automotive companies. Improving this position is far from trivial given the competitive nature of these global business sectors and the demand for improved environmental performance.

With respect to the aerospace sector specifically, the Advisory Council for Aeronautics Research in Europe (ACARE) has set a series of targets that industry and the regulatory bodies are committed to achieving [567]. Given the highly evolved nature of this sector it is clear that any technological advance requires significant scientific progress with respect to both experimental techniques and underpinning modelling work. This necessitates high levels of R&D spend. To this end in 2015 Rolls-Royce alone spent £1.2 bn on R&D [568] including longstanding critical activity on fundamental aspects of materials science [569, 570]. The potential market is large with ATI (the Aerospace Technology Institute) estimating market opportunities of >£30 bn p.a. in the 2020 to 2025 timeframe [571].

ACARE Flightpath 2050 targets are aggressive (relative to year 2000)

• Reduce overall CO₂ emissions per passenger kilometre by 75%.
• Reduce perceived noise levels by 65% of current average values.
• Reduce overall NO_x emissions by 90%.
• Aircraft taxiing movements to be emission free.
• Minimise the industry's impact during manufacture, maintenance, overhaul, repair and disposal.

Engineering breakthroughs in these areas can only be achieved via a detailed and comprehensive understanding of the science that underpins the technology. Materials science is the prominent enabler for this and is dominated by the processes of phase transformation and deformation. During manufacture, these processes dictate the microstructure of the material. Since microstructure modification can typically increase the strength of a material by a factor of two-to-three, optimising the manufacturing route is clearly important with respect to subsequent component durability. The loading regimes in manufacture comprise complex combinations of strain (from uniaxial to tri-axial), temperatures (from cryogenic to $>$$1400~^{\circ}{\rm C}$) and strain rates (spanning more than seven orders of magnitude). Dual phase flow and solidification during casting processes are also highly significant commercially but not well understood. Cooling rates on solidification or during solid-state processing span from sufficiently low to be near isothermal through to a rapid quench where $10^{6}$ K ${\rm s}^{-1}$ is readily achievable. Towards the upper end of this range, transformations may not involve diffusion. The 10–100 nm length scales that often result from such transformations provide an important strengthening mechanism for most steels, nickel and titanium alloys. Similarly, machining processes provide an unusual combination of high strain-rate, high temperature gradient and high strain at the tool tip such that 'chip' formation is normally achieved by adiabatic shear. The ability to optimise tip geometry and coatings to achieve stable and robust machining process windows is of importance with respect to the surface condition of the substrate (particularly induced residual stress) and economics associated with manufacture.

For materials in-service the position is at least as complex with additional considerations of cyclic loading, environmental interaction (such as stress corrosion cracking), radiation damage / radio-chemistry (for nuclear power plant) and high strain rate events (including impact events such as bird strike or automotive crash). The main requirement for the industry is predictive capability with an emphasis on mechanistic understanding of microstructure/property relationships.

Experimental techniques and instrumentation to enable this have seen outstanding progress in recent years [572]. This has included in situ loading experiments [573–575], the incorporation of electron backscatter detectors on scanning electron microscopes [576] and advances in, inter alia, high resolution transmission electron microscopy [577] and in Atom Probe Tomography [578]. Physics-based modelling is also making significant progress in this area but requires an understanding of the 'stack up' of competing mechanisms often operating [579, 580]. However, with a few niche exceptions, all these techniques suffer from an inability to explore the important operative mechanisms with adequate temporal resolution. This is where x-ray FEL light sources are proving revolutionary [581].

Synchrotrons have enabled the in situ measurement of strain evolution between, and within, crystals but the temporal resolution is limited as a result of the large test piece sizes that are required to capture relevant length-scale effects in the material. Sample sizes of several mm are not uncommon [582] and for x-ray dense materials very high photon fluxes are required in order to resolve subtle lattice strain changes under applied loading. This is particularly true for techniques that image microstructure in three dimensions and/or resolve lattice strain to high spatial resolution in volumes reasonably representative of bulk material that capture boundary and interface effects in poly-crystals [582, 583].

To capture pressure-induced phase transformations, twinning and dislocation motion, 'pump-probe' experiments utilising an optical laser induced shock followed by diffraction imaging using an x-ray FEL offer the potential for revolutionary improvements in mechanistic understanding and, critically, development and validation of physics based models from atomistic to the crystal level [581].

From an industrial standpoint, the improved understanding and predictive capability arising from XFEL based study of engineering materials will enable improved product and reduced life-cycle cost. However, a significant and critical role exists for academia to provide the technical interface between large-scale facilities and industrial customers that lack the knowledge to configure the appropriate experiments and interpret the resulting data.

The drive towards ever smaller transistors over the last 50 years has led to extraordinary advances in the power of electronics, many examples of which are now woven into all aspects of every-day life and are considered indispensable. The decrease in transistor size has led to roughly a doubling of their chip packing density every two years—a trend commonly known as Moore's law [584]. Though initially based on observation, the continued fulfilment of Moore's law became a major development target which has become increasingly difficult to meet.

The standard method for fabricating the components of integrated circuits is photolithography, whereby light is used to transfer a pattern from a mask to a light-sensitive chemical photo-resist on the surface of a semiconductor wafer. Present leading photolithography techniques use deep-ultraviolet excimer lasers typically operating at a wavelength of 193 nm, allowing minimum feature sizes down to approximately 30 nm [585]. To progress to successively smaller features below the scale of the laser wavelength requires increasingly complex and therefore slower and less cost-effective techniques. It has therefore been a long-standing goal to move to shorter wavelength sources and the next step has long been anticipated to be an EUV source operating at 13.5 nm [586]. The leading candidate for this is a laser-produced plasma (LPP) source [585] (as discussed in section 6.5.1), which presently deliver power levels of $\gtrsim$100 W at 13.5 nm [587]. However, FELs are a very promising alternative due to their capability to deliver high average power (see section 3.3) and their wavelength scaleablity (see section 2.4), which would also offer a smooth upgrade path for potential future switches to even shorter wavelengths [585].

The possibility of using a FEL to generate 13.5 nm radiation for lithography is therefore of interest to both the accelerator community and semiconductor industry [137–139, 588, 589]. Due to the relatively high capital cost of accelerator facilities it is expected that a FEL would need to generate an average power output of tens of kilowatts to give overall cost advantages over an LPP source [589]. Though the step to construct a purpose built FEL for lithography has not been taken, it is clear that relevant technology already exists. High average power FELs at longer wavelengths have been demonstrated, for example the JLab IR Upgrade FEL achieved continuous $>$10 kW operation at 1.6 μm [590, 591], in an oscillator FEL configuration with efficiency $>$$1\%$. The wavelength range for EUV lithography is already easily demonstrated in FELs but in the single-pass high-gain mode with efficiency typically an order of magnitude lower than the JLab IR case. Producing a FEL for industry therefore presents a requirement to increase FEL efficiency and/or electron beam current, together with additional challenges in terms of long-term stability and reliability.

A new source of high intensity EUV radiation also presents major technical challenges in its integration with the required lithography techniques and its adoption will ultimately be a complex decision involving costs, timescales, and risk. Worldwide, the relevant communities have formed networks and consortia and it is the role of these to identify, and address, the challenges of utilising short-wavelength FELs for this technical sector.
