Nuclear clocks for testing fundamental physics

E Peik; T Schumm; M S Safronova; A Pálffy; J Weitenberg; P G Thirolf

doi:10.1088/2058-9565/abe9c2

1. Introduction

The atomic clock is a prominent example of quantum technology that is now sometimes referred to as of a 'first generation' [1]. It was devised by I Rabi and his group in the early 1940s and has been progressively introduced in all fields of precision metrology of time and frequency since the mid-1950s [2]. It has enabled the realization of global navigation satellite systems like Global Positioning System (GPS), a technology that is now applied ubiquitously in mass-market devices. The development of atomic clocks has pushed the frontier of accuracy of time and frequency measurements since the 1950s by about ten orders of magnitude into the 10⁻¹⁸ range [3], much further than for any other physical quantity. At the limits of the highest precision, one is usually more concerned with frequency comparisons than with time interval measurements, and one should speak about frequency standards rather than about clocks, but the latter term is widely used in the interest of brevity.

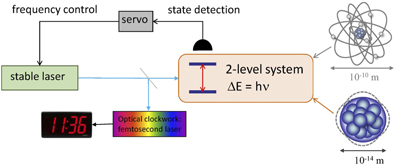

Figure 1 shows the generic schematic of the main building blocks of an atomic clock. The reference of the clock is a selected transition frequency ν associated with the electromagnetic radiation that is absorbed in transitions between two atomic energy levels separated in energy by ΔE according to ν = ΔE/h. For suitably chosen energy levels, the resonance line width can be below 1 Hz, while line shifts due to external perturbations can even be controlled at the mHz level. Consequently, for an optical frequency in the range of 10¹⁵ Hz, the fractional uncertainty range of 10⁻¹⁹ becomes accessible [4].

The oscillator of the clock is a pre-stabilized quartz or other dielectric crystal for the microwave range, or a laser in the case of an optical clock. Clock operation is based on a repetitive cycle, where atoms are first prepared in one of the two energy levels, interrogated with radiation from the oscillator for a certain interaction time, and finally the outcome is measured as the atomic population of the other state. This signal, averaged over several interrogation cycles with the oscillator tuned slightly below and above the centre of the resonance curve, is used for the long-term stabilization of the oscillator frequency on the atomic transition frequency. Finally, a clockwork is needed that transfers the periods of the atomic frequency to a standard output signal, like 1 pulse per second or a technically convenient reference frequency like 100 MHz.

Much of the progress with atomic clocks over the past 30 years [3] has been achieved from the application of the methods of laser cooling and trapping of atoms and ions. Stored at sub-mK temperature in ultrahigh vacuum, the localised atoms permit the use of long interrogation times and the low kinetic energy allows for the precise control of the relativistic Doppler shift (or time dilation) from the motion of the atom. A variety of atoms and ions has been investigated as candidates for optical clocks. In many cases, the dominant contributions to the uncertainty budget resulted from the frequency shifts produced by external electric or magnetic fields. This includes some contributions that are difficult to control like electric field gradients (EFG) in ion traps or the fields of blackbody radiation emitted from surfaces surrounding the atoms. This has provided the background and motivation for the proposal of a nuclear optical clock [5].

The conceptual shift from an atomic to a nuclear clock is straightforward: instead of a transition in the electron shell, a radiative transition inside the nucleus shall be used as the reference for frequency stabilization of a laser oscillator [6]. Since the nucleus itself is much smaller and much less polarizable than the atom, the effect of external electric fields and field gradients can be expected to be much smaller. Two further aspects contributed to the interest in the idea: first, Mössbauer spectroscopy has shown that extremely high resolution may be obtained for nuclear resonances in solids. This would open an opportunity to interrogate possibly 10¹⁴ nuclei instead of the typically 10⁴ laser-cooled atoms in an optical clock, potentially providing a much stronger signal. Second, in contrast to the transition frequency of a valence electron, the nuclear transition frequency is not purely determined by electromagnetic interactions but also by the strong interaction. This makes the nuclear clock an interesting contributor in tests of fundamental physics based on precision clock comparisons, especially for searches for variation of fundamental constants [5, 7].

Such considerations would remain remote from practical implementation if we would have to consider only the established Mössbauer transitions with photon energies of tens of keV, because the required frequency-stable laser source and a clockwork for counting of oscillation periods are not available at those frequencies. Fortunately, one suitable nucleus is known for the development of a nuclear clock in the frequency range that is accessible with present laser technology: the low-energy transition in ²²⁹Th. This system has provided the motivation for the development of concepts and experiments that we will review here.

Among the presently known about 3300 nuclides with their in total about 184 000 nuclear excited states [8], the thorium isomer ^229mTh assumes a unique position, since it represents the by far lowest nuclear excitation in the whole landscape of atomic nuclei, with an energy E in the range of outer-shell electronic transitions and realistically accessible with existing laser technology. Moreover, according to Fermi's golden rule, the radiative decay rate of this state scales as E³ for an M1 ground-state transition. Based on theoretical predictions from nuclear structure, the corresponding lifetime τ is expected to be of the order of approx 7 × 10³ s [9]. In turn, according to τ = ℏ/ΔE this results in an extremely narrow relative (radiative) linewidth of ΔE/E ≈ 10⁻²⁰ for the ground-state transition. Together with a high resilience against external perturbations due to the small nuclear moments, these properties render ^229mTh an attractive (and presently the only) candidate for constructing a nuclear frequency standard that could rival todays most advanced optical atomic clocks.

It is interesting to note here that the unique properties of ^229mTh could be explained theoretically by a very fine interplay between the collective dynamics of the even–even nuclear core, the single-particle degrees of freedom of the odd neutron, and the Coriolis interaction between them [9, 10]. This dynamical mechanism is expected to facilitate also in other actinides with octupole deformation the formation of very low-lying excited states that might have remained so-far unknown [10]. Allegedly, the likelihood to find once more an M1 ground-state transition accessible with optical laser technology in a richly available radio isotope is very small.

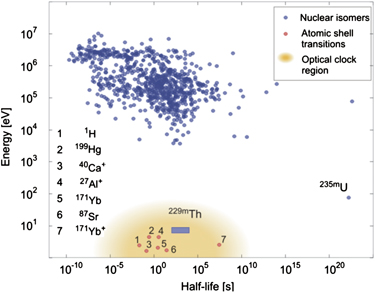

Figure 2 impressively illustrates the present uniqueness of the thorium isomer in a display of the lifetimes of all known nuclear isomers versus their excitation energies. ^229mTh resides far-off all other isomers surrounded by typical atomic transitions being used in optical atomic clocks. While hints to a potential application of the thorium isomer in the field of frequency metrology can be found already in the early literature on ^229mTh, it was in the pioneering publication by Peik and Tamm in 2003 [5] that for the first time a viable concept was presented for building a 'nuclear clock' based on the thorium isomer ^229mTh.

²²⁹Th is a radio isotope with 7920 years half-life. It is predominantly derived from ²³³U; about 1 ton has been produced in the US in high-flux neutron reactors during the cold war times. The ²²⁹Th stock is estimated to around 750 g, out of which 40 g have sufficient isotopic purity for experiments described here [11]. This appears largely sufficient for operating a large amount of ion-trap-based thorium clocks. More direct production methods for 'new' ²²⁹Th are currently investigated for medical applications [12].

On a historical note, what is nowadays termed the 'thorium isomer' ^229mTh entered the scene of nuclear physics already in 1976, when γ-spectroscopic nuclear structure studies on ²²⁹Th could only be consistently interpreted by introducing an almost degenerate ground-state doublet in ²²⁹Th, following the α-decay of ²³³U [13]. Initially, an excitation energy of less than 100 eV was estimated, since no direct evidence for the ground-state decay of this new first excited state could be resolved. Over the following decades, many experimental attempts were conducted towards further constraining the excitation energy of this exceptionally low-lying nuclear excited state [14–22]. These early efforts converged in 1994 to an energy value of 3.5(10) eV [16].

Focussing on the excitation energy, interestingly, the isomeric nature of this state was not explicitly mentioned or discussed until being first addressed in 1990 when the lifetime was conjectured from the (hindered) pure M1 characteristics of a putative 1 eV ground-state transition to lie in the range of about 7 h [14]. Already in the subsequent publication [16] it was speculated that for ^229mTh no unique lifetime might exist, but rather the coupling to and the exact nature of the electronic environment had to be taken into account. Following this, for more than a decade the name '3.5 eV isomer' was used in the literature. From today's perspective the experimental efforts at the time were hampered by the fact that assuming an excitation energy around 3.5 eV, corresponding to wavelengths in the optical to near-UV range, radiative decay was considered the only possible decay branch, as the higher-lying ionization potential of thorium (today known as 6.308(3) eV [23]) would energetically not allow for internal-conversion (IC) decay. All related experimental efforts remained inconclusive [24–32], as detailed later in section 2.2. Experimental studies were accompanied by theoretical efforts to better understand the specific properties of the thorium isomer [33–35] or propose various ways for its population [34, 36–41]. See also the review articles [42, 43].

The situation changed when a measurement using a novel x-ray microcalorimeter in 2007 raised the excitation energy to 7.6(5) eV [44], later re-analyzed and corrected to 7.8(5) eV [λ = 160(10) nm] [45]. For the first time, closely-spaced doublets of γ-rays, corresponding to intra and inter rotational band transitions around 29 keV and 42 keV, respectively, could be resolved, allowing to indirectly infer the isomer's excitation energy. This shifted the transition energy into the vacuum-ultraviolet (VUV) range and above the first ionization potential of thorium. The new result triggered numerous efforts towards direct observation and energy determination of the nuclear transition. Despite the considerably raised value of the excitation energy, the most commonly used methods were (VUV) fluorescence detection from ²²⁹Th-doped crystals and optical excitation in trapped ²²⁹Th ions [46–54]. These efforts went along with proposals of various excitation and de-excitation schemes [55–58], preparations for laser-spectroscopic studies [59, 60] and quantitative assessments of the available parameter space for lifetime and excitation energy [61]. It was only in the most recent years that a change in paradigm allowed the first direct observation of the isomeric decay in the process of internal conversion, and coined more precise values for the isomer energies. In the following section our current knowledge of the properties of the thorium isomer and its ground-state decay will be presented as the basis for all ongoing and envisaged activities towards building a nuclear clock and applying it for fundamental physics tests. Further details on historical aspects, experimental procedures and application potentials of the thorium isomer, not discussed here in depth, can be found in the review articles [62–65].

Following this introduction, section 2 presents our current knowledge on the properties of the ^229mTh nuclear clock transition. Section 3 sketches the strategy towards the realization of a nuclear clock along different experimental avenues and supported by theoretical guidance. Section 4 outlines the potential of the nuclear clock for testing fundamental physics. The paper focuses on the planned efforts of the teams forming the 'ThoriumNuclearClock' consortium within a 'Synergy' project framework of the European Research Council (ERC) [67].

2. Present knowledge of the ^229mTh nuclear clock transition

Our present knowledge of key properties for ground and isomeric excited states as well as for the nuclear clock ground-state transition from ^229mTh is summarized in figure 3. Nuclear spins, parities and Nilsson quantum numbers of both orbitals are displayed together with their magnetic dipole and electric quadrupole moments. The properties of the ground-state transition from ^229mTh are highlighted in bold font.

**Figure 3.** Properties of the ²²⁹Th ground-state doublet: nuclear levels are given with their spin, parity and dominant Nilsson classification. μ: magnetic moment in nuclear magnetons μ_N, Q: spectroscopic electric quadrupole moment. The isomer's excitation energy and wavelength is given as the average between the values from [68] and the most precise value from [69]. Uncorrelated statistical uncertainties were assumed for the determination of the combined uncertainty.
Download figure:
Standard image High-resolution image

2.1. Studies based on internal conversion

Many of these properties have been recently determined or refined, following the pioneering experiment in 2016 that succeeded in the realization of the first direct detection of the thorium isomer's ground-state decay, not in the radiative decay channel but via the detection of electrons emitted in the IC decay of ^229mTh [66]. In the process of IC, the nuclear excitation energy is transferred to the atomic shell, resulting in the ejection of an atomic shell electron. The key to the success of this experiment is shown in figure 4. A buffer-gas stopping cell is the main component of the experimental setup [70] that allows to generate an isotopically clean beam of ²²⁹Th ions, starting from the α-decay of ²³³U [71, 72]. 84% of the α-decays of ²³³U directly lead into the ²²⁹Th nuclear ground state; 16% pass through excited state and eventually, 2% of all decays lead to the population of the isomeric first excited state. Until today this represents the traditional population pathway of the thorium isomer.

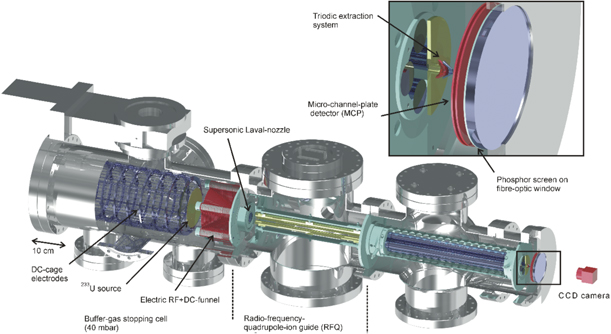

**Figure 4.** 3D technical drawing of the experimental setup employed for the generation of an isotopically clean ^229mTh ion beam. It consists (from left to right) of a buffer-gas stopping cell that houses a ²³³U α recoil source, a (segmented) radio-frequency quadrupole (RFQ) as ion guide, buncher and phase space cooler, a QMS and (behind a triodic extraction electrode system) a multichannel-plate detector followed by a phosphor screen and a CCD camera. Reprinted by permission from Springer Nature [66]. Copyright © 2016, Nature Publishing Group, a division of Macmillan Publishers Limited. All Rights Reserved. For more details see [63].
Download figure:
Standard image High-resolution image

Decoupling the population of the isomeric state in the gas cell from its delayed decay about a metre away enables to discriminate all prompt background generated during the α-decay. Inside the gas cell, starting from the solid ²³³U source, the recoiling α-decay daughter nuclei with kinetic energies of about 84 keV are thermalized within 1–2 cm in an ultra-pure He buffer gas atmosphere of about 30 mbar. Ultimate (UHV-grade, including baking to 130 °C) cleanliness of the gas cell allows for an efficient extraction of recoil ions without significant losses by, e.g., charge exchange or formation of molecules. Originally designed and operated for stopping of energetic fusion reaction products, the stopping volume upstream of the ²³³U source, denoted as 'DC cage electrodes' in figure 4, is not needed for the rather low kinetic energy of α decay recoil nuclei from ²³³U of about 84 keV. So, this part of the gas cell is not used in the application discussed here. Being emitted isotropically into the gas volume, a conical radiofrequency (RF) + DC funnel system is employed to guide the stopped recoil ions towards the exit from the gas cell, which is formed by a supersonic de-Laval-type nozzle, electrically isolated in order to serve as last extraction electrode. In the region of the 0.6 mm diameter nozzle a supersonic gas jet is formed that rips the ions off the electrical field lines and drags them with the gas jet into the subsequent vacuum chamber that houses a 12-fold segmented radiofrequency quadrupole (RFQ) ion guide, buncher and phase-space cooler. Accompanying α-decay daughter products from the ²³³U decay chain are finally filtered out by a quadrupole mass separator (QMS). More details about this 'thorium isomer generator', able to provide clean ^229mTh beams as singly to triply charged ions, can be found in [71]. Behind the QMS (and a triodic extraction electrode system) a microchannel plate (MCP) detector allows for the registration of the decay products emitted in the ²²⁹Th isomeric decay. The diagnostics behind the QMS was laid out for the detection of conversion electrons on the MCP detector, based on a twofold reasoning:

(a)
The revised excitation energy of the thorium isomer from the Beck et al experiment [44, 73] had opened the IC decay channel for neutral ^229mTh.
(b)
Theoretical calculations [35, 61] expected such a decay to strongly dominate any competing radiative decay by a huge conversion factor of α_IC = Γ_e/Γ_γ ≈ 10⁹ (with Γ_e and Γ_γ being the decay rates for IC and γ-decay, respectively).

Extracted ^229mTh ions directly impinge on the MCP surface, set to a mildly attractive potential to secure 'soft landing' of the ions without generating a signal from secondary electrons in the MCP detector. Thorium ions would immediately neutralize and thus trigger IC decay, emitting conversion electrons that will be amplified, electrostatically accelerated behind the MCP towards a phosphor screen and optically registered by a CCD camera.

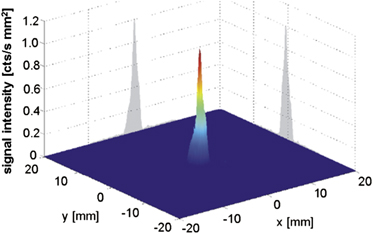

This experimental arrangement led to the first direct detection of the thorium isomer's ground state (IC) decay [66]. Figure 5 shows this breakthrough result of the ^229mTh IC electron signal obtained with a high signal-to-background ratio, which subsequently triggered renewed and intensified experimental and theoretical efforts towards the realization of a ^229mTh-based nuclear clock.

Only little adaptation of the above-described experimental setup and procedure was needed to achieve a first lifetime measurement of the thorium isomer under IC decay. An illustration of the setup (panel (b)) and the detection scheme is presented in figure 6. The segmented extraction RFQ was operated as linear Paul trap and served to extract temporally well-defined ion bunches from the buffer gas cell before sending them to the MCP detector.

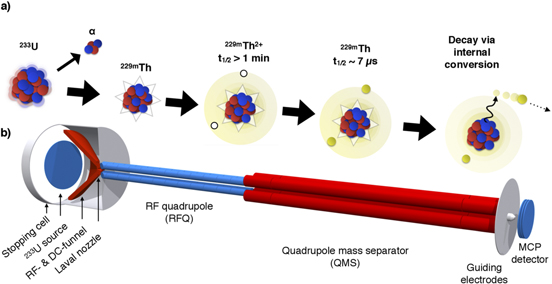

**Figure 6.** (a) Visualization of the detection scheme reported in [74]. An ion beam is formed from ^229mTh ions emerging from a ²³³U α-recoil source. As long as ^229mTh remains in a charged state, the lifetime is longer than 1 min. The moment the ions neutralize (e.g. by collecting the ions on a metal surface) internal conversion is triggered and the lifetime reduced to the range of μs. The emitted electron can be detected. (b) Scheme of the experimental setup that was used. Reprinted figure with permission from [74]. Copyright (2017) by the American Physical Society.
Download figure:
Standard image High-resolution image

However, measuring the thorium isomer's radiative lifetime in ionic charge state was not yet possible for the expected few 10³ s, due to limitations imposed by the achievable high-vacuum conditions in the Paul trap, where ions could not be stored for longer than about 1 min. Therefore, the measurement addressed instead the lifetime of the ^229mTh IC decay. Again, a ^229mTh ion beam was formed within several milliseconds, which was then accumulated directly on the metallic surface of the MCP detector which was used both the charge capture of the ions and the detection of the IC electron. As soon as the ^229mTh ions neutralize, IC is initiated and an electron is emitted and registered with the MCP detector. Figure 7 displays the resulting electron time distributions, where ²³⁰Th³⁺ exhibits only the strong ionic impact signal during the pulse duration of about 10 μs, while for ²²⁹Th³⁺ the exponential decay tail of the isomer is clearly visible.

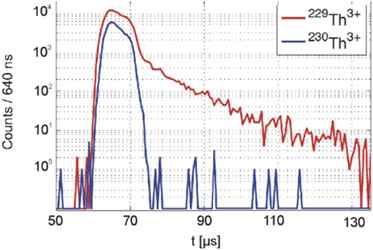

**Figure 7.** Measurement of the ^229mTh IC half-life in neutral thorium. Pulsed ²²⁹Th³⁺ ions impinge onto a metallic surface, where they neutralize, followed by time-resolved detection of the resulting IC electrons (red). The measured half-life amounts to about 7 μs. In addition, the identical measurement is shown for ²³⁰Th³⁺ ions (blue), where only the signal of the ionic impact is observed. Reprinted figure with permission from [74]. Copyright (2017) by the American Physical Society.
Download figure:
Standard image High-resolution image

The determined short half-life of about 7(1) μs nicely agrees with the theoretically expected drastic lifetime reduction of the thorium isomer in case of IC decay by about 9 orders of magnitude [35, 61]. Nevertheless, a word of caution has to be issued, as the lifetime of the isomer will depend on the electronic environment of the nucleus and thus on the chemical structure of the specific surface used to neutralize the ion and hence induce IC decay (see section 3.1.2.1 for further discussion). Clear effects of such dependencies have already been observed during the measurements of [74], reported in [75], while systematic studies using a variety of metallic surfaces will be performed in the near future. Most notably, no IC signal could be found for singly charged ^229mTh ions. Although extracted from the gas cell much less abundant than doubly and triply charged ions, a clear signal should have been observed as well. Its non-observation is a strong hint towards a short lifetime (significantly below the ion extraction time of a few ms [70]) of the isomeric state in singly charged ²²⁹Th. Possible explanations could be quenching of the isomer in the buffer gas or a bound IC decay of the isomer in the 1+ charge state [76].

The opportunity to trap Th ions in an ensemble containing nuclear ground states and isomers has enabled a laser spectroscopic investigation of the hyperfine structure that has provided the first experimental values of nuclear moments of the isomer and its rms charge radius. The experiment has been performed with Th²⁺ because of its higher abundance from the recoil ion source and longer trap lifetime in comparison to Th⁺. Since the trapped ions exchange kinetic energy with the buffer gas, they are approximately at room temperature and Doppler broadening to about 1 GHz linewidth impedes the complete resolution of the hyperfine structure. Therefore, a two-step laser excitation scheme has been employed, where the first laser selectively excites one narrow velocity class out of the thermal ensemble and a second laser probes the hyperfine structure on these ions, free from Doppler broadening. Varying the frequencies of both lasers, the resolved hyperfine structure (see figure 8) could be recorded for both electronic transitions, including the isomer shift between ^229mTh²⁺ and ²²⁹Th²⁺. In comparison to reference spectra recorded using the same method with ²²⁹Th²⁺ and ²³²Th²⁺, produced in laser ablation from a solid sample, it has been possible to unambiguously identify the hyperfine components of the isomer, marking its first non-destructive optical detection.

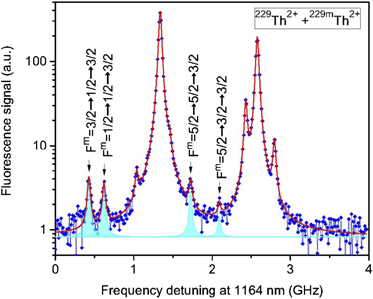

**Figure 8.** Hyperfine structure resonances of nuclear isomeric and ground states. The spectrum results from a two-step laser excitation that eliminates Doppler broadening, showing the relative strengths (in logarithmic scale) and frequency range of nuclear isomeric and ground state resonances. Resonances of the nuclear isomer HFS are marked in cyan colour. The unlabeled peaks belong to the nuclear ground state. Reprinted by permission from Springer Nature [77]. Copyright © 2018, Macmillan Publishers Ltd., part of Springer Nature. See section 3.1.4 for further discussion.
Download figure:
Standard image High-resolution image

The magnetic dipole moment of the isomer μ^m = −0.37(6)μ_N turned out to be 5 times larger than a prediction based on the Nilsson model [38]. This finding has stimulated a refinement of the ²²⁹Th nuclear models [78]. The intrinsic electric quadrupole moment of the isomer ${Q}_{0}^{\mathrm{m}}$ = 8.7(3) eb is identical to that of the ground state within the uncertainty, indicating that the shape and size of the proton distribution changes only little in the nuclear excitation from the ground state to the isomer. This is also indicated by the very small difference in rms charge radius ⟨r²⟩^229m − ⟨r²⟩²²⁹ = 0.0105(13) fm² [79] that has been determined from the comparison of isomer and isotope shifts relative to the radius difference between ²²⁹Th and ²³²Th. Apart from providing first information on the internal properties of the isomer, these numbers are also of relevance for estimating the sensitivity of a ²²⁹Th nuclear clock in fundamental tests (see section 4).

Coming back to the quest of more precisely determining the isomer energy, the 9 orders of magnitude stronger IC decay obviously presents some advantages compared to the radiative VUV fluorescence decay channel. Consequently, a direct measurement of the ground-state transition energy of this isomeric state was performed based on the spectroscopy of the IC electrons emitted in flight during the decay of neutral ^229mTh atoms.

Since the setup (figures 4 and 6) did not allow for measuring the kinetic energy of IC electrons, it was extended by an ion-neutralizer (shown in the figure 9(b)) and a magnetic bottle-type retarding field electron spectrometer (figures 9 and 10): the ions are guided by four focussing electrodes onto two layers of graphene set to −300 V. In passing these foils, the ions are neutralized and continue their flight as neutral atoms (figure 9(b)). The extraction and neutralization is monitored with an MCP detector placed in the central beam axis (MCP detector II in figure 9(a)). The isomer decays within microseconds by emitting an electron. The electron's kinetic energy is measured free from any surface influences with a magnetic bottle-type retarding field electron spectrometer [80], which is placed 90° off-axis behind the graphene (see figure 9). Bending electrodes (to which a DC field is applied) are placed between the graphene layer and the spectrometer entrance in order to prevent charged particles from entering the spectrometer. IC electrons, which are emitted above a strong permanent magnet, are collected and guided towards a retarding field unit placed in a solenoid coil. The electrons' kinetic energy can be analysed by applying a retarding voltage to a grid and counting the electrons that reach the MCP detector I (see figure 9(b)). Figure 10 shows a sectional view of the magnetic-bottle spectrometer and its retarding field unit.

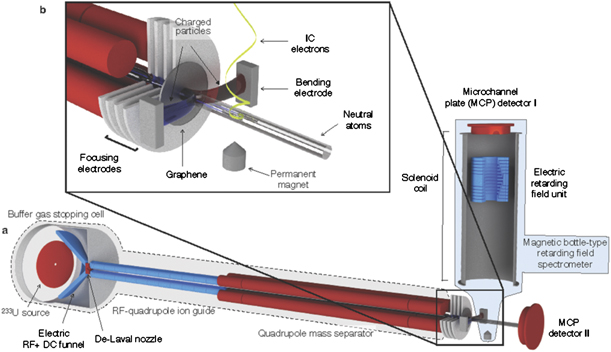

**Figure 9.** Experimental setup used for the direct measurement of the ^229mTh excitation energy via a determination of the kinetic energy of IC electrons in a magnetic-bottle-type electron spectrometer. The front part is identical to the setup to generate a clean ^229mTh ion beam, already described in figures 4 and 6, now complemented by the electron spectrometer (right-hand side) placed behind a graphene neutralization foil and an ion removal electrode (also upper left inset). Reprinted by permission from Springer Nature [68]. Copyright © 2019, The Author(s), under exclusive licence to Springer Nature Limited.
Download figure:
Standard image High-resolution image

**Figure 10.** Sectional view and photograph of the magnetic-bottle type retardation electron spectrometer. The upper panel shows an overview of the spectrometer, with the permanent magnet, the solenoid coil, the retarding field unit and the MCP detector. The region of electron emission as well as a helical electron trajectory with its pitch angle θ is indicated. The bottom panel (left) shows a detailed view of the retarding field unit. The positions of the gold grids are indicated by arrows. The bottom right panel shows a photograph of the spectrometer. Reprinted (in parts) from [80], copyright (2019), with permission from Elsevier.
Download figure:
Standard image High-resolution image

The energy resolution of the spectrometer was determined with argon and neon as calibrant gases and found to be between 2.2% (Ar) and 3% (Ne), corresponding to an energy resolution of 30–50 meV for the IC electron kinetic energies to be expected from the decay of ^229mTh [80]. This efficient spectrometer allowed for the first direct measurement of the thorium isomer's excitation energy. As IC after resonant neutralization occurs from excited electronic states, the kinetic energy E_kin of an IC electron is connected to the energy E_I of the isomer via E_kin = E_I − IP + E_i − E_f, with the thorium ionization potential IP (6.308(3) eV [23], E_i being the excitation energy of the Th atom undergoing IC decay and E_f as the energy of the final electronic state of the Th ion generated during the IC process. A statistical analysis method was developed in [68], which, together with atomic theory input (density functional calculations performed to understand which electron orbitals become resonant with the valence band of graphene during resonant neutralization and atomic structure and IC calculations to take into account all possible excited initial and corresponding final electronic states and related IC rates), allowed for deriving a value for the isomeric excitation energy, for the first time directly measured and with improved precision compared to the long-time adopted value: E_I = 8.28(3)_stat. (16)_syst. eV = 8.28(17) eV [68]. This energy corresponds to a wavelength of 149.7(31) nm.

2.2. Gamma spectroscopy measurements

An alternative approach to indirectly determine the isomer energy is high-precision gamma spectroscopy of the higher-lying excited states of the ²²⁹Th nuclear structure (see figure 11). This nuclear physics method is tightly intertwined within the ^229mTh discovery quest. When Kroger and Reich measured the gamma spectrum emerging from the ²³³U → ²²⁹Th α-decay, they noticed that several gamma lines connected with the 3/2 [631] excited state were missing [13]. This could only be explained by a near-degeneracy of the 3/2 [631] isomeric state with the 5/2 [633] ground state. The experimental resolution of 450 eV allowed to place an upper bound of E_I < 100 eV on the isomer energy, making it the lowest-energy excited state of the ²²⁹Th nucleus by far. A similar experiment was repeated in 1990, predicting an isomer energy of −1(4) eV [14].

**Figure 11.** Low-energy part of the ²²⁹Th level scheme (energy units in keV). In square brackets the Nilsson quantum number categorization of the band-head levels is indicated.
Download figure:
Standard image High-resolution image

In 1994, a further improved version of the experiment was performed, yielding a value of E_I = 3.5(10) eV, placing it in the visible part of the electromagnetic spectrum, around 355 nm wavelength. This value remained the 'accepted' value for more than a decade. As already mentioned in the introduction, a series of attempts were made to detect the 'optical' gamma ray that should emerge when the isomer state (populated with 2% probability in ²³³U α-decay) decays to the ground state. Several publications claimed having observed this signature [24, 25], but all observations could later be explained by parasitic effects related to the radioactivity of ²³³U [21, 26]. A re-analysis of the 1994 data in 2005 including recoil effects predicted a shifted value of 5.5(10) eV, moving the excitation wavelength into the ultraviolet range around 225 nm [27].

In 2007, a new cryogenic microcalorimeter originally developed by NASA for x-ray spectroscopy was used to again record the gamma spectrum emerging in the ²³³U → ²²⁹Th α-decay, now focussing on lower energy x-ray and gamma lines between 10–50 keV [44]. The spectrometer had a resolution of 30 eV and could resolve the spectrally neighbouring lines at 29.19 keV and 29.39 keV as well as 42.43 keV and 42.63 keV (see figure 11).

Measuring these lines allowed to significantly reduce the calibration uncertainty in the data analysis and yielded an isomer energy of 7.6(5) eV. Later, in 2009, this value was shifted to 7.8(5) eV, accounting for unresolved line doublets, assuming theoretically predicted branching ratios [45]. However, errors due to the detector calibration were not considered in the analyses and the overall energy uncertainty is probably higher [81]. The 7.8(5) eV value for the isomer energy was the standing assumption for another decade. The excitation wavelength would now be around 160 nm, in the VUV range. As this wavelength is absorbed by practically all media, it might explain the failure to detect the direct radiative decay by optical means (mostly performed in air) in previous experiments.

In 2020, a new variant of a cryogenic microcalorimeter, specifically developed for determining the ²²⁹Th isomer energy, was used [69]. The maXs30 magnetic microcalorimeter measured the heat deposited in an absorber pixel upon absorption of a gamma or x-ray. This heat deposit changed the magnetization of an Ag:Er³⁺ paramagnetic sensor, the magnetization change was read out by an SQUID magnetometer. The device has a resolution of 10 eV and exceptional gain linearity, reducing the calibration error. The ²³³U → ²²⁹Th gamma spectrum was measured in the range between 10 keV and 60 keV for several months, and the data is openly accessible [82]. Several different decay paths could be identified within the ²²⁹Th nuclear structure that allow deducing the isomer energy. The most precise method (also used in [44]) yielded a value of E_I = 8.10(17) eV, consistent with the value derived from IC electron spectroscopy. We note that in this analysis, the isomer energy uncertainty is affected by the overall calibration uncertainty of the microcalorimeter. If new calibration values in the range 10–60 keV with higher accuracy would become available, the precision on the isomer energy could be further improved using the existing spectrometer data.

Beyond the isomer energy, several other relevant nuclear properties could be extracted from this data. First, the line corresponding to the 2nd excited nuclear state at 29.19 keV shows a clear bi-modal structure, which is the doublet that corresponds to decays into the 5/2 ground state or the 3/2 isomer state respectively. From the relative amplitudes of these two doublet lines, the corresponding branching ratio b₂₉ could be extracted to 1/10.8 (9.3(6)%) into the cross-branch decay to the ground state. The branching ratio of the 3rd excited state b₄₂ could be constrained to <0.7%. Again, if branching ratios would be measured with higher accuracy by other methods, the precision on the isomer energy could be increased using the existing gamma spectroscopy data.

It is interesting to note that gamma spectroscopy data from different measurements (different campaigns or different types of measurements) can be combined to extract the ²²⁹Th isomer energy or other nuclear parameters. For example, a gamma measurement of the 29.19 keV line (doublet) has been published in 2019, using a transition edge sensor [83]. As the 29.19 keV level very predominantly decays intra-band, its gamma signature can be combined with an excitation measurement of the same state (see section 2.3 below), which exclusively drives the inter-band transition. With a spectral resolution of 40 eV this combined analysis yielded an isomer energy of 8.30(92) eV, which does not reduce the uncertainty but provides an interesting consistency check using a different detector technology. A similar analysis using the before mentioned maXs30 magnetic microcalorimeter data yields E_I = 7.8(8) eV.

Such inter-device-analyses are burdened with the requirement of an extremely accurate energy calibration (relative precision >10⁵). Currently, there is a need for improved absolute energy measurements of calibration lines that could reduce the calibration error in the already existing datasets. In general, data will have to be iteratively re-evaluated once new, improved measurements become available, highlighting the need for the open-access publishing of raw spectroscopy data.

2.3. X-ray pumping, nuclear resonant scattering

Resonant excitation of nuclear states using synchrotron x-ray radiation is an exciting alternative to population through (stochastic) nuclear decay process. Excitation from the 5/2⁺ [633] ground state to the 5/2⁺ [631] 2nd excited state at 29.19 keV (inter-band excitation, see figure 11) has recently been demonstrated using the SPring-8 BL19LXU beamline [84]. In this experiment, a tuneable narrow-band (FWHM linewidth 0.1 eV), high-intensity (10¹² photons/s), collimated (0.15 × 0.065 mm²) x-ray beam was directed at a solid-state ²²⁹Th sample (1.8 kBq). To identify the excitation energy, the technique of nuclear resonant scattering (NRS) was used: off-resonance, the synchrotron x-ray beam interacts exclusively with the ²²⁹Th electron shell. As the synchrotron source is pulsed (42 MHz pulse frequency), this photoelectric interaction produces a 'prompt' electron scattering signal: electron vacancies are created in the L-shell and successively filled, emitting characteristic x-ray fluorescence in the energy range 12–18 keV.

On-resonance (with the nuclear excitation energy), this process also takes place, producing a 'prompt' background. However, additionally, the nucleus is excited to the 2nd excited state with a certain cross section, referred to as NRS [85]. This nuclear excitation decays again with a characteristic timescale, 82 ps in the case of ²²⁹Th (29.19 keV level). The dominant decay path is internal conversion, where the nuclear energy is transferred to the electron shell. Similar (but not identical) to the photoelectric interaction, this again produces characteristic x-ray lines. The key aspect here is that this NRS signal is delayed by the nuclear excited state lifetime and can hence be distinguished by its timing characteristics (see figure 12). However, the 'prompt' signal supersedes the NRS signal by 6 orders of magnitudes and filtering for an 80 ps delay with such a background is a formidable technological challenge [86].

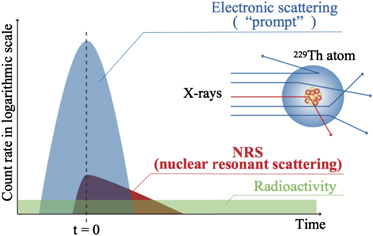

**Figure 12.** Schematic of temporal profiles of the NRS process. Reprinted by permission from Springer Nature [84]. Copyright © 2019, The Author(s), under exclusive licence to Springer Nature Limited.
Download figure:
Standard image High-resolution image

Scanning the energy of the SPring-8 x-ray beam, the NRS resonance was found and the excitation energy of the 2nd excited state in ²²⁹Th (29.19 keV) was measured to be 29 189.93(7) eV. The absolute energy of the x-ray excitation beam was monitored by measuring a pair of Bragg angles on the left/right side of the beam using a Si(440) reference crystal (bond method) [87, 88]. This energy measurement is one of the most precise ever performed in NRS. It is amusing to note that after hunting down the energy of the 1st excited isomeric state of ²²⁹Th for over 40 years, it is the 2nd excited state which is one of the best-known nuclear levels, with a stunning relative precision of 4 × 10⁶.

By comparing the signal yields obtained for the photoelectric and the NRS interaction, one can deduce the excitation cross section for the cross-band nuclear excitation to the 29.19 keV state. Combined with the formerly known cross section for the intra-band process [13, 19], the b₂₉ branching ratio could be extracted as 1/9.4(24), in good agreement with the value measured in gamma spectroscopy.

This branching ratio describes the radiative (gamma) decay of the 29.19 keV level, leading predominantly (90%) into the isomeric state (intra-band transition). However, as mentioned before, the 29.19 keV state mostly decays via internal conversion, the ratio of IC-decay to gamma-decay is predicted to be around 225 [8]. Combining both radiative and IC decay processes, the probability to reach the isomeric state from the 29.19 keV level is 0.58(7). Combining this value with the excitation rate to the 29.19 keV level provided by the SPring-8 x-ray excitation (on resonance) yields a pumping rate of 25 000 s⁻¹. NRS excitation to the 2nd excited nuclear state with subsequent decay hence represents a very efficient means to pump population into the isomeric state. Besides the ²³³U decay, it is the second proven isomer population method today. It has the great advantage of transferring a negligible recoil to the ²²⁹Th atom/ion, compared to the rather violent nuclear decay processes encountered in ²³³U decay. On the downside, interaction of any sample with a strong 29 keV x-ray beam produces a strong background and significant damage.

To conclude this section on the present knowledge of the isomer properties, the remarkable progress achieved in recent years (see figure 13 for a historic overview of the reported excitation energy of the ^229mTh isomer) now paves the way towards the realization of a nuclear clock. In particular, the much-improved determination of the isomeric excitation energy allows for assessing the appropriate laser technology for the long envisaged optical control of the ^229mTh clock transition. With a VUV transition wavelength around 150 nm at least presently no CW laser is available to drive a nuclear clock, so other concepts will be pursued as discussed in the following section.

3. Towards the realization of a nuclear clock

Worldwide today vivid efforts are made to unravel the properties of the thorium isomer and to realize the nuclear clock. At UCLA, experimental efforts are focussed on constructing a solid-state optical clock based on the ²²⁹Th nuclear transition via finding and constructing a suitable host crystal and determining the clock transition frequency [48, 49, 89]. At JILA/NIST activities concentrate on the development of a VUV frequency-comb laser able to drive the ^229mTh clock transition, on concepts for direct frequency-comb spectroscopy of ^229mTh targeting an IC-based solid-state nuclear clock [90, 91]. At the SPring-8 synchrotron light facility in Japan x-ray pumping into the thorium isomer has been realized [84] and in Moscow methods are developed for the production and trapping of thorium ions for nuclear transition investigation [92, 93].

The main objectives of ongoing and upcoming efforts towards the realization of a ^229mTh based nuclear clock and its application, in particular as a quantum sensor for new and fundamental physics, comprise (i) to precisely determine the ²²⁹Th nuclear structure parameters to quantify the sensitivity of the nuclear clock to variation of fundamental constants of physics, (ii) to improve the precision on the nuclear transition frequency by about 9 orders of magnitude (<kHz level) to enable nuclear clock operation and feedback laser stabilization and (iii) to perform comparative measurements between different nuclear and atomic clocks to probe fundamental concepts of physics. To reach these ambitious goals, a distributed, three-step research strategy which we describe in this review will be adapted among the teams forming the 'ThoriumNuclearClock' consortium within a 'Synergy' project framework of the European Research Council (ERC) [67].

A first series of experiments will start from the current knowledge of the ²²⁹Th nuclear and electronic structure parameters and advance this knowledge to a level where (a) direct laser spectroscopy can be commenced, and (b) the sensitivity of the nuclear transition energy to variations of fundamental constants of physics can be quantified (see more detailed discussion in section 4). The second phase will implement direct resonant or near-resonant [electronic bridge (EB)] excitation of the ²²⁹Th isomer by laser light and determine the transition energy to GHz precision. The third phase will employ frequency comb precision spectroscopy to kHz level and laser stabilization (clock operation) on the transition, together with a systematic study of shifts and broadenings (clock benchmarking). This will continuously lead over into clock comparison experiments (with primary standards and an Yb⁺ optical ion clock at the site of the German metrology institute PTB, via GNSS-based time transfer equipment and the portable Yb⁺ Opticlock [94] at the sites of LMU Munich and TU Wien) for fundamental physics tests and searches for variations of fundamental constants.

Experimental efforts will be continuously updated and improved by sustained theory–experimental collaboration. Theory work will (a) guide the extraction of the nuclear properties and sensitivity of the nuclear transition energy to variations of fundamental constants (b) provide critically needed atomic properties of Th⁺, Th²⁺, and Th³⁺ ions for EB excitations (c) develop ideas and measurement protocols for fundamental physics tests and dark matter (DM) searches with the nuclear clocks, including tests requiring 3 clocks at different sites (TU Wien, LMU Munich, PTB Braunschweig).

3.1. Advancing knowledge of key nuclear properties of ^229mTh

The experiments described in this subsection will deliver the nuclear transition energy sufficiently precise (target uncertainty <1 nm, corresponding to 0.05 eV or 10 THz) to start searches for laser excitation with GHz resolution. Isomer lifetimes for different charge states, nuclear–electron couplings and (ratios of) nuclear moments will be determined sufficiently precise to gauge the achievable sensitivity to fundamental constant variations and propose and plan experiments testing fundamental concepts of physics. Primarily the α-decay of ²³³U and recoil ion sources will be used as 'isomer factory' as described above, with a confirmed [64, 66, 77] branching ratio of 2% into the isomer state. Populating the isomer through β-decay of ²²⁹Ac (branching into isomeric state unknown, but estimated to >13% [22]) will be introduced as a new approach, transferring significantly less (∼3 eV compared to 84 keV) energy to the ²²⁹Th nucleus. Controlled excitation to the isomeric state through off-resonant processes will be studied: pumping of the isomer through the 29 keV 2nd excited nuclear state as recently demonstrated by a collaboration between TU Wien and Spring-8 in Japan [84]. Schemes of (laser-induced) EB processes in trapped ions will be investigated. All these experiments envisaged for the next round of experimental campaigns can be performed temporally in parallel to the VUV laser developments preparing for direct laser excitation of the thorium isomer (see section 3.2).

3.1.1. Refined measurement of the transition energy

Complementary experimental approaches are presently being pursued and optimized to further refine the knowledge of the isomeric excitation energy before the first laser spectroscopic excitation measurements will be realized.

Within the gamma spectroscopy approach, rapid progress is currently being made in improving the detector resolution, thanks to the emergence of cryogenic detectors (microcalorimeters, transmission edge, nanowire detectors...). We expect that the resolution can be improved down to 3–5 eV within the next few years. This should allow to further reduce the uncertainty on the isomer energy to 0.05 eV. As discussed in section 2.2, further progress can also be made by improving the absolute energy calibration of the spectrometers using new reference lines. While previous analyses focussed on individual datasets, a new field of comparative gamma spectroscopy is emerging, combining the existing (partially historic) data to gain new insights. Other approaches are discussed below, while plans for EB experiments are presented in section 3.2.5.

3.1.1.1. IC electron spectroscopy

In order to realize the isomeric excitation energy measurement via IC electron spectroscopy [68], neutralization of ^229mTh ions was initiated while traversing a thin graphene foil. However, an alternative scenario is to impinge the ions onto a metallic surface and collimate, transport and register the resulting IC electrons behind a grid with a variable blocking potential. By applying retarding fields, an integrated spectrum can be generated, where all electrons with an energy sufficient to pass the retarding fields that are applied to high-transmission grids are counted.

In [95] the feasibility of this method regarding electron rates and spectral shape was studied in detail via simulations. The energy distribution of the electrons will reflect the electronic structure of the catcher's surface. Using an electron spectrometer in electrical contract with the catcher surface, the work functions of the catcher surface (W_C) and the one of the spectrometer (W_S) have to be considered, while their Fermi levels E_F will align. A contact potential difference ΔE = W_C − W_S will be generated between the local vacuum levels. This situation is illustrated in figure 14(a)). If the work function W_S of the spectrometer exceeds the catcher's work function W_C, an offset voltage ΔU needs to be applied to the catcher surface in order to provide the electrons with enough kinetic energy to overcome the contact potential difference. Consequently, the contact potential difference is shifted by ΔU (see figure 14(b)): ΔE' = W_C − W_S + ΔUe.

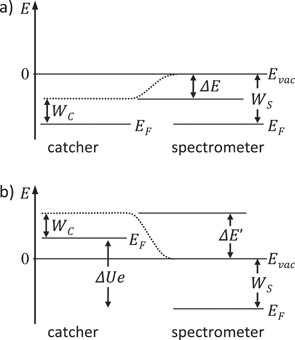

**Figure 14.** Visualization of the work function of the catcher and spectrometer (see also [96]). Two situations are shown: (a) contact potential difference ΔE generated between the catcher and the spectrometer. (b) Influence of an applied offset voltage ΔU on the contact potential difference. Reproduced from [95]. CC BY 4.0. © The Author(s), 2017.
Download figure:
Standard image High-resolution image

Photons with an energy h ν ⩾ W_C can release electrons from a metallic catcher surface with work function W_C, resulting in a Fermi distribution for the kinetic energies of these photo electrons with a maximum energy of ${E}_{\mathrm{C}}^{\mathrm{max}}$ = h ν − W_C. While this energy is given relative to the local vacuum energy level of the catcher surface, the maximum energy of the electrons registered with the spectrometer amounts to ${E}_{\mathrm{S}}^{\mathrm{max}}$ = h ν − W_S + ΔUe. One of the main results found in [95] was that the finally registered energy of the electrons does not depend on the value of the work function of the catcher surface, but only on the spectrometer work function and the applied offset voltage ΔU. Treating the isomeric IC decay of ^229mTh as a virtual photon with energy E_I = h ν that is coupling to the delocalized surface valence electrons in the catcher surface, the excitation energy of the isomer E_I can be inferred from E_I = ${E}_{\mathrm{S}}^{\mathrm{max}}$ + (W_S − ΔUe), where the term (W_S − ΔUe) can be measured with a light source of known energy and using the above expression for ${E}_{\mathrm{S}}^{\mathrm{max}}$ . Therefore, the only remaining surface influence of the catcher surface on the maximum kinetic energy of an electron is the temperature-dependent Fermi distribution of ${E}_{\mathrm{e}}^{\mathrm{max}}$ , but not the value of the surface work function. Nevertheless, the work function of the catcher surface still plays a role, since h ν = E_I ⩾ W_C must always be satisfied and the electron energies (with respect to the vacuum level of the sample) are distributed between 0 and (E_I − W_C).

Improved measurements with the magnetic-bottle electron spectrometer that was described in section 2 will address the integrated kinetic electron energy spectra of IC electrons emitted from different metallic surfaces with different work functions (Ta: 4.19 eV, Ni: 5.0 eV, Pt: 5.32–5.66 eV, Au: 4.8–5.4 eV). Previous measurements of this type were limited by the sensitivity around the end point of the kinetic energy spectrum (expressed by the number of registered electron counts as a function of the blocking voltage applied to the retardation grid of the electron spectrometer). In this spectral region lowest IC decay signal intensities compete with various noise contributions in the MCP signal down to a maximum sensitivity of 1 electron in 8 h of measurement time. Sensitivity improvement will be realized by re-focusing the IC electrons behind the retardation grid onto a small-area MCP with considerably lower dark count rate compared to the previously used large MCP detectors. Also the now improved knowledge of the isomeric excitation energy [68, 69] will allow to constrain the search range of the endpoint of the IC electrons' kinetic energy spectrum. Moreover, further improvement of the precision in determining the IC electrons' kinetic energies could be achieved by using a selection of metallic surfaces with a spread of work function energies. This will lead to different slopes of the integrated electron spectra, all expected to hit the energy axis at the same energy value of the maximum blocking voltage needed to repel the most energetic IC electrons. Improving the achievable precision of the ^229mTh excitation energies by about a factor of 2–3 compared to the previous measurements is envisaged. While in general a completely clean metallic surface cannot be guaranteed in these types of experiments, thus influencing the work functions of the catcher and the spectrometer, it should be emphasized that, as discussed in [95], the experiment is sensitive only to the energetic position of the Fermi edge and independent of the surface quality and thus the work function of the catcher surface. Surface properties of the spectrometer can be accounted for by calibration measurements as they will affect only the achievable spectrometer resolution.

3.1.1.2. Direct radiative decay

Another promising route to determine the isomer energy more accurately is to detect the direct radiative decay that leads to emission of a 'nuclear gamma ray' in the VUV range. The attainable energy resolution is determined by the spectral resolution of the used VUV spectrometers, usually in the range of 0.1–0.01 nm. Absolute calibration of the spectrometers is not critical, as a huge arsenal of reference lines is available with picometer accuracy.

These VUV spectroscopy schemes can be coarsely divided into two groups: population of the isomeric state in nuclear decay processes and approaches which populate the isomer through excitation from the ²²⁹Th nuclear ground state, either resonant with the isomer or via pumping using higher-excited nuclear states (see section 2.3 above).

Two nuclear decay processes are known to produce ²²⁹Th, with a certain probability in the isomeric state: the ²³³U α-decay (T_1/2 = 1.6 × 10⁵ years) has already been discussed extensively with a 2% feeding into the isomer. As an alternative, the β-decay of ²²⁹Ac (T_1/2 = 62.7 min) can be used to produce ²²⁹Th, with a probability 14% < γ_β,isomer < 94% feeding the isomer [97]. Online production of ²²⁹Ac in the ISOLDE facility at CERN has been demonstrated [97] and production via neutron activation of ²²⁸Ra → ²²⁹Ra (rapidly decaying to ²²⁹Ac in 4 min) is currently investigated.

Both processes are being used in schemes where ²³³U or ²²⁹Ac are doped or implanted into VUV transparent host materials [51]. Similar to the early attempts to detect the 'VUV gamma ray' in spectroscopy [24–28], these experiments 'simply' place a prepared sample in front of a VUV spectrometer. The route via ²³³U has the advantage of simplicity; doping of uranium into VUV-transparent materials (e.g. fluoride single crystals) is straightforward. This approach is however burdened with the violent α-decay producing the ^229mTh (Q_α = 4909 keV), transferring a recoil energy of 84 keV onto the daughter nucleus. This recoil energy is sufficient to overcome any chemical bond, ejecting the atom/ion from its initial configuration (e.g. dopant position in a solid) and leaving it in an uncontrolled final state concerning position and charge state. While this process inevitably generates a background signal, it may also open up additional decay paths, inhibiting the direct radiative decay of the isomer.

The approach employing ²²⁹Ac decay to populate the ²²⁹Th isomer has several advantages: it has a higher isomer production rate (at least 14%) and the β-decay (Q_β = 1.1 MeV) transfers a small recoil energy of 2.3 eV onto the nucleus [98], below typical displacement energies in solids. Still, on-line production of ²²⁹Ac requires significant infrastructure and crystal damage due to the implantation will have to be considered.

The second main approach to 'VUV nuclear gamma spectroscopy' relies on excitation paths starting from the ²²⁹Th nuclear ground state and leading into the isomer (possibly using intermediate states). Here, strong activities are under way to exploit the optical x-ray pumping demonstrated at SPring-8 (see section 2.3 above), but now in a VUV transparent crystal sample. The main challenge here is to maintain the nucleus density of the solid-state sample, now in a transparent crystal sample. This required doping concentrations exceeding 10¹⁷ ²²⁹Th nuclei per cubic centimeter. Furthermore, the high-energy 29 keV x-ray beam causes significant damage and signal background.

Another obvious way to populate the ²²⁹Th isomer is by direct resonant radiative excitation. In view of the current lack of narrow-band laser sources in the VUV range, several attempts were made to trigger excitation using broadband synchrotron radiation. In 2014/15, a group at UCLA used ²²⁹Th-doped LiSrAlF₆ crystals (10¹⁶ to 10¹⁷ cm⁻³ concentration) in the Advanced Light Source (ALS) synchrotron to optically excite the isomer [49]. ALS provided a 0.19 eV linewidth source with an integrated flux of ∼7 × 10¹⁴ photons/s, tunable between 7.3 eV and 8.8 eV. No nuclear fluorescence signal could be detected, which allowed to exclude (at 90% confidence level) short isomer lifetimes (between 1–2000 s) in the scanned energy interval. This assumes that non-radiative decay processes are negligible in the crystal.

A similar experiment was carried out at the Metrology Light Source (MLS), this time using a ²²⁹Th-doped CaF₂ crystal (10¹⁶ cm⁻³ concentration) [50]. The energy range between 7.5–10 eV was investigated, and again no nuclear fluorescence could be observed. Also a surface-deposited sample of ²²⁹Th nitrate on a CaF₂ carrier substrate has been investigated at MLS in the energy range 3.9–9.5 eV, again not producing a result [52]. The failure to detect nuclear fluorescence in these three experiments raises suspicion on the presence of non-radiative decay processes in the crystal/solid-state environment. Further investigation on the electronic structure of ²²⁹Th in different chemical environments are required [50].

3.1.2. Isomer lifetime

Refined measurements of the isomeric lifetime, presently under preparation, will target two aspects: aiming at (i) deeper insight into the influence of the electronic environment on the lifetime of neutral ²²⁹Th isomers and (ii) realizing a first measurement of the ionic ^229mTh lifetime.

3.1.2.1. Surface influence on the ^229mTh half-life

The so far only experimentally determined value of the thorium isomer's half-life is the value of 7(1) μs determined in [74] for neutral surface bound isomeric ²²⁹Th atoms. However, this value has to be treated with some caution, as it has been obtained after initiating IC decay of ^229mTh ions via neutralization on a metallic surface, in this case an MCP detector with nickel alloy surface. Since the lifetime of the isomer depends on the electronic orbitals in the surrounding of the nucleus, one has to expect that the isomeric lifetime is affected by the chemical structure of the surface [35]. This was already observed in early lifetime measurements of the nuclear isomer in ²³⁵U [99, 100] (which is the energetically second lowest nuclear excited state after ^229mTh). There it was found that the lifetime of the IC decay channel on a catcher surface is influenced by the host material.

In [74] this was taken into account by the error margin of 1.0 μs. However, in subsequent measurements Pt was used as an alternative metallic catcher surface to initiate IC decay of ^229mTh by neutralizing impinging ions and considerably modified half-lives were observed.

These measurements were performed with ²²⁹Th²⁺ ions which were collected on a platinum surface with a kinetic energy of 60 eV: the 2+ ions started at a potential of +15 V in the RFQ-buncher and were collected on the catcher by an attractive potential of −15 V [75]. The corresponding experimental arrangement, based on the already introduced magnetic-bottle electron retardation spectrometer, is shown in figure 15. It was found that the measured lifetime depends on the applied blocking voltage. Additionally, it turned out that for larger blocking voltages the lifetime decreased. Modifications by up to a factor of 2 were observed [75]. These findings are interpreted such that the decay of the isomer was governed by more than one decay constant, resulting from different electronic environments. Besides surface effects introduced by water or hydrocarbon contamination layers on the untreated metal surface, also the penetration depth of the ^229mTh ions into the platinum material could have been responsible for the observed behaviour of the isomeric half-life. The ions' initial kinetic energy of 60 eV results in an implantation depth of ∼5 Å. IC electrons that are emitted deeper into the catcher material will lose kinetic energy by inelastic collisions with the catcher material. Such electrons can be suppressed more easily by increasing the blocking voltage of the magnetic bottle spectrometer. Hence electrons reaching the spectrometer with higher kinetic energies are more likely to originate from areas at or near the catcher surface, while the low-energy electrons are mostly due to scattered electrons originating from deeper-seated areas of the catcher.

**Figure 15.** Sketch of the experimental setup that was used to measure the decay properties of ^229mTh in different host materials. ^229mTh ion bunches are collected on the surface of a catcher which is placed in the collection region of a magnetic bottle spectrometer [75].
Download figure:
Standard image High-resolution image

Further systematic measurements with controlled clean surfaces of different metals and variable kinetic energies of the impinging ^229mTh ions are needed to further investigate the dependencies of the isomeric lifetime.

3.1.2.2. Determination of the ionic ^229mTh lifetime: instrumental prerequisites

So far, the measurement of the ionic lifetime of ^229mTh was inhibited by the expected long lifetime of a few 10³ s, requiring correspondingly long storage times in the applied linear Paul trap. While a conventional high-vacuum environment did not allow for storage times of more than about 1 min, the ionic isomeric lifetime needs storage times that can only be achieved in a cryogenic environment. Moreover, a measurement of the expected long lifetime will require an appropriately adapted methodology, different from the one used for the 9 orders of magnitude shorter lifetime of neutral ^229mTh. Therefore, major instrumental developments are needed to prepare for the first determination of the lifetime of ionic ^229mTh.

The key element will be a cryogenic linear Paul trap, providing a platform for long ion storage, laser cooling and laser manipulations of stored thorium ions in the isomeric state. The system under development at LMU Munich builds on the experience gained with the CryPTEx cryogenic Paul trap developed by the Heidelberg group for studies of highly charged ions [101, 102]. Figure 16 shows a sectional view of the full setup, from the injection line with a newly developed compact buffer-gas stopping cell, cooler-buncher RFQ and injection QMS (left side of the Paul trap) and a second QMS on the extraction side of the Paul trap. A cryo-cooler, decoupled from the trap by a low-vibration interface, serves to reach the operational temperature of 4 K at the Paul trap electrodes, thermally shielded by 4 K and 40 K cryoshields.

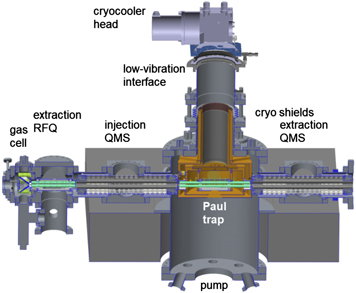

**Figure 16.** Design sketch (side view) of the new experimental platform for laser-spectroscopic studies of stored thorium ions. A newly designed compact buffer-gas stopping cell containing the ²³³U source and an RF + DC funnel structure (left side) is followed by an extraction RFQ and a QMS. The central part is formed by the cryogenic linear Paul trap, embedded into 4 K and 40 K cryoshields and cooled to 4 K by a vibrationally decoupled cryocooler head. 12 viewports grant optical access to the trap centre for diagnostics and laser manipulation purposes. A second QMS is mounted on the extraction side of the Paul trap, enabling a mass-selective diagnostic behind the Paul trap and the injection of Sr⁺ ions for sympathetic laser cooling as described in the following.
Download figure:
Standard image High-resolution image

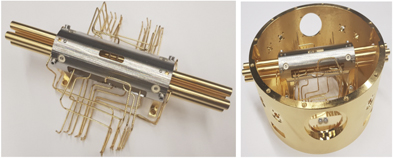

Figure 17 displays the trap electrodes with their support and electrical contact rods (left), mounted (after gold-plating) into the innermost cryoshield (right).

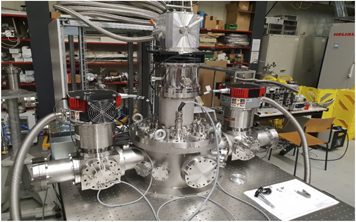

Figure 18 presents the cryotrap setup with injection and extraction components (on the left-hand side the new gas cell is not yet mounted) as sketched in figure 16. The system has been commissioned with stable test ions, reaching a mass resolving power (tested with ^39,41K and ^85,87Rb) of m/Δm ≈ 150 [103].

As only few ^229mTh ions at a time will be loaded into the cryogenic Paul trap for sympathetic laser cooling and laser manipulation, an adapted compact recoil source and buffer-gas cell design was realized specifically for the new cryotrap setup. Compared to the stopping cell shown in figure 4, the new gas cell volume (displayed in figure 19) has been reduced by about a factor of 20 from a previously oversized volume (due to a different initial design application) of about 15 000 cm³ to now about 750 cm³, sufficient to thermalize and extract the α-decay recoil products from ²³³U with about 84 keV kinetic energy. Moreover, as only a few to a few hundred ions are needed to be loaded into the Paul trap, the ²³³U source can be reduced in activity from previously 290 kBq to about 10 kBq, thus requiring a much smaller diameter of only about 25 mm (compared to 90 mm in the cell from figure 5). Note that all ²³³U sources carry a central hole of 5 mm diameter in order to allow for collinear laser manipulations.

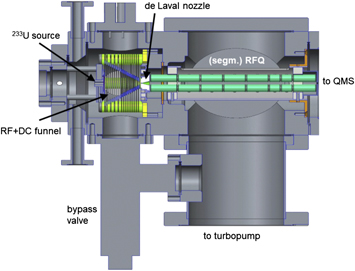

**Figure 19.** Technical drawing of the newly developed compact α recoil source designed for loading the cryogenic Paul trap with ^229mTh ions. The buffer-gas stopping cell (containing the ²³³U source and an RF + DC funnel structure) is connected to the segmented RFQ by a de-Laval nozzle.
Download figure:
Standard image High-resolution image

Cleanliness has been given highest priority in the design of the UHV compatible cell, allowing for bake-out up to about 150 °C via heating elements inserted into the cell corner walls.

This system will form the central experimental platform for use in all envisaged trapped ion spectroscopy experiments.

3.1.2.3. Measurement of the ionic charge- and electronic-state dependent isomeric lifetime

Following successful commissioning of the new experimental device comprising the compact gas cell and the cryogenic Paul trap, in a first stage towards an ionic lifetime measurement ²²⁹Th³⁺ ions will be sympathetically laser cooled to mK temperature with co-trapped laser-cooled ⁸⁸Sr⁺ ions. These are injected via the extraction side into the Paul trap, through a quadrupole bender from an ion source mounted perpendicular to the trap axis to avoid a direct line of sight between the hot source and the cryogenic trap. ⁸⁸Sr⁺ is free from hyperfine structure and can be conveniently laser cooled with two diode lasers at wavelengths 422 nm and 1092 nm. This allows for preparing a large number of cold Th³⁺ ions and to use them for spectroscopic and lifetime studies. Since the mass-to-charge ratio of ⁸⁸Sr⁺ is slightly higher than that of Th³⁺, the two species remain closely coupled and big Coulomb crystals can be formed in a linear RF trap with Th³⁺ ions close to the axis of the trap, inside a shell of cold Sr⁺ ions. Fluorescence detection from each Th³⁺ ion on the 5f F_5/2 → 6d D_5/2 resonance transition at 690 nm with an intensified CCD camera will make it possible to distinguish between ground state and isomeric ions by illuminating the Coulomb crystal alternately with two laser frequencies that are tuned to an HFS component of one or the other state. As the result of detecting each individual ion in one or the other nuclear state is free from background, this method makes it possible to detect even small nuclear transition rates (of order 10⁻³ s⁻¹) with high confidence. Moreover, the isomeric lifetime will be investigated in different charge states (Th⁺, Th²⁺, Th³⁺) and selectively excited metastable electronic states, indicating contributions from EB decay. Hence detailed insight can be obtained into the ionic ^229mTh lifetime as the last key nuclear property that has not been directly determined so far.

3.1.3. Determination of isomer and ground nuclear moments

While first results on the isomer nuclear moments have recently been obtained in two-photon laser spectroscopy of room-temperature Th²⁺ [77] (see section 2) with 15–30 MHz uncertainties in the hyperfine constants A and B, significant improvements in accuracy can be expected from measurements with laser cooled Th³⁺ ions. The electronic ground state manifold of Th³⁺ consists of a doublet of 5F states with a total of 12 hyperfine levels in the nuclear ground state and 8 in the isomer. To obtain cyclic laser excitation and fluorescence detection in the presence of optical pumping requires a set of several laser frequencies that can be produced as RF modulation sidebands on a smaller number of laser carrier frequencies. The ²²⁹Th ions are kept at a mK temperature by sympathetic cooling inside a Coulomb crystal of ²³²Th or another coolant ion. Such a scheme has been successfully used in a hyperfine spectroscopy experiment for the nuclear ground state and A and B hyperfine constants with uncertainties of 0.6–10 MHz have been obtained [59] providing the basis for the so far most precise ²²⁹Th nuclear moments [104]. The experimental uncertainty has been due to uncertainties in Zeeman splittings combined with optical pumping effects, laser cooling dynamics, and light shifts [59]. An improved accuracy is expected for a planned experiment at PTB by employing methods that are used in microwave clocks based on hyperfine resonances in trapped ions, like driving the hyperfine transition with a microwave field that is temporally separated from the optical pumping in order to avoid light shift. The experiment will use a recoil ion source so that both the nuclear ground state and the isomer can be studied. Since these experiments may directly provide precise ratios of the nuclear moment of isomer and ground state without requiring information on the atomic structure, they are well suited to answer the question how similar or different the proton charge distribution is in both states (see section 4).

It is interesting to note that nuclear moments, in particular the quadrupole moments of the ground and isomeric state, can also be studied in a solid-state environment. Doping of ²²⁹Th into VUV-transparent crystals—mostly fluorides—has been discussed quite extensively in the literature [105–107]. In most cases, the Th ion replaces the metallic ion in a different charge state, so charge-compensation mechanisms (vacancies, interstitial F ions) will take place. This breaks the crystal symmetry and leads to an EFG of order 10–500 V Å⁻² at the position of the nucleus, which in turn leads to a quadrupole splitting of the nuclear levels (see figure 20). Transitions between nuclear quadrupole states are expected in the 50–500 MHz range and can be investigated using nuclear quadrupole resonance spectroscopy in the RF domain. Investigations in this direction are currently under way, starting with more abundant isotopes of similar quadrupole moment Q such as uranium or neptunium. Nuclear quadrupole structure can on principle also be studied in Mössbauer spectroscopy, but the ²³³U → ²²⁹Th system is not well suited, due to the very weak gamma lines involved.

**Figure 20.** Schematic of nuclear quadrupole splitting emerging for ²²⁹Th ions doped into VUV transparent CaF₂ crystals, with approximate transition frequencies in the RF regime.
Download figure:
Standard image High-resolution image

3.1.4. Calculation of Th⁺, Th²⁺ and Th³⁺ atomic properties

The determination of the ground/isomeric state nuclear moments requires a combination of precision measurements of the hyperfine structure and a precise calculation of the relevant hyperfine matrix elements. The planned experimental efforts have been summarized in the previous section. Present most accurate values of the ²²⁹Th ground state nuclear magnetic dipole and (spectroscopic) electric quadrupole moments, μ = 0.360(7)μ_N and Q_s = 3.11(6) eb [104], were obtained from the Th³⁺ calculations using the linearized coupled-cluster method [108] combined with prior measurements [59]. The atomic hyperfine constants A are proportional to the nuclear magnetic dipole moment μ. Therefore, calculation of (A/μ)_th allows to extract μ as the ratio of the experimental value for the hyperfine constants A_expt and (A/μ)_th. The nuclear (spectroscopic) electric quadrupole moment Q_s is obtained as the ratio of the experimental hyperfine constants B_expt and the computed quantity (B/Q_s)_th. Since the accuracy of the resulting nuclear moments is limited by the estimated accuracy of the theoretical calculations, one has to select levels where the highest theoretical accuracy may be achieved. We note that nuclear moments can be extracted from computations and measurements for any Th ion. However, Fr-like Th³⁺ ion has a single valence electron above the closed [Rn] = [Xe]4f¹⁴5d¹⁰6s²6p⁶ core and such electronic level structure is generally conducive to highest accuracy atomic calculations. The uncertainty of the computations can be evaluated based on the differences in various approaches and comparison of hyperfine constants for similar elements with experiment, where magnetic moments are known to high accuracy from other methods [104]. The accuracy of the Th³⁺ computations may be improved with inclusion of triple and non-linear excitations into the computations, such as performed in [109].

Th, Th⁺, Th²⁺ atomic properties were calculated in [110] using a hybrid method that combines the configuration interaction (CI) approach with the linearized version of the coupled-cluster method (referred to as CI + all-order method [111]). In this approach, a coupled-cluster method is used to build an effective Hamiltonian that includes core correlations. This effective, rather than bare Hamiltonian, is then used by the CI. Reference [112] demonstrated that the CI + all-order method can accurately describe isotope shifts in such complicated systems as Th⁺. The results of [112] are important for the selection of efficient transitions for the excitation of the ²²⁹Th isomer, as the isotope shift indicates the strength of the Coulomb interaction between electrons and nucleus that is relevant for NEET processes.

Isotope shift calculations in Th⁺ and Th²⁺, which included the specific mass shift, were carried out in [79] using the CI-order method. Theoretical results were combined with experimental measurements to extract the difference in rms radii between ²²⁹Th and ²³²Th. Recent advances in the development of the CI + all-order approach allow to significantly increase the number of configurations that can be included in the CI with new parallel code [113] and extract many more levels that was previously possible [114]. Triple and non-linear terms can also be added to the construction of effective Hamiltonian.

In summary, a wide variety of atomic properties of all Th ions and neutral Th can be computed to high precision to support experiments described in this work.

3.2. Nuclear laser excitation and spectroscopy

As much as recent experimental progress in our understanding of the thorium isomer's properties has opened the door towards the realization of the nuclear clock, the illustration in figure 21 reveals the enormous gap on the frequency scale between our present knowledge and the ultimate goal to operate a high-accuracy nuclear clock. The uncertainty of the ^229mTh nuclear clock transition frequency is shown for different milestones on the road towards the nuclear clock. Starting from the present uncertainty of about 40 THz, still 12–13 orders of magnitude need to be bridged before arriving in the regime of metrological competitive clock operation.

**Figure 21.** Range of frequencies for the uncertainty (or resolution) of the ^229mTh nuclear clock transition (together with complementary fractional uncertainties on the right-hand side), from our present nuclear-physics based knowledge down to the ultimate goal of a high-accuracy optical nuclear clock operated by resonant laser excitation of the thorium isomer. Expected progress towards the subsequent development stages is indicated by the horizontal location of the respective red areas. Where present, gradient colours indicate an expected uncertainty around a spectral resolution target value as given in the text legend.
Download figure:
Standard image High-resolution image

Within the 'ThoriumNuclearClock' project [67] it is envisaged to reach this final goal in three stages, starting with consolidating measurements that will improve the precision of the isomeric excitation energy via optimized γ and IC electron spectroscopy to well below 0.1 eV. Searching for the energetic position of the thorium isomer's nuclear ground-state transition with laser spectroscopic precision marks the cornerstone of the second experimental phase. As proposed in [115], already existing laser technology can be applied for a proof-of-principle first all-optical resonant nuclear excitation of ^229mTh. As will be outlined in the following section, using a tunable laser system with a bandwidth of about 1–10 GHz will allow for a broadband search of the nuclear resonance.

3.2.1. Direct VUV laser excitation of trapped ions

Tunable sources of coherent radiation in the VUV can be obtained by sum- and difference-frequency conversion of pulsed laser radiation in gases. A light source using resonance-enhanced four-wave difference mixing in xenon gas delivers high-intensity pulses of VUV light with a continuously tunable wavelength from 122 nm (10.2 eV) to 168 nm (7.4 eV) [116], covering a 3σ search range around the present best values for the isomer energy. Here one laser photon at 250 nm is close to a two-photon resonance in Xe at 9.9 eV and the second photon from a tunable laser is used for sum- or difference frequency generation. Precise control of the emission wavelength can be obtained by using light from frequency stabilized CW lasers for seeding pulsed amplifiers. The VUV radiation intensity of the source is in the range of 10¹³ photons per 5 ns pulse for the wavelengths 150–160 nm. The linewidth of the VUV radiation is in the range of a few 100 MHz and the pulse repetition rate, determined by the pulsed amplifiers, in the range of tens of Hz. Typical photon spectral densities of VUV radiation at 150 nm obtained in the four-wave mixing experiments are ∼10⁶ photons/s/Hz which corresponds to ∼1 pW/s/Hz spectral power density. Because of the high spectral brightness, these VUV light sources are a useful tool for VUV spectroscopy of thorium. The ∼GHz linewidth is adapted to the Doppler-broadened linewidth of trapped ions at room temperature, and allows for the resolution of hyperfine structure splittings and isomer shifts in doped crystals. Such a source is presently under development at PTB and a simplified schematic is shown in figure 22. Assuming the spectral power density of the VUV source is in the order of 10⁶ to 10⁷ photons/s/Hz and the beam waist of 100 μm, the excitation rate of the thorium isomeric state can be estimated to be about 10⁻⁶ to 10⁻⁵ s⁻¹ for an ion in an RF trap. It will therefore be necessary to work with many ions in parallel and to use an efficient method for detection of the isomer excitation, like a double-resonance scheme based on hyperfine spectroscopy [77].

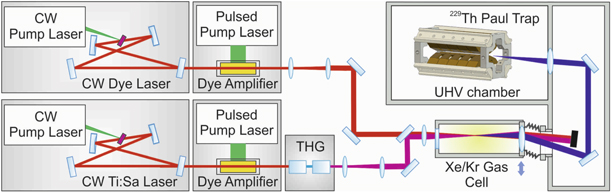

**Figure 22.** Tunable VUV laser system based on four-wave mixing of amplified laser pulses in Xe or Xe/Kr gas. The pulsed amplifiers are seeded by tunable CW lasers for precise frequency control. The third harmonic of one laser (250 nm) is close to a two-photon resonance in Xe at 9.9 eV and the photon energy from the second laser is subtracted to reach the 8 eV region.
Download figure:
Standard image High-resolution image

3.2.2. Broad-band resonant excitation of ²²⁹Th

Our present knowledge of the thorium isomer's excitation energy still requires to scan a considerable energy interval (at least 0.34 eV corresponding to the 1σ uncertainty of the isomeric energy from [68, 69]) while searching for the precise energy of the nuclear resonance. In order to allow for a reduced laser scanning time and in contrast to previous laser experiments, this scenario makes use of the fast (lifetime of ∼10 μs) non-radiative IC decay channel of neutral ^229mTh for the isomer detection. A large signal-to-noise ratio can thus be achieved as prerequisite for a reasonably short laser scanning time. The IC decay channel of ^229mTh has been experimentally firmly established [31, 32] and is known to be the dominant decay channel for neutral ²²⁹Th atoms. This approach corresponds to laser-based conversion electron Mössbauer spectroscopy in the optical region [33] and is found to be advantageous compared to earlier proposals that make exclusive use of a potential radiative decay for isomer detection. The reason for this improved perspective is that the isomeric IC decay is ∼9 orders of magnitude faster, which allows us to trigger the decay detection correlated with the laser pulses. In this way the signal-to-background ratio of the detection can be significantly improved, while shortening the required time to search for the direct nuclear laser excitation of ^229mTh (across an energy range of 1 eV) to a realistically feasible period of about three days [115]. Figure 23 displays a scheme of the experimental setup as developed in [115], where a thin layer of ²²⁹Th (2–3 nm thick, area ca 1 mm²) coated onto a gold substrate is irradiated by a broad-band (ca 10 GHz), pulsed (pulse duration ca 5 ns, repetition rate ca 10 Hz) and tunable VUV laser (similar to the one described in [116]). IC decay is initiated upon resonant excitation of ^229mTh, the emitted IC electrons are collimated by a permanent magnet and guided in a solenoidal magnetic field towards an MCP detector.

**Figure 23.** Schematical view of the experimental scheme for direct laser excitation of ^229mTh making use of the IC decay channel in the neutral thorium isomer. Reprinted figure with permission from [115]. Copyright (2017) by the American Physical Society.
Download figure:
Standard image High-resolution image

Within the 'ThoriumNuclearClock' project, direct VUV laser nuclear excitation studies are envisaged to be performed in collaboration with PTB (Braunschweig, Germany) using their tunable four-wave mixing VUV laser system with coincident IC electron detection from an irradiation of solid targets according to the scheme proposed in [115].

3.2.3. Narrow-linewidth high-power VUV frequency comb

An advanced concept for a narrow-linewidth direct frequency-comb spectroscopy of ^229mTh and an IC based solid-state nuclear clock was recently worked out in [91]. The concept uses a single comb mode of a VUV frequency comb by high-harmonic generation (HHG) of an Yb-doped fibre laser system (7th harmonic). More than 10¹³ ²²⁹Th atoms on a surface are irradiated in parallel and a successful nuclear excitation is probed via the IC decay channel. A net scanning time of 15 min for the 1σ energy uncertainty interval of 0.34 eV of [68, 69] appears to be achievable when searching for the nuclear transition. In case of successful observation, the isomer's energy value would be constrained to an uncertainty of about 100 MHz, which is a factor of 10⁶ of improvement compared to today's knowledge. Further, the comb mode could be stabilized to the nuclear transition using the same detection method, allowing for the development of an IC-based solid-state nuclear clock, which is estimated to achieve the same performance as a crystal-lattice nuclear clock, however, with the advantage of a drastically simpler detection scheme [91]. Finally, in the concept of [91] the same laser system with a comb mode linewidth of 0.5 kHz could be used to narrow down the isomer's transition energy by further six orders of magnitude during laser excitation of ²²⁹Th³⁺ ions in a Paul trap, and assuming a smaller comb mode linewidth of 1 Hz to drive nuclear Rabi oscillations, as required for the development of a nuclear clock based on a single ²²⁹Th³⁺ ion.

A VUV frequency comb for the optical excitation of the nuclear transition in trapped ²²⁹Th ions needs to fulfil the requirements of the coverage of the search range in the VUV around 150 nm, a large power per comb mode (and average power), and a narrow linewidth of the comb modes.

The recent improvement in the determination of the ^229mTh transition energy can be considered sufficient to choose a system with an ytterbium-based laser, reaching the VUV with the 7th harmonic. This allows for a higher infrared (IR) average power compared to other systems, e.g. Ti:sapphire, reaching the VUV with the 5th harmonic. Yb:YAG and Yb:fibre amplifiers deliver multi-100 W average power, which overcompensates the expected larger conversion efficiency for shorter driving wavelengths [117]. An Yb:YAG Innoslab amplifier would provide a large power with very small nonlinearity in the amplifier at multi-10 MHz repetition rate even without chirped-pulse amplification (CPA) [118], however, the centre wavelength is fixed at 1030 nm. Yb:fibre amplifiers allow a larger flexibility in the centre wavelength and can reach a reasonable nonlinearity employing CPA. We plan to use a 400 W Yb:fibre amplifier operated with a centre wavelength of 1050 nm, yielding a VUV spectrum centred at 150 nm. This power is 5× larger than the highest power for an IR frequency comb reported to date [119], and will allow scaling VUV power.

Another issue in scaling the VUV power is to increase the conversion efficiency by using shorter driving pulses. At the same time this increases the bandwidth in the UV, covering a larger search range. HHG efficiency is a steep function of pulse duration, which promises a larger VUV power per comb mode, even though the power is distributed over more comb modes. The driving pulse duration is limited by the bandwidth of the enhancement resonator, allowing pulses well below 100 fs depending on the finesse and number of mirror reflections. Even 19 fs have been demonstrated [120], however at moderate power and without HHG.

While Yb:fibre amplifiers achieve 120 fs pulses at the 80 W power level [119], the pulses are considerably longer at larger average power and nonlinear pulse compression has to be employed. Established compression schemes are not applicable to pulses with pulse energy of several μJ, however, which prevented the combination of the high average power of Yb-based lasers (>100 W) with short pulse duration (<100 fs) at high repetition rates (10–100 MHz). A novel compression scheme based on spectral broadening in a multi-pass cell fills the gap in applicable pulse energy [121, 122]. Such a pulse compression setup has enabled a resonator-enhanced HHG system with a record power in the XUV [123]. The nonlinear pulse compression also adds some flexibility to the centre wavelength. The nonlinear spectral broadening is symmetric around the centre wavelength (with negligible Raman delay in a solid nonlinear medium), but the spectrum can be broadened by a large factor and part of the spectrum can be removed with a dielectric filter, shifting the centre wavelength by >10 nm with an acceptable power loss.

An enhancement resonator will be used in order to reach the intensity for the highly nonlinear HHG process also a high repetition rate and to boost the conversion efficiency. Circulating average powers >10 kW in an HHG resonator and stable operation over many hours have been demonstrated [90, 124]. At 150 nm a large output-coupling efficiency can be achieved with a coated plate at Brewster's angle [125]. We plan to use geometrical output coupling in a non-collinear configuration similar to [126], which avoids the dispersion, nonlinearity and degradation problems of the plate, and also promises a large output-coupling efficiency. The highest VUV power per comb mode reported to date is ca 0.3 nW/mode at 149 nm [125], estimated from the out-coupled average power of 0.5 mW in the 7th harmonic. The scaled parameters of our planned system let us expect a VUV power well above 10 nW/mode.

A major concern for the development is the comb linewidth in the VUV, which is determined by the phase noise acquired in the system. If the phase noise becomes too large, the power in the comb modes drops and the frequency comb structure eventually completely vanishes. The HHG process has been shown to be coherent, but the phase noise is multiplied according to the harmonic order, yielding a quadratic increase of the harmonic's linewidth [127]. This affords a sufficiently small phase noise of the IR frequency comb and in turn a careful design of the system. This includes a low-noise IR frequency comb stabilized to a high-finesse reference cavity in the optical domain, low-noise amplifiers and a compensation of beam path fluctuations. Frequency combs in the VUV have so far only been applied to spectroscopy of broad transitions (>MHz) in argon and neon [128] and in xenon [129], not confirming narrow VUV comb linewidth but only placing an upper bound in the MHz range.

Such a laser system will be developed by Fraunhofer ILT together with RWTH Aachen and installed at LMU Munich (see figure 24). In combination with the previously described cryogenic Paul trap it will allow direct resonant VUV laser excitation of (sympathetically laser cooled) trapped ^229mTh³⁺ ions.

3.2.4. Narrow-band solid-state VUV frequency comb

Very recently, generating high harmonics from solid-state material has attracted some attention [130–132]. The underlying physical processes are not yet fully understood and there is even a discussion, whether the dominating origin of solid-HHG is to be found within the bulk material or rather at the surface or at interfaces [132–134]. Still, this process promises high VUV conversion efficiencies and has significant practical advantages compared to gas-jet systems.

The team at TU Wien recently demonstrated solid-HHG in a passive enhancement cavity, realizing a VUV frequency comb (see figure 25) [135]. The system is based on a commercial 0.9 W Ti:sapphire femtosecond oscillator (FC8004, Menlo Systems) generating 27 fs pulses at a repetition rate of 108 MHz, at 800 nm central wavelength. The repetition rate and the offset frequency of the frequency comb are stabilized to a 10 MHz rubidium frequency standard, realizing a frequency comb in the IR.

After a pre-compensation (negative chirp), IR pulses with 7.5 nJ energy enter a secondary, passive enhancement cavity, built inside a UHV vacuum chamber to avoid absorption of the generated VUV light. The group delay dispersions (GDD) of the cavity mirrors are chosen to yield effective near-zero GDD per roundtrip. The length of the ring-type enhancement cavity is 2776 mm to match the seeding laser repetition rate. One cavity mirror is mounted on a piezo to lock the cavity length to the repetition rate of the Ti:sapphire oscillator, using a Hänsch–Couillaud scheme. Without the solid-state target, enhancement factors ∼200 are realized.

Inside the cavity, curved mirrors are used to focus the beam onto an IR-transparent solid-state target, with an FWHM focus of 12 μm. The target consists of a 100 μm sapphire carrier substrate with a 30 nm AlN crystalline film. The sample is tilted near Brewster angle to reduce losses inside the enhancement cavity (<1%, see figure 25(b)).

The 5th harmonic (central wavelength at 160 nm) generated by the solid-state target are coupled out of the enhancement cavity using a multilayer mirror designed for >90% reflectivity within the 150–170 nm spectral range [136]. The 5th harmonic, together with weak residuals (few %) of the 3rd and 7th harmonic is focussed onto the entrance slit of a VUV spectrometer using a lens. An additional VUV filter is used to suppress the otherwise overwhelming signal from the 800 nm driving radiation.

The 5th harmonic is generated efficiently from the solid-state target (see figure 26), also the 3rd and the 7th harmonic have been detected. Note that the relative amplitudes of the harmonics are strongly affected by the highly selective efficiency of the outcoupler. The frequency-comb structure of the generated VUV light was verified by beating the 3rd harmonic with a 266 nm CW laser (Toptica TopWave 266). The beating signal also provided an upper bound on the linewidth of a single comb mode <1 MHz, most probably dominated by the linewidth of the CW laser.

We estimate the IR-VUV conversion efficiency of this process to be ∼3 × 10⁻⁸ (for the 5th harmonic, referring to driving laser power outside enhancement cavity), similar to gas-jet efficiencies obtained in comparable systems [137]. Increasing the beam power circulating within the enhancement cavity by two orders of magnitudes (compatible with damage thresholds of involved optical components) and shifting the central pump wavelength towards 750 nm, we believe that a 5th harmonic centred at 150 nm with 0.1–1 nW/comb tooth can be realized. One option investigated at the moment in Vienna is to include the solid-HHG directly in the primary femtosecond oscillator. As the harmonics are derived from a Ti:sapphire primary frequency comb with rather low phase-noise and taking into account the quadratic scaling of the noise with harmonic orders, we believe, that a linewidth of few kHz for a single comb tooth can be achieved. This approach still produces 2–3 orders of magnitude lower spectroscopic yield than the high-power gas-jet approach described above (section 3.2.3). It is nevertheless a promising approach for the interrogation of ²²⁹Th-doped crystal samples, where the number of interrogated nuclei is increased by 10 orders of magnitude (compared to trapped ion approaches) and where the linewidth of the interrogation (single comb tooth) of order kHz matches the (broadened) linewidth of the nuclear transition within the solid (equally expected around kHz).

3.2.5. Electronic bridge excitation

We now shift from direct nuclear laser excitation scenarios towards a different setup involving the atomic shell as mediator. The EB is a process coupling a nuclear transition to a transition in the atomic shell via electromagnetic interactions. This becomes relevant especially in the case of low-energy transitions where the radiation wavelength exceeds the nuclear size by many orders of magnitude and radiative coupling to the larger electron shell serves as a somewhat better matched antenna. Luckily, the EB does not require a perfect energetic match between the atomic and nuclear transitions; the energy mismatch is covered by the emission or absorption of a photon. This process was first investigated theoretically in [138, 139] and discussed in the context of ²²⁹Th in [140–143]. In the literature the term EB is used both for nuclear excitation and for nuclear decay, with the corresponding atomic shell transitions.

For illustration purposes we present a simplified three-step EB excitation scheme in figure 27. The atomic shell is initially in an excited state. Upon absorption of an external laser photon, a virtual electronic state is reached, which matches in energy the nuclear transition energy. In the final step, the electronic shell decays to a real state and transfers its energy to the nucleus, which is thereby excited.

The theoretical formalism for the study of EB has been developed in references [140–143] and relies on the calculation in third-order perturbation theory of the transition amplitude of the process. This amplitude involves the electronic and nuclear matrix elements of the respective transitions, and a sum over all possible intermediate states used for the description of the virtual electronic state. Should the virtual state be in the close vicinity of a real state, the corresponding term in the sum over intermediate states becomes very large and the EB process can be very efficient. Theoretical studies show that depending on the exact nuclear transition energy and on the ionic charge, the EB channel can be more efficient than photoexcitation or radiative decay, respectively [142, 143]. This makes it appealing for the direct access to the isomeric transition in ²²⁹Th. It also offers the technical advantage that two-photon excitations can be employed by using an electronic intermediate state in a first excitation step, avoiding the need for a tunable VUV laser. EB excitation would likely by followed by EB decay, leading to a characteristic, delayed cascade of fluorescence photons. This signature has been searched for experimentally in Th⁺ and Th²⁺ ions, where the electronic spectra possess a high level density in the energy range of the isomer, making a resonant enhancement of the EB probable. For Th⁺, more than 200 so far unknown electronic states of even parity have been observed between 7.3 and 9.8 eV [145], but an investigation of laser excitation of these levels has not provided an indication for nuclear excitation.

In the following we present three proposals to use the EB process for an enhanced precision in the energy determination of the ^229mTh isomer and also as a means of efficient nuclear excitation. First, we review the prospects to use a laser-induced electronic bridge (LIEB) scheme for a stimulated decay of the nuclear isomer, with the possibility to precisely determine the nuclear transition energy [146]. While LIEB is not a nuclear excitation but a decay mechanism, it can lead to a refinement of our knowledge of the isomer energy as an additional approach to the ones discussed in section 3.1.1. Second, we present an EB excitation scheme making use of highly charged ions which have a more advantageous level scheme as compared to the already investigated EB schemes in Th⁺, Th²⁺ and Th³⁺ ions [147]. Finally, we discuss the possibility to use the EB mechanism in Th-doped VUV-transparent crystals such as CaF₂ [148].

3.2.5.1. LIEB

Nuclear de-excitation by LIEB can have a much faster rate than the radiative decay of the nucleus. LIEB is a version of EB process in which the additional photon is not emitted, but absorbed by the electronic shell from an externally applied laser field. The process is thus equivalent to the excitation of the electronic shell with two photons, one of which is provided by the laser source and the other one from the nuclear de-excitation [146]. A schematic illustration of the process is presented in figure 28. For the case of Th³⁺ it has been shown that the nuclear decay in the LIEB process is four orders of magnitude faster than the radiative decay for the presently accepted value (combined from the two presently most precise measurements) of the isomer energy of 8.19(12) eV [68, 69]. This in turn could be used for a more precise determination of the isomer energy.

**Figure 28.** Example of the LIEB process (right) and its Feynman diagrams (left). The solid lines in the Feynman diagrams correspond to the electronic states, the double-lines represent the nuclear state and the wiggly lines depict the photons. Initial and final configurations are indicated by i and f respectively, g and m refer to ground and metastable state, and n indicates the intermediate/virtual state. Reproduced from [146]. CC BY 3.0. © 2018 The Author(s). Published by IOP Publishing Ltd on behalf of Deutsche Physikalische Gesellschaft.
Download figure:
Standard image High-resolution image

The LIEB scheme requires production and trapping of ^229mTh in the 3+ ionization state and the excitation of the electronic shell to the 7s initial state. Population of the isomer could be reached for instance by the 2% population channel in the α-decay of ²³³U. The electronic shell can be efficiently transferred from the ground state to the 7s state making use of the stimulated Raman adiabatic passage (STIRAP) method [149]. Once reached, the 7s state has a long lifetime of 0.5 s allowing for the application of the LIEB scheme. Upon interaction with the tunable optical or ultra-violet laser, the isomeric state which otherwise has a long radiative lifetime of approx 10⁴ s may decay via the LIEB process. Population and radiative decay of the upper electronic orbitals 8p or 9p could be observed by detection of fluorescence photons. The decay of these states occurs with emission of photons with energies in the range 15–20 eV, which could be easily differentiated from the laser photons used for excitation. The nuclear isomer energy E_I can be found via scanning with a tunable laser for an LIEB resonance, i.e., for the population and decay of the upper state, and finally determined with a precision typical for laser spectroscopy.

3.2.5.2. EB in highly charged ions

EB schemes for excitation and decay have been investigated for Th⁺ [143], Th²⁺ [6], Th³⁺ [142, 146], and recently also for ²³⁵U⁷⁺ [150]. A different idea to use highly charged ions for the EB excitation of ²²⁹Th has been proposed in [147]. Highly charged ions have a number of advantages compared to the low charge states previously investigated. On the one hand, when interacting with a laser, higher intensities can be used, since multiphoton ionization is not relevant. On the other hand, ion configurations with open d and f shells have a large variety of M1 transitions to match the isomeric transition. Based on these promising advantages, [147] has investigated EB schemes in Th³⁵⁺ ions. The particular level scheme is presented in figure 29.

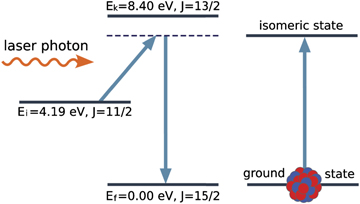

**Figure 29.** Simplified scheme of the EB excitation mechanism in Th³⁵⁺. The electronic shell (left) initially in an excited state E_i is promoted by a laser photon to a virtual state (dashed line), which decays to a lower-lying real state E_f by transferring its energy to the nucleus (right). The latter undergoes the transition from the ground to the isomeric state (right). Electronic states are labelled by energy and angular momentum J. Reproduced from [147]. CC BY 4.0. © The Author(s), 2020.
Download figure:
Standard image High-resolution image

The Th³⁵⁺ ion has an electronic configuration [Kr]4d¹⁰4f ⁹. Provided that the isomer energy has a value within the determined 1σ uncertainty range E_I = 8.19(12) eV [68, 69], a standard tunable UV laser could be used to excite the nuclear isomer via EB as shown in figure 29. The required excited initial electronic state can be quite efficiently populated in steady state by using highly charged ions produced in an electron beam ion trap [151]. The EB excitation would at the same time allow for the determination of the energy E_I with a precision of 10⁻⁵ eV. Eventually, a successful EB scheme in Th³⁵⁺ should provide more efficient isomer excitation than direct VUV laser photoexcitation. Combined with suitable narrow-line electronic transitions with very low sensitivity to external perturbations (as expected in highly charged ions), this type of bridge mechanism could then potentially be used for the operation of a future nuclear clock.

3.2.5.3. EB in thorium-doped crystals

Rather than employing trapped ions, a more exotic version of EB can be applied in VUV-transparent crystals which have been doped with ²²⁹Th. For instance, CaF₂ has a confirmed band gap of 11–12 eV [152]. When doped with Th nuclei, a set of electronic defect states appear in the crystal band gap at energies close to the nuclear transition energy. What at first sight is rather a nuisance, can be used for an EB excitation scheme of the nuclear isomer [148]. The defect states provide a starting point for nuclear excitation via EB mechanisms involving stimulated emission or absorption using an optical laser.

A schematic illustration of the envisaged EB mechanism in Th-doped crystals is presented in figure 30. The initially populated electronic defect states d lie in the crystal band gap (between the ground state o and the conduction band c). At present, the defect states are only approximately known from theoretical predictions of density functional theory [153] and their exact energy might lie above or below the isomer energy. In this case, the EB process occurs either spontaneously or assisted by an optical laser in the stimulated or absorption schemes, proceeding via a virtual electronic state.

The rates of these processes calculated in [148] are at least 2 orders of magnitude larger than direct photoexcitation of the isomeric state using available light sources. This highlights the advantages of the crystal-EB approach. First, it exploits the electronic states of the crystal defects previously viewed as a nuisance, and second, it reduces the requirements on the VUV radiation to efficiently excite the isomer. In addition, the nuclear isomer population can also undergo quenching when triggered by the reverse mechanism, leading to a fast and controlled decay via the electronic shell. These findings are relevant for a possible solid-state nuclear clock based on the ^229mTh isomeric transition.

3.3. Precision spectroscopy, clock operation, and fundamental tests

Investigations planned within the 'ThoriumNuclearClock' project will perform high-resolution, precision laser spectroscopy of the nuclear transition, converging to nuclear clock operation and first frequency comparisons between a nuclear clock and state-of-the-art atomic clocks, including primary Cs clocks for an absolute frequency measurement and trapped-ion optical clocks with Yb⁺ as a test case for fundamental physics tests. Due to the potentially extremely high sensitivity of the nuclear clock to the variation of the fine-structure constant α, at the level of K ∼ 10⁵, a clock-comparison experiment of the nuclear clock with any other atomic clock at the 10⁻¹⁵ uncertainty level, carried out in the span of one year will surpass several present limits by several orders of magnitude and have exceptional new physics discovery potential (see section 4). Envisaged availability in this phase of the experimental efforts of three operational nuclear clocks at TU Wien, PTB, and LMU Munich will result in unparalleled capability for testing fundamental new physics.

Using a single mode of harmonic radiation from a frequency stabilized femtosecond laser, a resolution around 1 kHz in the VUV is targeted. Since all systematic frequency shifts are expected to be much smaller, the obtainable uncertainty will be limited by statistics only. Two newly developed VUV frequency comb systems will be employed, to be located at LMU and constructed at TU Wien (see sections 3.2.3 and 3.2.4). The latter is designed to be transportable for experiments at PTB. All frequency measurements at LMU Munich and TU Wien will be referenced to local microwave oscillators that will be compared to the primary standards at PTB using time transfer via the global navigation satellite systems GPS and Galileo. Ultimately, long-term measurement series for clock comparisons (intra-nuclear and nuclear-optical) are foreseen. Also, a transportable single-ion optical clock based on Yb⁺ developed at PTB in the framework of the Opticlock project will be operational, and may be employed for precision frequency comparison campaigns at LMU and TU Wien.

3.3.1. High precision laser spectroscopy of²²⁹Th³⁺ and implementation of clock operation

The highest spectroscopic resolution and lowest systematic uncertainty are expected from laser-cooled ²²⁹Th ions in RF ion traps. The experimental methods have been refined and tested extensively on forbidden transitions in the electron shell [3] and are the basis of the presently most precise optical clock [4]. The clock ion of interest is laser cooled, either directly by driving one of its electronic resonance transitions or sympathetically by trapping it together with a coolant ion that provides such a transition if it does not exist in the clock ion. Both species are coupled by the Coulomb interaction and form a Coulomb crystal typically at a mK temperature. The fluorescence signal emitted on the cooling transition is strong enough to detect the presence, the state of motion and the internal state of a single ion. The narrow reference transition of the clock ion is then probed with radiation from the clock laser, and the outcome of the excitation attempt is measured again in the fluorescence signal induced by the cooling laser. In the case of a single ion, its excitation into the upper, metastable level of the clock transition will prevent the scattering of fluorescence as long as the electron is 'shelved'. In the case of sympathetic cooling, a quantum-logic readout scheme can be applied to transfer the internal state of the clock ion to the common vibrational mode and to the fluorescence of the coolant ion [4].

The combination of laser cooling and ion trapping provides ideal conditions for precision spectroscopy in eliminating line broadening and frequency shifts from the Doppler effect. Already for electronic transitions, the influence of the trapping potential on transition frequencies can be very well controlled, and this carries forward even more favorably for the nuclear transition. Th³⁺ has been identified as the most suitable charge state because of its simple electronic level structure with one valence electron, that provides near-IR resonance transitions for laser cooling and fluorescence detection [5]. Direct laser cooling of ²²⁹Th³⁺ is made more difficult by the hyperfine structure that requires several re-pumper laser frequencies in order to avoid hyperfine pumping into dark sublevels of the ground state. Sympathetic laser cooling by co-trapped ²³²Th³⁺ has been demonstrated [59] and lighter ions like ⁸⁸Sr⁺ may provide a convenient alternative with similar charge-to-mass ratio. An experimental difficulty arises from the strong chemical reactivity of trapped Th ions with molecules of the residual gas. This leads to the formation of molecular ions on time scales of seconds or minutes, unless extremely clean vacuum conditions are achieved. In Th⁺ the problem could be solved by photo dissociation with UV laser light [154], but in Th³⁺ the molecule formation proceeds via charge exchange to the 2+ charge state [155], making it impossible to recover the Th³⁺ ion in a single step.

The most complete elimination of field-induced frequency shifts is possible in electronic levels with selected angular momentum quantum numbers that provide either a highly symmetric electronic wave function (J = 0 or ½) or a decoupling of electronic and nuclear moments. This has been theoretically analysed for Th³⁺ and the two options that have been identified are the use of the metastable 7s ²S_1/2 state [5] or of stretched states (F = |m_F| = I + J = 5) of the 5f ²F_5/2 ground state [156]. A drawback of the first option is the limited lifetime of the state of only 0.5 s [157], that would limit the interaction time and consequently the linewidth of the nuclear laser excitation. In the stretched states, the non-zero value of m_F leads to a linear Zeeman effect that has to be cancelled by averaging over symmetric Zeeman components originating from ±m states. The remaining uncertainty contributions, assumed to be controllable below 1 × 10⁻¹⁸, are predominantly those that are due to the quadratic Doppler effect from residual motion of the ion [156], a relativistic effect that does not distinguish between electronic and nuclear transitions.

Operation of the clock would follow the protocols that are used in atomic optical clocks with single trapped ions: the ion is cooled and initialized in the ground state, the reference transition is driven with a single (Rabi) or multiple (Ramsey) pulses of the clock laser, and the outcome of the excitation attempt is probed. State detection can be performed by sequentially applying two laser beams on an electronic resonance transition, one in resonance with a hyperfine component of the nuclear ground state, the other with one of the isomer. Applying these lasers for a period during which several (e.g. >1000) fluorescence photons can be detected from the ion, would allow one to unambiguously determine the nuclear state [5]. In operation as a single-ion clock the relative frequency instability (Allan deviation) would be in the range 1 × 10⁻¹⁶ (τ/s)^−1/2, for an averaging time τ. Averaging the statistical uncertainty down to 1 × 10⁻¹⁹ would require 10⁶ s. Since the Coulomb interaction between the ions has no significant effect on the nuclear resonance frequency, the ²²⁹Th³⁺ nuclear clock is perfectly suited for the application of the multi-ion concept [158]. Performing the described interrogation sequence with N trapped ions in parallel and with individually resolved state detection on a photon counting camera would reduce the required averaging time for reaching a given target uncertainty by a factor of N.

3.3.2. Solid-state-clock operation and performance

As already pointed out by Peik and Tamm in 2003, the weak coupling of the ²²⁹Th clock transition to external fields allows to envision a 'solid-state nuclear clock', where the ²²⁹Th ions would be embedded into a transparent host material [5]. As the expected isomer excitation energy shifted into the VUV over the years (see figure 13), finding materials with suitable transparency became more challenging, converging on the family of fluoride single crystals [89, 105–107].

The interaction between fields generated by a crystal lattice and the ²²⁹Th nuclear moments leads to the appearance of level shifts (homogeneous and inhomogeneous) and splittings, in analogy to the hyperfine structure [89, 159]. In an ionic crystal, where all electrons are paired, fine structure is absent. These shifts and splittings are characteristic for a specific nucleus-host-crystal-system and even within a given system, several sets of spectral configurations may occur, connected to different microscopic defect configurations.

The dominating shift of the nuclear transition frequency (compared to the bare nucleus in vacuum) is the isomer shift (electric monopole shift) that arises from contact interaction between the electron cloud and the finite volume of the nucleus [160]. Extrapolating from similar systems (e.g., ¹⁵¹Eu²⁺) studied in Mössbauer spectroscopy, the isomer shift is expected on the GHz scale for different charge-compensation configurations. The 2nd order Doppler effect is significantly reduced due to the tight binding of the nuclei inside the crystal matrix. At liquid nitrogen temperatures, both the 2nd order Doppler shift and the associated inhomogeneous broadening are well below 100 Hz.

The dominating inhomogeneous broadening mechanism of nuclear lines in a fluoride crystal emerges from the magnetic dipole interaction with fluctuating fields of the surrounding fluorine nuclei, it amounts to few kHz [159]. The nuclear quadrupole interaction with EFG leads to the emergence of a nuclear quadrupole structure as already discussed in section 3.1.4. The level splittings are expected within 50–500 MHz and predominantly reflect the local EFG at the position of the nucleus.

We expect that direct laser spectroscopy of the ²²⁹Th nuclear transition will proceed over the next years (see figure 21). With progressing spectroscopic resolution, the various crystal effects will become apparent: isomer shift at GHz resolution, quadrupole structure at MHz resolution, magnetic dipole shifts and broadenings at the kHz level.

The above-mentioned broadenings, in particular due to magnetic dipole interactions with the un-ordered surrounding nuclear moments, will cause a rapid decoherence (timescale ms) and render the commonly used Rabi/Ramsey schemes impossible in the operation of a thorium solid-state clock. In other words, the relaxation time and the coherence time differ by many orders of magnitude. Nuclear clock operation will hence have to rely on laser stabilization via fluorescence (or absorption) spectroscopy, the achievable performance has been estimated in [159]. It crucially relies on the ratio of excitation rate R to (yet unknown) decay rate γ and hence on the available power of the interrogation laser. For R = γ, assuming γ ≈ 10⁵ s⁻¹ and 10¹⁴ interrogated nuclei, one might reach 10⁻¹⁹ fractional clock instability after 10⁴ s of averaging time. The estimate however neglects all possible technical constraints such as the short-term (in)stability of the interrogation laser. Note that the performance might increase if the nuclear excitation can be quenched via available electronic states, as discussed in [148], see section 3.2.5.3 above.

4. Tests of fundamental physics and dark matter searches

4.1. Enhanced sensitivity of a nuclear clock to the variation of fundamental constants

If fundamental constants of nature, such as the fine-structure constant α, change with space or time, so will atomic and nuclear energy levels, and, consequently, clock frequencies. Violation of local Lorentz invariance can also source changes in clock frequencies [161, 162]. Many theories beyond the standard model (BSM) of particle physics lead to such variation of fundamental constants and violations of fundamental symmetries [163, 164]. The gravitational potential on Earth oscillates with a period of 1 year due to the ellipticity of Earth's orbit. Therefore, looking for variation of clock frequency ratio during the year also tests the Einstein equivalence principle (see section II.I of [165]).

A variety of precision experiments with atomic clocks have been performed in search for new physics [165], looking for variations of ratios or differences of two transition frequencies over time or space, since the clocks based on different systems have different sensitivities to these effects. If technical and environmental (SM) perturbations can be excluded as their cause, any spacetime-dependent variation of clock frequency ratios would be an unambiguous signal of new physics. These studies are often on the work plan of metrology institutes as tests of the performance and reliability of newly developed clocks. In the development of optical clocks, we see the scientifically fertile situation that different systems, using a variety of elements and experimental methods are developed and are reaching competitive levels of accuracy. With different sensitivities to specific effects of new physics, meaningful comparisons can be made between a system of high sensitivity and a stable reference or 'anchor' of low sensitivity. The ²²⁹Th nuclear clock would be a most interesting addition to the ensemble of clocks used in fundamental tests because it provides a strongly enhanced sensitivity for variations of fundamental constants and, consequently, for all related searches for new physics, such as searches for DM described in later sections.

An enhanced sensitivity of the ²²⁹Th nuclear transition frequency to changes of the coupling constants α_S of the strong and α of the electromagnetic interaction was first predicted by Flambaum [7, 166], who pointed out that the near degeneracy of the two nuclear levels must be due to the nearly exact cancelation of differences in the contributions of different interactions to the two nuclear level energies, each individually of MeV order (0(MeV)). The sensitivity factors relating a change of the nuclear transition frequency to changes of α and the strong interaction parameter would be on the order of 10⁵. For comparison, the sensitivities to the α-variation of almost all of the presently operating atomic clocks are less than 1. The highest sensitivity of an operating atomic clock to the α-variation is −6, for an electric octupole transition in the Yb⁺ ion. While these sensitivities can be calculated with good accuracy for atomic clocks, this is not the case for a nuclear transition as it requires nuclear rather than atomic computations. For the dependence on α, the sensitivity of a nuclear clock would be determined by the change in Coulomb energy ΔE_C [7]:

$\begin{equation*}1/\nu \left(\mathrm{d}\nu /\mathrm{d}t\right)=\left({\Delta}{E}_{\mathrm{C}}/{E}_{\mathrm{I}}\right)\left(1/\alpha \right)\left(\mathrm{d}\alpha /\mathrm{d}t\right).\end{equation*}$

Based on the reasoning that the nuclear excitation involves only the outer unpaired neutron, leaving the core proton distribution essentially unchanged, it was countered that ΔE_C could be much smaller than 0(MeV) [167]. It was then pointed out that the Coulomb energy difference is experimentally accessible in measurements of the hyperfine structure [166]. Modelling the nucleus as a uniform, hard-edged prolate ellipsoid, the change in Coulomb energy can be expressed in terms of the changes in rms charge radius ⟨r²⟩ and intrinsic electric quadrupole moment Q₀:

$\begin{equation*}{\Delta}{E}_{\mathrm{C}}=-485\mathrm{M}\mathrm{e}\mathrm{V}\left(\right. \left({\langle {r}^{2}\rangle }^{229\mathrm{m}}/{\langle {r}^{2}\rangle }^{229}\right)-1\left.\right)+11.6\mathrm{M}\mathrm{e}\mathrm{V}\left(\left({{Q}_{0}}^{\mathrm{m}}/{{Q}_{0}}^{\mathrm{m}}\right)-1\right)\end{equation*}$

These quantities have been measured in hyperfine spectroscopy of the isomer [77] (see section 2) and yield the result

$\begin{equation*}{\Delta}{E}_{\mathrm{C}}=-0.29\left(43\right)\mathrm{M}\mathrm{e}\mathrm{V}.\end{equation*}$

With this data, a value ΔE_C < 10 keV cannot be excluded with certainty, but is very unlikely, so that it can be safely stated that the α-sensitivity of the ²²⁹Th nuclear transition is significantly higher than in present optical atomic clocks. Looking separately at the contributions to ΔE_C from the rms radius change: −0.16(3) MeV and from the change in electric quadrupole moment: −0.13(40) MeV shows that an improvement in the uncertainty of the isomer's electric quadrupole moment by a factor of 20 will resolve the issue, and is within the scope of the planned experiments (see section 3.1.3). Recently, the α-sensitivity K = −0.9(3) × 10⁴ has been evaluated with lower uncertainty, excluding the region K = 0, based on the available experimental data together with nuclear models that include a relation between the change of the charge radius and that of the electric quadrupole moment [168]. The influence of the nuclear octupole deformation has also been considered and was shown to be small.

The enhanced sensitivity of the ²²⁹Th nuclear transition frequency to the value of the fine structure constant translates into an enhanced sensitivity in all searches for additional couplings of α, like to the gravitational field or DM. A significant enhancement is also predicted for effects that violate local Lorentz invariance in the hadron sector, because the nuclear kinetic energy scale (MeV) is very large in comparison to the 8 eV nuclear transition energy [162].

It may also be noted that the established Cs and Rb atomic clocks provide sensitivity to a nuclear property, the nuclear magnetic moment [169], but without the sensitivity enhancement that is specific for the ²²⁹Th nuclear transition. With the strong, many orders of magnitude, enhancement of the sensitivity, the nuclear clock could play the important role of a pathfinder that provides first indications of new physics.

4.2. Dark matter searches with a nuclear clock

Until about 5 years ago, the atomic clock investigations for the variation of the fundamental constants focussed on searching for the 'slow-drift' variation [111, 165]. In such experiments, the ratio of the frequencies of two clocks was monitored over a period of time. As it was pointed out above, such comparisons are also needed for metrology, to ensure long-term clock stability and validate the clock uncertainty budgets. In the case of microwave clocks, such comparisons go back for over a decade [170]. These tests were initially motivated by the controversial astrophysical result that observed α-variations with several sigma in studies of quasar-absorption spectra (see chapter II.H of [165] for a brief review), in addition to many BSM theories predicting varying constants.

It was recently shown that DM could source the variation of fundamental constants [171–173], providing new, very strong motivation for clock-comparison experiments. There is overwhelming observational evidence for the apparent existence of DM that is observed only via its gravitational interactions [174]. This mystery dates back to the 1930s [175] and is confirmed by numerous studies of astronomical objects at various scales, which show that the particles of the SM make up only about 16% of the total matter present in our Universe [176]. Despite decades of investigations, we have not identified the nature of DM. The difficulty in directly detecting the DM lies in the vast parameter space—we neither know the mass of the DM particles nor the strength of their non-gravitational interaction with the SM. However, unlike some other BSM searches, we have a definitive quantity that we do actually know about this 'new physics'—a DM energy density in our Galaxy is ρ_DM ≈ 0.3–0.4 GeV cm⁻³, corresponding to one hydrogen atom per a few cubic cm. A huge DM halo extends far outside of the visible galactic disk [177]. This is why the total DM mass in our Galaxy so much exceeds the 'normal matter' mass. Note that the actual DM mass in the Solar System is small, explaining why we so far did not see any DM effect on the motion of objects in a Solar System. Lunar ranging experiments set a limit on a maximum DM mass within the moon orbit [178].

The mass of the DM particles is unknown, and it is bound by about 10⁻²² eV on the light side [179] and by the Planck mass on the heavy side (anything heavier would be a black hole). The 'light' side limit assumes that a single particle type is responsible for a large fraction of DM and can be lowered in certain models. DM with mass less than ∼1 eV is generally referred to as 'ultralight'. It has to be bosonic since the Fermi velocity for fermionic DM with mass < 10 eV is higher than our Galaxy escape velocity [180]. Such light scalar fields arise in many BSM theories.

Various DM scenarios have been proposed that are potentially detectible with clocks. We note that clocks are sensitive to a broad range of ultralight scalar particles, which do not necessarily have to be a significant DM component, avoiding the lower mass limit above.

4.2.1. Oscillatory signals

Light DM particles have large mode occupation numbers, and their phenomenology is described by a classical field [172]. Optical clocks and other precision measurement techniques are well suited for detecting such DM candidates that act as coherent entities on the scale of individual detectors or networks of detectors. Optical clocks are sensitive to ultralight scalar DM that can be described as a field oscillating at the Compton frequency of the DM particles [172]. The coupling of such an oscillating field to the SM leads to an oscillation of fundamental constants, such as the fine-structure constant α and, therefore, atomic and nuclear energies. These result in the oscillation of clock frequencies leading to persistent time-varying signals that may be detected by monitoring ratios of clock frequencies. Previous searches for the slow-drift α-variation with Dy and Rb/Cs clocks were re-analyzed in terms of DM limits in [181, 182]. A method to search for fast oscillations of fundamental constants using atomic spectroscopy in caesium vapour was reported in [183], demonstrating sensitivities to higher DM masses in the range from 8 × 10⁻¹¹ to 4 × 10⁻⁷ eV.

The frequency of a resonant mode of an ultrastable crystalline silicon optical cavity is also sensitive to the variation of the fundamental constants. This sensitivity is directly traceable to the Bohr radius: the cavity spacer length is proportional to the silicon crystal lattice constant [184]. Therefore, such ultrastable cavities are also suitable for the clock-cavity DM searches. New frequency comparisons between a state-of-the-art strontium optical lattice clock, a cryogenic crystalline silicon cavity, and a hydrogen maser set new bounds on the coupling of ultralight DM to SM particles and fields in the mass range of 10⁻¹⁶ to 10⁻²¹ eV [184].

Very high sensitivity of a nuclear clock to the variation of α directly translates into a high sensitivity to oscillating effects as well as transient effects sourced by ultralight scalar DM. Therefore, the nuclear clock is expected to probe DM with sensitivity potentially exceeding present limits by many orders of magnitude. Moreover, the nuclear clock is also sensitive to the changes in fundamental constants other than α, i.e., related to the strong interaction. This means that a nuclear clock is sensitive to DM coupling to the nuclear rather than just to the electromagnetic sector of the SM [7], leading to sensitivities to different DM–SM couplings, increasing the discovery potential further.

4.2.2. Transient signals

If the DM contains some self-interaction, it may form potentially large-scale clumps (such as topological defects), leading to transient changes in the fundamental constants [171, 173].

If the DM fields have non-gravitational interactions with SM fields, encounters between such objects and precision measurement devices may induce observable transient signatures in clock-comparison and clock-cavity comparison data as the Earth moves through the galactic DM halo [171, 173].

Such DM can manifest, for example, as 'glitches' in atomic clock networks, either in space onboard satellites of the GPS clocks or on Earth. Both GPS [185] and ground-based clocks [186–188] have been used for such searches. As a network of clocks is swept by such extended (potentially Earth-size) DM objects at galactic velocities, the clocks will become desynchronized due to transient DM, but then will recover synchronization. The characteristic velocity here is the velocity with which Sun orbits the centre of the Milky Way Galaxy and, therefore, moves through the DM halo, at about 230 km s⁻¹. A network of clocks (as opposed to a single clock) distinguishes a transient frequency variation due to DM from one caused by terrestrial sources. Specifically, time delays between signals appearing across the clock network must be consistent with the passing of a DM transient object, taking about a minute to sweep the Earth diameter. Moreover, the use of clocks with different sensitivities to the α-variation allows additional rejection of false positives based on known sensitivities of different clocks. New limits on such transient DM have been recently reported by [188] using a European network of fiber-linked optical atomic clocks. Reference [188] considered the time-scales of over 60 s, where transient DM would manifest as a simultaneous signal visible in all data streams.

Stadnik [189] recently pointed out that one generally cannot neglect the back action of ambient matter on the scalar field in models with scalar-field topological defects with quadratic ϕ² interactions (such as considered in [171, 185–188]). As a result, the scalar field with such interactions can be screened [189] near the surface of and inside Earth, by Earth's atmosphere, or inside an apparatus or satellite affecting clock- and cavity-based searches for transient variations of the fundamental constants induced by the passage of domain walls. However, the back-action effects also make the scalar-field amplitude dependent on the local matter density leading to the dependence of the fundamental constants on the environment in which measurements are performed and spatial variations of the fundamental constants in the vicinity of a dense body such as Earth due to the formation of a bubblelike defect structure surrounding the dense body [189]. The resulting non-transient signatures produce stronger bounds on domain walls with ϕ² interactions then previous limits [189]. Clock-comparison experiments with nuclear clocks at different heights could further improves these bounds due to high sensitivity of a nuclear clock to the variation of fundamental constants.

4.2.3. Hierarchy problem, relaxion, and a nuclear clock

Aside from our lack of understanding of the nature of DM, the SM of fundamental interactions and elementary particles fails to answer a number of other fundamental questions. For example, there is a matter–antimatter asymmetry problem: a glaring lack of primordial (i.e., produced shortly after the Big Bang) antimatter in the present-day Universe. Another is a hierarchy (or a fine-tuning or a naturalness) problem. The hierarchy problem is related to the question as to why the weak force is so much stronger than the gravitational force. Within the SM, the Higgs boson mass is ultra-sensitive to any form of heavy new degrees of freedom. Therefore, the large quantum contributions to the square of the Higgs boson mass generically push it to the largest scale in the problem (for example, Planck mass) unless these are (extremely precise) fine-tuning cancellations [190].

A number of solutions are proposed to this problem, with variants of supersymmetry being particularly attractive as the lightest supersymmetric particle also provide a DM candidate that falls into a category of a 'weakly interactive massive particle', i.e. a ∼TeV-scale WIMP [191]. Lack of either observation of supersymmetric particles at the Large Hadron Collider (LHC) or a generic WIMPs over decades of experiments motivated searches for alternative solutions.

In 2015, a dynamical relaxation was proposed to account for the lightness of the Higgs without invoking new particles at the TeV scale [192]. The relaxion framework involves an additional new physics field in the form of an ultralight scalar, relaxion, which dynamically relaxes the Higgs mass with respect to its natural large value [193]. The relaxion is not accessible to the LHC or other energy-frontier detectors. In addition, the relaxion makes a viable light DM candidate [194] and can address the baryon asymmetry of the Universe [195]. A requirement that the relaxion solves a hierarchy problem produces constraints on the strength of its interaction with the SM particles. Therefore, from the standpoint of the ultralight particle searches with clocks, the relaxion presents a particularly interesting candidate with a well-defined parameter space and concrete benchmarks that we have to aim for. The parameter space for the light relaxion and a projected reach of the nuclear clock was recently studied in [196]. The ability of the nuclear clock to reach the relaxion parameter space is based on its unique sensitivity to the coupling of new physics to the nuclear sector of the SM and its large sensitivity.

5. Conclusion

In this paper we described a route towards a nuclear clock focussing on the planned efforts of the teams forming the ERC Synergy Grant 'ThoriumNuclearClock' consortium. We described the current knowledge on the properties of the ^229mTh nuclear clock transition and planned efforts to advance this knowledge, with different VUV laser sources for driving the transition, possibly assisted by a bridge process in the electron shell. We sketched the strategy towards the realization of a thorium nuclear clock with different experimental schemes, using thorium ions in a Paul trap or implanted in a VUV-transparent crystal. Finally, we outlined the potential of the nuclear clock for testing fundamental physics, especially the search for time variation of fundamental constants and the search for DM.

Acknowledgments

This work is part of the 'ThoriumNuclearClock' project that has received funding from the European Research Council (ERC) under the European Union's Horizon 2020 research and innovation programme (Grant Agreement No. 856415). Work at PTB and Vienna University of Technology is supported by the project EMPIR 17FUN07 'Coulomb Crystals for Clocks'. This project 17FUN07 CC4C has received funding from the EMPIR programme co-financed by the Participating States and from the European Union's Horizon 2020 research and innovation programme. The Vienna team acknowledges support by the Austrian Science Fund (FWF): P33627. AP acknowledges support from the Deutsche Forschungsgemeinschaft (DFG) in the framework of the Heisenberg Program. Fruitful discussions with Gilad Perez, Abhishek Banerjee, and Yevgeny Stadnik are gratefully acknowledged. We acknowledge technical support by Tomas Sikorsky, Kjeld Beeks, Pavlo Bilous and Fabian Schaden in the preparation of the manuscript.

Data availability statement

The data that support the findings of this study are openly available at the following URL/DOI: https://zenodo.org/communities/thorium_nuclear_clock/search?page=1size=20

Nuclear clocks for testing fundamental physics

Article metrics

Submit

Share this article

Author e-mails

Author affiliations

Author notes

ORCID iDs

Dates

Peer review information

Abstract
