Review—Towards Efficient Energy Storage Materials: Lithium Intercalation/Organic Electrodes to Polymer Electrolytes—A Road Map (Tribute to Michel Armand)

Many countries are in the midst of transition from biofuels to electricity. Electricity when harvested from renewable source is considered as clean energy. Electricity accounts for 1/5th of the total global final energy consumption that experiences an increase in consumption in high-income countries.²

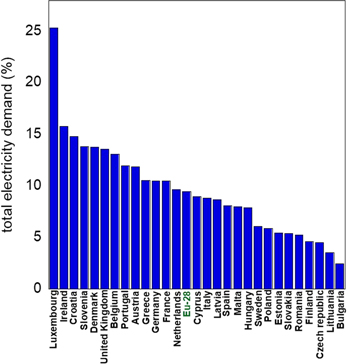

Estimation by the EEA (European Environmental Agency) suggests that the measures taken to reduce greenhouse gas emission will have an impact on the European Union's energy consumption. Assuming that 80% of cars would be electrified in 2050, the EU-28 member states (Fig. 1) would experience an increase in total electricity demand that would vary between 3 and 25% in 2030 and an average of 9.5% in 2050.³ This leads to an additional required electrical capacity of 150 GW for charging electric cars.

Zoom In Zoom Out Reset image size

Some of the renewable energy targets in other countries have been increased foreseeing the growing demand aimed at electrification of transport sector. The renewable energy target for India due to its good progress has been raised to 227 GW by 2027 wherein a major part is contributed from wind and solar energy.⁴ According to the U.S. Energy Information Administration, renewable energy accounts for 11% of the total energy demand and 17% of all electricity generation.⁵ China being the largest energy producer and consumer has set a target in total energy demand supply from renewables (non-fossil fuel share) to around 20% by 2030,⁶ with the Russian federation already crossing its 2024 target of 5.9 GW from renewable energy (including geothermal).⁷ The energy transition from biofuels to renewable could be effective with efficient energy storage systems (short- and long-term storage) that would bring us closer to our goals of reducing CO₂ emissions with complete transformation in the transportation sector to EVs.

During the past decades, the advent of portable electronics led to the increase in demand for battery systems. Different energy storage systems were under consideration before the development of lithium secondary batteries, for instance, nickel metal hydride, lead acid batteries, redox flow batteries and fuel cells. However, the low energy density, power density and storage efficiency seemed to limit their potential for further developments. Lithium was seen as a candidate of choice due to its highly reducing nature (−3.04 V vs standard hydrogen electrode), small atomic radius (high diffusion coefficient), and low atomic mass. Lithium ion batteries became a market boomer for portable electronics since their commercialization by Sony Corporation in 1991.

The intermittence or discontinuous nature of renewable energy sources requires high efficiency energy storage systems. Electrochemical systems, like batteries and super-capacitors, play a crucial role in this field. They provide efficient storage and delivery of energy, either on demand in stand-alone systems or load leveling in electrical grid integrated systems. When compared to lead acid batteries, lithium ion batteries are also seen as the power sources of choice for sustainable transport as they are considered the best option that can effectively guarantee the progressive diffusion of HEVs, PHEVs, and BEVs at high levels. The developments in lithium battery technology are shown in Fig. 2, starting from the introduction of rocking chair Li-ion batteries, organic electrodes, to state-of-the-art solid-state batteries and post Li systems such as Li air batteries. Many scientists have contributed their part in the development of materials and components for lithium batteries of today.

Zoom In Zoom Out Reset image size

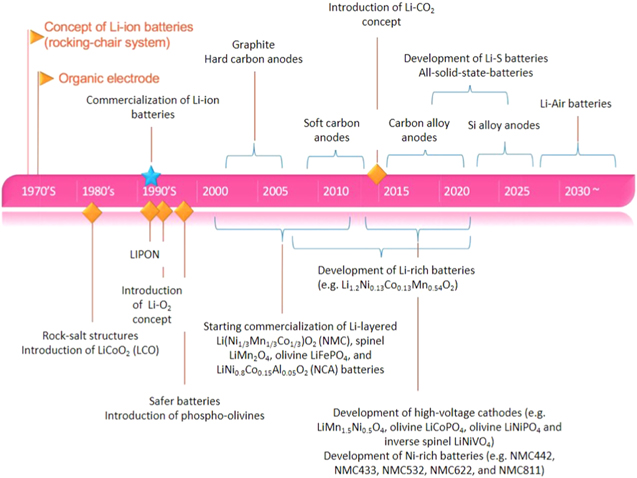

Herein we focus mainly on the marked breakthrough findings that ushered the rapid development of lithium-ion/lithium metal battery technology till date, through intercalation, conversion, organic electrodes, and polymer electrolytes where innovative concepts have been introduced by an outstanding scientist Michel Armand, with a brief outline of other similar improvements.

TiS₂ intercalation electrode was the most successful intercalation cathode material with a layered structure that received wide attention, although safety issues due to dendrite formation while employing Li metal was a major drawback. In the late 1970s, Michel Armand proposed the use of intercalation host materials with different potential as both positive and negative electrodes that formed a major breakthrough for the rise of the "rocking chair concept" rechargeable batteries.²² In these types of rechargeable batteries, the Li⁺ ions reversibly intercalate between the positive and negative electrodes (Fig. 3a bottom), thus circumventing the issue of Li dendrite formation as shown in Fig. 3b (top).¹⁶

First experimental results for rechargeable cells with two lithium intercalation host materials were carried out by M. Lazzari and Scrosati using Li_xWO₂/Li_yTiS₂¹⁷ system. Promising results were shown (Fig. 3c) that attracted attention from many corners towards the development of "rocking chair" rechargeable batteries.

In 1980, Goodenough et al. proposed a new type of cathode based on layered oxide (LiCoO₂) that unveiled a doubled up potential when compared to TiS₂ and good electrochemical reversibility.^23,24 Until today these materials are employed in lithium batteries. In addition, Goodenough also proposed a spinel material lithium manganese oxide (LiMn₂O₄) in 1980²⁵ and then an olivine material LiFePO₄ in 1996.²⁶ The olivine LiFePO₄ was of high interest due to the natural abundance of iron as well as due to being safe and cost effective. The only drawback that prevented it from commercialization during that time was its low electronic conductivity.

The pioneering work by Michel Armand and co-workers on carbon-coated LiFePO₄ cathode materials¹⁸ improved their performance considerably. A polymer precursor (organic polymer) was thermally decomposed and a uniform layer of carbonaceous layer was formed on the surface of the particles (Fig. 3d).¹⁸ This layer accounts for a regular distribution of electric field on the surface and diminished ion concentration gradients thereby improving the kinetics in terms of power and current density. Cyclic voltammetry tests (Fig. 3e)¹⁸ showed improved kinetics when compared to uncoated LiFePO₄ samples. The once considered dead-end material regained its popularity worldwide making it a candidate of choice for use in lithium batteries currently.

Li-ion batteries based on intercalation type of electrodes have stable cycling performance and low self-discharge. One of the main drawbacks of the intercalation electrodes is the low specific capacity. This diverted the attention towards transition metal oxide electrode materials that seemed promising as a replacement to the intercalation electrodes. Metal oxide based lithium-ion cells were proposed to have twice the capacity when compared to LiCoO₂/C cells due to the metal oxide 2-fold capacity per unit mass and 3-fold density, leading to 6 times increase in capacity per unit volume when compared to carbon. Therefore, a multi-electron reaction with phase nucleation ("conversion reaction"), e.g., T^MO + 2Li⁺ + 2e⁻⇆ T^M(0) + Li₂O (T^M = Co, Ni, Mn...), was proposed.^27–30 Several materials like transition metal oxides and sulfides were utilized as high capacity anode materials, and some transition metal fluorides have shown great potential as cathode materials for Li rechargeable batteries with a high theoretical capacity ranging from 500 to 1500 mAh g⁻¹.³¹ Although conversion reaction electrodes seem to be an impressive alternative, the reconstruction of T^MO from T^M(0) + Li₂O in such electrodes is only partially reversible and, additionally, a large amount of Li⁺ are consumed in the build-up of SEI layer. Both processes are responsible for the first cycle irreversibility of around 30% which leads to a major concern for the development of these materials.

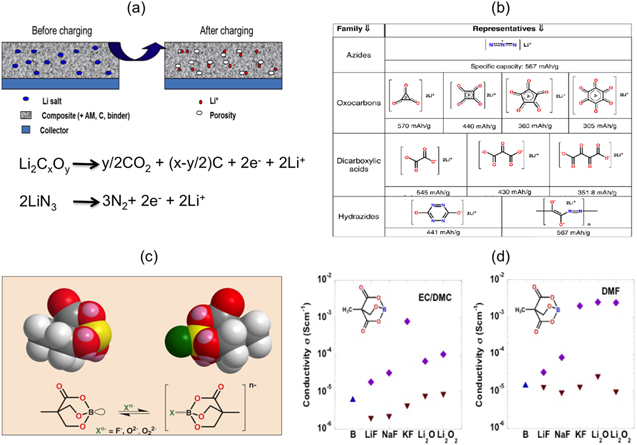

Michel Armand et al. proposed a facile, innovative, and efficient solution to this issue. Firstly, the route to solve the first cycle irreversibility was suggested by incorporating sacrificial salts, i.e., salts with an oxidizable anion that delivers the extra lithium required for the battery system. The schematic of the concept of sacrificial salt is shown in Fig. 4a.³² The salt is incorporated into the cathode as an additive. During charge, the salts get oxidized to supply extra lithium, and the proposed reaction mechanism is shown in Fig. 4a. A by-product of the reaction is the formation of porosity that could facilitate better electrolyte wettability.

Zoom In Zoom Out Reset image size

The salt families that could be utilized were identified as listed in Fig. 4b.³³ According to the requirements of the anode employed, the sacrificial salts can be chosen based on their oxidation potential for use with different anodes. The versatility of this concept is that in addition to conversion-based electrode, these salts can also be used for Li-ion batteries employing graphite as anodes as well as extended to any metal ion battery system (e.g., Na, K, etc.).

Controlling the SEI is of utmost importance for safety and cycle life of the cells especially in conversion reaction electrodes. Excessive thickness results in irreversible capacity loss and increased impedances. The large specific capacities obtained are appealing, but the charge and recharge processes are separated by almost a volt, reducing the energy efficiency. Therefore, in order to bring about partial solubilization of Li₂O, tunable anion carriers³⁵ were synthesized that could bypass the rate-limiting diffusion path in the solid state, and thus reduce polarization. The mechanism of boron complex additives that can trap anion, thus favoring partial solubilization, is shown in Fig. 4c. Ionic conductivity tests with the boron complex additives and other insulating salts like LiF, Li₂O, etc., in EC/DMC or DMF solvent, show an improvement in ionic conductivity (Fig. 4d),³⁴ thus showing the practicality of such additives. These additives could also be employed for Li-ion batteries in order to have a partial solubilization of LiF formed in the SEI, thus reducing the overall impedance of the cell.

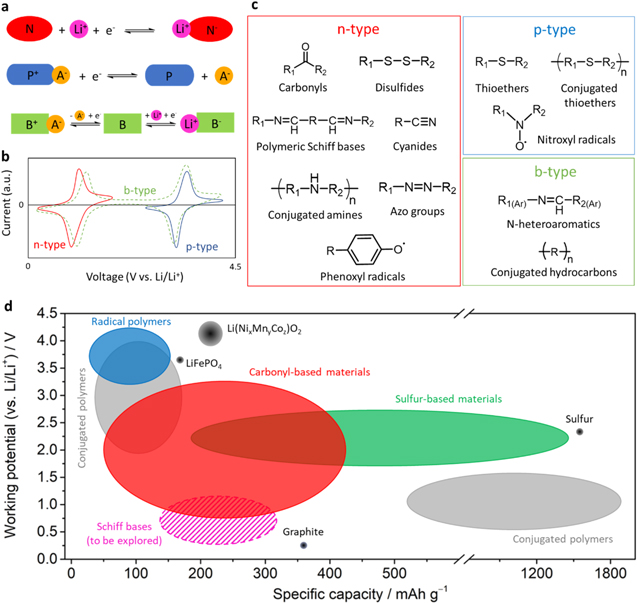

Organic electrode materials can be classified into three categories with respect to their redox reactions (Figs. 5a and 5b). For p-type (P⁺/P) materials, the neutral site (P) can be electrochemically oxidized to become positively charged (P⁺). In this state, the anion of the electrolyte (e.g., PF₆⁻, TFSI⁻, BF₄⁻, ClO₄⁻...) is necessary to compensate the created positive charge. Regarding n-type (N/N⁻) materials, the neutral state (N) can be reduced to form the negative form (N⁻). Here, it is the cation (e.g., Li⁺, Na⁺, K⁺, Mg²⁺, ...) that is needed in vicinity of those groups/molecules to compensate the negative charges. Finally, b-type (B⁺/B/B⁻) materials, also known as bipolar type can be electrochemically oxidized (B⁺) or reduced (B⁻). However, they are often employed as only n- or p-type depending on their most suitable electrochemical activity and stability. Several active groups or reaction mechanisms have been studied as shown in Fig. 5c and their main specific capacities are shown in Fig. 5d.

Zoom In Zoom Out Reset image size

Contrary to inorganic intercalation electrodes, organic electrodes are not limited by the size of ions to have an electrochemical activity. Therefore, this enables the same material to be used as active material for different battery technologies (Li-, Na-, K-, Mg-ion batteries) with different electrolytes (organic or aqueous) depending on the stability of the organic material.

The topic of active organic materials is currently deeply reviewed,^40–43 with some of these papers focusing on the practicality of organic batteries.^44,45 Each class of organic materials has advantages and drawbacks. To sum up, conjugated polymers have a high electronic conductivity but have sloping voltage profiles and become unstable upon cycling due to doping changes while carbonyl based compounds have high capacity and fast kinetics, but can have solubility issues in electrolyte, and display a low electronic conductivity. Sulfur-based compounds have a high capacity but have low kinetics, low electronic conductivity, and solubility issues. Radical compounds have very fast kinetics, a well-defined redox potential, but often have low capacities, low conductivity, high self-discharge, and solubility issues. Finally, the others (e.g., Schiff bases and azo compounds) often have high capacity and fast kinetics, but have low ionic conductivities and solubility issues. Furthermore, since computational studies of organic materials are becoming extremely efficient, deeper understanding of mechanism and rationalized innovation/design at the structural level can be expected.⁴⁶ So, commercialization of organic material seems viable, and will be soon mainly limited only by advancements in chemical industries for reaching a sustainable production.⁴⁴

The next part will describe the main events in organic batteries out of which the work of Michel Armand influenced this innovative and probably near future key technology.

Organic-based electrodes development is as old as lithium batteries. The first report of this type of electrodes can be traced back to the late 1960s, with the use of dichloroisocyanuric acid as cathode material for primary battery.⁴⁷ Later, several small organic molecules were tested as cathode material (e.g., quinones, dianhydrides, and phthalocyanines). The key improvement was the emergence of conductive polymers that initiated an intensive investigation of organics as electroactive materials from 1980s to 1990s (e.g., poly(acetylenes), polypyrroles, polythiophenes, polyanilines).⁴⁸ These polymers can reach a high specific capacity by doping. It is during this period that the first paper of Michel Armand emerged on this topic, with the utilization of poly(decaviologen) as anode electrode when he was at the University of Grenoble.⁴⁹

However, since these conductive polymers display lower stability than inorganic electrodes, research on these materials slowed down, in spite of several contributions being made on organosulfides. Another noticeable contribution of M. Armand during that time was done when he was a professor at the University of Montreal, with patents filed on polyquinonic ionic compounds.^50,51

The year 2000 can be traced as the reinvigoration and intense development of organic electrodes. The discovery of new organic electroactive materials at this date, such as nitroxyl radical polymers and conjugated carbonyl compounds, gave an exponential growing interest to this topic.⁵² At LRCS, University of Picardie Jules Verne, Amiens, M. Armand with J.-M. Tarascon and P. Poizot have contributed at large to the popularity of organic batteries, by being one of the first to point out the capability and necessity of organic electrodes.^53,54 Also, they revealed a new class of material, the organic salts, and some conjugated carbonyl compounds that can easily be extracted from biomass.⁵⁵ To sum up, these metal organic salts are based on dicarboxylic acids, hydroxyl quinones, and imides, that solve the solubility problem of small organic molecules.^56–58 Furthermore their organic electrode using Li-terephthalate became a reference for organic anode material, with a redox potential of 0.8 V vs Li/Li⁺, capacity of 300 mAh g⁻¹, and moderate capacity retention (78% after 50 cycles).⁵⁹

Finally, a novel useful redox active entity, the Schiff base, was revelated for sodium ion batteries by M. Armand and co-workers at CIC Energigune.^60–62 These promising compounds still, to date, need to be explored. Several other contributions were made by him on polyimide-polyethers,^63–65 organosulfur polymers,⁶⁶ poly(quinones-amine),⁶⁷ radical polymers,⁶⁸ and organic-nitrogen compounds⁶⁹ (work at IMN in Nantes).

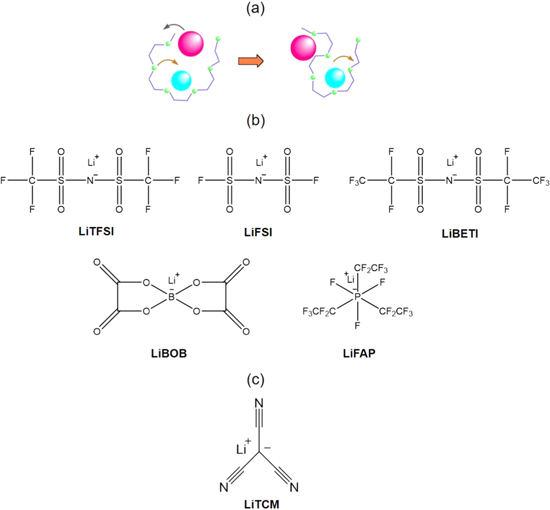

Ionic conductivity was first observed by P.V. Wright and co-workers^70,71 in a poly(ethylene) oxide PEO complex with sodium/potassium thiocyanates and sodium iodide. The solubility of PEO was found to be strongly influenced by certain metal salts and the conductivities observed in polymers were attributed to the electronic mobility. In 1978, Michel Armand^72,73 proposed the first PEO/Li⁺ dry solid polymer electrolyte (SPE) system (∼10⁻⁴ s cm⁻¹ at 40 °C–60 °C) for lithium batteries. His pioneering work led to a major breakthrough in solid-state rechargeable batteries that led to widespread attention. The ionic conduction in PEO-based electrolytes occurs through the dissociation of Li ions from the counter ion and coordinating to the electron-donor groups present in the polymer host followed by hopping from one coordinating site (usually composed of more than 3 electron donor groups) to another. Segmental motion of the polymer chain facilitates ion hopping (Fig. 6a) along the glassy/amorphous regions of the SPE, or by the ion cluster-assisted hopping mechanism, in which temporary re-association with the counter ion occurs before being re-solvated by electron donor groups in the polymer.

Zoom In Zoom Out Reset image size

It was known by the mid-1980s that the conduction mechanism in PEO polymer electrolytes was mainly taking place in the amorphous regions of the polymers. Efforts were made to reduce the crystallinity of the polymers either by attaching PEO strands to polymer backbone or to form co-polymer with the ether strands thereby considerably reducing the crystallinity and were termed as second-generation electrolytes.⁷⁵ Some of the co-polymerization techniques tested involved introducing PPO (polypropylene units (10%–20%)) in order to reduce the crystallinity as well as grafting polyether to polysiloxane and polyphosphazene backbone. Although co-polymerization improved the amorphous nature of the polymer, when used as polymer hosts with lithium salts, the transport properties were not appealing enough to be used for practical lithium batteries.⁷⁶ The conductivity of the polymer electrolytes also depends on the lithium salts employed. Simple salts such as LiCl do not provide good conductivity thereby leading to search for salts with well-delocalized negative charge and basicity. LiClO₄ lithium salt introduced earlier was a safety issue due its oxidative capabilities and LiPF₆ due to the formation of HF gas. For the first time, Michel Armand synthesized and suggested the use of imide base salt LiTFSI (lithium bis (trifluoromethane sulfonyl) imide)⁷⁷ due to its high conductivity in polymer electrolytes as a result of the salt acting as an effective plasticizer. This was attributed to the bulky anions. Consequently, new salts with bulkier anions were proposed (Fig. 6b) to have a higher dissociation property and improve the plasticizing capability of the salt. Another recent improvement in the development of salts by Michel Armand includes the synthesis of a fluorine-free salt (Fig. 6c) with a highly performing salt anion, tricyanomethanide [C(CN)₃– or TCM–].⁷⁴ LiTCM/PEO, as a designer polymer electrolyte, was investigated and detailed in all solid-state lithium sulfur batteries. The salt anion was shown to form a robust, highly covering, and ionically conductive passivation layer in comparison to the state-of-the-art fluorinated LiTFSI-based electrolytes. This was an effort to make non-fluorinated cost-effective salts as fluorine chemistry is expensive. Moreover, fluorinated salts are denser materials that affects the volumetric capacity as well as results in the formation of a thick SEI that could be detrimental towards the performance of batteries. The development of Li metal polymer battery systems has led to the commercialization of this technology by Bollore group (Blue car® and Blue Bus®) since 2011.

Currently all-solid-state lithium batteries are attracting more attention, either based on conventional solid polymer electrolyte (SPE) formed by simple dissolution of lithium salts in a polymer matrix or based on the single Li-ion conductors (SLIC).^78–82 The suppression of volatile and flammable organic solvents was a main driver of such development towards safer lithium batteries. In addition, the shape versatility and mechanical stability comfort the observed increase on SPE development. Particularly, the polymeric SLICs family has showed remarkable progress in the last decade where many strategies have been reported.^79,80 Polymeric SLICs were designed to overcome key drawbacks associated with dual-ion conducting SPEs, especially, their lower Li-ion transference number. The anion accumulation within the anode side in the conventional SPEs is assumed to lead to polarization. Thus, poor performances (e.g., voltage losses, high internal impedance and parasitic reactions) due to the generated concentration gradient can be avoided by designing SLICs with transference number approaching unity.⁸³ Furthermore, it is predicted that the use of SLICs can suppress the Li dendrites growth and improve the cycling performances at relatively high current.⁸⁰ The necessity of developing, versatile, safe, and high-performance batteries was driving an extensive work for the development of SPEs in general and particularly polymeric SLICs.^78–81,84 Since the 1980s, the elaboration of new materials was focused on the selection of the architecture, the mechanism of anions encoring, the design, and the synthetic strategy.^{78–80,85–89}

Several strategies were investigated and were mostly focused on the immobilization of the anions within polymeric backbone or within inorganic matrix. M. Armand et al. reported on the functionalization of SiO₂ and Al₂O₃ nanoparticles by effective immobilization of organic moieties bearing Li salt (Fig. 7a).⁹⁰ The prepared Li-ion conducting inorganic–organic hybrid electrolytes showed practical conductivities at relatively high temperatures and a dependence on the particle size. Furthermore, the incorporation of soft polymer segment of polyethylene glycol (PEG) into the inorganic matrix was reported to improve even more the ionic conductivity. In other words, the co-grafting of the organic moieties bearing the Li-ion and the polymer segment (PEG) helped the solvating and desolvating of the Li ions.⁹⁰

Zoom In Zoom Out Reset image size

Other approaches using polymer backbone to prepare SLICs were reported and can be obtained via two strategies. The first method consisted in the synthesis of lithium salt monomer and their subsequent polymerization.^86–88,92 The second one consisted on the chemical modification of commercially available and existing polymer backbones.^91,93

Using the first approach, Armand et al. presented the first example of triblock copolymer consisting of polystyrene block bearing a TFSI group and PEO block (Fig. 7b). The PSTFSILi-PEO-PSTFSILi copolymer were highlighted as quasi SLICs, with transport number values superior to 0.85 and an ionic conductivity value of 1.3 × 10⁻⁵ S cm⁻¹ measured at 60 °C.

The prepared SLICs exhibited good mechanical properties and extended electrochemical stability window up to 5 V (vs Li/Li⁺). Moreover, cyclability and performances of these materials were evaluated using lithium-metal battery prototypes showing impressive results. This approach promoted the development of more SLICs based on the polymerization of factionalized monomers. Armand et al. also reported on SLIC obtained by the polymerization of lithium (4-styrenesulfonyl) (trifluoromethanesulfonyl)imide (LiSTFSI) to obtain the poly(4-styrenesulfonyl) (trifluoromethanesulfonyl)imide (LiPSTFSI)⁸⁹ as shown in Fig. 7c. The LiPSTFSI/PEO blend showed relatively high ionic conductivity (∼10⁻⁵ S cm⁻¹) at 70 °C. To further improve the ionic conductivity of the LiPSTFSI polysalt, another SLIC was developed by copolymerization of the LiPSTFSI and the methoxy-polyethylene glycol acrylate (MPEGA) (Fig. 7d).⁸⁷ The combination of the flexible/delocalized nature of the –SO₂–N–SO₂–CF₃ structure in the polysalt and the flexible ethylene oxide (EO) oligomers were exploited in the designed SLICs. Hence, an improvement of the ionic conductivity in the temperature ranges of RT up to 60 °C was highlighted.

To even more exploit the concept of flexibility and delocalization observed in the case of the LiPSTFSI, Armand et al. have designed a novel SLIC thermally stable up to 300 °C and showing a high transference number when blended with PEO (0.91) (Fig. 7d).⁸⁶ The prepared lithium polysalt was based on lithium-poly[(4-styrenesulfonyl)(trifluoromethyl(S-trifluoromethylsulfonylimino)sulfonyl)imide] (LiPSsTFSI). The super-delocalized polyanion displayed a low glass-transition temperature and exhibited a high Li-ion conductivity (1.35 × 10⁻⁴ S cm⁻¹ at 90 °C) when blended with PEO.

As a second strategy, the functionalization of already existing and commercially available polymers was also explored. Recently, Michel Armand's team presented SLICs polymers based on blends of PEO with respectively functionalized poly(acrylic acid) and ethyl cellulose (Fig. 6e).^91,93 Both polymers were functionalized by anion of lithium salt LiTFSI, reaching conductivities of 1.77 × 10⁻⁵ S cm⁻¹ measured at 80 °C and 5.2 × 10⁻⁵ S cm⁻¹ measured at 70 °C for PEO/PA-LiTFSI and PEO/ethylcellulose-LiTFSI SPEs, respectively. It was clearly emphasized that the design of the polysalt-like architecture needs to consider the elasticity of the material. Indeed, the incorporation of spacer with low energy of conformational changes within the copolymer backbone and the pending salt part is a key parameter to ensure a better dissociation rate. Still one of the major challenges facing the development of SLICs is the achievement of practical ionic conductivities (10⁻⁴ s cm⁻¹) at RT. Thus, further work should be directed toward the improvement of the performance of these materials and their electrochemical stability at lower temperatures and at high charge/discharge rates.
