Persistent Non-Gaussian Structure in the Image of Sagittarius A* at 86 GHz

S. Issaoun; M. D. Johnson; L. Blackburn; A. Broderick; P. Tiede; M. Wielgus; S. S. Doeleman; H. Falcke; K. Akiyama; G. C. Bower; C. D. Brinkerink; A. Chael; I. Cho; J. L. Gómez; A. Hernández-Gómez; D. Hughes; M. Kino; T. P. Krichbaum; E. Liuzzo; L. Loinard; S. Markoff; D. P. Marrone; Y. Mizuno; J. M. Moran; Y. Pidopryhora; E. Ros; K. Rygl; Z.-Q. Shen; J. Wagner

doi:10.3847/1538-4357/ac00b0

1. Introduction

The Galactic Center hosts the closest known supermassive black hole, associated with the radio source Sagittarius A* (Sgr A*; Balick & Brown 1974). With a mass M ∼ 4.1 × 10⁶ M_⊙ at a distance D ∼ 8.1 kpc, Sgr A* subtends the largest angle on the sky among all known black holes (Ghez et al. 2008; Gillessen et al. 2009; Reid 2009; Gravity Collaboration et al. 2018a). Thus Sgr A* is one of the most promising targets for studying black hole accretion and outflow via direct imaging (Goddi et al. 2017). The spectral energy density of Sgr A* in radio rises with frequency, with a turnover in the submillimeter regime, where the accretion flow becomes optically thin (Falcke et al. 1998; Bower et al. 2015, 2019). However, the southern declination and interstellar scattering of Sgr A* add challenges to decades of radio observations with very long-baseline interferometry (VLBI; Alberdi et al. 1993; Backer et al. 1993; Krichbaum et al. 1993; Marcaide et al. 1999; Bower et al. 2004; Shen et al. 2005; Lu et al. 2011a; Bower et al. 2014). Thus, the intrinsic accretion and outflow structure of Sgr A* remains rather poorly understood.

Early observations at 1.3 mm with the prototype Event Horizon Telescope (EHT) indicate that the radio emission of Sgr A* originates from a region that is comparable to the size of the black hole's "shadow" (∼50 μas; Doeleman et al. 2008; Fish et al. 2011; Johnson et al. 2015; Fish et al. 2016; Lu et al. 2018). On these scales, the image morphology is dominated by strong gravitational lensing of the black hole rather than by details of the innermost accretion flow (as seen in M87; Event Horizon Telescope Collaboration et al. 2019). At longer wavelengths, images of Sgr A* are strongly scatter-broadened (blurred) by the intervening interstellar medium (ISM; e.g., Davies et al. 1976; van Langevelde et al. 1992; Frail et al. 1994; Bower et al. 2004; Shen et al. 2005; Bower et al. 2006; Johnson et al. 2018; Psaltis et al. 2018).

Radio waves passing through the ionized ISM propagate via multiple paths due to changes in the refractive index of the turbulent plasma from density inhomogeneities. The angles at which the waves scatter are proportional to the squared wavelength of the wave. The intrinsic angular size of Sgr A* at wavelengths of 0.1–1 cm is roughly proportional to the wavelength. As a result, the ratio of intrinsic source angular size to scatter-broadening is ∼0.3/λ_cm along the major axis and ∼0.6/λ_cm along the minor axis (where λ_cm is the observing wavelength in centimeters; Johnson et al. 2018), making 3.5 mm the longest observing wavelength accessible on Earth at which Sgr A* intrinsic structure would not be sub-dominant to scattering. The ideal regime for probing and separating intrinsic source properties from scattering is thus at 3.5 mm: intrinsic structure starts to dominate over scattering effects and the radio emission originates from the optically thick innermost accretion flow, also corresponding to the launching region of a possible outflow or jet (Narayan et al. 1995; Falcke & Markoff 2000; Özel et al. 2000; Yuan et al. 2003).

Although intrinsic structure dominates at 1.3 mm, the scattering is nonetheless still substantial and could potentially contaminate tests of general relativity with the EHT, introducing random distortions and substructure in the image. The specific effects on 1.3 mm VLBI images depend on the power spectrum ${ \mathcal Q }({\boldsymbol{q}})$ of spatial irregularities that produce the scattering (where q is a wavevector; Johnson et al. 2018; Zhu et al. 2019). Because these underlying irregularities that cause refractive scattering at 3.5 mm also produce image variations at 1.3 mm, scattering studies at 3.5 mm are essential to guide imaging Sgr A* at 1.3 mm with the EHT. Furthermore, scattering-induced substructure, predicted by Narayan & Goodman (1989) and Goodman & Narayan (1989) and first measured in Sgr A* by Gwinn et al. (2014) at 1.3 cm, is caused by modes in the scattering material on scales much larger than the diffractive scale of the scattering. This turbulence in the ISM induces stochastically varying compact substructure in images of Sgr A* that contaminates long-baseline source behavior with added "refractive noise" in the visibility domain, making the recovery of small-scale intrinsic source structure difficult (Johnson & Gwinn 2015; Johnson & Narayan 2016).

In this paper, we utilize the scattering model developed by Psaltis et al. (2018), using physical parameters from Johnson et al. (2018) that were estimated using archival observations of Sgr A*. The two-dimensional power spectrum of the phase fluctuations ${ \mathcal Q }({\boldsymbol{q}})$ is modeled as an unbroken anisotropic power law with a spectral index β extending between a maximum scale (the outer scale r_out) and a minimum scale (the inner scale r_in): Q( q ) ∝ ∣ q ∣^−β (β is also the exponent for the three-dimensional power spectrum of density fluctuations; e.g., Blandford & Narayan 1985; Rickett 1990). This power spectrum then yields a second-order phase structure function ${D}_{\phi }({\boldsymbol{r}})=\left\langle {\left[\phi ({\boldsymbol{r}}^{\prime} +{\boldsymbol{r}})-\phi ({\boldsymbol{r}}^{\prime} )\right]}^{2}\right\rangle \propto {\left|{\boldsymbol{r}}\right|}^{\alpha }$ in the inertial range r_in ≪ r ≪ r_out, where α ≡ β − 2. While two scattering models may have identical scatter-broadening, they may still differ wildly in their refractive substructure. Combining information from both scatter-broadening from 1.3 mm to 30 cm and centimeter-wave substructure strongly constrains the scattering power spectrum and the asymptotic Gaussian morphology parameters of the scatter-broadening kernel. However, a degeneracy between the power-law index α and the inner scale of the turbulence in the ISM r_in remains (Johnson et al. 2018): various combinations of scattering and intrinsic source parameters can produce the same observed behavior in the scattered image, illustrated in Figure 1. Sensitive VLBI observations at 3.5 mm offer a prime opportunity to break degeneracies between the parameters by connecting to millimeter-wave scattering behavior.

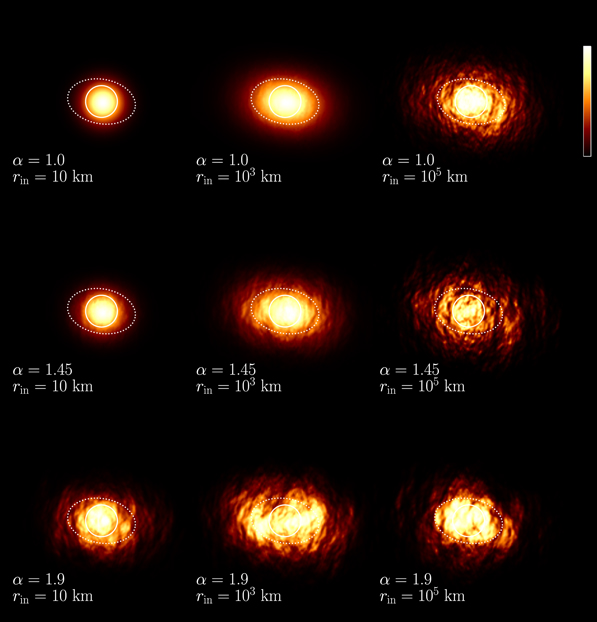

**Figure 1.** Modeled effects of interstellar scattering on a simulated source whose intrinsic structure is that of a circular Gaussian with a full-width at half-maximum (FWHM) of 100 μas (shown as the solid circle) at λ = 3.5 mm with varying power-law index α and inner scale of turbulence r_in. The dashed ellipse shows the FWHM size of the measured Gaussian source on the sky for Sgr A* in previous 3.5 mm experiments (Ortiz-León et al. 2016; Brinkerink et al. 2019). Each row has constant α and varying r_in (10, 10³, and 10⁵ km): as r_in increases, the scatter-broadening and the level of refractive substructure increase. Each column has constant r_in and varying α (1.0, 1.45, and 1.9): as α increases, the scatter-broadening and the level of refractive substructure increase.
Download figure:
Standard image High-resolution image

For the past two decades since its first detection at 3.5 mm (Rogers et al. 1994), the scattered image of Sgr A* has been commonly modeled as an elliptical Gaussian source with a position angle of ∼ 80° east of north (e.g., Shen et al. 2005; Bower et al. 2006; Lu et al. 2011a; Ortiz-León et al. 2016; Brinkerink et al. 2019). Closure phases—the directed sums of visibility phases over closed triangles of baselines and robust to station-based errors (e.g., Cornwell 1989; Rauch et al. 2016; Thompson et al. 2017; Blackburn et al. 2020)—measured by early 3.5 mm experiments were consistently zero (Rogers et al. 1994; Krichbaum et al. 1998; Doeleman et al. 2001; Shen et al. 2005; Bower et al. 2006; Lu et al. 2011a), indicating source symmetry on the probed spatial scales, while non-zero closure phases at lower frequencies are entirely attributable to interstellar scattering (Johnson et al. 2018). A new set of higher-sensitivity experiments, including the Large Millimeter Telescope Alfonso Serrano (LMT) and the Robert C. Byrd Green Bank Telescope (GBT), detected the first non-zero 3.5 mm closure phases in Sgr A* on new closure triangles provided by the addition of the LMT, which could either be due to intrinsic structure or non-Gaussian structure in the scattering screen (Ortiz-León et al. 2016; Brinkerink et al. 2016). These results motivate breaking the assumptions of an elliptical Gaussian source model and attempting to recover complex underlying source structure via imaging.

The recently added VLBI phasing capability to the Atacama Large Millimeter/submillimeter Array (ALMA) provided additional sensitivity and long north–south baselines to the Global Millimeter VLBI Array (GMVA) at 3.5 mm (Matthews et al. 2018). While pre-ALMA experiments could not identify the detailed morphology or constrain the radio emission model, the sensitivity and coverage brought by joining ALMA to the GMVA for the first time in 2017—including tripling the angular north–south resolution—has offered a major leap in imaging capabilities and model discrimination for Sgr A*. In Issaoun et al. (2019b), we showed that measured visibility amplitudes on long baselines to ALMA exhibit clear non-Gaussian behavior, which was a function of baseline length, and ruled out a potential scattering model that would significantly contaminate future EHT images at 1.3 mm (Zhu et al. 2019). Using interstellar scattering mitigation methods (Johnson 2016) coupled with the enhanced coverage of GMVA+ALMA, we then reconstructed a first image of the unscattered structure of Sgr A* at 3.5 mm. The unscattered source had a major axis FWHM of 120 ± 34 μas (12.0 ± 3.4 Schwarzschild radii (R_Sch); where R_Sch = 2 GMc⁻²) and a circularly symmetric morphology (major-to-minor-axis ratio of ${1.2}_{-0.2}^{+0.3}$ ), which requires either that the accretion flow dominates the emission or that jet-dominant emission from Sgr A* is pointed within 20° of the line of sight.

Issaoun et al. (2019b) used the scattering model that best matched observations (Johnson et al. 2018, hereafter model J18) in the imaging process to mitigate the scattering effects and recover the intrinsic structure. Based on a single observation, it is not clear whether the scattering parameter assumptions for Sgr A* are valid: long-baseline detections could either be attributed to intrinsic structure, scattering substructure, or a mix of both. The 2017 long-baseline detections were more consistent with the near-Kolmogorov power spectrum (power-law index α = 1.38) from J18 rather than a flat spectrum (Goldreich & Sridhar 2006, hereafter model GS06) governing the stochastic variations in the refractive noise. It is, however, possible that the low refractive noise observed can be attributed to a statistically unlikely low refractive noise realization from the GS06 flat-spectrum scattering model. Thus, it remains important to sample these scales at different instances in time. We therefore performed follow-up observations of Sgr A* with GMVA+ALMA in 2018 to gain further confidence in the scattering model and tighten constraints in the model parameters to describe the ISM along the line of sight to Sgr A*.

The organization of the paper is as follows. We summarize observations and data reduction in Section 2, present our final GMVA+ALMA visibility amplitudes on Sgr A* in Section 3, and discuss the constraints on scattering and intrinsic source parameters enabled by these latest results in Section 4. A summary is given in Section 5.

2. Observations and Data Reduction

We observed Sgr A* (α_J2000 = 17^h45^m400361, ${\delta }_{{\rm{J}}2000}\,=-{29}^{\circ }00^{\prime} 28\buildrel{\prime\prime}\over{.} 168$ ²⁴ ) with the GMVA (project code MJ001), composed of the eight Very Long Baseline Array (VLBA) antennas equipped with 86 GHz receivers, the GBT, and phasing 35 single ALMA antennas (Matthews et al. 2018). The observations were conducted on 2018 April 14 and 17 as part of the Cycle 5 VLBI session with ALMA (project code 2017.1.00795.V). GMVA stations recorded a total bandwidth of 256 MHz per polarization divided into eight 32 MHz-wide intermediate frequencies (IFs), while ALMA recorded overlapping 62.6 MHz IFs separated by 58.59375 MHz that fully covered the GMVA band. The two 6 hr tracks included three calibrator sources: 3C 279, NRAO 530, and J1924−2914. The GBT participated for 3 hours in each track, but the station recording was lost on April 17 due to a recording disk failure.

The data were correlated with the VLBI correlator at the Max Planck Institute for Radio Astronomy in Bonn using the DiFX software (Deller et al. 2011). To accommodate the noncongruent IF configuration between ALMA and the other stations, data were correlated over distinct sub-IFs and synthesized back into contiguous GMVA IFs using DiFX tool difx2difx. Mixed linear-circular polarization correlation products between ALMA and the GMVA were transformed to pure circular polarization via PolConvert (Martí-Vidal et al. 2016), utilizing a full calibration of the ALMA interferometric products performed by the ALMA quality assurance (QA2) team (Goddi et al. 2019). Data were then fringe fitted and reduced using the enhanced Haystack Observatory Postprocessing System²⁵ pipeline (EHT-HOPS) presented in Blackburn et al. (2019), with additional validation and cross-checks from the NRAO Astronomical Image Processing System (AIPS; Greisen 2003). The EHT-HOPS pipeline introduces a number of key improvements over the original HOPS software, including global fringe fitting and improved phase calibration. Our 86 GHz implementation of the EHT-HOPS reduction follows the same procedure as in Issaoun et al. (2019b). We performed a priori amplitude calibration and opacity correction with the task APCAL within AIPS using observatory-provided telescope gain information and system temperatures measured during the observations. To form Stokes I, corrections for field angle rotation and polarimetric gain ratios between left and right polarizations were derived and applied using the EHT Analysis Toolkit²⁶ (eat library) polarimetric calibration framework for the EHT-HOPS pipeline (Blackburn et al. 2019; Steel et al. 2019).

Figure 2 shows the detections and non-detections per scan of ∼9 minutes for Sgr A* (top panel) and corresponding signal-to-noise ratio (S/N) of scan-averaged visibilities for Sgr A* detections for both observed epochs. All detections beyond ∼1 Gλ are on baselines to ALMA. Fringe solutions (delays and delay-rates) are determined from detections with S/N > 7 over the scan, and visibilities on weaker baselines can be measured once station delays and delay-rates are known. After a priori calibration, we proceed to further calibrate antenna gains from calibrator imaging and recover improved measurements of the visibility amplitudes for Sgr A*.

3. Results

Sensitivity estimates from a priori amplitude calibration of individual telescopes commonly overestimate station performance, not taking into account effects such as pointing and focus errors, receiver misalignments, operational difficulties, or unstable weather conditions. The visibility amplitudes obtained on Sgr A* from a priori calibration alone do not fully capture true source behavior, and further steps must be taken to disentangle station-based residual amplitude errors from source signal before any more detailed analysis can take place. The amplitude calibration for Sgr A* is done in three stages:

1.
a priori amplitude calibration using site metadata (see Section 2);
2.
inner 1 Gλ self-calibration to a Gaussian source (see Section 3.2); and
3.
residual self-calibration in Themis modeling of the intrinsic and scattering parameters (see Section 4.2).

We present our calibrator imaging in Section 3.1, our calibration methods for Sgr A* data and final gain constraints in Section 3.2, and final visibility amplitudes in Section 3.3.

3.1. Imaging the Calibrator J1924−2914

To improve the amplitude calibration of the array, we utilize J1924−2914, one of the two calibrators observed alternating with Sgr A*, and with sufficient coverage for imaging (see Figure 3). J1924−2914 appears point-like to ALMA as a connected-element interferometer and its source-integrated flux density is measured by interferometric-ALMA observations simultaneous to our VLBI tracks (see Table 1). Its compactness, stable structure even on VLBI scales within a single epoch, and known flux density make it an ideal imaging target with which to obtain an estimate of station-based residual gain corrections during our observations via self-calibration.

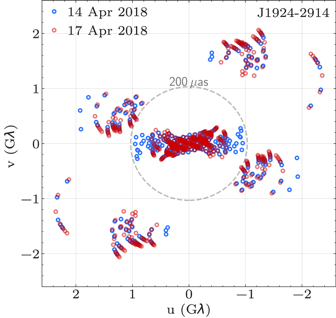

**Figure 3.** The (*u,v*) coverage of J1924−2914 for both epochs. April 14 scan-averaged detections are shown as blue points; April 17 as red points. The coverage is similar to that of Sgr A* (Figure 2), but with additional east–west baselines to VLBA Maunakea (MK).
Download figure:
Standard image High-resolution image

Table 1. Source-integrated Flux Density of Observed Sources from Interferometric-ALMA

Source	Apr 14 S _ν (Jy)	Apr 17 S _ν(Jy)
Sgr A*	2.2 ± 0.2	2.3 ± 0.2
NRAO 530	3.2 ± 0.3	3.2 ± 0.3
J1924−2914	4.6 ± 0.5	4.5 ± 0.5
3C 279	14 ± 1	15 ± 1

Note. These values are provided with interferometric-ALMA data as part of the ALMA Quality Assurance 2 (QA2) process and assume a 10% uncertainty in the ALMA amplitude calibration (Goddi et al. 2019).

Download table as: ASCII Typeset image

While having (u, v) coverage comparable to J1924−2914, the other imageable calibrator, NRAO 530, is a north–south extended source (Bower et al. 1997; Bower & Backer 1998; Feng et al. 2006; Chen et al. 2010; Lu et al. 2011b; Brinkerink et al. 2019; Issaoun et al. 2019b). In an array configuration where the only north–south baselines resolving the jet are long baselines to ALMA, imaging of the source with the full array proved very difficult, resulting in unphysical images severely impacted by the lack of intermediate baselines between inter-VLBA and ALMA baselines. Imaging without ALMA resulted in various source structures (and varied gain corrections) that provided statistically acceptable fits to closure quantities, leading to low confidence in any single image structure. We thus omit NRAO 530 from our gain analysis. We also observed 3C 279 as a fringe-finder source with the full array for a few minutes but omit it from further analysis because its (u, v) coverage is insufficient for imaging.

Following the same method as Issaoun et al. (2019b), we made use of the large number of closure phases and log closure amplitudes—constructed via the quotient of two visibility amplitude products involving four stations and robust to station-based errors (Twiss et al. 1960; Readhead et al. 1980)—and the total flux density constrained by the interferometric-ALMA measurement in each observation to image J1924–2914 with the eht-imaging library (Chael et al. 2016, 2018b). Closure-only imaging is robust to station-based instrumental errors, allowing us to reconstruct source morphology and derive residual telescope gain corrections directly from self-calibration to the obtained brightness distribution. We confirm general image morphology and gain trends via model fitting to the observed closure products with simple elliptical Gaussian components, and we test goodness-of-fit by calculating a reduced χ² of the model prediction against measurements of closure phases and log closure amplitudes.

We present J1924−2914 images and model fits²⁷ for both epochs in Figure 4. The observations have a uniform-weighted beam = (128 × 83) μas and P.A. = 38° for April 14, and a uniform-weighted beam = (129 × 76) μas and P.A. = 45° for April 17. The resulting images and model fits have reduced χ² < 1.7 on closure products with no error budget inflation added to account for possible systematics. A systematic error budget of 1% (1% of amplitudes added in quadrature to the thermal noise on complex visibilities) is required to drive reduced χ² to unity. The location of the components agree well between the images and model fits of each respective observation. The April 14 morphology is best described with four elliptical Gaussian components based on the lowest reduced χ² on the closure data products and realistic station gain reconstructions, while the April 17 morphology, missing GBT baselines, is best constrained with three elliptical Gaussian components. On both days, observations indicate a consistent northwest source elongation. The northwest elongation of the J1924−2914 jet is consistent with our first image of the source at 3.5 mm (Issaoun et al. 2019b) and follows the mm-jet morphology from 7 mm (Shen et al. 2002) and 1.3 mm observations (Lu et al. 2012).

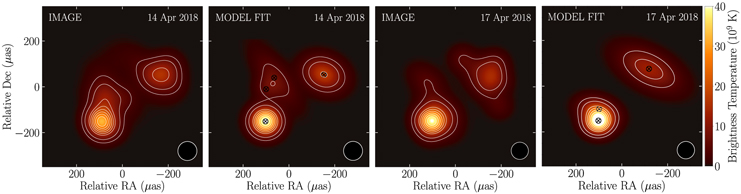

**Figure 4.** Closure-only images and elliptical Gaussian component model fits of J1924−2914 using the `eht-imaging` library. The contour levels are 10%–90% of the peak in steps of 10%. Black markers denote the central location of each model component in the model fits, produced using the `eht-modeling` module of the library. The images and model fits are restored with a circular Gaussian beam with a ${\rm{FWHM}}=1/{{\boldsymbol{u}}}_{max}=83\,\mu {\rm{as}}$ for April 14 and $1/{{\boldsymbol{u}}}_{max}=76\,\mu {\rm{as}}$ for April 17. The restoring beam is shown in the lower right corner of each plot. All images and model fits have reduced χ² < 1.7 on closure products with no systematic noise budget added.
Download figure:
Standard image High-resolution image

3.2. Calibrating Sagittarius A* Visibility Amplitudes

Because of its scatter-broadening, we have fewer detections and lower S/N for Sgr A* than for the calibrators. Our data sets thus do not have sufficiently robust closure quantities to drive the recovery of non-trivial structure in closure-only imaging. Following the methodology employed in Issaoun et al. (2019b), we use two methods for amplitude calibration:

1.
we obtain station gain trends from self-calibration to closure-only model fits and images of a calibrator;
2.
we obtain station gain trends directly from Sgr A* by self-calibrating all visibility amplitudes within 1 Gλ using an elliptical Gaussian visibility function obtained from previous 3.5 mm experiments (Ortiz-León et al. 2016; Brinkerink et al. 2019, hereafter O16 and B19, respectively).

For the second method, we assume that the behavior of the visibility amplitude function for Sgr A* on baselines within 1 Gλ is dominated by the image second moment (e.g., Hu 1962; Issaoun et al. 2019a), which follows that of the visibility function of a Gaussian source with an FWHM size of 215 by 140 μas and a position angle of 80° (east of north). The choice of Gaussian widths is motivated by measurements from previous 3.5 mm experiments that included the sensitive LMT improving the recovery of the minor axis size (O16; J18; B19). We therefore self-calibrated our Sgr A* amplitudes within 1 Gλ to the expected Gaussian morphology and obtain station-based amplitude gain corrections that are subsequently applied to correct visibility amplitudes on all baselines on a time-varying point-by-point basis. Since ALMA does not have any baselines within the 1 Gλ cutoff, it cannot be calibrated via this method.

In Table 2, we present the median multiplicative station gain corrections obtained via imaging and model fitting of J1924−2914 and short-baseline (within 1 Gλ) self-calibration of Sgr A* to an expected Gaussian source size. The J1924–2914 imaging/modeling and the Sgr A* self-calibration methods gave comparable gain solutions for most stations, validating the Gaussian source assumption for short-baseline measurements of Sgr A*. According to the VLBA logs, North Liberty (NL) and Maunakea (MK) had poor weather on April 14, which is consistent with the high gain corrections found for these two stations. For April 17, NL gain corrections are not well constrained as its shortest baseline, to the GBT, is missing. For subsequent analysis, we flag NL for all data sets. MK is not present in the Sgr A* data set, as the source is too scatter-broadened to be detected on long baselines to MK. It is worth noting that we tend to recover higher gain corrections from the J1924–2914 Gaussian component model fitting than from the direct imaging for the stations with only long baselines (ALMA, MK), as the model fits do not capture smaller structural variations. Given the good consistency between imaging and modeling gain corrections for all other stations, we adopt imaging gain corrections for long-baseline stations. Note that we apply all derived gain corrections as a function of time to the data, not just the median scaling presented in Table 2. Because ALMA's multiplicative gain corrections are near unity for J1924–2914, both for imaging and modeling, applying them would not significantly change the flux density on ALMA baselines. We thus choose not to apply ALMA gain corrections so as not to introduce scatter from the gain solutions to the visibility amplitudes.

Table 2. Station Median Multiplicative Gain Corrections to the Visibility Amplitudes for J1924–2914 Compared to Sgr A*

		2018 Apr 14			2018 Apr 17
Station	Sgr A*	J1924−2914	J1924−2914	Sgr A*	J1924−2914	J1924−2914
	Self-Cal	Model Fit	Image	Self-Cal	Model Fit	Image
ALMA	⋯	${1.8}_{-0.2}^{+0.4}$	${1.3}_{-0.2}^{+0.3}$	⋯	${1.1}_{-0.2}^{+1.2}$	${1.0}_{-0.2}^{+1.1}$
BR	${2.4}_{-1.1}^{+1.4}$	${1.9}_{-0.9}^{+2.7}$	${2.0}_{-0.9}^{+2.7}$	${1.6}_{-0.5}^{+2.5}$	${1.6}_{-0.5}^{+2.8}$	${1.6}_{-0.5}^{+2.7}$
FD	${2.2}_{-0.5}^{+1.0}$	${2.8}_{-1.1}^{+2.3}$	${2.8}_{-1.1}^{+2.3}$	${1.9}_{-0.2}^{+0.4}$	${3.4}_{-1.9}^{+3.4}$	${3.3}_{-1.7}^{+3.1}$
GBT	${1.4}_{-0.5}^{+1.6}$	${3.1}_{-1.8}^{+7.6}$	${3.5}_{-2.4}^{+5.8}$	⋯	⋯	⋯
KP	${2.0}_{-0.7}^{+1.5}$	${2.0}_{-0.6}^{+0.7}$	${2.0}_{-0.6}^{+0.7}$	${2.3}_{-0.7}^{+1.3}$	${2.9}_{-0.9}^{+0.6}$	${2.9}_{-1.0}^{+0.6}$
LA	${1.3}_{-0.5}^{+2.1}$	${1.2}_{-0.3}^{+1.5}$	${1.2}_{-0.2}^{+1.5}$	${1.5}_{-0.5}^{+1.3}$	${1.3}_{-0.4}^{+3.2}$	${1.3}_{-0.4}^{+3.2}$
MK	⋯	${7.7}_{-3.7}^{+2.0}$	${5.7}_{-2.7}^{+1.0}$	⋯	${5.3}_{-1.9}^{+2.5}$	${3.7}_{-1.1}^{+1.9}$
NL	${4.7}_{-0.0}^{+0.0}$	${4.2}_{-1.7}^{+1.3}$	${4.3}_{-1.6}^{+1.3}$	${2.3}_{-0.9}^{+5.5}$	${2.6}_{-1.2}^{+2.3}$	${2.6}_{-1.4}^{+2.3}$
OV	${1.8}_{-0.3}^{+2.0}$	${1.4}_{-0.4}^{+0.4}$	${1.4}_{-0.4}^{+0.4}$	${1.9}_{-0.3}^{+2.0}$	${1.7}_{-0.3}^{+0.4}$	${1.8}_{-0.2}^{+0.4}$
PT	${2.0}_{-0.7}^{+1.4}$	${3.6}_{-1.8}^{+1.0}$	${3.5}_{-1.8}^{+1.1}$	${2.0}_{-0.5}^{+1.2}$	${4.0}_{-1.5}^{+1.4}$	${3.9}_{-1.5}^{+1.4}$

Note. Median multiplicative gain corrections (and 95% interval of variation over time) to the visibility amplitudes for common stations from the two calibration methods: 1) self-calibration of Sgr A* amplitudes below 1 Gλ to the Gaussian source estimated from O16; B19, 2) self-calibration of J1924−2914 observations to the closure-only images, and 3) self-calibration of J1924−2914 observations to the closure-only model fits.

Download table as: ASCII Typeset image

The stations with significant discrepancies between gain solutions derived from Sgr A* and J1924−2914 are GBT and Pie Town (PT) for April 14, and Fort Davis (FD) and PT for April 17. Both FD and PT have other VLBA stations very close to them, which allow them to be well constrained by the Gaussian source assumption for Sgr A* whereas some extended diffuse features may be missing in the imaging/modeling of J1924−2914 that lead to this discrepancy. Since the ALMA–GBT baseline is crucial to understanding deviations from the Gaussian source assumption for Sgr A*, we take a closer look at the derived gain corrections for the GBT using both methods. In Figure 5, we show the April 14 GBT gain trends for the Sgr A* Gaussian source method and the J1924−2914 image as a function of time. The discrepancy between the two sources is due to a systematic offset for half of the GBT scans on J1924−2914 at the end of the GBT track. This offset is possibly due to a faulty pointing solution or non-optimal surface adjustment for the telescope after 13 UT affecting half of the J1924−2914 scans. For the times where both sources are observed intermittently, there is a good agreement between the derived gain corrections, with mean GBT amplitude gain corrections of 1.25 ± 0.08 and 1.2 ± 0.1 for J1924–2914 and Sgr A*, respectively. We thus choose to proceed with the Gaussian source-derived gain corrections for the calibration of Sgr A* GBT baselines.

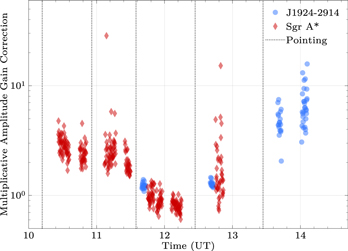

**Figure 5.** GBT multiplicative 10 s interval gain correction trends for J1924–2914 (from the closure-only image) and Sgr A* (from self-calibration to a Gaussian source size) derived from the April 14 observations. The elevations of both sources are descending during the GBT observing track, and remain below 25° for all scans. Vertical dotted lines denote the times at which the GBT performed pointing scans on calibrator sources. The intra-scan scatter is likely due to pointing errors. High gain corrections after 13 UT and large scatter are likely due to faulty re-pointing or non-optimal surface adjustment of the telescope, solely affecting half of the J1924–2914 scans.
Download figure:
Standard image High-resolution image

3.3. Final Sgr A* Visibility Amplitudes

In Figure 6, we show the scan-averaged noise-debiased visibility amplitudes for Sgr A* after Gaussian source self-calibration of the inner 1 Gλ for all GMVA+ALMA observations to date (2017 April 3, 2018 April 14, 2018 April 17). For noise-debiasing, thermal noise contributions to visibility amplitude are removed according to the prescription in Johnson et al. (2015; see also Thompson et al. 2017). The ALMA–GBT baseline, sitting along the scattering minor axis, gives significantly higher flux density than that expected for the minor axis of an intrinsic Gaussian source with an FWHM size of 140 × 105 μas scattered by a purely Gaussian scattering screen (r_in → ∞ ; black curves) but matches the expected flux density from an intrinsic Gaussian source of the same angular size scattered with the estimated parameters from the J18 scattering model (r_in = 800 km; magenta curves). In 2018, VLBA detections to ALMA, oriented near the scattering minor axis, show clear deviations from Gaussian behavior for the scattered image of Sgr A* on the sky and exhibit properties expected from refractive noise. We also derive 4σ upper limits on long baselines with other orientations, based on S/N for detections of the calibrators (filled triangles in Figure 6). Thus our new observations exhibit deviations from Gaussian morphology similar to those of our 2017 observations presented in Issaoun et al. (2019b). For both 2017 and 2018, the ALMA–GBT baseline exhibits a flux density excess and long-baseline VLBA detections to ALMA are consistent with the average refractive noise predicted by J18, sitting below that of GS06. These two scattering realizations one year apart allow us to confidently exclude GS06 as a viable model for the interstellar scattering along our line of sight toward Sgr A*.

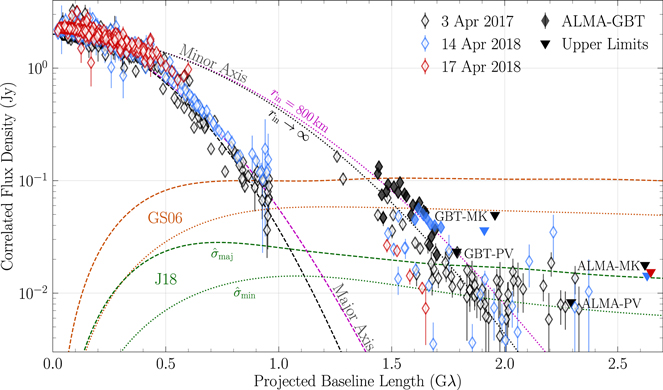

fdg — **Figure 6.** Noise-debiased correlated flux density of Sgr A* as a function of projected baseline length for data after self-calibrating to the Gaussian source size from O16 and B19 using only baselines shorter than 1 Gλ. The error bars indicate the thermal error in individual scans. The amplitude uncertainties from imperfect calibration are not shown but are of the order of ∼10%, corresponding to roughly the size of a symbol. Three epochs are depicted: 2017 April 3 observations presented in Issaoun et al. (2019b) are shown in black, 2018 April 14 observations are shown in blue, and 2018 April 17 observations are shown in red (no GBT). Baselines to NL are flagged for all data sets due to erratic amplitude gain corrections from bad weather. Dashed and dotted curves show the expected visibilities along the major and minor axes, respectively, for an intrinsic elliptical Gaussian source with an FWHM size of 140 × 105 μas scattered with two scattering models: in magenta the intrinsic Gaussian source is scattered with the estimated J18 scattering parameters α = 1.38 and r_in = 800 km while in black the same Gaussian source is scattered with a Gaussian scattering kernel (169 × 86 μas, position angle of 819 east of north; J18), with r_in → ∞ . The orange and green curves show the expected rms renormalized refractive noise along the major and minor axes for the GS06 and J18 models, respectively. All detections beyond ∼1 Gλ are baselines to ALMA oriented close to the scattering minor axis. Labeled filled triangles, colored by data set, indicate 4σ upper limits on four sensitive baselines at other orientations, where corresponding detections were found for our calibrators. Detections on the ALMA–GBT baseline (filled diamonds), oriented along the scattering minor axis, sit above the expected flux density for a Gaussian source and thus clearly indicate non-Gaussian source morphology. Detections on baselines beyond 2 Gλ exhibit expected properties of refractive noise. For both years, refractive noise detections match the average level predicted by J18 and sit below that of GS06.
Download figure:
Standard image High-resolution image

The coverage of our 2018 observations, with only 3 hr including GBT in one epoch, is insufficient to image Sgr A* with the techniques used for the 2017 data set (Issaoun et al. 2019a, 2019b). The large amplitude uncertainty on short VLBA baselines and the lack of non-zero closure phases prevent high-fidelity imaging. A wide variety of image morphologies can be obtained with similar goodness-of-fit to the data, therefore any images we obtain would be driven by strong prior assumptions in the imaging process. However, even without imaging, a direct analysis of the visibility amplitudes can provide strong constraints on the intrinsic size of Sgr A* and the inner scale of the interstellar scattering.

4. Discussion

Connecting scattering properties observed at centimeter wavelengths to those at millimeter wavelengths is not trivial and depends on the relationship between the diffractive scale of the scattering r_diff ∼ λ/θ_scatt and the dissipation scale of turbulence in the scattering material (Johnson et al. 2018; Psaltis et al. 2018). Despite the precise measurement of the angular broadening size of Sgr A* at centimeter wavelengths, the scattering properties cannot be well constrained without a good understanding of the expected transition to non-λ² and non-Gaussian scattering at millimeter wavelengths, where the dissipation scale is comparable to the diffractive scale. The observations presented in this paper offer a prime opportunity to break the degeneracies between the scattering parameters.

We assume a single thin scattering screen incorporating observed behavior from long and short wavelength observations. The parameterization of the uncertainties in the scattering properties is motivated with physical models of the ISM material. These models are typically an anisotropic power-law with an index α for the power spectrum governing phase variations, extending between a maximum (or outer) scale r_out and a minimum (or inner) scale r_in. We utilize the scattering model developed by Psaltis et al. (2018), assuming the "dipole" model for the magnetic field wander. The parameters that can be varied are the asymptotic Gaussian source parameters of the scatter-broadening kernel (θ_maj,0, ${\theta }_{\min ,0}$ , and ϕ_PA), the power-law index α, and the inner scale of the turbulence r_in that cause diffractive kernel deviations from Gaussian and λ² behavior.

In this section, we fix the asymptotic Gaussian source parameters of the scatter-broadening kernel and the distances between the screen, the observer, and Sgr A* to the well-constrained values derived from long-wavelength observations for the J18 model. In Section 4.1, we provide qualitative constraints on α, r_in, and source extent using only long-wavelength constraints and the ALMA–GBT measurements at 3.5 mm and in Section 4.2 we present a full modeling of the scattering and intrinsic source parameters. In Section 4.3, we discriminate between scattering models based on the expected and measured power on long baselines in our 3.5 mm data sets.

4.1. Long-Wavelength Constraints on Inner Scale and Intrinsic Size

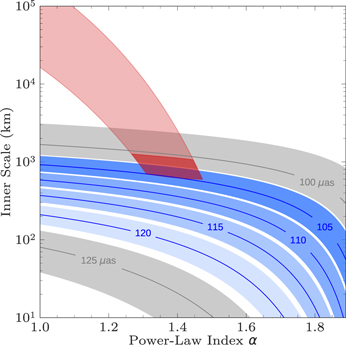

In Figure 7, we present the current constraints on the scattering parameters α and r_in for various intrinsic source extents derived from 3.5 mm measurements. Our measurements on the ALMA–GBT baseline, oriented along the scattering minor axis and resolving the source, indicate clear non-Gaussian source morphology that is persistent over two years of observations. Our historical size measurements at 3.5 mm constrain the intrinsic source FWHM along the scattering minor axis to 106–121 μas within 1 σ uncertainties, assuming the J18 scattering model (Johnson et al. 2018; Issaoun et al. 2019b). We measured the combined 2017–2018 mean amplitude in the middle of the ALMA–GBT baseline track to be 58 ± 6 mJy at a projected baseline length of 1.6 Gλ, assuming a 10% uncertainty on the overall amplitude calibration.

As shown in Figure 6, low values for r_in lead to a shallower fall-off of the visibility amplitudes as a function of baseline length, while r_in → ∞ approaches perfect Gaussian behavior. Deviations from a Gaussian behavior can also be achieved with low values of α. Therefore, for a measured flux density on a given baseline probing the ensemble-average (purely scatter-broadened) image (with a given intrinsic source size, α, and r_in) the same flux density can be achieved with lower α and r_in values paired with a larger intrinsic source. The blue shaded regions in Figure 7 thus show the ranges of parameters giving the measured flux density on ALMA–GBT for a given intrinsic source extent along the scattering minor axis at 3.5 mm within our 1 σ measured range assuming the J18 model. The gray shaded regions give examples of source extent that are beyond our 1 σ measured range.

The red shaded regions in Figure 7 show composite constraints from longer-wavelength radio observations (see Figure 9 of Johnson et al. 2018). The light red shaded region corresponds to the composite (95% confidence) ranges of α and r_in able to reproduce the refractive noise measurements at both λ = 3.6 cm and λ = 1.3 cm but unable to reproduce the non-Gaussian source morphology observed at 7 mm, which requires an inner scale r_in < 2000 km. The dark red shaded region corresponds to the ranges of α and r_in able to both reproduce the cm-wave refractive noise measurements and the non-Gaussian shape at λ = 7 mm. The lower limit of the red region corresponds to a lower limit of r_in ≥ 520 km constrained by the Gaussian source morphology at 1.3 cm. Further details on these longer-wavelengths constraints are presented in Johnson et al. (2018). From the composite longer-wavelength model constraints and 3.5 mm size constraints in Figure 7, we conclude that the intrinsic source extent (FWHM) of Sgr A* along the scattering minor axis must be 100−105 μas. Future analysis of more recent longer-wavelength observations of Sgr A* can also further constrain the parameter space of the scattering model (I. Cho et al. in prep.).

4.2. Joint Modeling of Scattering and Source Parameters

Using only the 3.5 mm observations, we additionally simultaneously model the intrinsic source and interstellar scattering to obtain constraints on source and scattering parameters within the modeling and analysis framework Themis (Broderick et al. 2020). Themis provides a number of methods for handling data, defining models, addressing data systematic uncertainties, and sampling the resulting likelihoods. Because the model has closure phases that are identically zero (as is statistically consistent with our data), we fit only the 3.5 mm final visibility amplitudes obtained in Section 3.3, excluding those data points with an S/N less than 2 to avoid non-Gaussian errors (Thompson et al. 2017).

The primary output of Themis-based analyses are posteriors on model parameters implied by the input data. In this instance, to ensure global convergence, we use the parallelly-tempered Markov Chain Monte Carlo (MCMC) sampler: we employed the deterministic even–odd swap tempering scheme of Syed et al. (2019) with the automated factor slice sampler of Tibbits et al. (2014), which is very efficient for small numbers of model parameters.

Sgr A* is modeled as an elliptical Gaussian source convolved with a parameterized version of the anisotropic diffractive kernel described in Psaltis et al. (2018) and Johnson et al. (2018). The elliptical Gaussian source is parameterized in terms of a total flux density, averaged size, axial ratio (major-to-minor axis ratio), and position angle (ϕ) as described in Broderick et al. (2020), each with uninformative uniform priors. From these we construct the intrinsic source Gaussian major/minor axes ( ${\theta }_{\mathrm{maj}},{\theta }_{\min }$ ). Only the inner scale r_in and power-law index α are permitted to vary, with the remaining scattering parameters already well constrained by prior data. For r_in a log-uniform prior is assumed, ranging from 1 km to 10⁷ km; for α a uniform prior is assumed on (0, 2).

To accommodate the refractive scattering component a constant 7 mJy noise floor is added in quadrature to the input data uncertainties; this is both conceptually and computationally much simpler than fully modeling the complex phase screen. Station residual multiplicative gain corrections are reconstructed and marginalized over via the Laplace approximation during the construction of log-likelihoods after imposing a Gaussian prior centered on unity with a standard deviation of 20% (see Section 6.8 of Broderick et al. 2020). Fitting gain amplitudes has an added practical benefit: when fitting mock data sets, produced with similar noise properties and baseline coverage to our observations of Sgr A*, we found that fitting the gain amplitudes effectively mitigated biases from refractive scattering. The derived residual multiplicative gain corrections are shown in Figure 9. Each data set was independently analyzed to avoid potential complications associated with source variation. Excellent fits were obtained in all cases. No qualitative differences in fit quality were found when analyzing both 2018 data sets together.

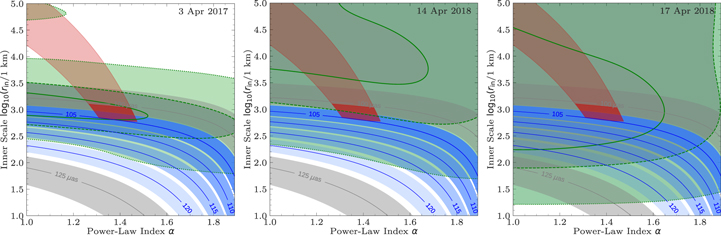

In Figure 8, we present the posteriors on the scattering parameters r_in and α added to the multi-wavelength analysis from Figure 7. The median values and 95% confidence ranges for all fitted parameters are presented in Table 3 for each data set. The results for 2017 April 3 and 2018 April 14 show great consistency within our confidence ranges, while the results for 2018 April 17 are not well constrained due to the absence of the GBT. Although α is not well constrained at 3.5 mm, the 2017 data set in particular constrains r_in < 3300 km at the 2σ level. The 2017 data set contains the longest observation with the ALMA–GBT baseline, on which the amplitude fall-off indicates deviations from Gaussian morphology and thus results in a finite inner scale, as illustrated in Figure 6. This result is completely independent from the longer-wavelength constraints (red shaded regions in Figure 8), yet provides complete overlap in the parameter space for α and r_in, as well as a consistent intrinsic size estimate to that derived from longer-wavelength constraints in Section 4.1. While the 2018 data sets alone do not constrain in the α − r_in parameter space, the clear ALMA–GBT detections on 2018 April 14 build confidence in the non-Gaussian behavior on that baseline across multiple years. The persistently low-flux-density long-baseline VLBA–ALMA detections allow us to rule out the GS06 scattering model as a viable model for the interstellar scattering toward Sgr A*, see Section 4.3.

Table 3. Results from Themis Model Fitting of the Intrinsic Source and Scattering Parameters Simultaneously

Variable	2017 Apr 3	2018 Apr 14	2018 Apr 17	J18
${\theta }_{\min }$ (μas)	${99}_{-7}^{+6}$	${96}_{-6}^{+7}$	${110}_{-52}^{+40}$	⋯
θ_maj (μas)	${146}_{-12}^{+11}$	${140}_{-13}^{+14}$	${129}_{-20}^{+67}$	⋯
ϕ (deg.)	${70}_{-6}^{+6}$	${66}_{-9}^{+16}$	${72}_{-63}^{+95}$	⋯
α	${0.8}_{-0.7}^{+0.8}$	${1.1}_{-1.0}^{+0.8}$	${1.0}_{-0.9}^{+0.9}$	${1.38}_{-0.04}^{+0.08}$
log ₁₀(r_in/1 km)	${3.2}_{-0.6}^{+0.5}$	${5}_{-2}^{+2}$	${4}_{-2}^{+3}$	${2.9}_{-0.1}^{+0.1}$

Note. Median values and 95% confidence ranges are shown. The posteriors have been filtered to remove numerical pathologies at the edges of the sampled scattering parameter ranges.

Download table as: ASCII Typeset image

We select the 2017 April 3 data set as our best data set, due to its more complete (u,v) coverage and its longer GBT observing track (double that of the 2018 observing days). We obtain the following source size parameters for our best data set (2017): a major axis FWHM of 146 ± 12 μas, a minor axis FWHM of 99 ± 7 μas, and a position angle of 70° ± 6°, almost oriented along the diffractive kernel. This alignment may be coincidental, or it may indicate that the assumed diffractive kernel is incorrect, producing a biased intrinsic size that is aligned with the scattering kernel. Because our imaging of the 2017 data set in Issaoun et al. (2019b) yielded a largely unconstrained position angle, this alignment may also indicate that the Gaussian model for intrinsic structure is overly simplistic, with tight posteriors that are spurious. The derived major-to-minor axis ratio (or "axial ratio") of 1.5 ± 0.2 is slightly larger than the ratio ( ${1.2}_{-0.2}^{+0.3}$ ) measured directly from the intrinsic image reconstructed by Issaoun et al. (2019b). In addition to different systematics due to varying methods for the intrinsic size measurement, the α and r_in parameters used to separate the scattering effects from the intrinsic source structure are different from the derived median values (although they are consistent within the 95% confidence interval for two of the three data sets), shown in Table 3. In Issaoun et al. (2019b) we assumed the J18 parameter values, whereas in this work we fit for α and r_in within Themis simultaneously with the intrinsic source parameters. Thus, the degeneracy in the scattering and intrinsic source size parameters likely lead to this slight shift in the measurement for the axial ratio. Whereas in Issaoun et al. (2019b) we assumed particular values of α and r_in to obtain information on the intrinsic source structure, our new result, however, confirms that the source still modestly deviates from circular symmetry even if we allow the scattering parameters to vary.

In Issaoun et al. (2019b) we explored a set of general-relativistic magnetohydrodynamic (GRMHD) simulations of the Sgr A* accretion flow: disk versus jet-driven emission, varying particle acceleration, varying spin, and varying heating prescriptions (Mościbrodzka et al. 2009, 2014, 2016; Howes 2010; Rowan et al. 2017; Davelaar et al. 2018; Chael et al. 2018a). We found that high-inclination jet-dominated models (>20° of face-on) produce larger axial ratios than the measurement on Sgr A* and are thus ruled out. Our new axial ratio measurement in this work, allowing the freedom to fit the scattering parameters, confirms this result. This range in allowed inclination for jet models is also consistent with the independent near-infrared orbiting flare results from the Gravity experiment (Gravity Collaboration et al. 2018b). In addition, the measured axial ratio is now slightly too large to also be consistent with low-inclination disk-dominated models (<20°), which are close to circular (Figures 9 and 10 of Issaoun et al. 2019b). With this new measurement, the explored emission models best able to replicate the size and axial ratio observed for Sgr A* are thus low-inclination jet or mid/high-inclination disk models. However, it is worth noting that the degeneracy in the scattering and intrinsic source parameters could be the cause of this shift in the measured value of the axial ratio and only a small subset of GRMHD models were studied. Therefore, whether or not low-inclination disks are truly ruled out remains uncertain.

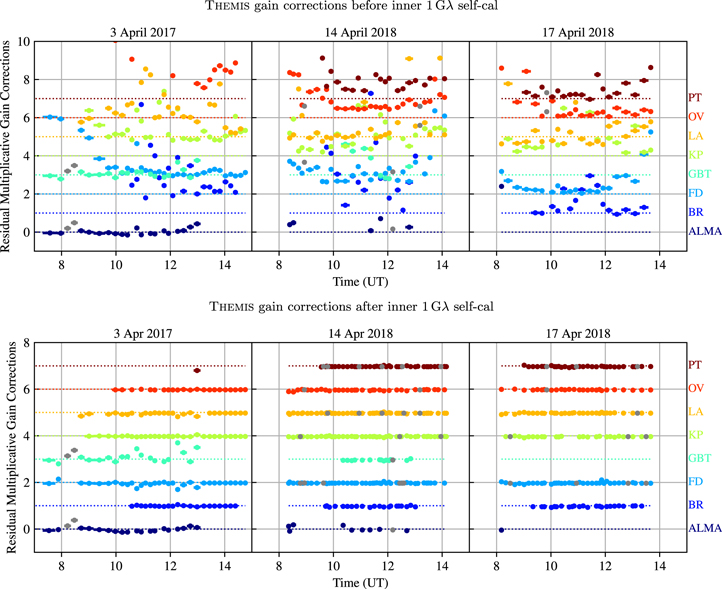

**Figure 9.** Residual multiplicative gain corrections derived by Themis in the Sgr A* model fitting for all three observing days. Top: residual variations in the amplitudes derived from the data sets where only a priori amplitude corrections are applied. Bottom: residual variations in the amplitudes derived from the data sets already corrected based on self-calibration (see Section 3.2). For 2017 April 3, inner 1 Gλ self-cal gain corrections were not applied to the GBT due to the scatter introduced by its baseline to NL, whose measurements dominate within that baseline cut (Issaoun et al. 2019b). In all panels, individual station gain corrections are offset vertically by unity for clarity, with the dashed horizontal lines indicating a unit gain for each station. The gain correction scale is linear. Each point corresponds to an individual scan: colored points are independently reconstructed in the procedure, gray points are not well constrained due to missing information and are thus heavily biased by the prior.
Download figure:
Standard image High-resolution image

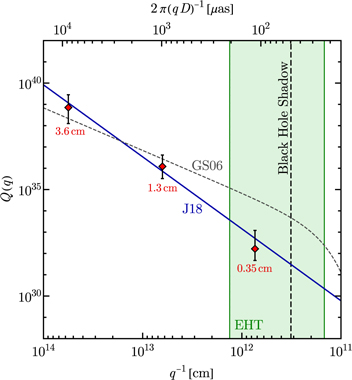

**Figure 10.** Observational constraints, from refractive noise on long interferometric baselines, on the power spectrum ${ \mathcal Q }({\boldsymbol{q}})$ of phase fluctuations. Note that ${ \mathcal Q }({\boldsymbol{q}})$ is dimensionless and independent of the observing wavelength. Constraints at 3.6 and 1.3 cm are from J18; the 3.5 mm results are from the observations reported here and by Issaoun et al. (2019b). The red diamonds represent constraints on the power for wavenumbers q⁻¹ ∼ 10¹²–10¹⁴ cm from refractive noise on long baselines observed at 3.6 cm, 1.3 cm, and new 3.5 mm wavelengths along the scattering major axis. The green shaded region delimits the range of modes that are expected to contribute refractive noise to 1.3 mm EHT images of Sgr A*. The power spectra of two scattering models are plotted: the GS06 model with α = 0 and r_in = 2 × 10⁶ km (dashed gray) and the recommended J18 model with α = 1.38 and r_in = 800 km (solid blue). All observational constraints are consistent with the recommended J18 model. While the previous cm wavelength detections of refractive noise are consistent with both models, the new 3.5 mm upper limit for the power from refractive noise along the scattering major axis is a factor of 10 below the predicted power by the GS06 model.
Download figure:
Standard image High-resolution image

**Figure 10.** Observational constraints, from refractive noise on long interferometric baselines, on the power spectrum ${ \mathcal Q }({\boldsymbol{q}})$ of phase fluctuations. Note that ${ \mathcal Q }({\boldsymbol{q}})$ is dimensionless and independent of the observing wavelength. Constraints at 3.6 and 1.3 cm are from J18; the 3.5 mm results are from the observations reported here and by Issaoun et al. (2019b). The red diamonds represent constraints on the power for wavenumbers q⁻¹ ∼ 10¹²–10¹⁴ cm from refractive noise on long baselines observed at 3.6 cm, 1.3 cm, and new 3.5 mm wavelengths along the scattering major axis. The green shaded region delimits the range of modes that are expected to contribute refractive noise to 1.3 mm EHT images of Sgr A*. The power spectra of two scattering models are plotted: the GS06 model with α = 0 and r_in = 2 × 10⁶ km (dashed gray) and the recommended J18 model with α = 1.38 and r_in = 800 km (solid blue). All observational constraints are consistent with the recommended J18 model. While the previous cm wavelength detections of refractive noise are consistent with both models, the new 3.5 mm upper limit for the power from refractive noise along the scattering major axis is a factor of 10 below the predicted power by the GS06 model.
Download figure:
Standard image High-resolution image

4.3. Constraints on the Power Spectrum

The refractive noise power on a long baseline u is chromatic, dependent on the power-law index α of the phase fluctuations, and is dominated by refractive modes with q ∼ 2π u /D. Previous constraints on the power spectrum ${ \mathcal Q }({\boldsymbol{q}})$ for a wavenumber q⁻¹ based on cm-wavelength refractive noise power detections by Johnson et al. (2018) showed that both the J18 and the GS06 models fit cm-wave constraints but the models are expected to be most different in the mm-wave regime. In our 2017 and 2018 data sets, we solely detect power on long baselines on ALMA baselines sampling mostly along the scattering minor axis. However, previous cm-wave measurements of noise power were along the scattering major axis (see Johnson et al. 2018, Figure 14). To add a 3.5 mm constraint to those measurements, we therefore need to make use of estimated 4σ upper limits on baselines along the scattering major axis where no detections were found on Sgr A* but the level of noise for those baselines is known from detections on calibrators.

In Figure 10, we present a similar plot to Figure 14 in Johnson et al. (2018), with our newly added 3.5 mm constraint. Our mean visibility amplitude (after noise-debiasing) is 6 mJy along the scattering minor axis on baselines beyond 1.8 Gλ, measured on ALMA baselines for our 2017–2018 data sets. We determine the central value (red diamond) for the major axis constraint as the equivalent power measured along the scattering major axis at 3.5 mm for a scattering model giving 6 mJy of refractive noise along the minor axis. The upper limit of the constraint is given by the 4σ upper limit of 30 mJy at 1.8 Gλ on the sensitive east–west GBT–IRAM 30 m baseline from our 2017 data set (Issaoun et al. 2019b). The lower limit of the constraint assumes that the 6 mJy detection for a single scattering realization is purely refractive noise, giving a lower limit of ∼3 mJy for the ensemble-average rms (see Section 6.1 of Issaoun et al. 2019b). Because we are combining estimates of refractive noise along the major and minor axes, this estimate of Q( q ) is sensitive to the assumed model of magnetic field wander (here, we use the "dipole" model of Psaltis et al. 2018) but primarily depends on the rough extent of the ensemble-average image so is insensitive to the assumed scattering parameters, α and r_in (see, e.g., Equation (16) of Johnson & Narayan 2016).

We also plot in Figure 10 the power spectra for the two scattering models, GS06 (dashed gray line) and J18 (blue solid line). Refractive modes impacting horizon-scale reconstructions with the EHT are within the green shaded region. While both models fit constraints in the cm-wave regime, the 3.5 mm constraint discriminates between the two: the power predicted by the J18 model is consistent with the constraint, while the power predicted by GS06 model lies an order of magnitude above it. The 3.5 mm measurement directly probes refractive modes within the EHT's field of view, for which scattering substructure can contaminate EHT horizon-scale images. Assuming the J18 model, our 3.5 mm result confirms expectations of low (of the order ∼1% of total flux density) levels of refractive noise on long VLBI baselines observable with the EHT at 1.3 mm.

5. Summary

We have presented 2018 observations of Sgr A* using ALMA in concert with the GMVA at 86 GHz. In combination with observations carried out in 2017 and presented in Issaoun et al. (2019b), we show that the ALMA–GBT baseline resolves persistent non-Gaussian morphology along the scattering minor axis. In addition, long-baseline detections to ALMA (1.8–2.4 Gλ) exhibit characteristics of low-level refractive noise across both years of observations. Using the scattering model developed by Psaltis et al. (2018), we show that these long-baseline detections are consistent with the scattering parameters estimated in Johnson et al. (2018), while they are at least five times weaker than the expected refractive noise for the parameters suggested by Goldreich & Sridhar (2006). While a single realization of the refractive scattering would give values this low for approximately 4% of observations, the probability of seeing two independent observations at this level is less than 0.15%, firmly ruling out the Goldreich & Sridhar (2006) parameters.

We made use of the chromatic nature of the interstellar scattering to put stringent constraints on the intrinsic source extent at 86 GHz along the scattering minor axis. We combined 8, 22, and 43 GHz constraints on the scattering parameters presented in Johnson et al. (2018) with our 86 GHz persistent flux density excess on the ALMA–GBT baseline. We found that the ALMA–GBT baseline flux density excess predicts an intrinsic source extent along the scattering minor axis of ∼100 μas for Sgr A* for the ranges of power spectrum power-law index α and inner scale of turbulence r_in allowed by lower-frequency measurements from Johnson et al. (2018).

Direct modeling of our 86 GHz data with Themis (Broderick et al. 2020), fitting simultaneously the scattering and intrinsic source parameters, gave overlapping α − r_in parameter ranges with lower-frequency constraints and source size estimates consistent with the lower-frequency predictions. Source size estimates for all independent data sets are consistent within their uncertainties. The fitted source size parameters obtained for our best data set, on 2017 April 3, are: a major axis FWHM of 146 ± 12 μas, a minor axis FWHM of 99 ± 7 μas, and a position angle of 70 ± 6°, almost oriented along the diffractive kernel. We obtain a major-to-minor axis ratio for the source of 1.5 ± 0.2. In the scope of the set of general-relativistic magnetohydrodynamic simulations explored in Issaoun et al. (2019b), high-inclination jet-dominated models producing larger axial ratios are ruled out, but the measured axial ratio is now too large to also be consistent with low-inclination disk-dominated models (Figures 9 and 10 of Issaoun et al. 2019b). Assuming the fitted scattering parameters, the explored emission models best able to replicate the size and axial ratio observed for Sgr A* are thus low-inclination jet or mid/high-inclination disk models.

We have shown that 86 GHz measurements of the interstellar scattering are crucial for the discrimination of scattering models. In particular, our observations favor a dissipation scale of ∼10³ km for interstellar turbulence, which is consistent with a characteristic scale determined by the ion Larmor radius (Spangler & Gwinn 1990). Irrespective of the specific scattering properties, our results probe the scales of phase fluctuations that are comparable to the angular size of the black hole shadow of Sgr A*, giving model-independent insights into how scattering may affect images of Sgr A* produced with the Event Horizon Telescope. Future observations at 86 GHz with the newly upgraded 50 m surface of the LMT will enable probing of the structure along the scattering minor axis on a highly sensitive baseline with ALMA, providing a second anchor for deviations from Gaussian morphology and model constraints. GMVA bandwidth enhancements and station expansion would also enable higher fidelity imaging, enable higher sensitivity in the east–west to possibly detect refractive structure along the scattering major axis in the mm wave band, and possibly obtain the first polarization detections on VLBI baselines at 86 GHz, allowing us to further sharpen our view of the accretion flow of Sgr A*.

We thank our anonymous referee for a thorough review and helpful suggestions, which improved the quality and clarity of the manuscript. We thank Vincent Fish for his helpful comments and careful review. This work is supported by the ERC Synergy grant "BlackHoleCam: Imaging the Event Horizon of Black Holes", grant 610058. We thank the National Science Foundation (AST-1716536, AST-1440254, AST-1935980, AST-2034306) and the Gordon and Betty Moore Foundation (GBMF-5278) for financial support of this work. This work was supported in part by the black hole Initiative, which is funded by grants from the John Templeton Foundation and the Gordon and Betty Moore Foundation to Harvard University. A.C. is supported by Hubble Fellowship grant HST-HF2-51431.001-A awarded by the Space Telescope Science Institute, which is operated by the Association of Universities for Research in Astronomy, Inc., for NASA, under contract NAS5-26555. I.C. is supported by the National Research Foundation of Korea (NRF) via a Global PhD Fellowship grant (NRF-2015H1A2A1033752). L.L. acknowledges the financial support of DGAPA, UNAM (projects IN112417 and IN112820), and CONACyT, México (projects 275201—Agencia Espacial Méxicana; and 263356—Ciencia de Frontera). M.K. was supported by JSPS KAKENHI grant Nos. JP18K03656 and JP18H03721. This paper makes use of the following ALMA data: ADS/JAO.ALMA2017.1.00795.V. ALMA is a partnership of ESO (representing its member states), NSF (USA) and NINS (Japan), together with NRC (Canada), MOST and ASIAA (Taiwan), and KASI (Republic of Korea), in cooperation with the Republic of Chile. The Joint ALMA Observatory is operated by ESO, AUI/NRAO and NAOJ. The ALMA data required non-standard processing by the VLBI QA2 team (C. Goddi, I. Martí-Vidal, G. B. Crew, H. Rottmann, and H. Messias). This research has made use of data obtained with the Global Millimeter VLBI Array (GMVA), coordinated by the VLBI group at the Max-Planck-Institut für Radioastronomie (MPIfR). The GMVA consists of telescopes operated by MPIfR, IRAM, Onsala, Metsahovi, Yebes, the Korean VLBI Network, the Green Bank Observatory and the Very Long Baseline Array (VLBA). The VLBA is a facility of the National Science Foundation under cooperative agreement by Associated Universities, Inc. The data were correlated at the DiFX correlator of the MPIfR in Bonn, Germany. This work made use of the Swinburne University of Technology software correlator (Deller et al. 2011), developed as part of the Australian Major National Research Facilities Programme and operated under licence.

Facilities: GMVA - , ALMA - , VLBA - , GBT. -

Software: AIPS (Greisen 2003), DiFX (Deller et al. 2011), HOPS (Whitney et al. 2004; Blackburn et al. 2019), PolConvert (Martí-Vidal et al. 2016), GNU Parallel (Tange 2011), Numpy (van der Walt et al. 2011), Scipy (Jones et al. 2001), Pandas (McKinney 2010), Astropy (The Astropy Collaboration et al. 2013, 2018), Jupyter (Kluyver et al. 2016), Matplotlib (Hunter 2007), eht-imaging (Chael et al. 2016), Themis (Broderick et al. 2020).
